The ReadyLIFT Tubular Radius Arm Kit brings the front radius arm geometry back in line after lifting. It suits owners upgrading a truck that is already leveled or lifted. ReadyLIFT kit 77-23400 is engineered for the 2023-2026 Ford F-250 Super Duty and F-350 Super Duty.
What's Included:
| Kit components (ReadyLIFT) |
|---|

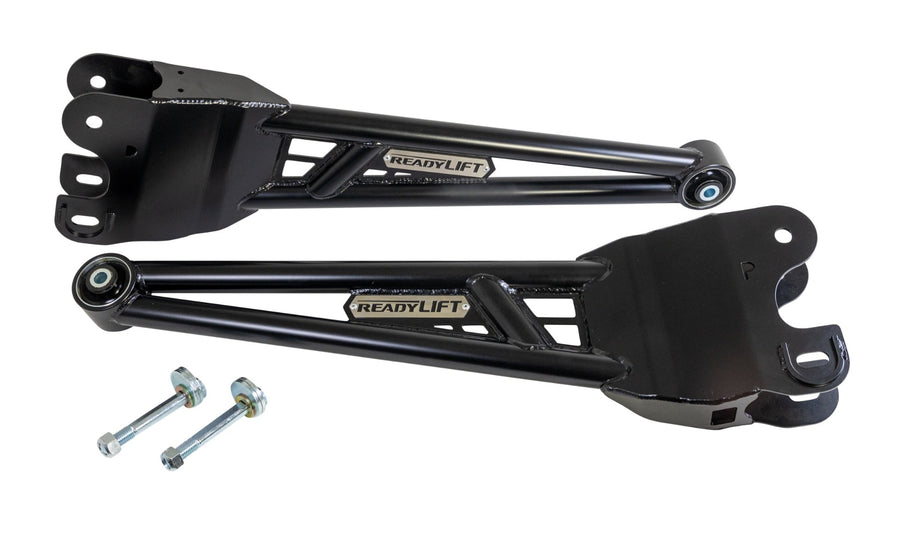

| Radius Arm, Left, Assembled |
| Radius Arm, Right, Assembled |
| Cam Bolt Kit |
Alignment, headlamp aiming and ADAS recalibration are not included.
Features
Corrects lifted geometry

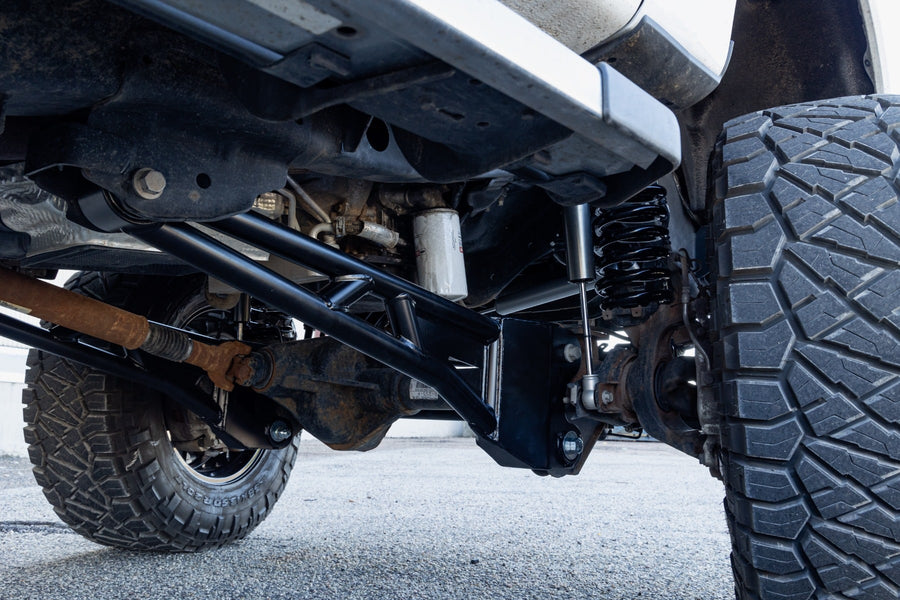

The arms are designed to restore suspension geometry on lifted Super Duty trucks.
Heavy-duty tubular construction
Tubular arms are built for the use and weight Super Duty trucks put on their front suspension.
Formed for tire clearance
The arms are shaped inward, which leaves extra room for oversized tires.
Direct bolt-on design
ReadyLIFT designed the arms to bolt on in place of the factory radius arms.
Complete left and right
The kit includes assembled left and right arms with a cam bolt kit.
Fitment & Compatibility
Ford
| Years |
Model |
Notes |
| 2023-2026 |
F-250 Super Duty |
4WD only; Diesel engine only |
| 2023-2026 |
F-350 Super Duty |
4WD only; Diesel engine only |
Fit guidance: Fits: 2023-2026 Ford F-250 Super Duty/F-350 Super Duty, with the qualifiers shown. Check your vehicle's trim, drivetrain and factory suspension against these notes before ordering.
Specifications
-
Brand: ReadyLIFT
-
Warranty: ReadyLIFT No Hassle warranty, original purchaser; bushings up to 1 year
-
Install time (ReadyLIFT estimate): about 3 hours (give or take 0.5), alignment and wheel mounting extra
-
Shipping weight: 76 lb
-
Kit type: Control arms
-
Alignment required: Yes, after installation
-
Install difficulty: Professional install recommended
-
Part number: 77-23400
Installation
Type: radius arm upgrade · Install: per-vehicle, see each kit's install sheet · Afterward: alignment, headlamp aim, ADAS check
This kit installs using the steps in ReadyLIFT's instructions for this truck. Plan on a wheel alignment after installation and have headlamp aim checked. Vehicles with camera, radar or sonar driver-assistance systems need those systems checked and recalibrated, which can require dealer tools. ReadyLIFT recommends installation by a certified mechanic and says to read the full instructions before starting.
ReadyLIFT estimates about 3 hours for this kit, give or take 0.5 hours, not counting the alignment or mounting wheels and tires.
ReadyLIFT's installation instructions for this part number are linked under Resources. Read them fully before starting.
Resources
Warranty, Shipping & Returns
Warranty. ReadyLIFT backs this product with its No Hassle warranty for the original purchaser: if a part breaks or arrives defective, ReadyLIFT ships a replacement, and a claim starts with a call to 800-549-4620. Wear items such as shocks, ball joints and bushings are covered for up to one year. Discontinued, clearance and outlet items are excluded, as are labor, installation charges and consequential vehicle damage. Shipping. The carrier and ship method are set by the size and weight of the cartons when the order is placed; larger kits ship by freight. Inspect on delivery. Check every box and part against the kit component list when it arrives, and report any shortage or shipping damage before installation begins.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
