The 20" SR-Series Amber Grille Kit pairs Rigid lighting with mounting shaped for this vehicle, so the lights land in a planned position instead of on a universal bracket. Rigid publishes an install sheet for each kit, so the fit notes and steps are specific to this vehicle. Rigid part 46764 fits the 2024-2026 Toyota Tacoma.

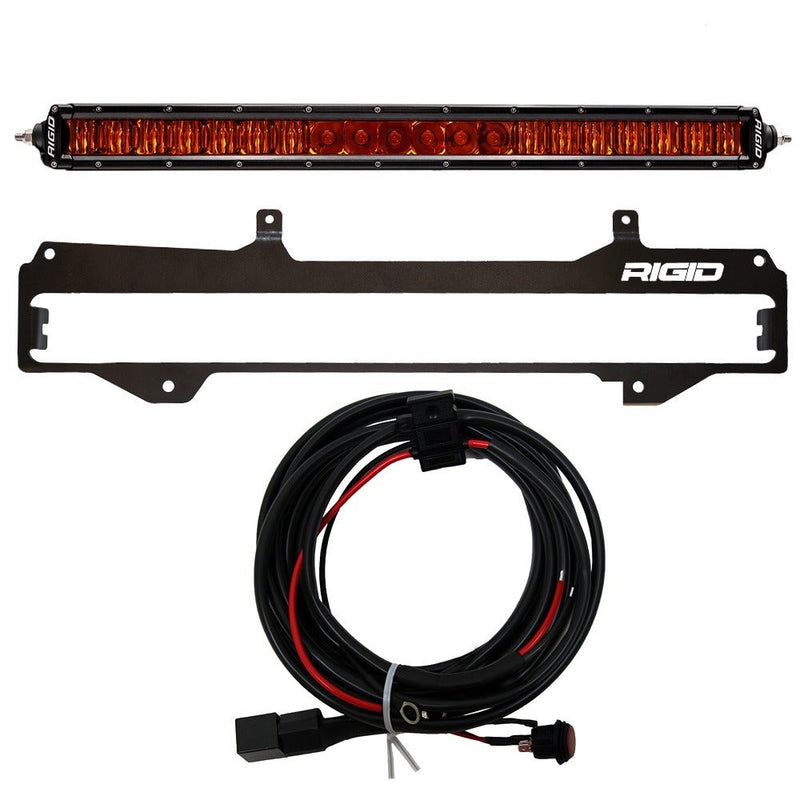

In the box: Single Light Bar, Vehicle Specific Grille Bracket, Mounting Hardware, Harrness & Switch w/Relay and NOTE: Grille kit does NOT include a grille, only the mounting bracket to install behind grille..
Professional installation is not included, and any wiring, switch or cover not shown in the box list is sold separately.
Features
Lights and mounting in one kit
Every kit bundles Rigid LED lights with the mounting designed for its location, under a single Rigid part number, so there is no need to source lights and brackets separately.
Engineered for one vehicle
The mounting is designed around a specific truck or SUV and mounting location, so the lights sit where Rigid intended and follow the lines of the body.
Rigid LED lighting
The lights come from Rigid's own LED range, the same series sold individually, so the beam and output match what Rigid publishes for that series.
Covered by Rigid's lifetime warranty
Rigid lists a Limited Lifetime Warranty for these kits, covering manufacturing defects for the original purchaser with proof of purchase.
Vehicle-specific install sheet
Rigid supplies an installation sheet written for the vehicle and location, with any trim, wiring or fit notes that apply to that application.
Fitment & Compatibility
Toyota
| Years |
Model |
Notes |
| 2024-2026 |
Tacoma |
TRD Pro trim only; TRD grille only; grille not included |
| 2024-2026 |
Tacoma |
Trailhunter trim only; TRD grille only; grille not included |
Fit guidance: Fits: 2024-2026 Toyota Tacoma. Check the notes below against your vehicle before ordering.
Rigid fit notes for this part
| Not for: All other Tacoma trims; others use 46813/46814/46815) |
Specifications
-
Brand: Rigid
-
Product Type: Vehicle-specific LED light kit
-
Lights Included: Yes
-
Warranty: Rigid Limited Lifetime Warranty
-
Mount Type: Grille mount
-
Beam Category: Spot
-
Current Draw at 14V (A): 8.5
-
Raw Lumens: 13680
-
Watts: 119
-
Lux @10m: 720.1
-
Beam Distance @ 1 LUX: 268.4 m
-
Beam Distance @ .25 LUX: 536.7 m
-
Peak Beam Intensity(cd): 72013
-
Horizontal Beam Angle: 58.2°
-
Vertical Beam Angle: 15.8°
-
Product Weight: 5.1 lb
-
Part number: 46764
-
Size: 20 in
-
Lens Color: Amber
-
Mounting Location: Grille
-
Wiring Harness Included: Yes, harness and switch with relay
California Proposition 65
WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Installation
Type: vehicle-specific light kit · Install: bolt-on to the listed mounting location; method varies by vehicle · Tools: listed on the Rigid install sheet
Mount the kit at the location named in the product title, route the wiring as the install sheet directs, and aim the lights before regular use. The fit notes and install sheet below cover this vehicle.
Rigid's installation instructions for this part are linked under Resources. Read them fully before starting.
Resources
Warranty, Shipping & Returns
Warranty. Rigid covers this product with its Limited Lifetime Warranty against manufacturing defects for the original purchaser with proof of purchase. Coverage is limited to 5 years for commercial, marine and industrial use, and powder coating and lenses carry 1 year. Seal tampering, improper installation, damage from ammonia-based cleaners and road-salt erosion are not covered. Shipping. Ships in the manufacturer's carton by parcel carrier; long light bars ship in oversize cartons. Inspect on delivery. When the carton arrives, open it and check the lights, brackets and hardware against the box list before you start, and report any shipping damage right away with photos.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Rigid Industries
Rigid Industries started in 2006 in Gilbert, Arizona. Its engineers wanted lighting that outperformed halogen and HID lamps, so they built a patented Hybrid Optical System and brought what Rigid calls the first LED light bar to market, a turning point for off-road lighting.
Rigid has partnered with vehicle makers including Toyota, Ford and Polaris, and off-road racers at events such as the Baja 1000 and the Mint 400 run its lights. The company builds its products to hold up to harsh conditions and demanding OEM test standards.
Rigid is part of Clarience Technologies, a group of vehicle lighting, visibility and safety brands.
