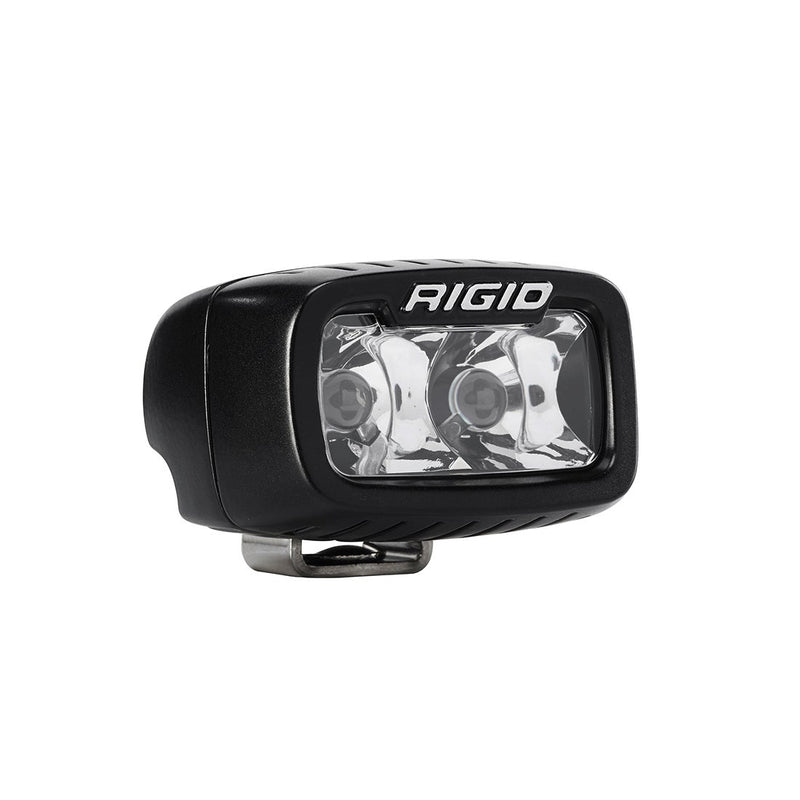

The SR-M Series PRO Spot Pod packs Rigid PRO output into a compact pod for tight mounting spots. Its beam and output are listed in the specifications. This listing is Rigid part 902213.
In the box: Light Single, Mounting Hardware, Stainless Steel U-Shape Bracket, Harness & Switch (no Relay), Deutsch Connector and Black Light Cover.
Installation is not included, and any harness, switch, cover or mount that is not on this light's box list is sold separately.
Features
Small pod, real punch
SR-M and SR-Q are compact pods sized for places a larger pod cannot go.
Made for tight spaces

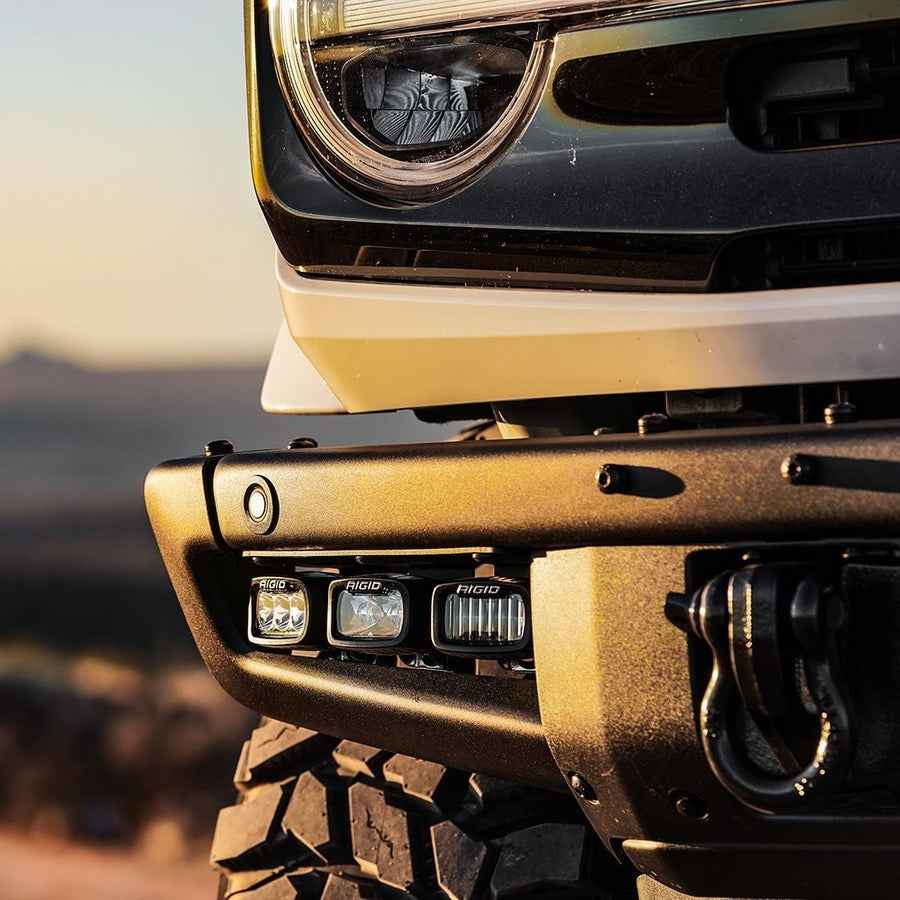

Bumpers, toy haulers, A-pillars and rear corners all have room for a pod this size.
Beam choices for the job
The range covers spot, flood, driving and diffused patterns; this pod's beam is listed in its specifications.
Blacked-out, updated look
Black circuit boards and fresh Rigid branding give the pods a clean, modern appearance.
Built Rigid tough
Compact does not mean fragile: these pods are built to the same toughness as the rest of Rigid's PRO range.
Specifications
-
Brand: Rigid
-
Series: SR-M Series PRO / SR-Q Series PRO
-
Light Type: Compact LED pod
-
Mount Type: Surface mount
-
Warranty: Limited Lifetime Warranty (commercial, marine and industrial use 5 years; powder coating and lenses 1 year)
-
Size: 2"X3"
-
Beam Category: Spot
-
Voltage Range: 9V - 36V
-
Current Draw at 14V (A): 1.07
-
Raw Lumens: 1584
-
Watts: 15
-
Lux @10m: 346.41
-
Beam Distance @ 1 LUX: 186.1 m
-
Beam Distance @ .25 LUX: 372.2 m
-
Peak Beam Intensity(cd): 34641
-
Horizontal Beam Angle: 17.2°
-
Vertical Beam Angle: 15.8°
-

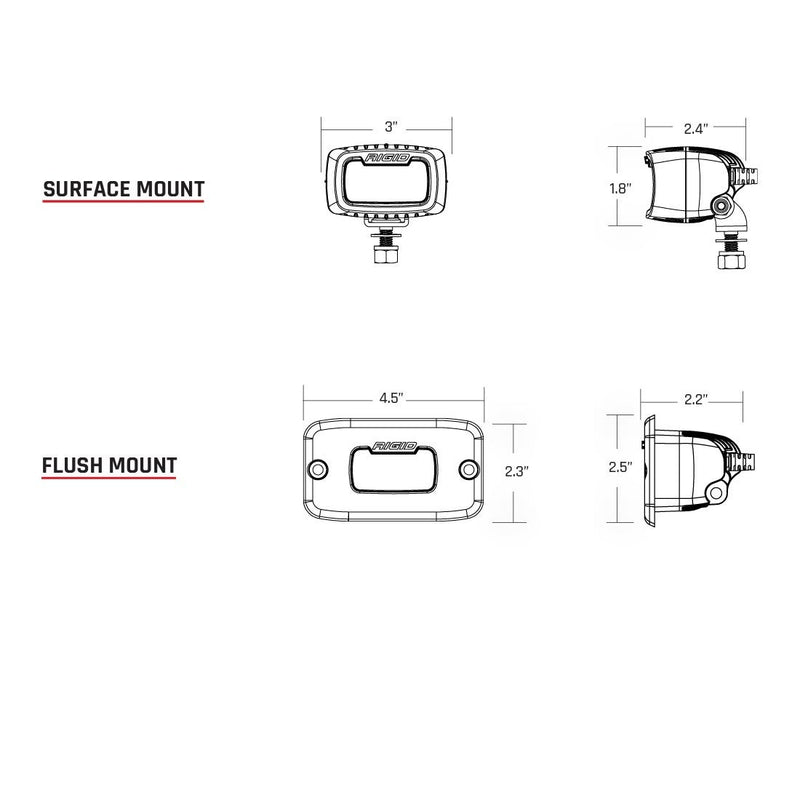

Product Height: 1.8"
-
Product Width: 3"
-
Product Depth: 2.4"
-
Product Weight: 0.476 lb
-
Part number: 902213
-
Lens Color: Clear
-
Mounting Location: A-Pillar/Ditch
-
Wiring Harness Included: Yes, harness and switch (no relay)
California Proposition 65
WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Installation
Type: Universal compact LED pod · Install: surface mount on a bracket, wired to the vehicle electrical system · Tools: per the Rigid install sheet
Mount the pod on its bracket, aim it, and route the wiring as the Rigid install sheet shows. The box list below shows what comes with this pod.
Rigid's installation instructions for this part are linked under Resources. Read them fully before starting.
