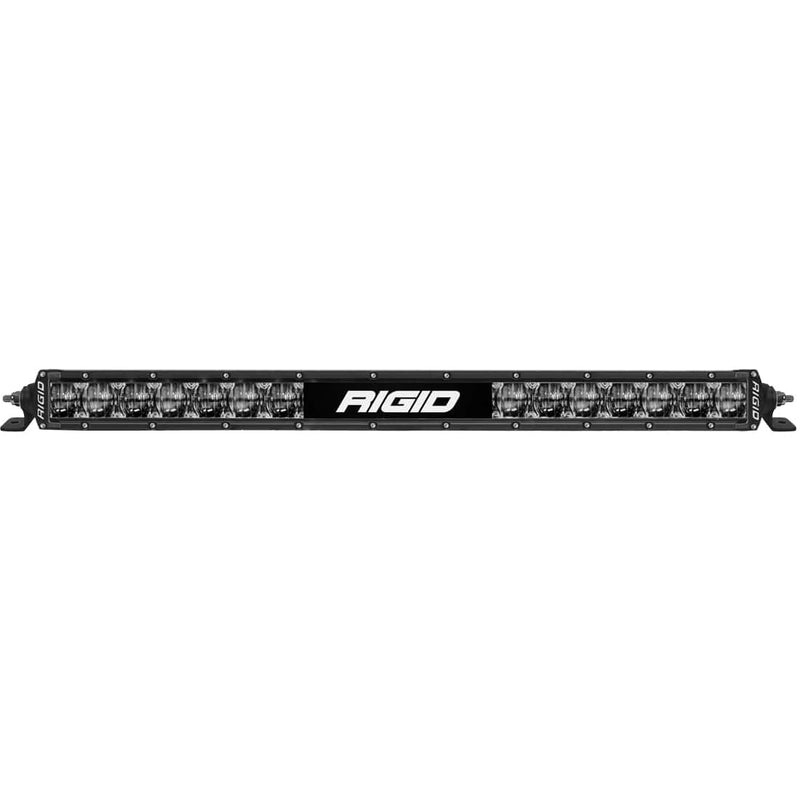

Rigid SR-Series 20" Dual Function SAE Bar on a studio background: A black 20" SR-Series LED light bar with end mounting brackets on a white background

Rigid SR-Series 20" Dual Function SAE with Amber Backlight

Name: Rigid SR-Series 20" Dual Function SAE with Amber Backlight
Brand: Rigid Industries
SKU: 920414
Price: 759.99 USD
Availability: InStock

$759.99

FREE SHIPPINGNo sales tax Only 1 leftIn stock now Estimated delivery

Option: Amber

Guaranteed FitmentTeam-confirmed fit or money back
No Sales TaxZero sales tax on every order
30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund

Questions or a custom quote?

Mon to Fri, 9am to 5pm EST

+1 (470) 823-2453 Email Us

The SR-Series 20" Dual Function SAE with Amber Backlight is an SR-Series bar that Rigid lists with its SAE beam as a street legal auxiliary high beam. A white or amber backlight toggles to change its look. This listing is Rigid part 920414.

In the box: Single Light Bar, Mounting Hardware, Black Power Coated L-Shape Brackets and Harness & Switch w/Relay.

Installation is not included, and any harness, switch, cover or mount that is not on this light's box list is sold separately.

Features

SAE auxiliary high beam
Rigid lists this bar with its SAE beam and calls it a street legal auxiliary high beam, so it can add reach on the road as well as off it.

Toggle white or amber backlight
A backlight that switches between white and amber gives the bar a distinct look whether it is on or off.

Low profile, real output
The slim single-row housing sits low on a bumper or grille and still throws a useful amount of light down the road.

Fits where bigger bars cannot
Its shallow depth suits tight openings and clean installs where a double-row bar will not fit.

Clean, understated styling
A sleek housing blends into the front of the truck instead of dominating it.

Specifications

Brand: Rigid
Series: SR-Series
Light Type: Single-row LED bar
Mount Type: Surface mount
Beam: SAE beam (Rigid: street legal, compliant with SAE standards)
Warranty: Limited Lifetime Warranty (commercial, marine and industrial use 5 years; powder coating and lenses 1 year)
Size: 20"
Voltage Range: 9V - 36V
Product Height: 2.7"
Product Width: 21.5"
Product Depth: 3"
Product Weight: 4.7 lb
Part number: 920414
Mounting Location: Bumper
Wiring Harness Included: Yes, harness and switch with relay
Raw Lumens: 8253
Watts: 95
Current Draw at 14V (A): 6.8
Beam Distance @ 1 LUX: 185.1 m
Beam Distance @ .25 LUX: 370.2 m

California Proposition 65

WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Installation

Type: Universal LED light bar · Install: surface mount on brackets, wired to the vehicle electrical system · Tools: per the Rigid install sheet

Mount the bar on its brackets, aim it, and route the wiring as shown in the Rigid install sheet. Check the box list below for the parts supplied with this bar.

Rigid's installation instructions for this part are linked under Resources. Read them fully before starting.

Resources

11-12870-B_RIGID-SAE_SR_SERIES-INSTALLATION (PDF), Rigid's installation guide.

Warranty, Shipping & Returns

Warranty. Rigid covers this product with its Limited Lifetime Warranty against manufacturing defects for the original purchaser with proof of purchase. Coverage is limited to 5 years for commercial, marine and industrial use, and powder coating and lenses carry 1 year. Seal tampering, improper installation, damage from ammonia-based cleaners and road-salt erosion are not covered. Shipping. Ships in the manufacturer's carton by parcel carrier; long light bars ship in oversize cartons. Inspect on delivery. Open the carton as soon as it arrives and check the light, brackets and hardware against the box list before you install anything, then report any shipping damage right away with photos.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.

About Rigid Industries

Rigid Industries was founded in Gilbert, Arizona in 2006. It began by selling powersports accessories, until its engineers decided halogen and HID lamps were holding riders back and set out to build a better light. That work produced Rigid's patented Hybrid Optical System and the first LED light bar.

Rigid has since partnered with Toyota, Ford and Polaris, programs that hold its lights to demanding OEM standards for output, durability and reliability. Off-road racers at events such as the Baja 1000 and the Mint 400 run Rigid lighting to get to the finish.

Today Rigid is part of Clarience Technologies, a group of vehicle lighting, visibility and safety companies, and it still designs for the trail, the job site and everything in between.

SAE auxiliary high beam

Rigid builds this light around its SAE beam, a controlled pattern meant for on-road driving that puts usable light on the road without throwing glare at oncoming traffic. Its lens color and output figures are in the specifications.

SR-Series Light Bars by Rigid: A green Subaru Crosstrek climbs a snowy trail with a lit roof light bar and amber fog lights.

Slim housing, tough build

The single-row body keeps the bar shallow without giving up toughness. Rigid builds its lights with durable polycarbonate lenses and tests them against demanding OEM standards for harsh conditions.

SR-Series Light Bars by Rigid: A green Subaru Crosstrek with a roof rack light bar and bumper light stands on a desert lot at dusk.

Clean installs, lasting coverage

A low, sleek profile tucks into grilles, bumpers and roof lines for a factory-style look. Rigid backs it with a Limited Lifetime Warranty for the original purchaser.

Frequently Asked Questions

Straight answers on specs, fit and support

Is this light street legal?

Rigid lists this light with its SAE beam, which the brand describes as street legal and compliant with SAE standards, built for on-road use with controlled light that does not glare oncoming drivers. Mounting height, aim and switching rules still vary by state, so check yours.

Which beam pattern should I pick?

Rigid describes spot as a narrow beam for distance at speed, flood as a moderate spread for trail use, driving as a balanced mix of reach and width, and diffused as a wide, soft light for work areas and reversing. Combo bars pair two of these in one housing.

What does Midnight mean?

Midnight Edition lights use a blacked-out look. The optics and beam for each model are listed in its specifications.

Can I mount it vertically?

Rigid designs and tests its supplied brackets for a horizontal installation. Contact Rigid before mounting the light vertically.

How should I clean the lens?

Use mild soap and water or mineral spirits. Rigid's polycarbonate lenses can be damaged by ammonia-based cleaners, so skip glass cleaners and automatic car washes, and rinse road salt off with fresh water. Damage from either is not covered by the warranty.

What does the warranty cover?

Rigid's Limited Lifetime Warranty covers manufacturing defects for the original purchaser with proof of purchase. Commercial, marine and industrial use is limited to 5 years, powder coat and lenses to 1 year, and removing the bezel or otherwise breaking the seal is not covered.
