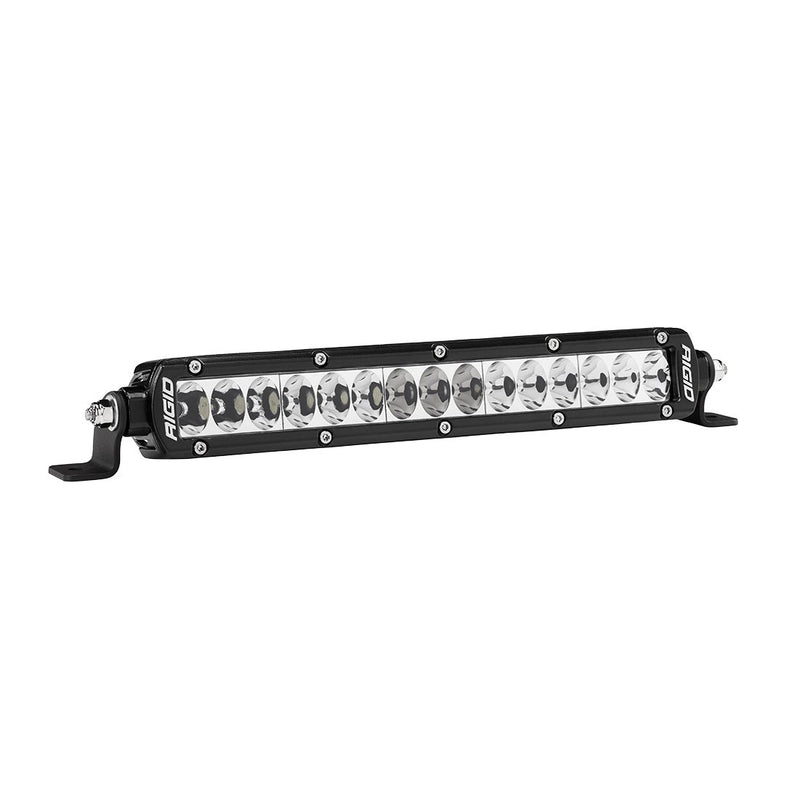

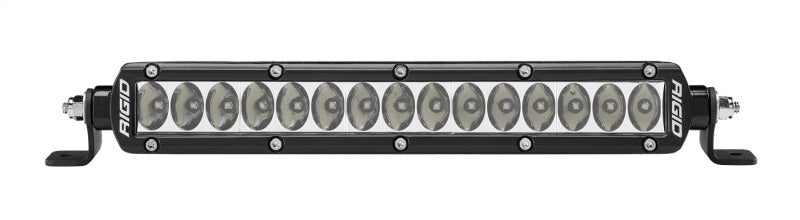

The SR-Series PRO 10" Driving is a low-profile, single-row Rigid SR-Series bar built for tight spaces and clean installs. Its slim housing tucks into grilles, bumpers and roof lines with little room to spare. This listing is Rigid part 910613.
In the box: Single Light Bar, Mounting Hardware, Black Powder Coated L-Shape Brackets and Harness & Switch w/Relay.
Installation is not included, and any harness, switch, cover or mount that is not on this light's box list is sold separately.
Features
Low profile, serious light
A slim single-row housing keeps the bar shallow, yet it still delivers a useful amount of light down the trail.
Fits where others cannot
The compact depth suits tight openings in grilles, bumpers and roof racks, and it makes for a cleaner install.
Sleek, integrated look
A clean, understated housing blends into the vehicle rather than standing out from it.
A beam for the job
SR-Series bars come in spot, flood, driving, diffused and combo patterns. The beam for this bar is listed in its specifications.
Built for tough conditions
Rigid designs the series for harsh trail conditions, and its lights are tested to demanding OEM durability standards.
Specifications
-
Brand: Rigid
-
Series: SR-Series
-
Light Type: Single-row LED bar
-
Mount Type: Surface mount
-
Warranty: Limited Lifetime Warranty (commercial, marine and industrial use 5 years; powder coating and lenses 1 year)
-
Size: 10"
-
Beam Category: Driving
-
Voltage Range: 9V - 36V
-
Current Draw at 14V (A): 4.94
-
Raw Lumens: 7524
-
Watts: 84
-
Lux @10m: 593.58
-
Beam Distance @ 1 LUX: 243.6 m
-
Beam Distance @ .25 LUX: 487.3 m
-
Peak Beam Intensity(cd): 59358
-
Horizontal Beam Angle: 49.4°
-
Vertical Beam Angle: 22.3°
-
Product Height: 1.95"
-
Product Width: 11.625"
-
Product Depth: 3"
-
Product Weight: 1.72 lb
-
Part number: 910613
-
Mounting Location: Bumper
-
Wiring Harness Included: Yes, harness and switch with relay
California Proposition 65
WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Installation
Type: Universal LED light bar · Install: surface mount on brackets, wired to the vehicle electrical system · Tools: per the Rigid install sheet
Mount the bar on its brackets, aim it, and route the wiring as shown in the Rigid install sheet. Check the box list below for the parts supplied with this bar.
Rigid's installation instructions for this part are linked under Resources. Read them fully before starting.
Resources
Warranty, Shipping & Returns
Warranty. Rigid covers this product with its Limited Lifetime Warranty against manufacturing defects for the original purchaser with proof of purchase. Coverage is limited to 5 years for commercial, marine and industrial use, and powder coating and lenses carry 1 year. Seal tampering, improper installation, damage from ammonia-based cleaners and road-salt erosion are not covered. Shipping. Ships in the manufacturer's carton by parcel carrier; long light bars ship in oversize cartons. Inspect on delivery. Open the carton as soon as it arrives and check the light, brackets and hardware against the box list before you install anything, then report any shipping damage right away with photos.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Rigid Industries
Rigid Industries was founded in Gilbert, Arizona in 2006. It began by selling powersports accessories, until its engineers decided halogen and HID lamps were holding riders back and set out to build a better light. That work produced Rigid's patented Hybrid Optical System and the first LED light bar.
Rigid has since partnered with Toyota, Ford and Polaris, programs that hold its lights to demanding OEM standards for output, durability and reliability. Off-road racers at events such as the Baja 1000 and the Mint 400 run Rigid lighting to get to the finish.
Today Rigid is part of Clarience Technologies, a group of vehicle lighting, visibility and safety companies, and it still designs for the trail, the job site and everything in between.
