Roll-N-Lock M-Series Retractable Tonneau Cover for 2016-2023 Toyota Tacoma (6'2" Bed)

Roll-N-Lock's M-Series turns the 6'2" bed on the 2016-2023 Toyota Tacoma into a locked hard deck that opens in one movement. Release the rear latch, roll the deck forward into its canister, and the bed is clear from bulkhead to tailgate.

Three ratcheted latching positions along the travel let you leave the cover part way back and still lock it there. The canister is 7.25" deep, and that is the space it occupies at the front of the bed whether the cover is open or closed.

LG531M covers the 6'2" bed on the 2016-2023 Tacoma. As with its short-box sibling LG530M, the factory cargo-management system may be unusable once the cover's tracks are in place, and the Trail Edition package is not compatible. CM531 is the Cargo Manager for this bed.

What's Included:

• Cover and canister housing with lid
• Driver and passenger side tracks
• Cargo shield
• Two drain tubes
• Tailgate extrusion and bulkhead flange
• Track clamps and threaded blocks
• Bed clamps, cargo nuts and the full fastener kit
• 1/4" Allen wrench
• 303 vinyl protectant
• Vehicle-specific installation sheet

Features

Locks With Your Tailgate

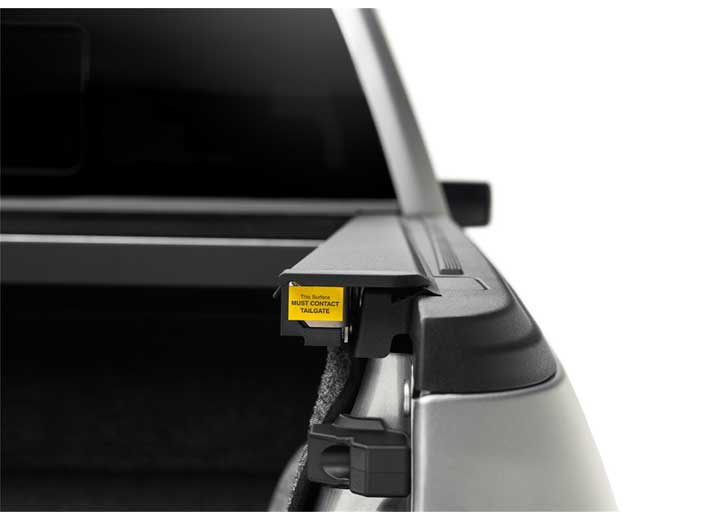

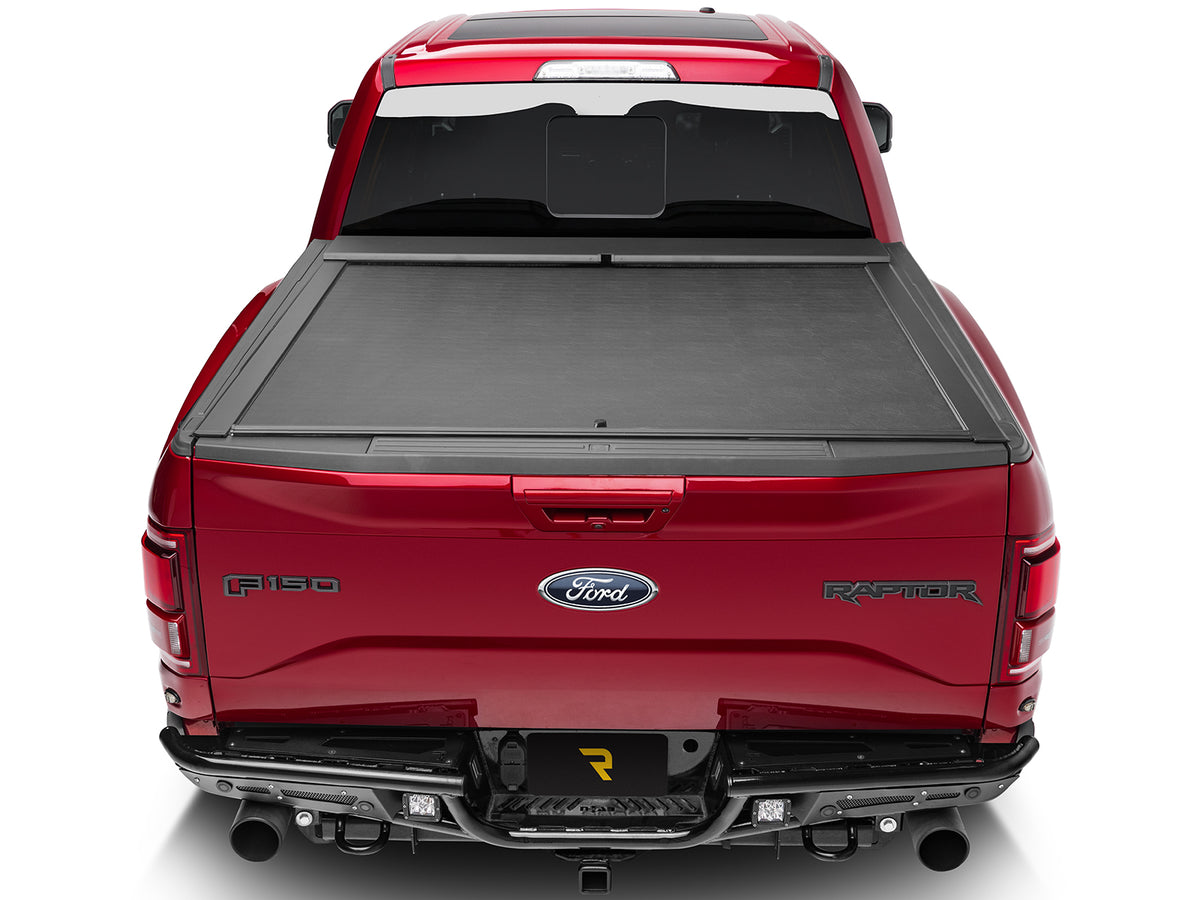

Roll-N-Lock builds a tailgate extrusion into the rear of the cover. With the cover closed and latched, the tailgate cannot be dropped, so the bed is closed off by the cover and the tailgate together rather than by the cover alone.

Three Latching Positions

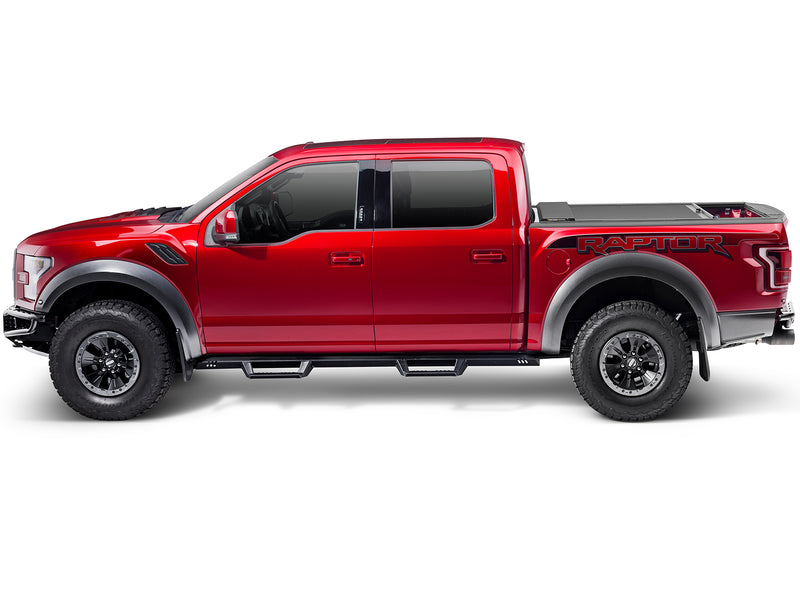

A patented ratchet-style latching mechanism holds the deck at three points along its travel. Haul something tall and you can leave the cover part way back and still lock it there, instead of choosing between fully covered and fully open.

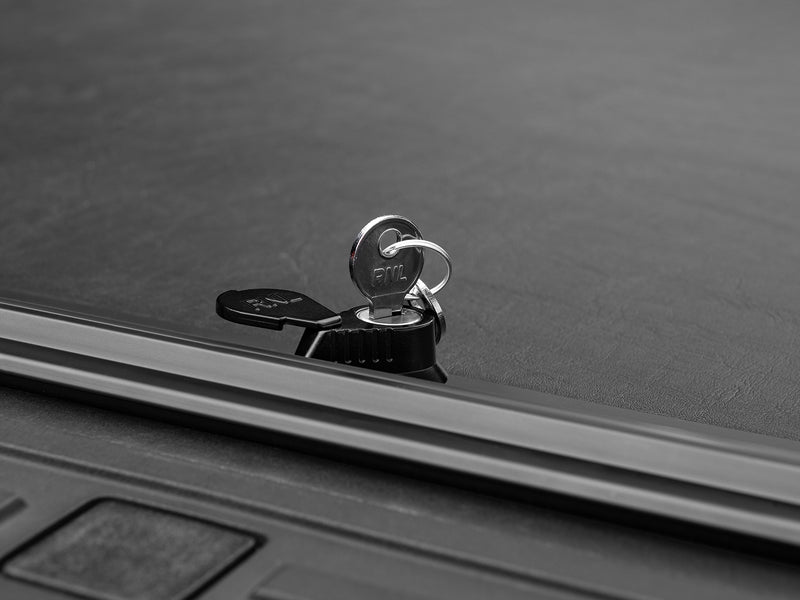

Weatherproof Key Cover
The keyed twist latch sits behind a hinged cover over the key slot. It is a small part that solves a real winter problem: rain and snow stay out of the cylinder, so the lock does not freeze shut overnight.

Drains Through the Rails, Not Onto Your Gear

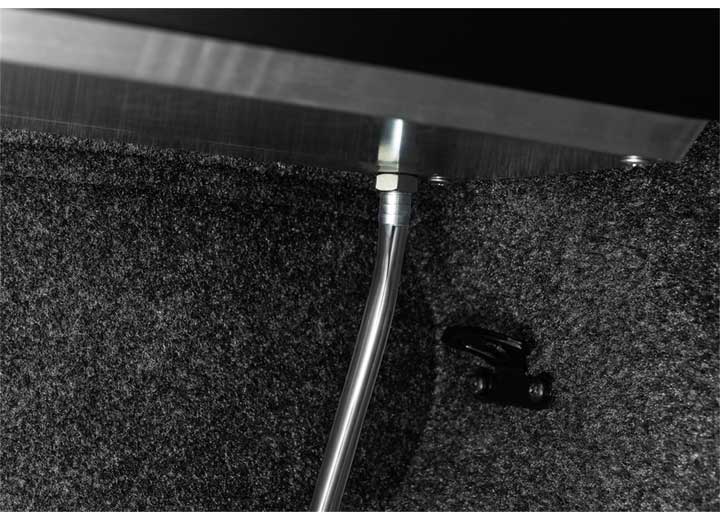

The one-piece vinyl top sheds the weather, and integrated channels and drain tubes route anything that gets past the seal down through the rails and out under the truck.

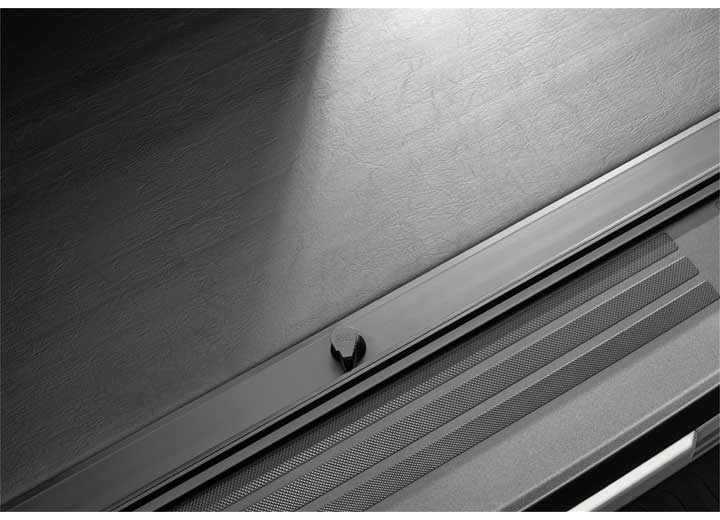

Vinyl Over Aluminum Slats
Aluminum slats carry the load and the structure; an industrial-grade vinyl skin is laid over the top. You get the flat, seamless look of a soft cover with a hard deck underneath it.

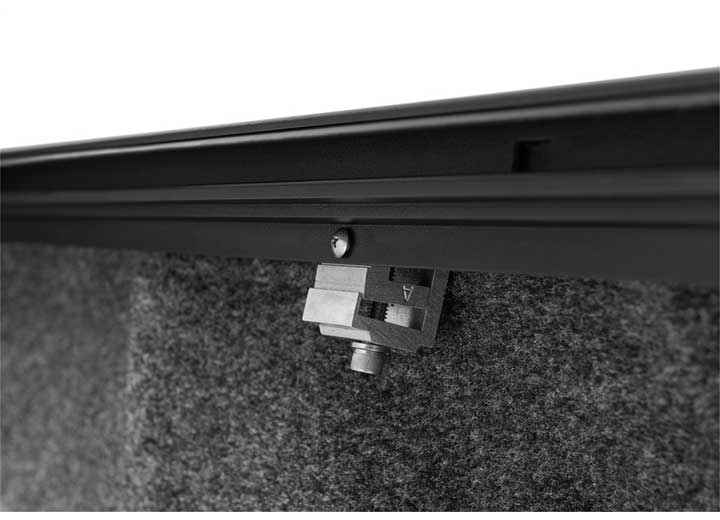

Clamps On, No Holes in the Truck
The rails clamp to the bed rails with the included hardware and the canister sits against the bulkhead. Nothing is drilled into the truck itself. If your bed has a drop-in plastic liner, that liner does have to be trimmed and drilled to clear the canister and the drain tubes, and Roll-N-Lock gives the cut measurements in the sheet.

Fitment & Compatibility

This cover is built for one application: the 6'2" bed on the 2016-2023 Toyota Tacoma. There is no universal M-Series, so the part number and the truck go together.

Specifications

• Series: Roll-N-Lock M-Series
• Cover type: Manual retractable
• Material: Industrial-grade vinyl over aluminum slats
• Finish: Matte black
• Operation: Keyed twist latch, torsion-spring drive
• Latching positions: 3, ratchet-style
• Canister depth: 7.25"
• Tailgate locking: Built-in tailgate extrusion
• Drainage: Integrated channels and drain tubes
• Mounting: Clamp-on, no drilling into the vehicle
• Drop-in bedliner: no bedliner modification step in this application's installation sheet
• Warranty: 3-year limited
• Country of origin: Assembled in Florida from US and global materials
• Fits: the 2016-2023 Toyota Tacoma
• Bed length: 6'2" (73.7")
• Part number: LG531M
• UPC: 725478167610
• Shipping weight (packaged): 85 lb
• Shipping carton: 67" × 14" × 14"

Installation

Type: Clamp-on, nothing drilled into the truck  ·  Tools: a drill with a 1/2" bit, a drill with a Phillips head, a Phillips screwdriver and a tape measure  ·  Hardware: Included

The side tracks fix to the Toyota Tacoma's bed rails with the supplied hardware and the canister housing sits against the bulkhead at the front of the bed. No holes go into the truck itself.

No bedliner modification. Unlike most M-Series applications, the installation sheet for this truck has no liner cut-and-drill step at all: there is nothing to trim and no holes to drill through a drop-in liner before the cover goes on.

Track spacing is the step that decides whether the cover latches: set both tracks parallel and use the notches in the cargo shield as the gauge, then check the measurement again before the final tighten. Keep the drain tubes clear of the cab vents. Roll-N-Lock does not publish an installation time for this cover, so we are not going to quote one.

Resources

Everything Roll-N-Lock publishes for this cover, in one place.

• Roll-N-Lock M & A Series Tonneau Cover Tacoma iSheet (PDF), the manufacturer's own installation sheet for this cover.

Warranty, Shipping & Returns

Warranty. Roll-N-Lock covers the M-Series with a three (3) year limited warranty to the original purchaser against defects in material and workmanship. The warranty is not transferable. Roll-N-Lock states plainly that it does not warrant against water intrusion, including leaks in normal use, so treat this as a water-resistant cover rather than a sealed one.

Three things in the warranty conditions that catch people out. Never spray lubricant into the tracks, silicone or petroleum based especially, because it attracts grit and Roll-N-Lock voids the warranty for it. Clear snow and ice off the cover before you open it. And if the truck is ever towed from the rear, the cover has to come off first. Clean with mild automotive soap and water only.

Free shipping. This cover ships free to the lower 48 states. It travels as an oversized parcel rather than a freight shipment.

Inspect on delivery. The cover arrives in a long, flat carton that takes the knocks before anything inside does. Check the packaging when it arrives, and if you see damage, note it on the delivery paperwork and contact us straight away so we can put it right.

Compliance. Country of origin: USA. Roll-N-Lock assembles the M-Series in Pompano Beach, Florida from US and global materials. California residents: Proposition 65 warning for cancer and reproductive harm.

About Roll-N-Lock

Roll-N-Lock builds retractable truck bed covers and cargo management hardware at its plant in Pompano Beach, Florida, and is part of the RealTruck group of truck accessory brands. Every cover is assembled in Florida from US and global materials and is backed by a three-year limited warranty to the original purchaser, or five years on the electric E-Series.

The M-Series is the vinyl-topped member of the Roll-N-Lock line. Aluminum slats carry the load and an industrial-grade vinyl skin gives it the flat, seamless look of a soft cover. Step up to the all-aluminum A-Series for a harder wearing deck, add MaxTrak T-slot rails with the M-Series XT or A-Series XT, or move to the key-fob-operated E-Series.

Every Roll-N-Lock cover shares the same mechanism: a torsion-spring drive, a patented theft-resistant hinge between the slats, a keyed twist latch behind a weatherproof key-slot cover, and a tailgate extrusion that stops the tailgate opening while the cover is closed. The deck retracts into a canister at the bulkhead and locks there rather than stowing loose in the bed.
