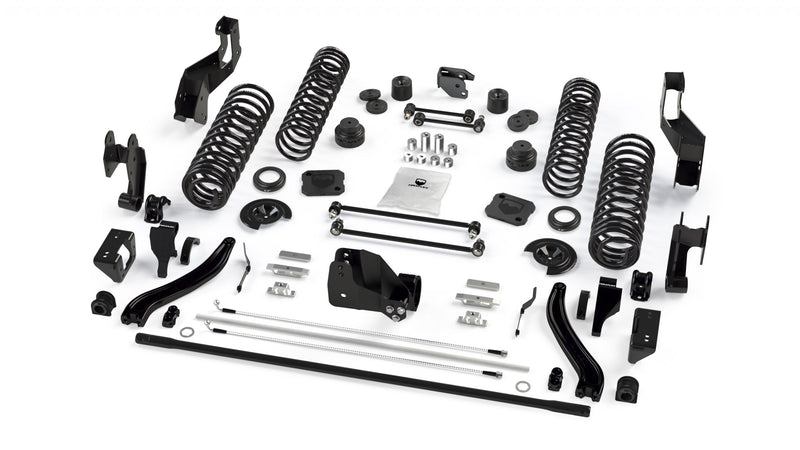

The 4.5" Sport ST4 Extended-Travel Suspension System, No Shocks is an all-in-one TeraFlex Street & Trail system that pairs lift height with the geometry parts to keep the Jeep composed on pavement and capable off road. It gathers the matched lift parts into one package, so there is less guesswork about what works together. Part number 2014000 and 2014020 fits the 2020-2026 Jeep Gladiator.
Not Included:
Shocks, wheels, tires and the alignment after installation are not included.
Features
Complete Street & Trail package
Each system bundles the lift and supporting parts TeraFlex specifies for its height, so the pieces are designed to work together.
Progressive bump stops included
Front and rear progressive bump stops cushion the end of travel to protect the tires, body and occupants from hard bottoming.
Geometry parts for the height
Systems add the control arm, bracket and track bar parts TeraFlex calls for at each lift height to keep steering and handling in check.
Bolt-on, no welding
Every Sport ST system installs with hand tools and bolts to factory mounting points, though some brackets require drilling.
Shock choice left to you
Systems ship without shocks so you can pick the Falcon or 9550 VSS shocks that suit your driving.
Fitment & Compatibility
Fit guidance: Fits: 2020-2026 Jeep Gladiator (JT). Every option on this page is built for these vehicles; choose the one that matches your engine, axle or setup. Check your trim and factory equipment against the notes before ordering.
Qualifier: JT
Specifications
-
Brand: TeraFlex
-
Series: Sport ST
-
Lift height: 4.5"
-
Shocks included: No
-
Country of origin: China
-
Part numbers: 2014000 (3.6L); 2014020 (3.0L Diesel)
Installation
Type: Complete bolt-on lift system · Install: Several linked sheets, some drilling · Afterward: Alignment and headlight check
Read every TeraFlex sheet linked for this system and plan the order before starting, since several components share fasteners. A certified mechanic is recommended. Plan on an alignment and a headlight aim check afterward.
Front control arm drop bracket kit sheet; its text layer carries only the kit number and a note to use the factory service manual torque for original hardware, so it adds no steps here.
Parts list and notes for the front track bar bracket used at 4"-6" of lift, with M14 hardware. The sheet refers to the factory service manual for the torque of the original hardware and gives no other steps in its text layer.
Covers the quick-disconnect front sway bar links for the Wrangler and Gladiator, sized for 0"-4" lifts: parking brackets and studs go on, axle-side brackets mount with the stock sway bar bolts, and the new links install.
Tools named in the guide: Metric sockets and open-end wrenches, Torque wrench, General mechanics tools, Factory service manual, 6mm hex key
Torque: 20 ft-lb, Parking bracket bolts; 50 ft-lb, Parking studs; 75 ft-lb, Axle quick disconnect bracket studs; 59 ft-lb, Axle bracket to axle, stock sway bar bolts; 69 ft-lb, Link nut; 5 ft-lb, Grease zerk
Covers the Gladiator rear upper and lower spring retainers (and optional spring spacers). The brake line brackets come off the frame, the retainers bolt to the spring perches, and the track bar and control arm bolts are torqued with the truck on the ground.
Tools named in the guide: Metric sockets and open-end wrenches, Torque wrench, General mechanics tools, Factory service manual
Torque: 45 ft-lb, Spring retainer bolts; 89 ft-lb, 21mm shock bolts; 74 ft-lb, 18mm bolts; 100 ft-lb, 21mm rear track bar bolt; 111 ft-lb + 60°, Rear control arm bolts (see sheet for each arm); 130 ft-lb, Lug nuts
Covers the Gladiator rear track bar axle bracket, which clamps to the axle with a tri-lobe spacer. TeraFlex requires at least 2" of rear bump stop spacer; the upper mounting hole is recommended for 3.5" and taller lifts and needs at least 3" of bump stop, while the lower hole suits 1.5"-2.5" lifts. Track bar bolts are torqued with the truck back on the ground.
Torque: 150 ft-lb, M14 bracket and spacer bolts (18mm bolt, 21mm nut); 55 ft-lb, M10 tri-lobe spacer bolts (13mm); 25 ft-lb, M8 socket cap bolts (6mm hex); 74 ft-lb + 30°, Track bar bolt at the frame (21mm bolt, 23mm nut)
Covers the Gladiator rear upper control arm axle correction brackets. They can be installed one side at a time with the truck on level ground; each bracket needs two 7/16" holes drilled through the upper control arm mount, and bolts are torqued with the truck on the ground.
Tools named in the guide: Drill, 7/16" drill bit, Torque wrench, Metric sockets and open-end wrenches, General mechanics tools
Torque: 45 ft-lb, M10 bracket bolts; 111 ft-lb + 90° (ref. 250-270 ft-lb), Upper control arm bolt at the axle; 111 ft-lb + 60° (ref. 200-220 ft-lb), Control arm bolt, see sheet
Covers adding the aluminum spacers between the rear driveshaft center support bracket and the body on the Gladiator, using the supplied longer M10 bolts while the driveline is supported.
Torque: 45 ft-lb, 16mm center support bracket bolts
Covers the Gladiator extended-travel accessory kit: spacers drop the parking brake cable brackets, a harness extension is plugged in and remounted, and both rear brake lines are replaced with 33" stainless braided lines, followed by bleeding the brakes (a scan tool ABS bleed is suggested if available).
Tools named in the guide: Metric sockets and open-end wrenches, General mechanics tools, Torque wrench
Torque: 45 ft-lb, 16mm parking brake bracket bolts; 26 ft-lb, Brake line banjo bolts; 15 ft-lb, Brake line bracket nut; 7 ft-lb, Bleed screws
Covers the Gladiator rear frame-mounted forged ST sway bar. TeraFlex requires at least 2.5" of rear bump stop spacers. The job includes bending the spare tire sensor bracket, drilling and countersinking the lower bump stop pads, rerouting the frame wiring harnesses, drilling two 7/16" holes in each frame rail for the mount brackets, and trimming the fender liners until the arms swing freely.
Tools named in the guide: Metric sockets and open-end wrenches, Torque wrench, General mechanics tools, Drill with 3/8" and 7/16" bits, Countersink, Vise or large pliers, Factory service manual
Torque: 17 ft-lb, M8 flat socket head bolts (5mm hex); 30 ft-lb, M8 axle clamp socket cap bolts (6mm hex); 25 ft-lb, 13mm frame bracket bolts; 45 ft-lb, 16mm frame bracket bolts and 15mm bushing hardware; 100 ft-lb, 18mm M12 arm clamp bolts, oiled and tightened evenly; 66 ft-lb, 18mm sway bar link nuts
Covers the Gladiator 4.5" spring lift spring lift: new springs and bump stop spacers go in front and rear, the brake line brackets on the lower control arms are discarded, and the rear brake line brackets are temporarily unbolted from the frame. The sheet notes that EcoDiesel models use a different jounce tube size and gives a bump stop spacer guide by tire size. Control arm bolts are torqued at ride height unless the arms have Alpine IR bushings.
Torque: 12 ft-lb, Front bump stop hardware; 70 ft-lb, Rear sway bar link nuts (6mm hex stud); 81 ft-lb, Rear shock bolts; 15 ft-lb, Rear bump stop spacer bolts; 52 ft-lb + 155°, Front track bar bolt; 103 ft-lb + 145°, Front lower control arm bolts; 111 ft-lb + 60°, Rear control arm bolts (see sheet for each arm); 130 ft-lb, Lug nuts
TeraFlex's installation instructions for this part number are linked under Resources. Read them fully before starting.
Resources
-
TeraFlex front drop bracket kit instructions (PDF), TeraFlex's step-by-step guide.
-
TeraFlex front track bar bracket instructions, 4"-6" lift (PDF), TeraFlex's step-by-step guide.
-
TeraFlex front sway bar quick disconnect instructions (PDF), TeraFlex's step-by-step guide.
-
TeraFlex Gladiator rear spring retainer instructions (PDF), TeraFlex's step-by-step guide.
-
TeraFlex Gladiator rear track bar bracket instructions (PDF), TeraFlex's step-by-step guide.
-
TeraFlex Gladiator rear control arm bracket instructions (PDF), TeraFlex's step-by-step guide.
-
TeraFlex Gladiator driveline spacer instructions (PDF), TeraFlex's step-by-step guide.
-
TeraFlex Gladiator extended-travel accessory kit instructions (PDF), TeraFlex's step-by-step guide.
-
TeraFlex Gladiator rear forged ST sway bar instructions (PDF), TeraFlex's step-by-step guide.
-
TeraFlex Gladiator 4.5" spring lift instructions (PDF), TeraFlex's step-by-step guide.
