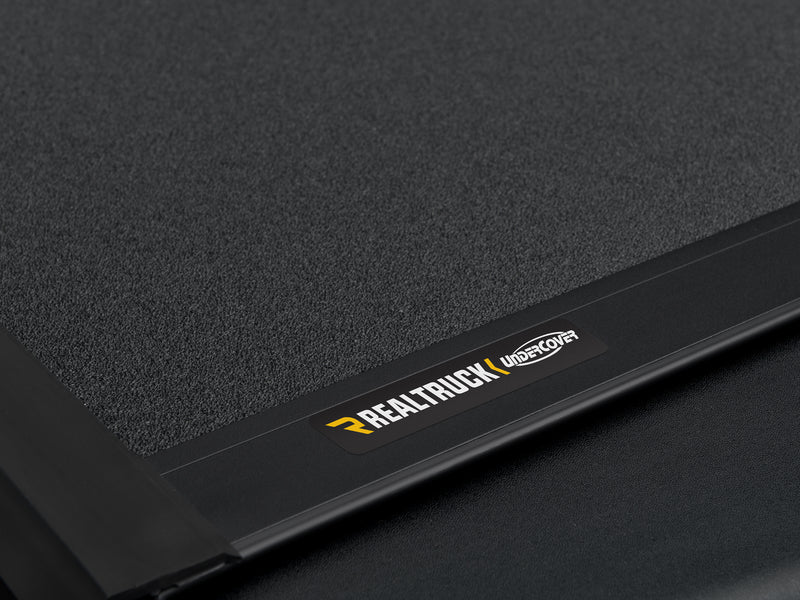

A finish built to take abuse

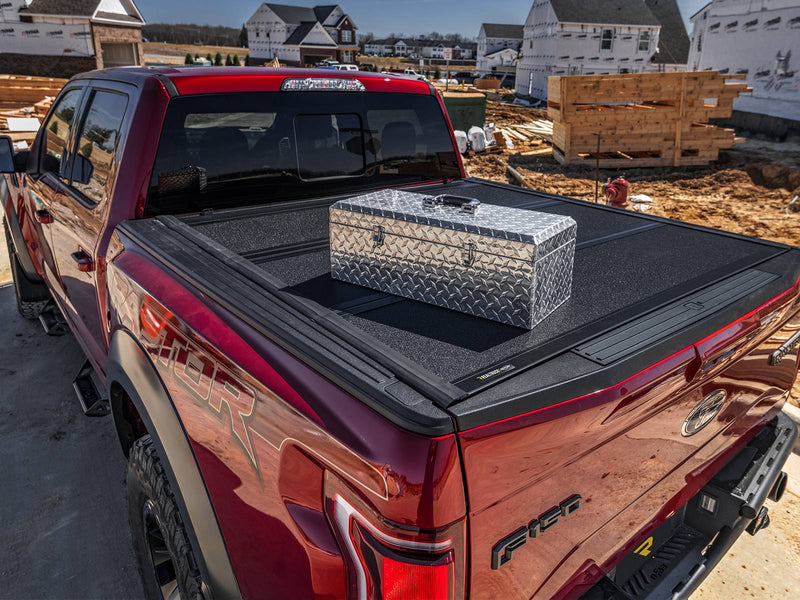

Four hundred pounds, evenly distributed

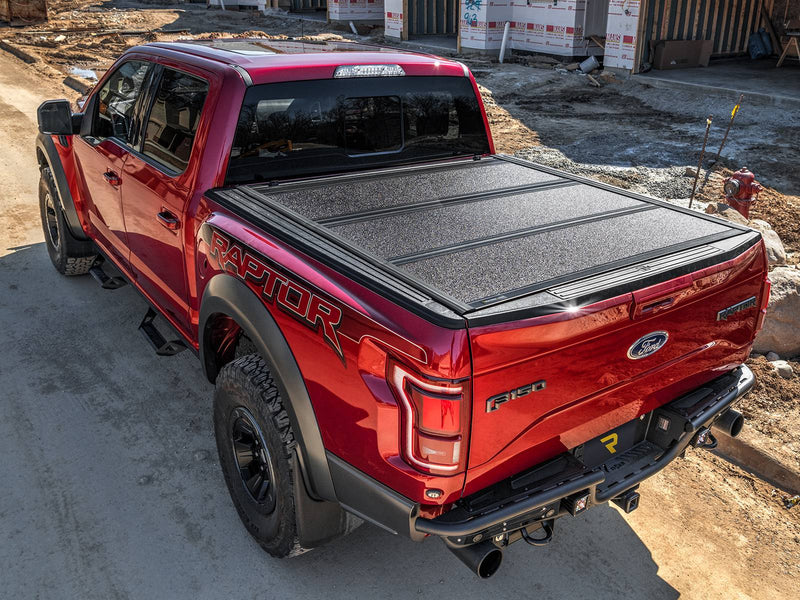

UnderCover rates the closed ArmorFlex to carry 400 lb spread evenly across the panels. That is a working number rather than a headline: it covers a winter's snow load, a couple of sheets of ply lying flat, or a rooftop bag on a long drive. It is rigid aluminum panels on an aluminum frame that earn it, not the coating, and the rating applies to weight spread across the cover rather than concentrated on one panel.
Frequently Asked Questions
Straight answers on specs, fit and support
Will it keep my bed dry in heavy rain?

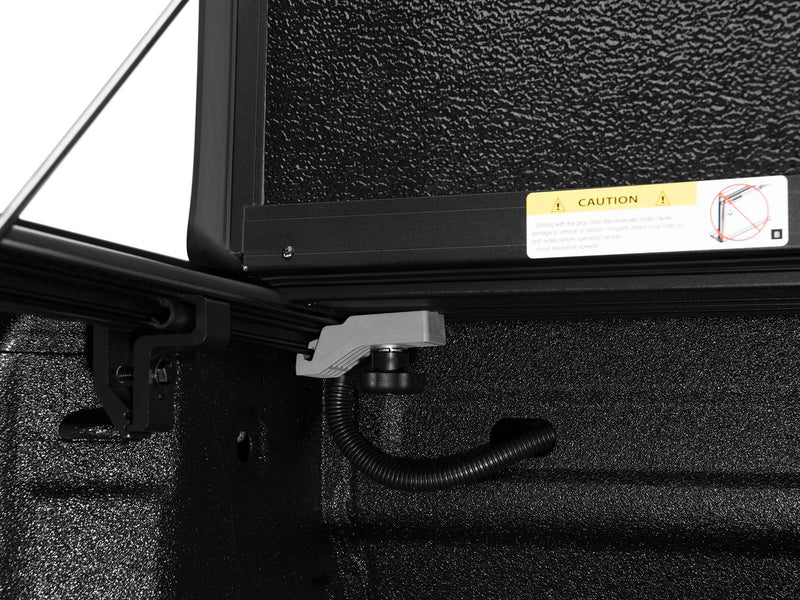

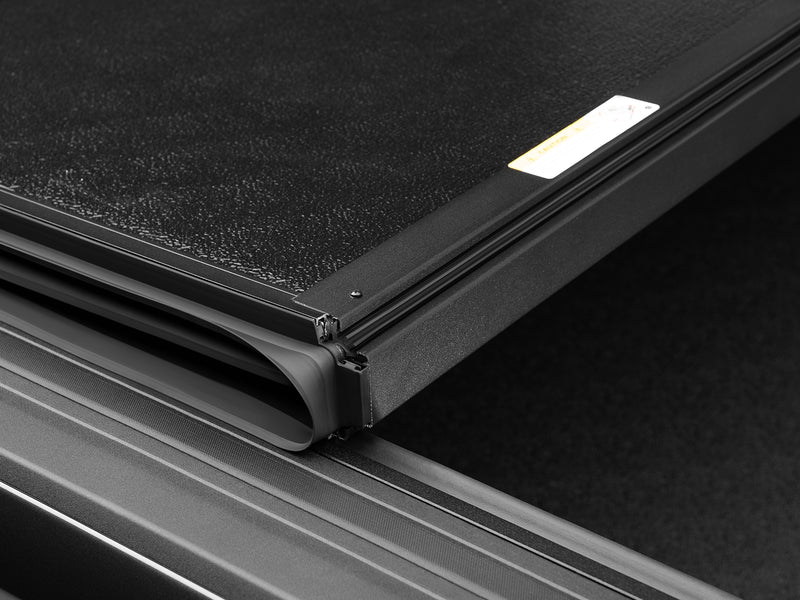

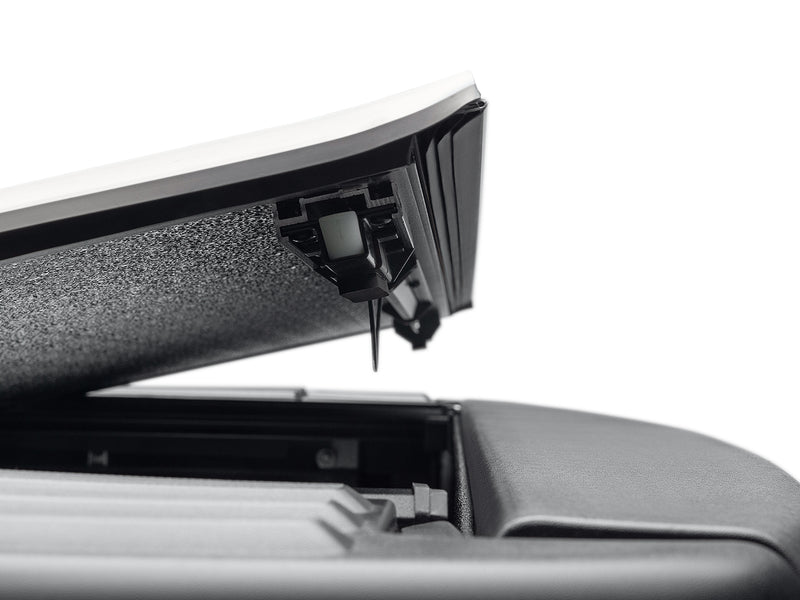

It keeps most of the weather out, and UnderCover does not call it waterproof. The cover runs EPDM rubber seals around the perimeter with integrated drains that carry water down through the bed and out under the truck, plus a dual-function seal at the rear. In sustained heavy rain or at a jet wash, expect some water to find the bulkhead corners and the seams between panels, because a folding cover has joints that a one-piece lid does not. That drainage is there precisely because the design assumes water gets in, so treat this as a highly water-resistant cover and keep anything that genuinely must stay dry in a sealed container.
How hard is the install, and do I have to drill?

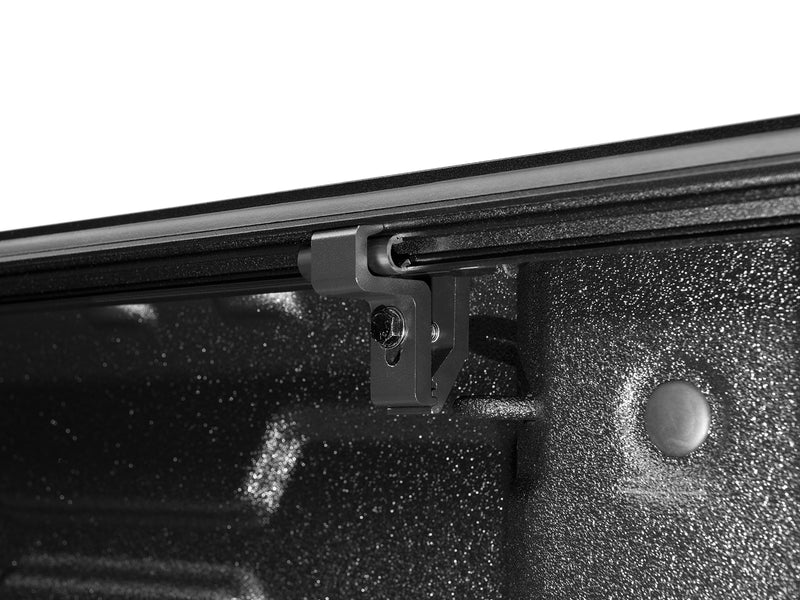

Nothing is drilled into the truck to mount the cover. UnderCover rates the ArmorFlex a Level 1 install in under an hour: the side rails clamp to the inside of your bed rails with the supplied hardware and the cover sits on those rails. Where the tools list names a drill bit, it is there for the drainage and never for the cover. Depending on the truck the drains route through existing bed plugs, behind a bedliner, or through a hole you drill for them; on some applications the sheet does require that hole, and on a few there is no drilling at all. Work from the vehicle-specific installation sheet in the carton rather than a video, because the clamp positions and the drain routing change from truck to truck. A second pair of hands makes lifting the folded cover over the bed rail much easier.
How does it behave in snow and ice?
Clear the snow and ice off before you open it. That is not advice, it is a warranty condition: the terms require the cover to be clear of snow, ice and anything else sitting on it before you fold it back, and forcing frozen panels apart is how hinges and seals get damaged. Closed, the panels will carry a snow load within the 400 lb evenly distributed rating. Rubber seals stiffen in deep cold like any rubber seal, so a cover that has sat frozen overnight will feel tighter than it does in summer. UnderCover publishes no operating temperature range for the ArmorFlex, so we are not going to quote one.
Will the latches work reliably, and what if my bed is not square?

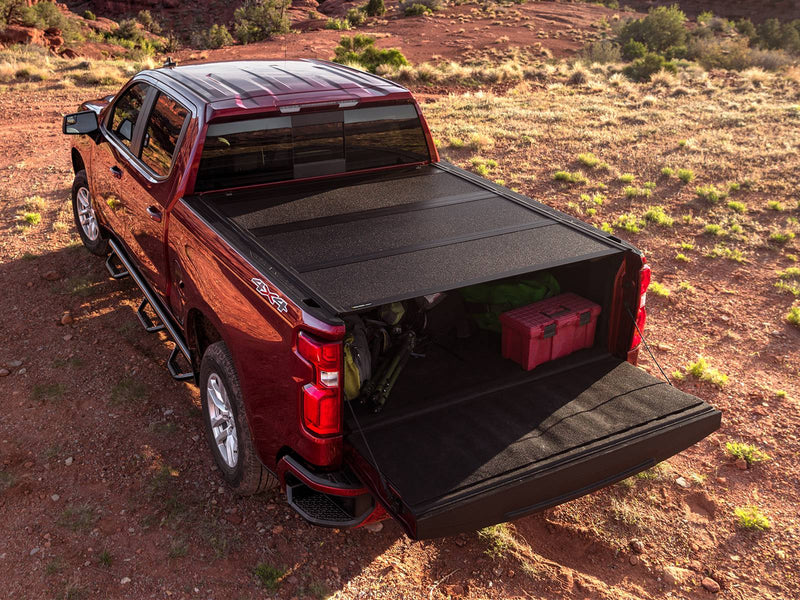

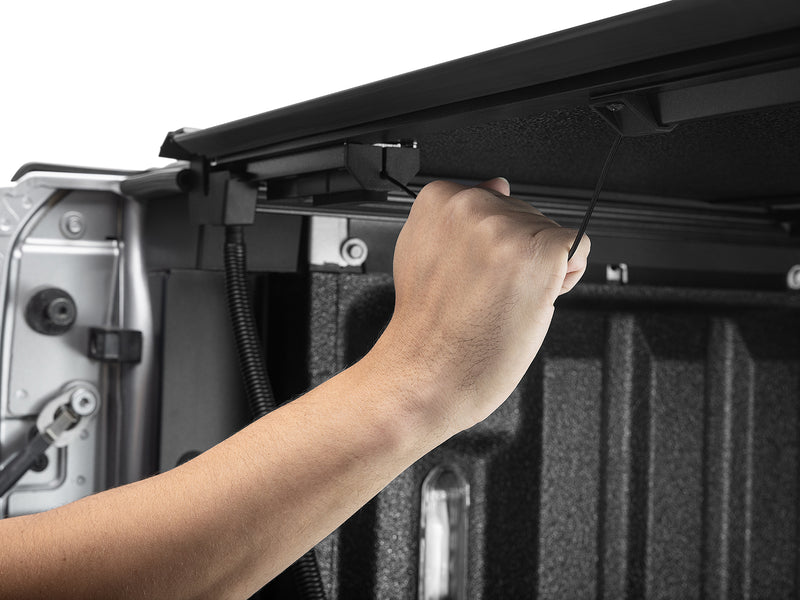

Bed squareness is the single biggest cause of a rear latch that will not catch, and the installation sheet says so directly: the side rails must sit at a 90 degree angle to the truck bed rails for the rear latch to engage properly. If the latch is not catching, the rails are the first thing to check, not the latch. UnderCover also asks you to re-check every clamp and retention mechanism after about a week of driving and periodically after that, because rails that were square on day one can move as the clamps settle. One thing to be clear about: UnderCover publishes no lock type for the ArmorFlex. The release cables sit inside the bed, so the cover is only reachable with the tailgate down, but that is the security model rather than a keyed lock.
Will it clear my bed rails, bedliner, rail caps or cargo lights?
The answer is decided by the part number, so read the qualifier in this listing's title first. UnderCover builds separate ArmorFlex parts for beds with the Nissan Utili-Track, the Toyota Deck Rail System, the Ram RamBox with silver cargo rails and the Ram Multifunction Tailgate, and the part that fits one of those will not fit the plain bed. Beyond that, the rails clamp to the inside of your bed rails, so a drop-in liner with a lip over the rail, aftermarket rail caps, or anything bolted along the inner bed rail can foul the clamps. Drainage routes behind or through a liner. No ArmorFlex fits a CarbonPro bed. UnderCover publishes no clearance dimension, so if you run bed-rail accessories or cargo lights, check what sits inside your bed rails before ordering.
How much does it weigh, and can I remove it alone?
Depending on the application the ArmorFlex ships at roughly 70 lb to 100 lb, with the long-bed parts at the top of that range. That is the packaged shipping weight, because UnderCover publishes no weight for the cover on its own, so the cover itself is lighter than the figure you see. One person can manage a folded tri-fold on a short bed, but the awkward part is the lift over the bed rail rather than the weight, and two people make it a much shorter job on any bed. The rails stay clamped to the truck once fitted, so taking the cover off for a bulky load is not the same job as a full uninstall.
