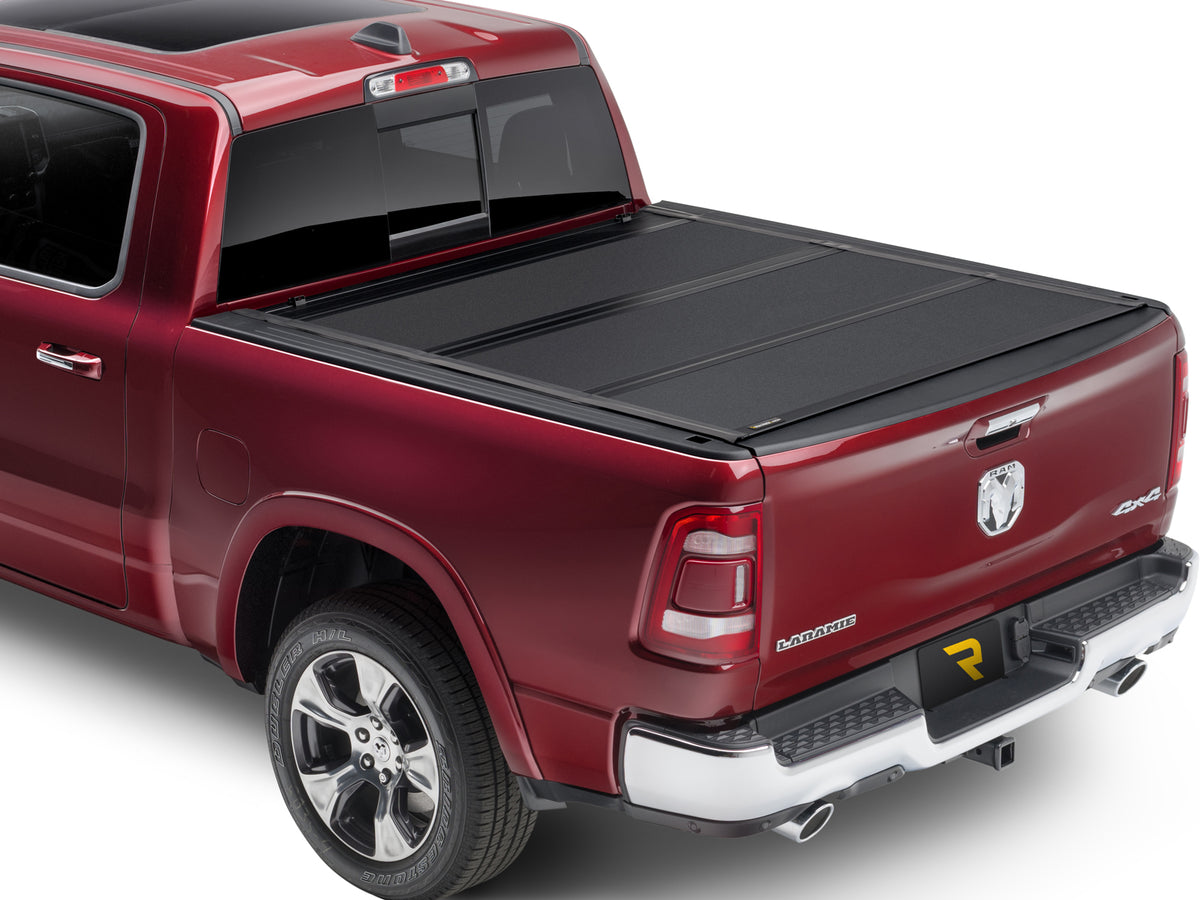

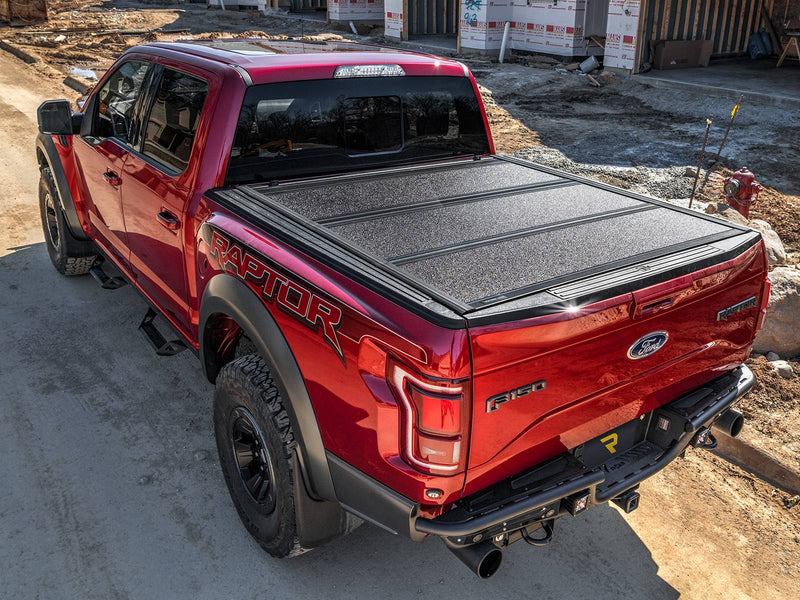

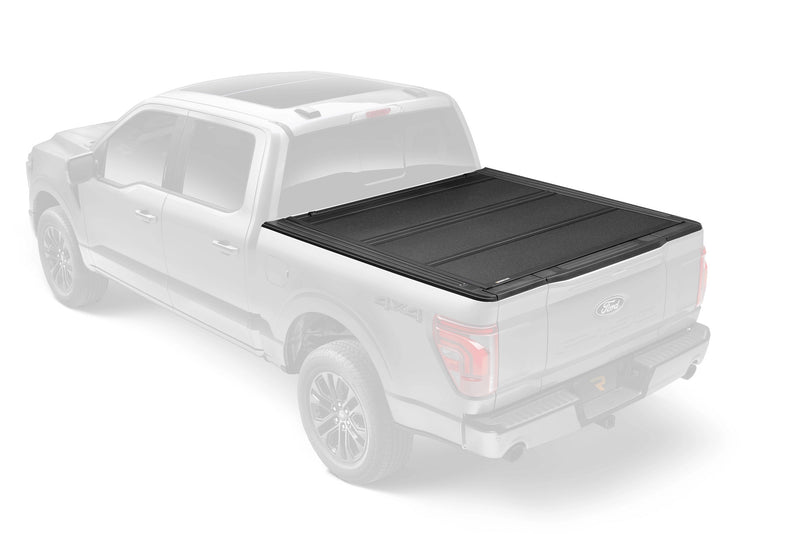

On a long-box HD truck the cover is as much a working surface as it is a lid, and it gets used like one. Multi-Shield is what separates the ArmorFlex from the rest of UnderCover's folding range, a textured matte black coating built to shrug off impacts and abrasion, laid over rigid aluminum panels on an aluminum frame rated to 400 lb evenly distributed. Pull the latch-release cable at either side and the panels fold forward, stopping at two-thirds on the integrated safety straps or standing against the rear window on the prop rods. This is part AX12026, the ArmorFlex built for the 2020-2026 Chevrolet Silverado 2500 HD / GMC Sierra 2500 HD with the 8'2" (98.2") bed, which GM markets as the 8' Long Bed.
What's Included:
- 1x Hard fold cover
- 1x Driver side rail
- 1x Passenger side rail
- 1x Driver side rail extender
- 1x Passenger side rail extender
- 1x Bulkhead seal (on selected make/models)
- 2x Cover retainer clamps
- 8x Clamps (4x used for 19-C models only)
- 2x Buckle ends
- 4x Screws
- 8x Rubber filler strips (on selected make/models)
- 2x Rail connectors
- 2x Rail couplers
- 8x Lock washers
- 8x Screws
- 2x Stake pocket clamps
- 2x Drain tubes
Features

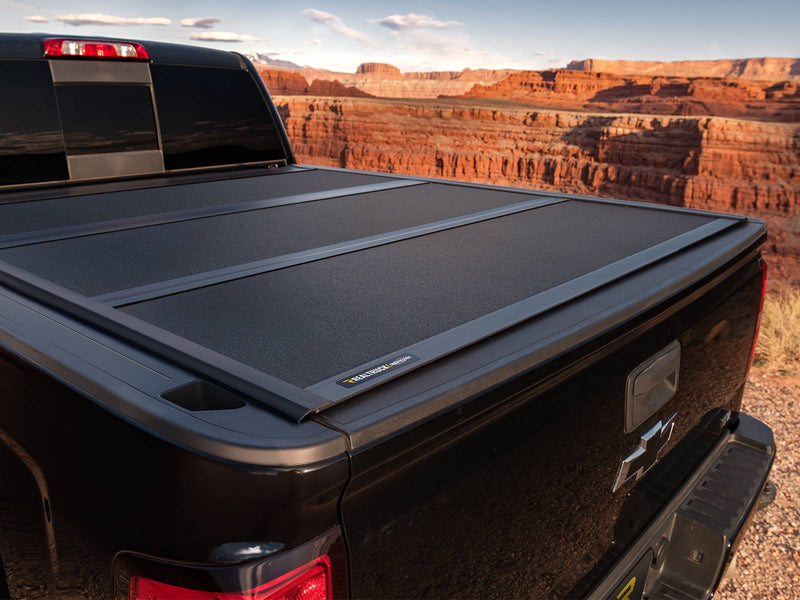

Multi-Shield Is What You Are Paying For

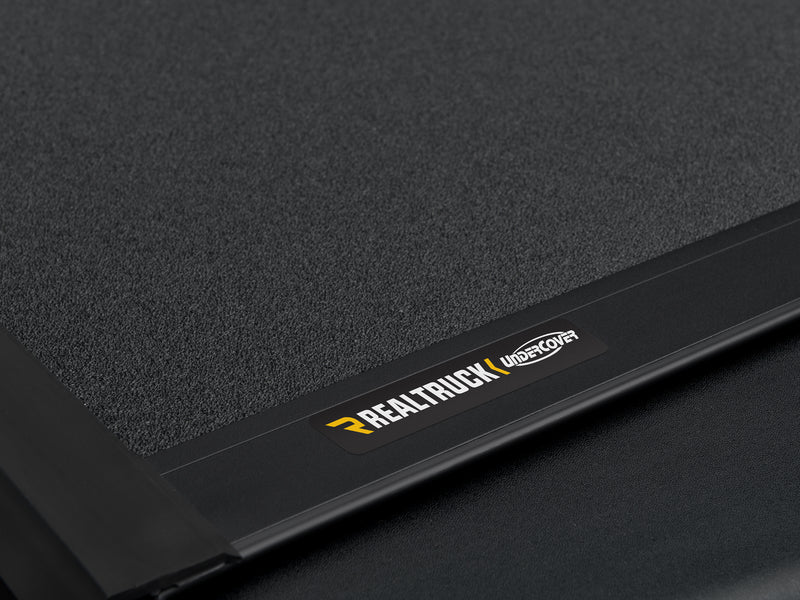

Multi-Shield is a coarse textured matte black coating that UnderCover specifies for impact and abrasion resistance, and no other cover in its folding range carries it. Every folding cover UnderCover makes is aluminum underneath, so the finish is the difference, and it is the part that takes the damage first.
400 lb Across the Closed Cover

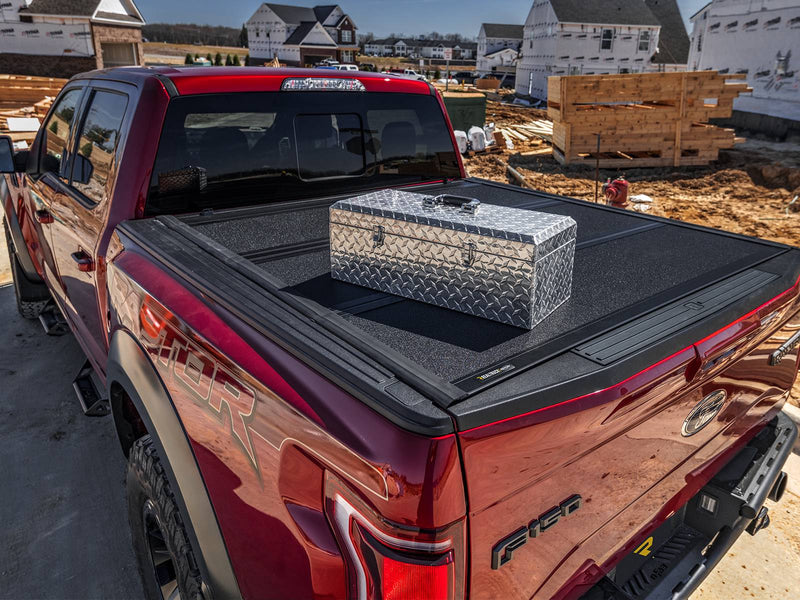

Rigid aluminum panels on an aluminum frame carry up to 400 lb spread evenly across the closed cover. That is enough for a snow load, flat sheet goods or a rooftop bag, provided the weight is distributed rather than concentrated on a single panel.

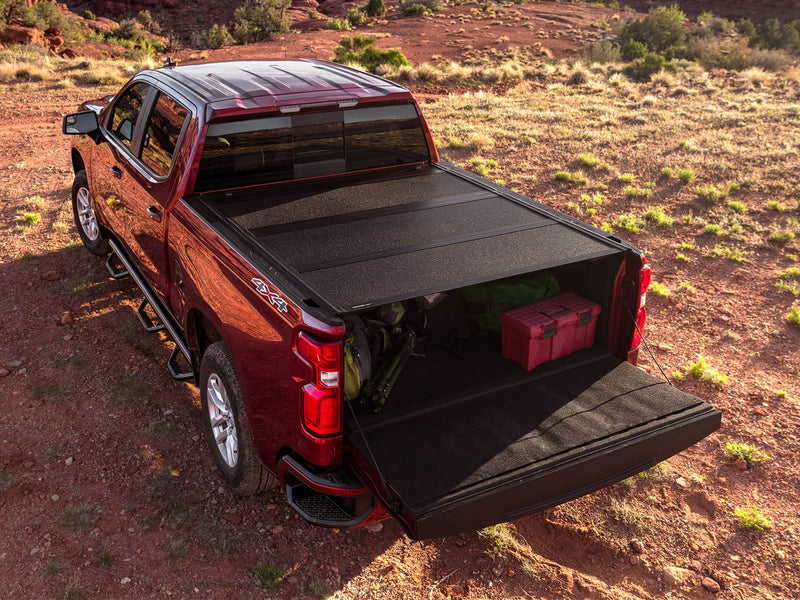

Drop the Tailgate Without Unlatching
The rear seal is dual-function, so the tailgate opens and closes with the cover still latched. It sounds like a detail until you use the truck every day, at which point it is the difference between reaching into the bed and performing a small ritual first.

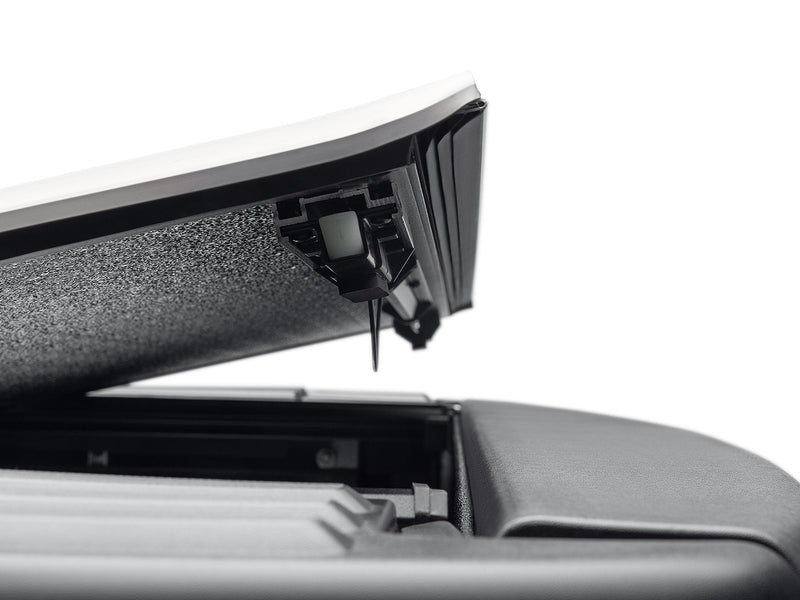

Seals That Assume Water Gets In

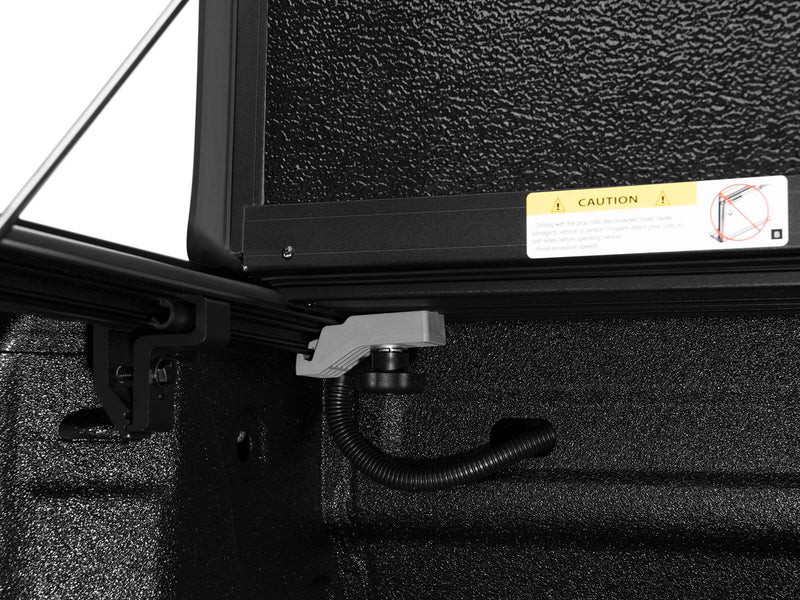

EPDM rubber seals run the perimeter and integrated drains carry anything that gets past them down through the bed and out under the truck. A folding cover has panel seams, and UnderCover designs for that rather than around it, which is why the drain path is part of the cover instead of an accessory.

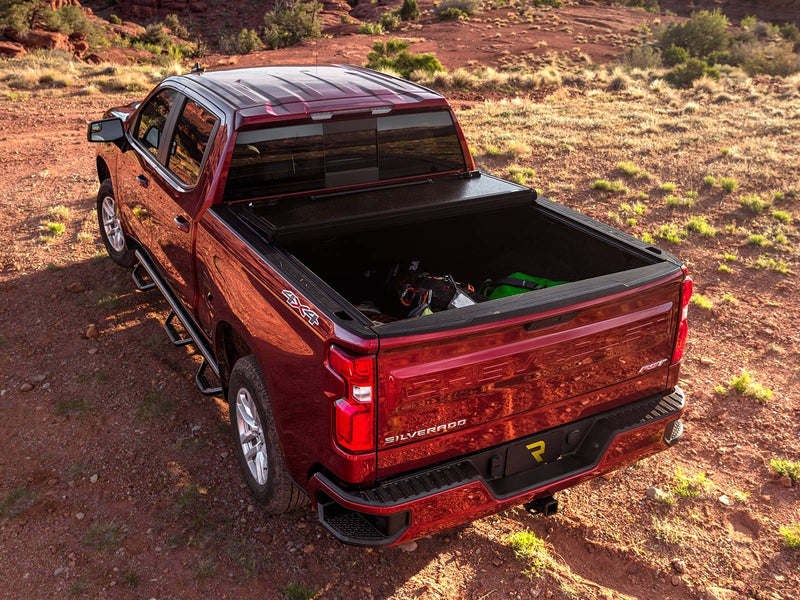

Two-Thirds on Straps, or the Whole Box

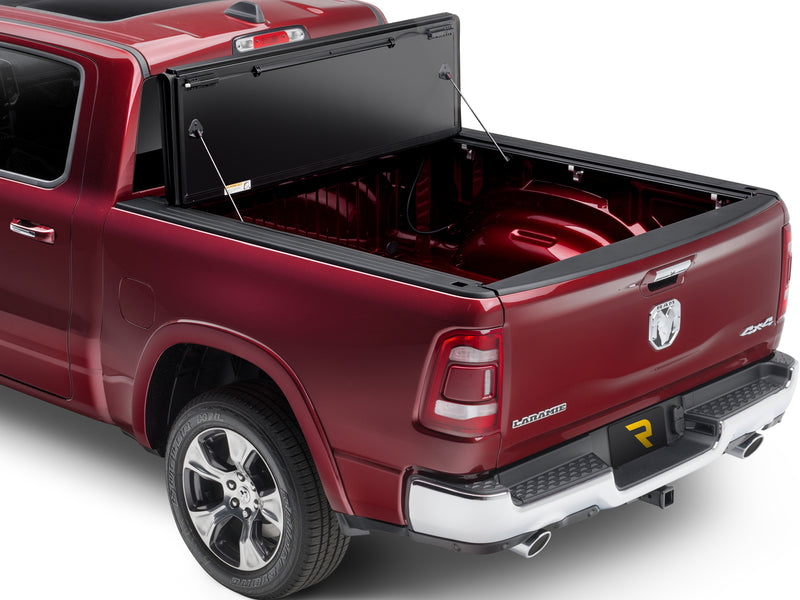

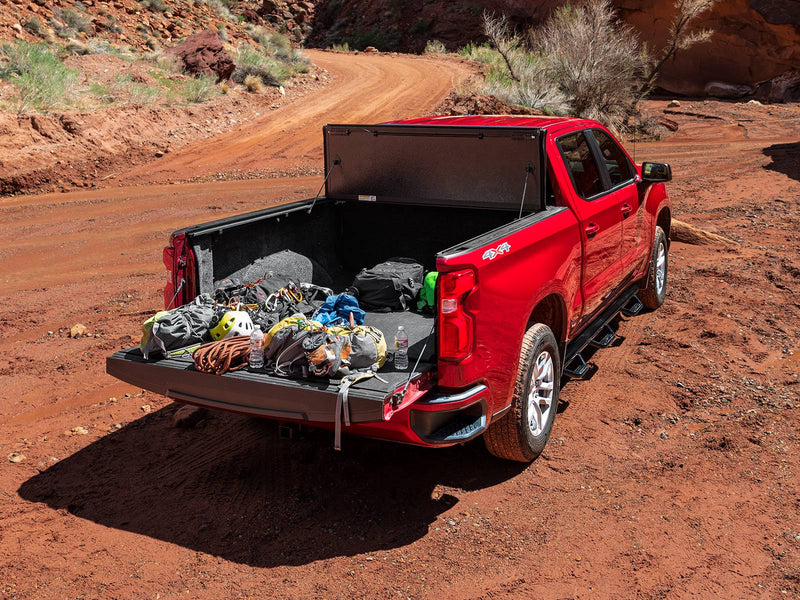

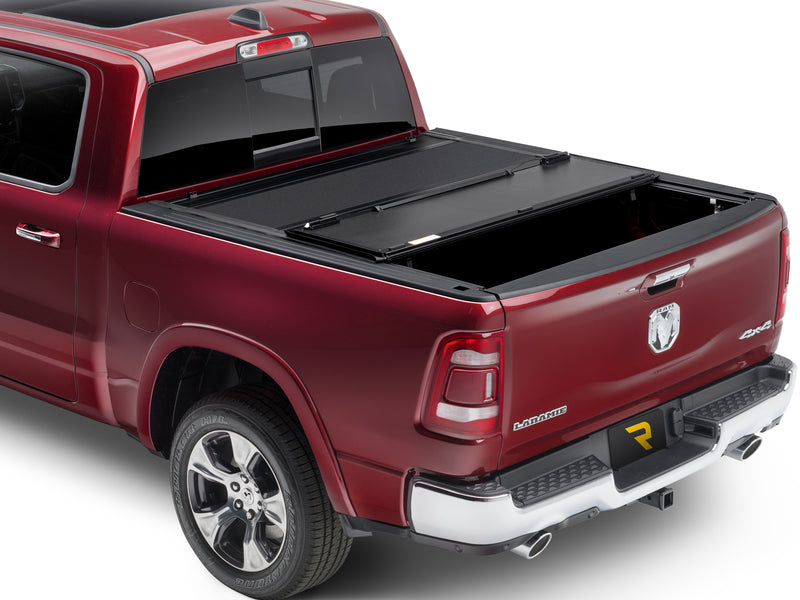

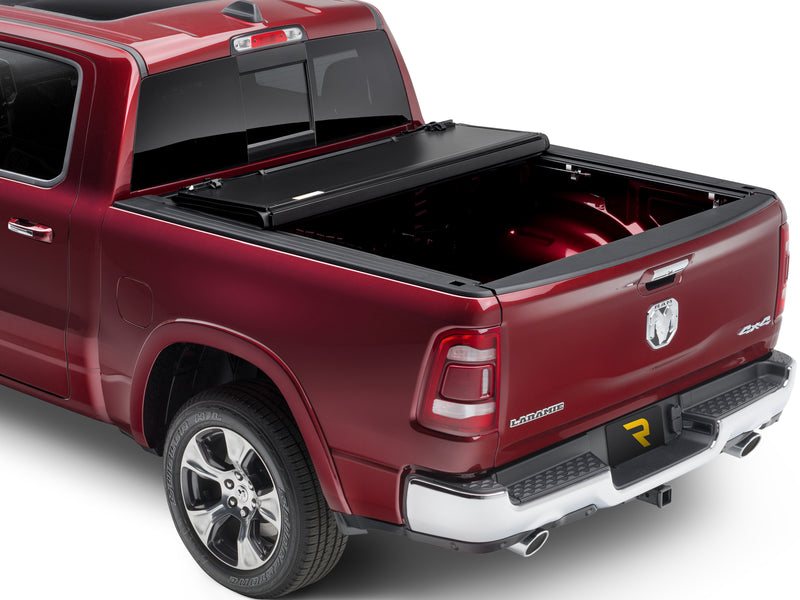

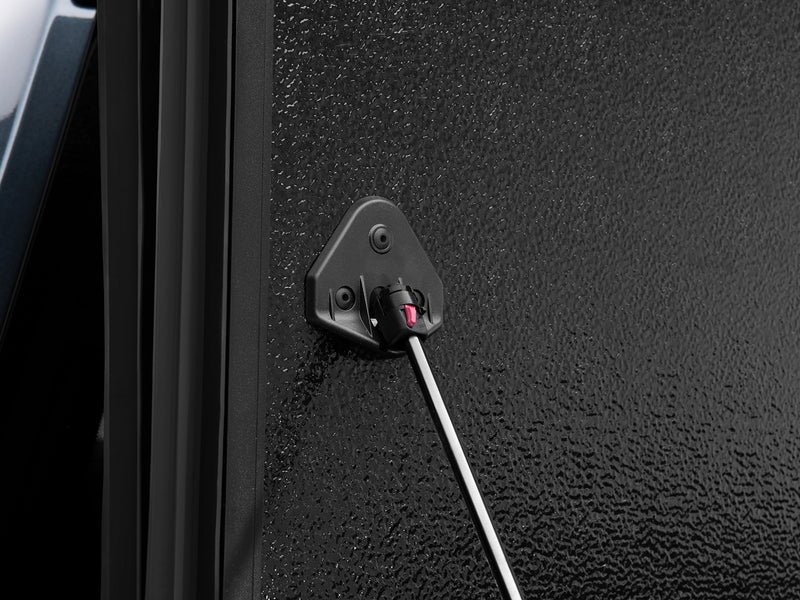

Fold the panels forward and the integrated safety straps hold the stack at the two-thirds position for everyday loading. Push it further and the prop rods stand it against the rear window, clearing the full length of the bed.
Square Rails Are What Make It Latch
UnderCover's own sheet is blunt about this: unless the side rails sit square to your bed rails, at 90 degrees, the rear latch has nothing to catch on. Get the rails square during the install and the latch problem people write about never happens. Re-check the clamps after a week of driving, which UnderCover asks for anyway.
Clamps On, Nothing Drilled to Mount It

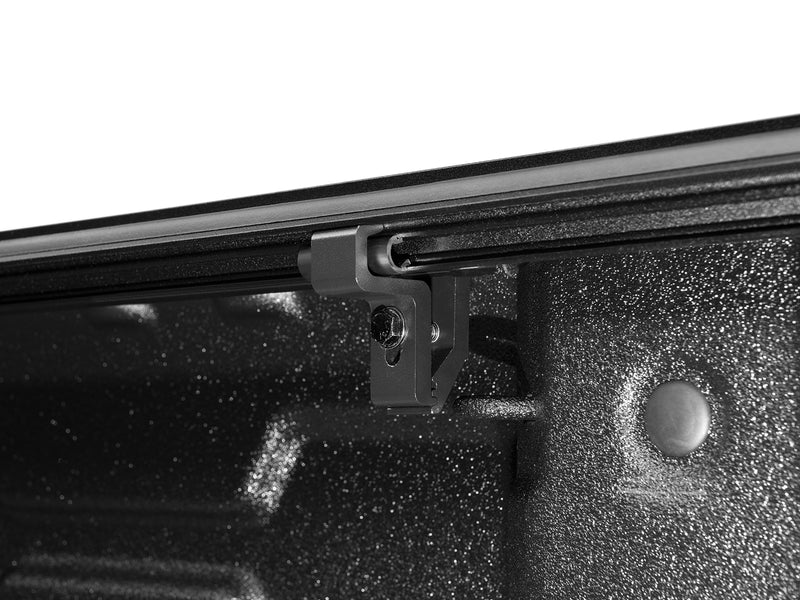

The side rails clamp to the inside of your bed rails with the hardware in the box, and no hole is made in the truck to mount the cover on any ArmorFlex application. Where a drill bit appears on the tools list it belongs to the drainage, which routes through existing bed plugs, behind a liner, or through a hole depending on the truck.
Five-Year Limited Warranty
UnderCover backs the ArmorFlex for five years from the date of purchase rather than the three years that covers the entry folding models. Clean it with mild automotive soap and water, keep solvents and lubricants off the rubber, and the terms are straightforward.
Fitment & Compatibility
Fits the 2020-2026 Chevrolet and GMC trucks listed above with the 8'2" (98.2") bed, which GM markets as the 8' Long Bed. Where a truck was offered with more than one box, measure before ordering.
Specifications
-
Series: UnderCover ArmorFlex
-
Cover type: Hard folding tri-fold
-
Material: Aluminum panels on an aluminum frame
-
Finish: Textured matte black Multi-Shield coating
-
Load rating: 400 lb evenly distributed
-
Bed access: Two-thirds open on the integrated safety straps, or full access with the cover standing against the rear window on the prop rods
-

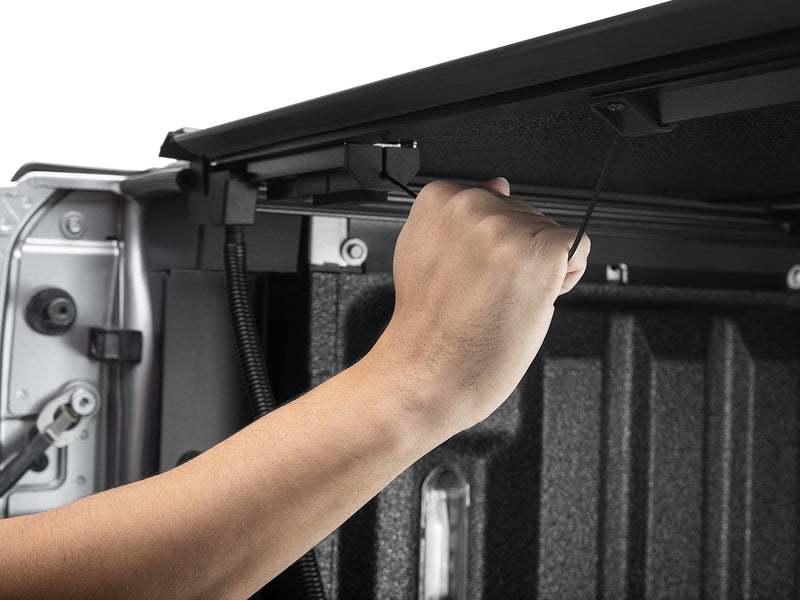

Release: Latch-release cables at either side of the bed
-
Weather sealing: EPDM rubber perimeter seals, integrated drainage, dual-function rear tailgate seal
-
Mounting: Clamp-on side rails, nothing drilled into the truck to mount the cover
-
Installation difficulty: Level 1: Simple Installation
-
Installation time: Less than 1 hour
-
Warranty: 5-year limited
-
Country of origin: Assembled in the USA, in Missouri
Installation
Type: Clamp-on side rails, nothing drilled into the truck to mount the cover · Time: Less than 1 hour · Tools: Scissors or utility knife, Isopropyl alcohol, 1/2" Wrench or socket, Phillips screwdriver, 5/8" Drill bit & drill · Difficulty: Level 1: Simple Installation
The side rails clamp to the inside of your bed rails with the hardware in the box, and the cover sits on those rails. Get the rails square to the bed rails, at 90 degrees, before you tighten anything. UnderCover's sheet is explicit that the rear latch will not engage otherwise, and a latch that will not catch is almost always a rail that is not square.
The drain tubes can be routed behind a bedliner, through the factory bed plugs, or through a 5/8" hole if you prefer to drill one. None of those three routes is needed to hold the cover on.
Side-rail clamp bolts, with a 1/2" wrench or socket: 10 ft-lb
Resources
Warranty, Shipping & Returns
Warranty. UnderCover covers the ArmorFlex with a five (5) year limited warranty from the original date of purchase. Three conditions in the terms catch people out more than the rest. It has to be clear of snow, ice and any other debris before you fold it back. It must be secured at all points whenever the vehicle is moving, and it has to come off the truck before the truck is towed from the rear. Check every clamp and retention mechanism for tightness about a week after installation and periodically after that. Washing is mild automotive soap and water, nothing stronger: insect repellents, oils, solvents and lubricants can all attack the rubber hinges and seals, and that damage is not covered. Free shipping. This cover ships free within the contiguous United States as an oversized package rather than a freight shipment. Inspect on delivery. The carton is long and shallow, and it is the part that takes the knocks, so it is worth a proper look before you sign for it. If the box is crushed, torn or soaked, write that on the delivery paperwork and tell us the same day so we can get a replacement moving.
About UnderCover
UnderCover is part of the RealTruck group of truck accessory brands and builds hard folding and one-piece bed covers for full-size and mid-size pickups. Its hard folding covers are assembled in the USA, in Missouri. The ArmorFlex is covered by a five year limited warranty on the cover, dated from the original purchase, and warranty registration and replacement parts are handled by the manufacturer.
ArmorFlex sits at the top of UnderCover's hard folding range and is the only cover in it treated with Multi-Shield, a textured matte black coating carried on the panel face. It is rated to 400 lb evenly distributed, and its rear tailgate seal is dual-function, so the tailgate can be worked without unlatching the cover. It opens two thirds of the way on the safety straps, or lifts onto the prop rods to stand flush against the rear window for the full bed. Ultra Flex is the alternative at the same five year term, trading the coating for the newer rail and clamp mechanism and full bed access rated to drive folded. Flex is the gloss black cover a tier below, and Select is the simplest of the four. If a folding cover is not the format you want, the one-piece line raises a single rigid lid instead: Elite and SE in matte black, Elite LX and LUX unpainted or painted to an OEM paint code.
The ArmorFlex runs aluminum panels on a robust aluminum frame, the only cover in the folding range that names a frame at all. Durable EPDM rubber seals close the perimeter, and the dual-function rear tailgate seal is what lets the tailgate be worked without unlatching the cover. Integrated drain tubes carry water out of the bed. It bolts on using the included clamps and hardware, with nothing drilled into the truck to mount it, and it is rated to 400 lb evenly distributed.
