This is the painted one-piece lid for the Chevrolet Colorado, dimensioned for the 6'2" box and sprayed at UnderCover's own paint line. The Elite LX is UnderCover's painted one-piece lid: a single molded ABS polymer panel that hinges at the bulkhead, rises on gas struts and locks through a key lock and an integrated thumb lock worked from a one-hand rotating handle. Closed it is rated to carry 500 lb evenly distributed, the highest load figure UnderCover publishes for anything in its current range. The underside is finished with a carpeted headliner and carries an LED light, and because the lid sits over the bed caps and the tailgate, locking it holds the tailgate shut as well. UnderCover sprays this cover in 5 factory paint codes for this truck, and also supplies it unpainted for a body shop to finish. It mounts on brackets that bolt and clamp inside the bed, with no hole drilled anywhere in the Chevrolet Colorado. The part numbers are UC1168L in a factory paint code and UC1168S unpainted, both built for the 2015-2022 Chevrolet Colorado with the 6'2" (74") bed.

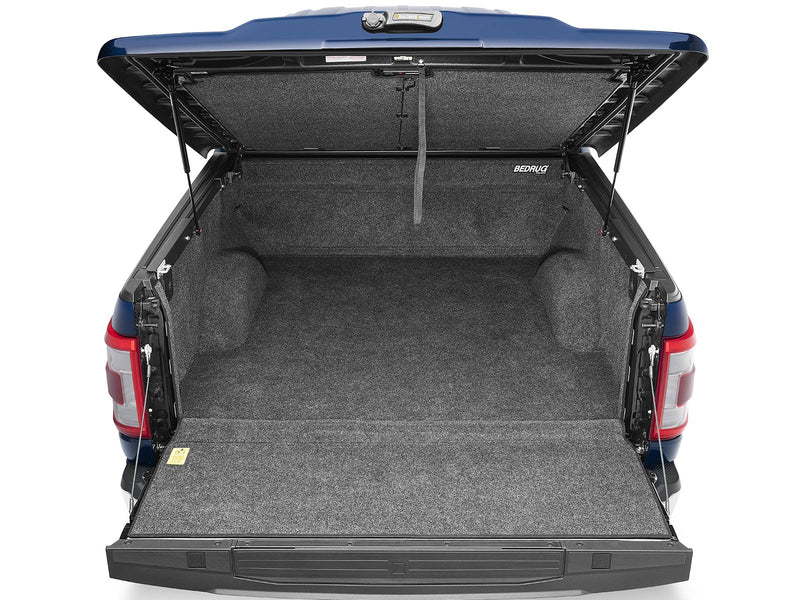

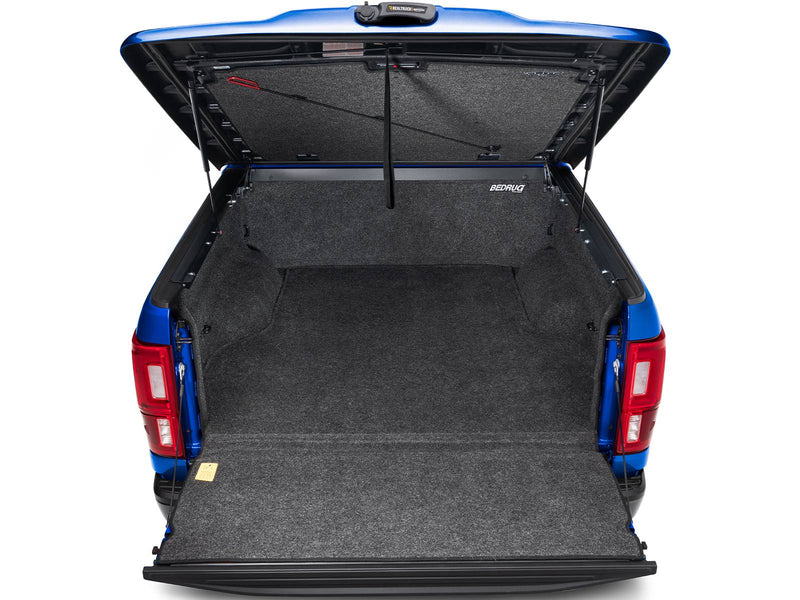

About the color list and the photographs. The codes in the dropdown are every factory code UnderCover sprays this cover in, pooled across all the model years the cover fits. The list does not narrow itself when you pick a year, and factory paint offerings change from year to year, so read the code off your driver's door jamb sticker and match it exactly before you order. The photographs on this page show one painted lid in one color and stand for the product, not for the code you choose.
What's Included:
- 1x One-piece tonneau cover
- 2x Rear mounting brackets
- 2x Hydraulic struts
- 2x Front mounting brackets
- 8x Aluminum clamps, with stainless steel bolts, washers and lock washers
- 1x Four-bar hinge with twist knobs, pre-fitted to the lid
- 2x J-hooks, with wall mounting screws
- 4x Rubber filler strips
Features
Sprayed to Your Truck's Own Code
This is the tier you buy for the finish. UnderCover sprays the lid at its own paint line to the OEM code you pick, so the closed truck reads as one color from the cab to the back of the tailgate instead of a black panel dropped onto a painted body. UnderCover does not guarantee a 100% match, and says so in its printed warranty: paint varies from one truck to the next with age and sun, and some variance is normal.
Carpeted Underside, Not Bare Plastic

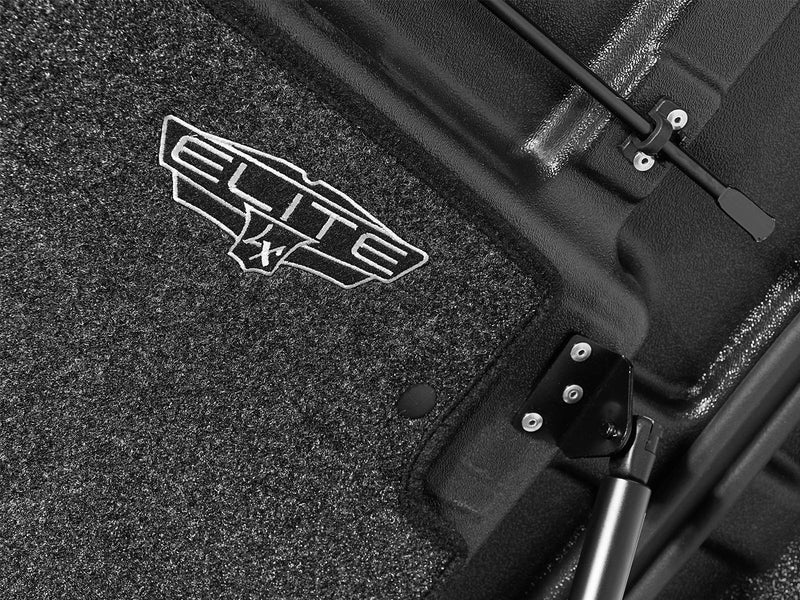

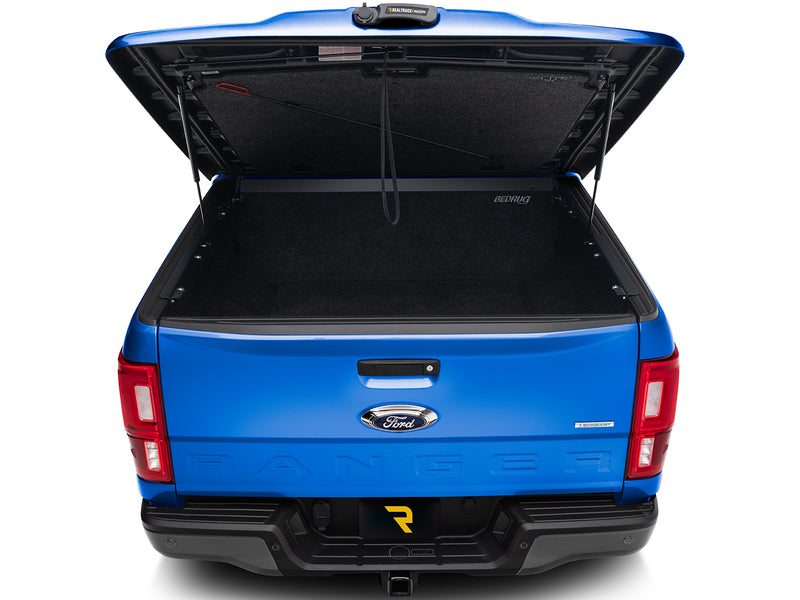

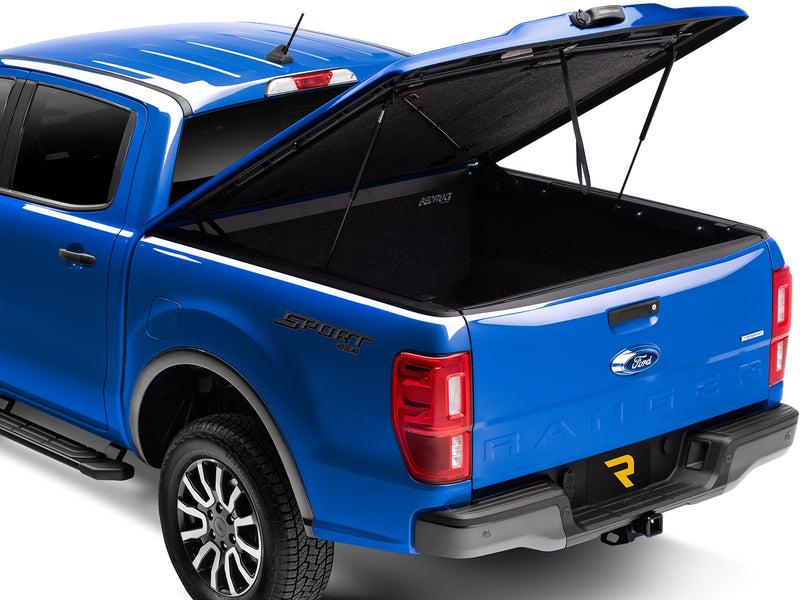

Raise the lid and the underside is a gray carpeted headliner with the Elite LX badge embroidered into it, rather than the bare textured plastic the cheaper one-piece covers show. It is the difference you notice every time the lid is open, and it is the quickest way to tell an Elite LX from an Elite at a glance.
Rated 500 lb Evenly Distributed
UnderCover rates the closed Elite LX at 500 lb evenly distributed, the highest figure it publishes for anything in its current range. Evenly distributed is doing real work in that sentence: it means weight spread across the lid, not a point load in one spot, and it applies to the lid closed and latched.
Key Lock and an Integrated Thumb Lock

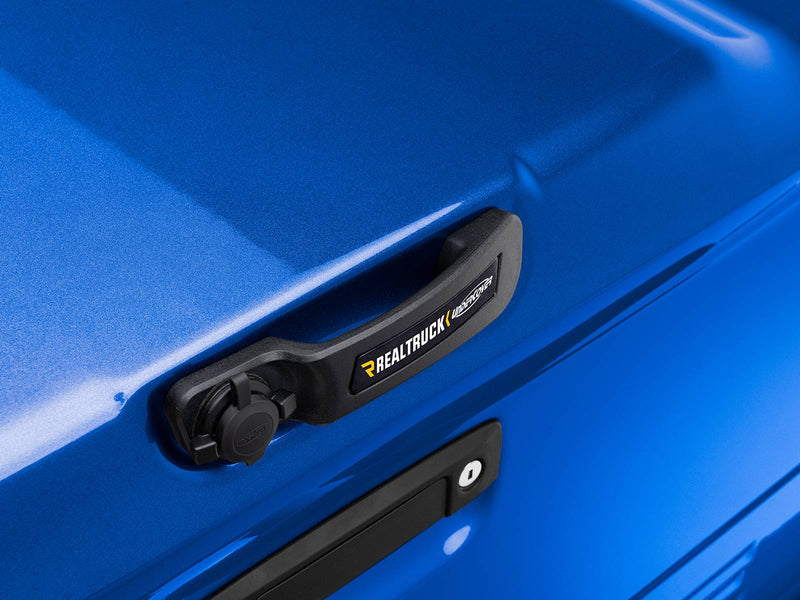

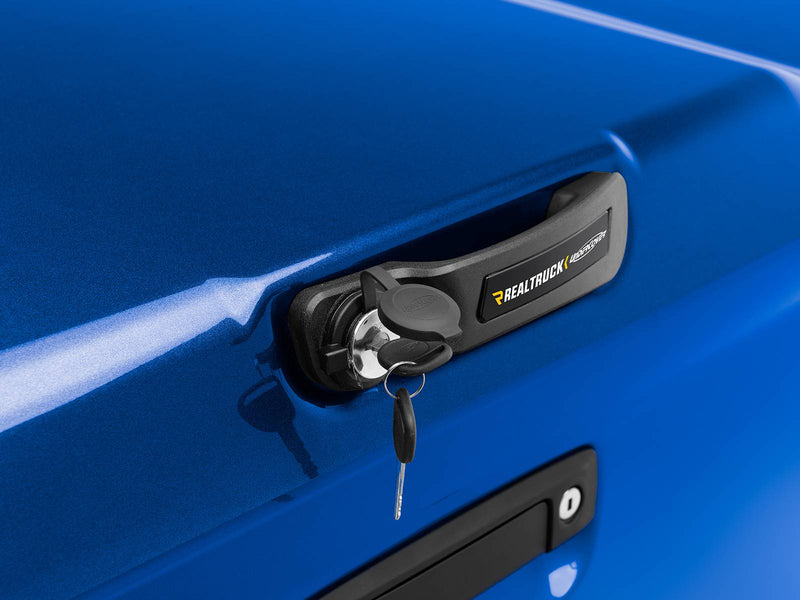

Security runs through a key-locking latch with an integrated lock mechanism, worked from a one-hand rotating handle with a hinged cap over the cylinder. Because the lid overlaps the bed caps and the tailgate, one turn of the key secures the lid and the tailgate together, so the whole bed is behind one lock.
Covers the Bed Caps and the Tailgate

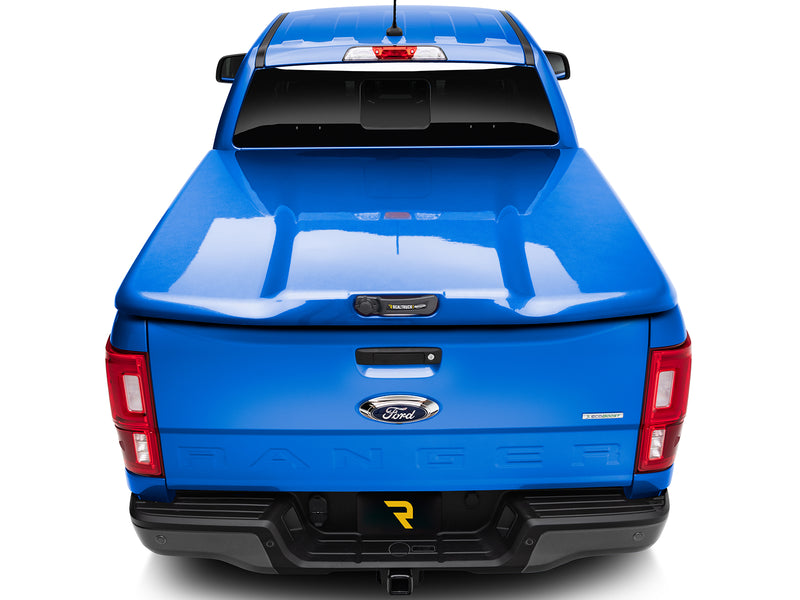

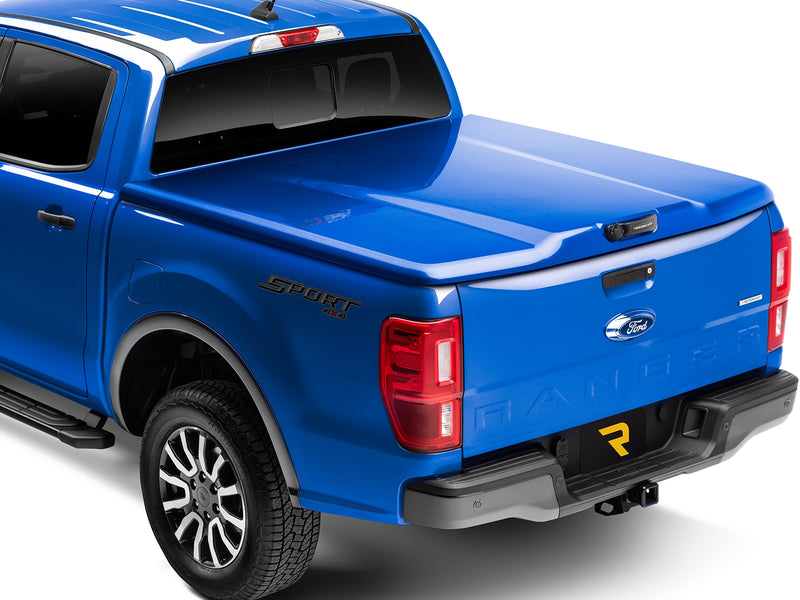

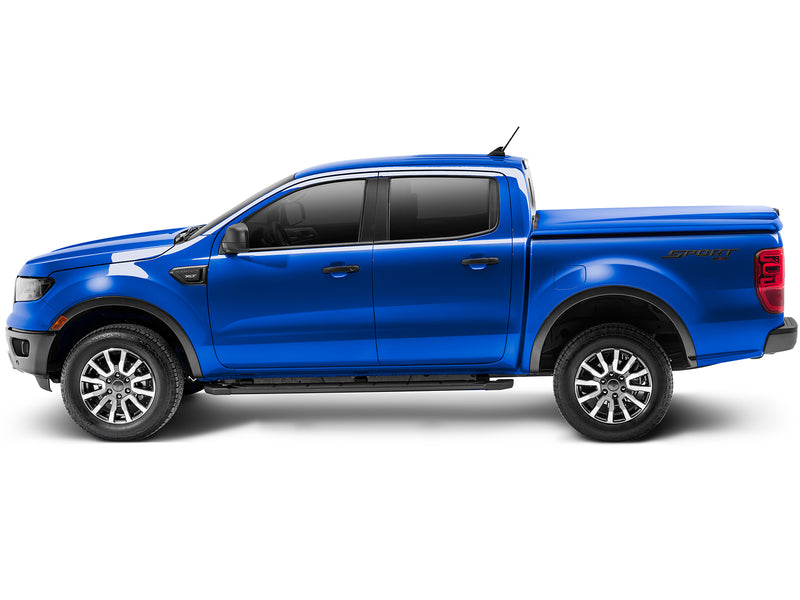

The lid sits over the bed caps and across the tailgate rather than down inside the bed rails, so the rails themselves are under cover and the closed truck presents a continuous painted surface from the bulkhead to the back of the tailgate.
Struts Up, and Off in a Minute

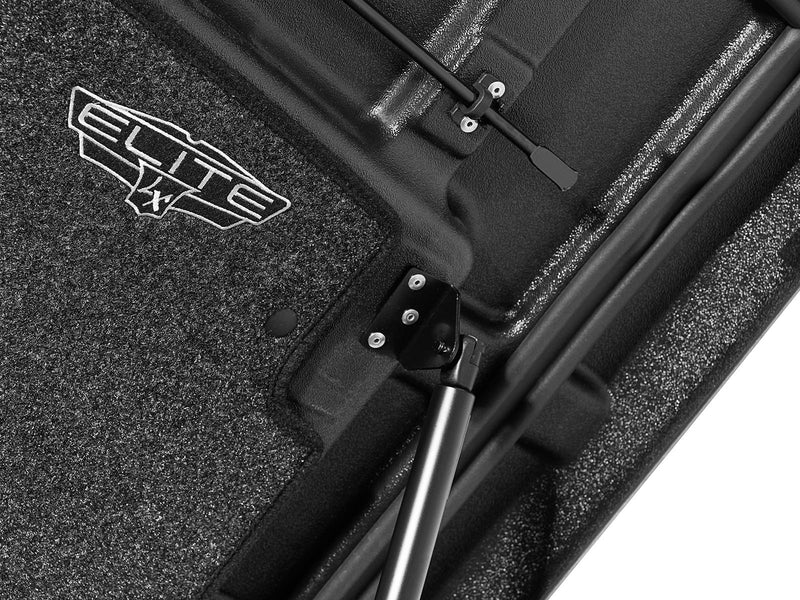

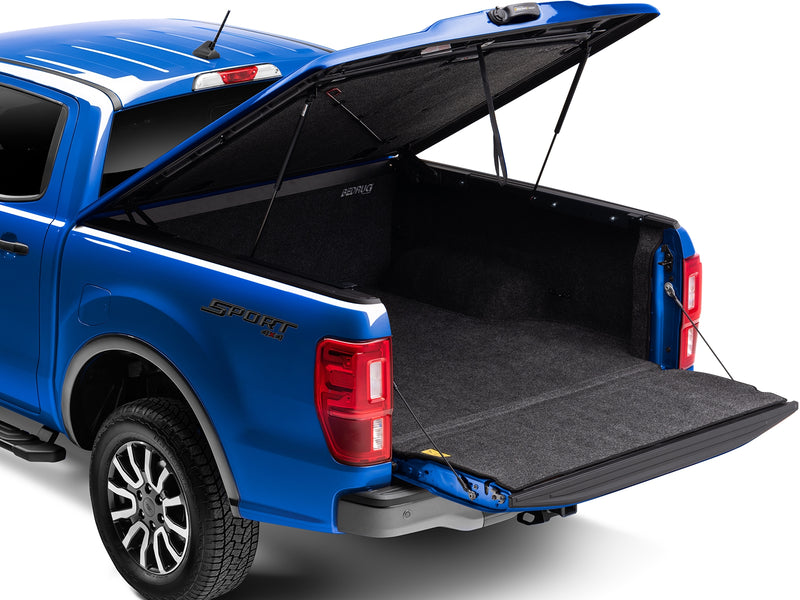

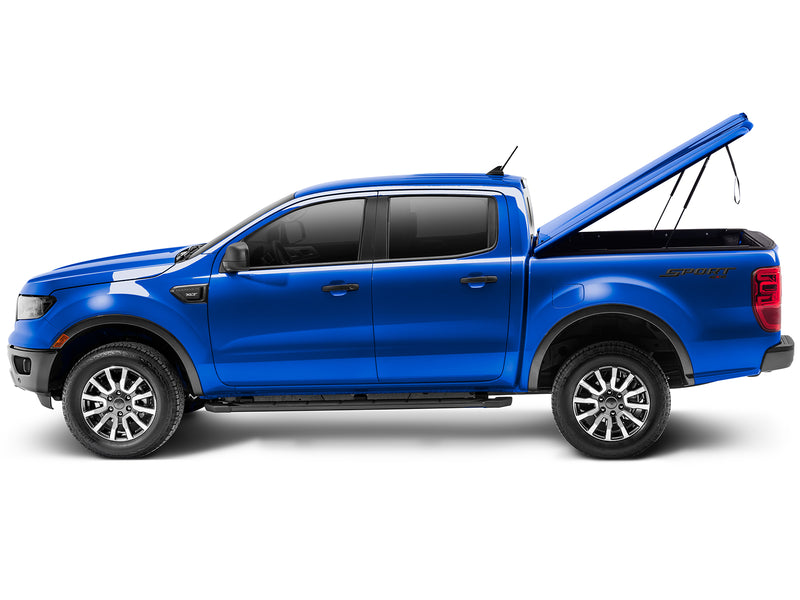

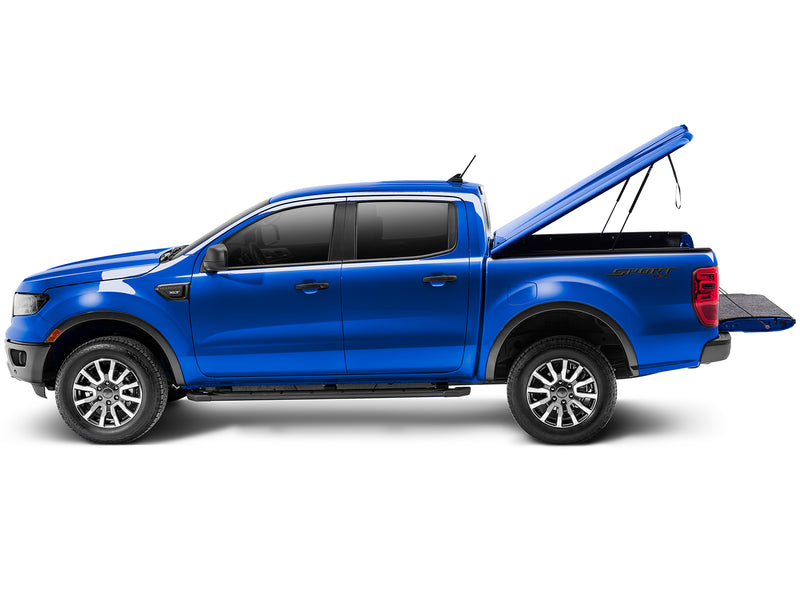

Two gas struts take the weight and hold the lid up while you load, with a prop rod backing them up and a lanyard pull strap for pulling the lid back down. When the load is taller than the bed the lid comes off the four-bar hinge entirely, and the brackets stay bolted to the truck while it is off.
Bolted On, Nothing Drilled
The brackets clamp and bolt to the inside of the bed, and no UnderCover installation sheet for a one-piece cover asks you to drill the truck. A plastic drop-in bedliner is the exception that does need work: it may need minor trimming so the brackets seat flat. Trim the liner and never the mounting hardware, because modified hardware voids the warranty.
The Paint Warranty Is the Point
UnderCover backs the ABS polymer structure for the life of the product and adds a lifetime paint warranty on covers it painted itself: for the life of the product the finish will not fade or peel abnormally faster than the paint on the truck it is fitted to. Gas struts and mounting hardware carry one year.
Fitment & Compatibility
Fit guidance: Fits the 2015-2022 GMC Canyon and Chevrolet Colorado listed above with the 6'2" (74") bed. Paint codes follow the factory palette for each model year, so the code list on this page is the union across every year this cover fits and cannot narrow itself to your year. Match the code on your door jamb sticker. The lid closes over the bed caps and the tailgate, so the tailgate cannot be opened while the cover is closed and locked.
Specifications
-
Series: UnderCover Elite LX
-
Cover type: One-piece hinged hard lid
-
Material: Composite ABS polymer structure
-
Finish: Painted at UnderCover's factory to an OEM paint code, or supplied unpainted
-
Load rating: 500 lb evenly distributed
-
Bed access: Full bed access with the lid raised on its gas struts; the lid also lifts off the truck
-
Security: Key-locking latch with an integrated lock mechanism
-
Lock type: Key lock plus integrated thumb lock, worked by a one-hand rotating handle
-
Underside: Carpeted headliner with an LED light and a lanyard pull strap
-
Coverage: The lid covers the bed caps and the tailgate
-
Mounting: Bolt-on brackets and clamps, nothing drilled into the truck
-
Warranty: Limited lifetime on the structure and on factory-applied paint; 1 year on the gas struts and mounting hardware
-
Country of origin: UnderCover lists these covers as made in the USA
Installation
Tools: 3/8" wrench or socket and 1/2" wrench or socket · Help: Two people to set the lid on the truck

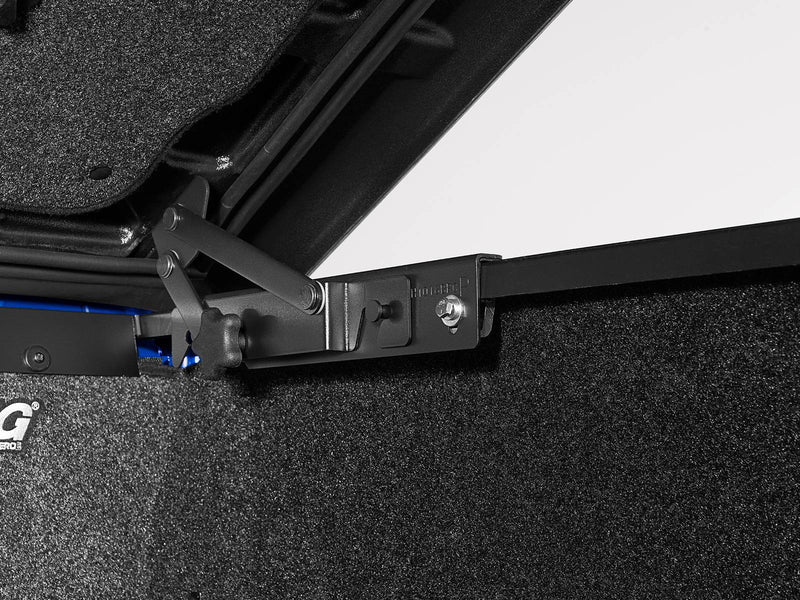

The mounting brackets bolt and clamp to the inside of the bed, the four-bar hinge on the lid drops onto the front brackets, and the struts snap onto the rear brackets by hand. Nothing is drilled into the truck.
The bracket positions are measured from the back face of the bulkhead, and on this application UnderCover's sheet gives the front bracket at 16 3/4" and the rear bracket at 46 3/4". Those figures are for this part number only; a sibling part on another bed uses different ones.
This platform's sheet is one of the ones that prints a torque figure: the latch mounting bolts and the lock strike go to 8.5 ft-lb (100 in-lb). Most UnderCover one-piece sheets print no torque at all, so use the figure on the sheet that came with your cover rather than one from a sibling application.
The hardware kit for this truck includes 4 rubber filler strips. They slide up between the plastic bed rail cap and the metal bed rail at each clamp position, and they go in before the brackets do.
No cutting or drilling is done to the truck itself. A plastic drop-in bedliner is a different matter: UnderCover's own sheet says a drop-in liner will need some minor trimming so the mounting brackets seat properly. A spray-in liner needs no work. Any modification is made to the liner and never to the UnderCover mounting hardware, because modified hardware voids the warranty.
Resources
Warranty, Shipping & Returns
Warranty. UnderCover's printed terms for the one-piece covers warrant the ABS polymer structure of the Elite LX to be free from defects in material and workmanship for the life of the product, and warrant the gas and hydraulic lift struts and the mounting hardware for one (1) year from the date of purchase. On top of that, covers painted at UnderCover's own factory carry the UnderCover Lifetime Paint Warranty: for the life of the product the exterior paint will not abnormally fade or peel from a material or workmanship defect faster than the paint on the truck it is fitted to. That paint term is what this tier is for, and it is explicit that covers not painted at the UnderCover factory are excluded, so an unpainted lid finished by your own body shop is covered for structure and components but not for paint. UnderCover also does not guarantee a 100% paint match. The warranty runs to the original purchaser, on the original truck, when the cover is bought from an authorized dealer, and registration and claims are handled by the manufacturer. Four conditions in the printed terms catch people out more than the rest. Do not drive with the lid in the open position and never tie it down while it is open, because that loads the front hinges and can crack them, and that damage is not treated as a manufacturer defect. When the lid is closed it should be locked with the tailgate up. Use only cleaners, waxes and products labeled safe for use on plastics, and keep insecticides and solvents off the lid. Any trimming needed to fit the brackets is done to the bedliner and never to the mounting hardware, because modifying the hardware voids the warranty. Free shipping. The Elite LX is a rigid one-piece lid in a carton a little over seven feet long, so it moves by freight rather than by parcel carrier, and it still ships free within the contiguous United States. The carrier will contact you to arrange a delivery window, and delivery is to the curb. Inspect on delivery. A long, shallow carton is the part that takes the knocks, and a painted lid shows a scuff that a black one hides, so open it and look at the finish before you sign for it. If the carton is crushed, torn or soaked, write that on the delivery paperwork and tell us the same day so we can get a replacement moving.
About UnderCover
UnderCover is part of the RealTruck group of truck accessory brands and builds hard folding and one-piece bed covers for full-size and mid-size pickups. The Elite LX carries a limited lifetime warranty on its structure and on paint applied at the UnderCover factory, with one year on the struts and mounting hardware, and warranty registration, claims and replacement parts are handled by the manufacturer.
Elite LX is the flagship one-piece cover in UnderCover's range and its largest family: a painted lid rated at 500 lb evenly distributed, with a carpeted headliner and a key lock backed by an integrated thumb lock. LUX is the other painted one-piece, at a lower entry price with a center twist lock and a bare textured underside. Elite and SE are the matte black one-piece covers, which trade the paint warranty for a lower price. If a rigid lid is not the format you want, UnderCover's folding range gives up one-piece rigidity for panels that fold to the cab: ArmorFlex with its Multi-Shield coating, Ultra Flex, the gloss black Flex and the entry-level Select.
The Elite LX is built as a single molded lid on an ABS polymer structure, hinged at the bulkhead on a four-bar hinge and held up by gas struts with a prop rod behind them. The underside is finished with a carpeted headliner carrying an LED light and a lanyard pull strap. The lid overlaps the bed caps and the tailgate rather than sitting inside the bed rails, and it mounts on bolt-on brackets and clamps with nothing drilled into the truck.
