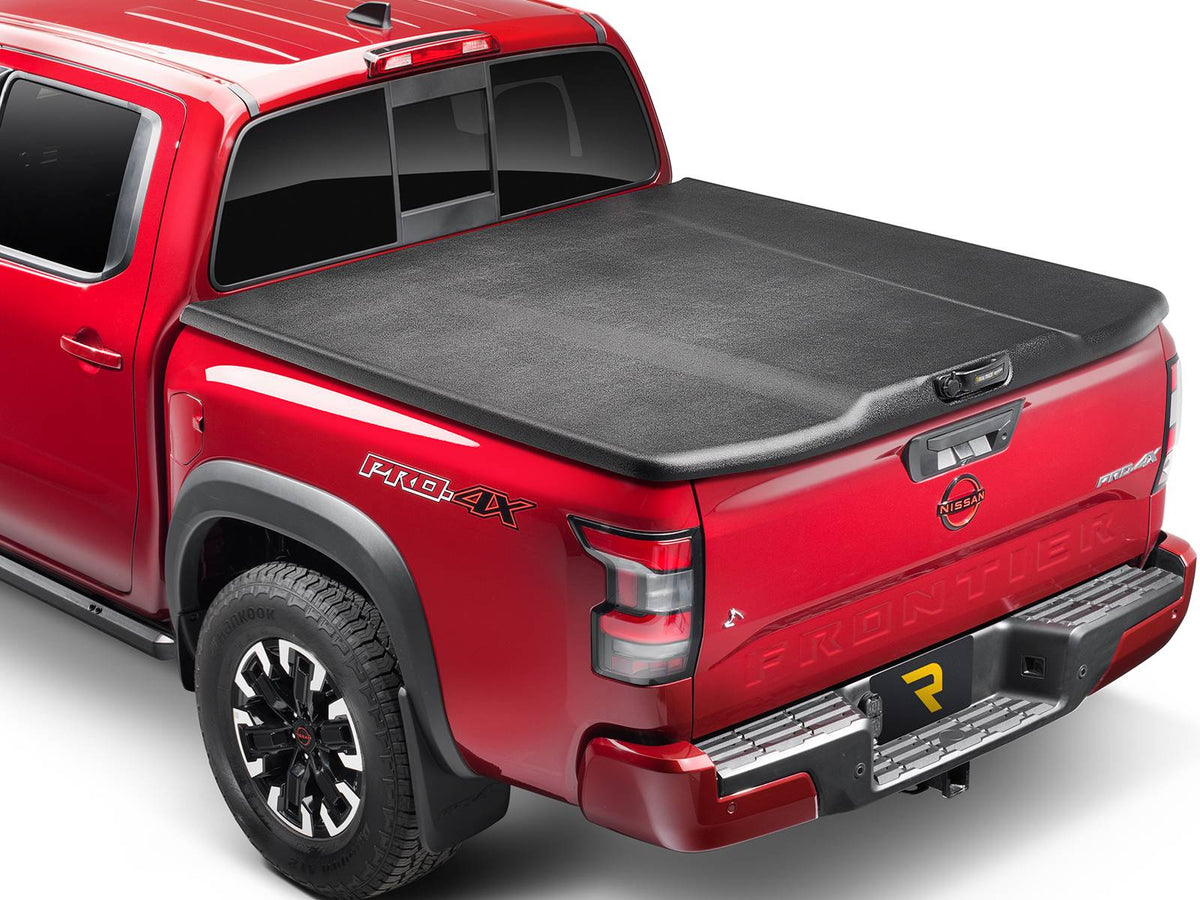

UnderCover Elite one-piece tonneau cover closed and latched on a pickup bed, rear three-quarter studio view, the black textured lid sitting flush on the tailgate cap with no bed floor showing.

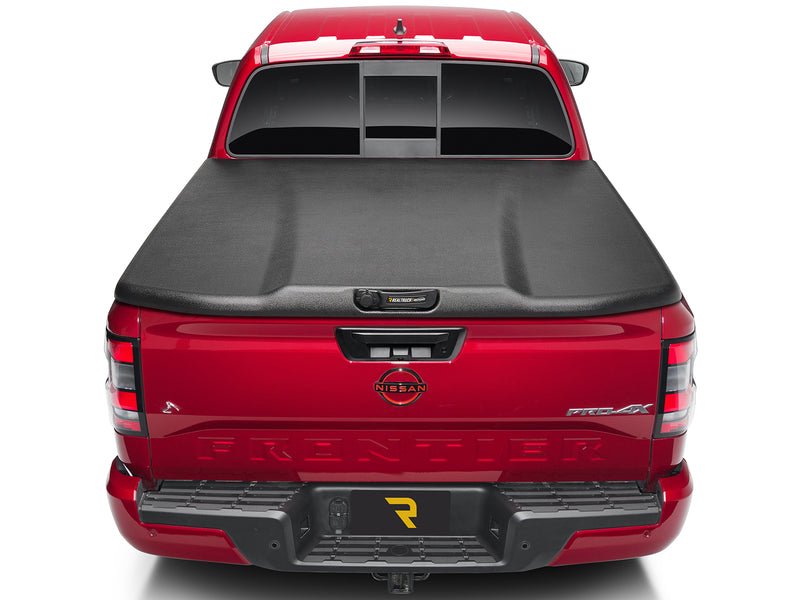

UnderCover Elite one-piece tonneau cover closed and latched, straight rear view showing the whole lid and both bed rails square to the camera.

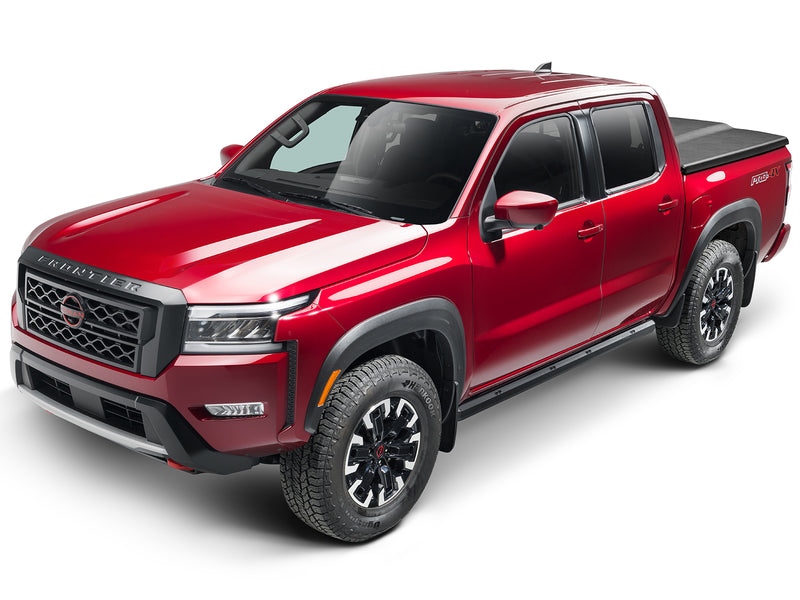

UnderCover Elite one-piece tonneau cover closed on a pickup bed, front three-quarter view with the whole truck in frame and the lid reading as a flat black deck across the box.

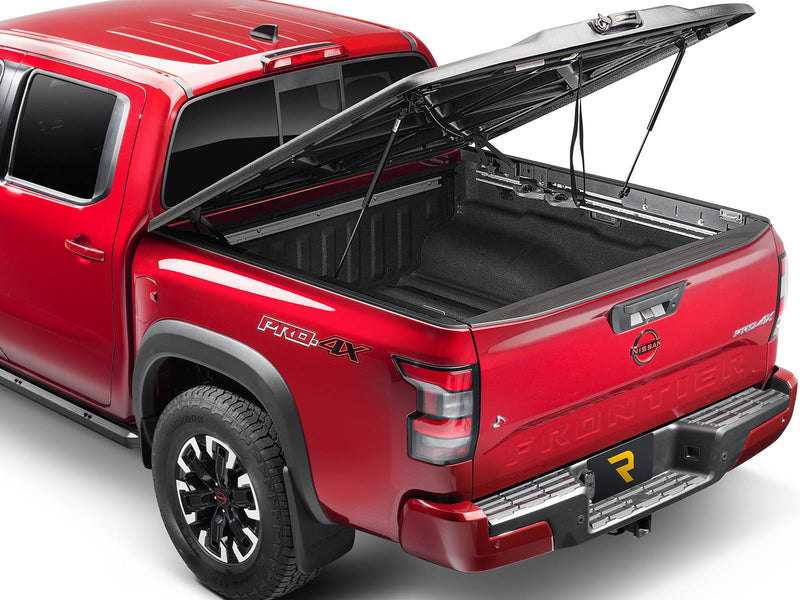

UnderCover Elite one-piece tonneau cover raised on its two hydraulic struts to about 45 degrees, rear three-quarter view, the molded X-brace underside and the empty spray-lined bed floor both visible.

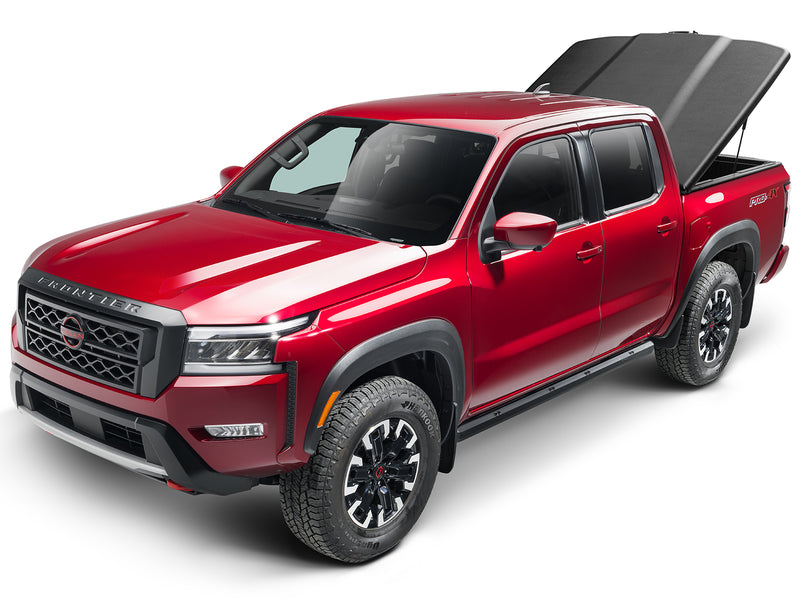

UnderCover Elite one-piece tonneau cover raised on its struts, front three-quarter view with the whole truck in frame and the open box behind the cab.

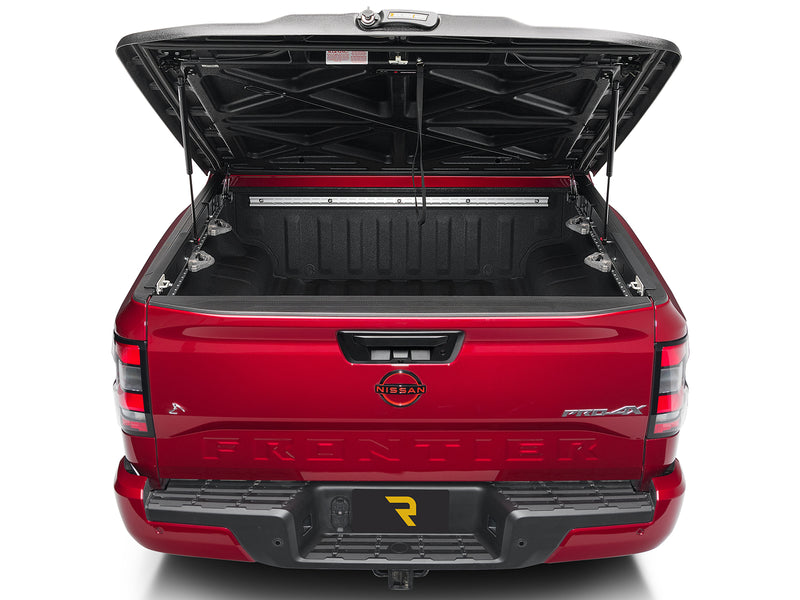

UnderCover Elite one-piece tonneau cover raised, straight rear view looking at the molded X-brace underside and the printed red warning decal.

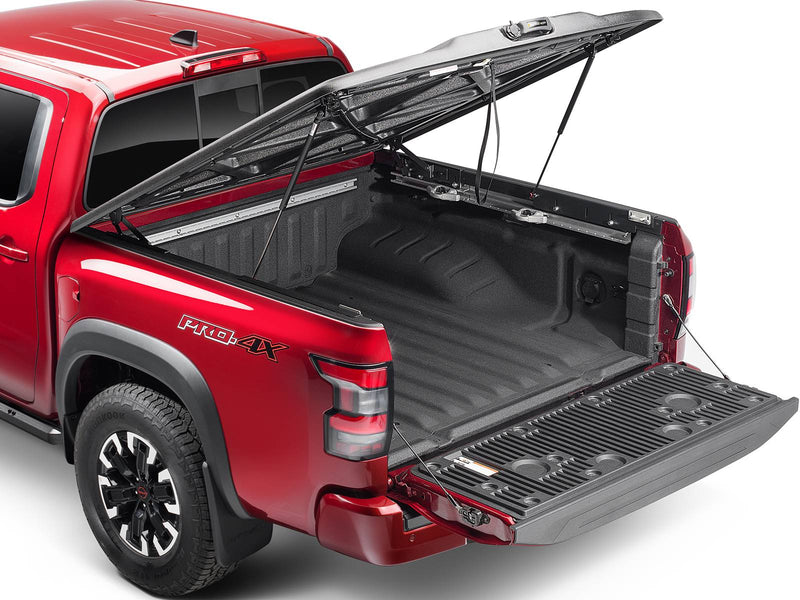

UnderCover Elite one-piece tonneau cover raised on its struts with the tailgate down, rear three-quarter view, the bed floor and the tailgate inner panel both open to the camera.

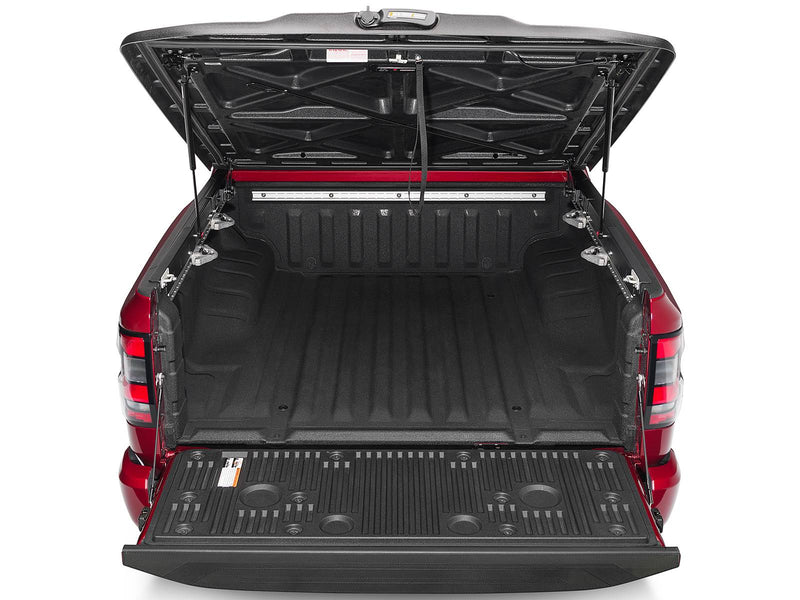

UnderCover Elite one-piece tonneau cover raised with the tailgate down, straight rear view looking the full length of the empty bed.

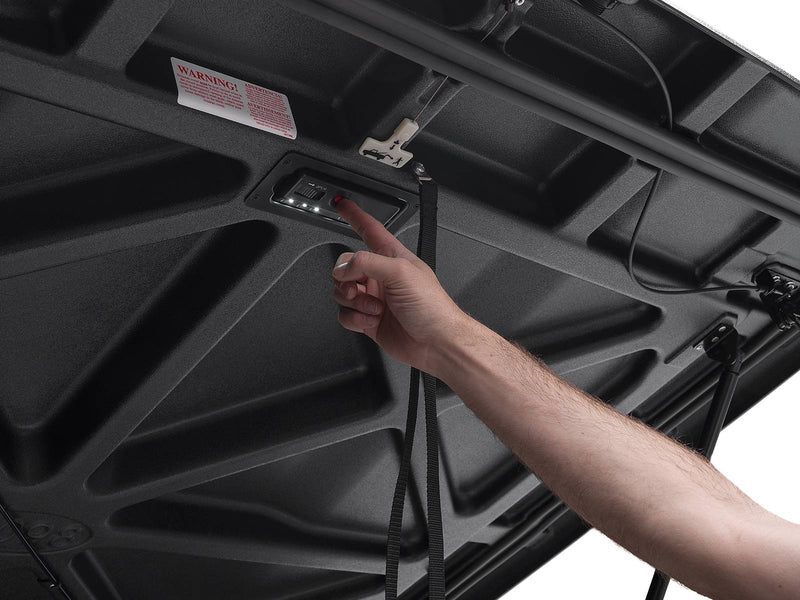

A hand pressing the button on the LED light module set into the black textured underside of the raised Elite lid.

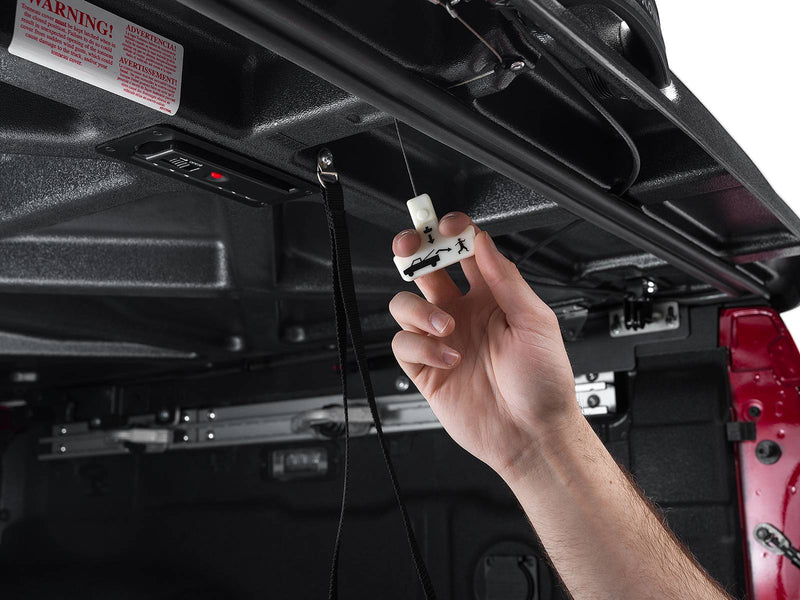

A hand holding the white emergency release tab on its cord under the raised Elite lid, beside the pictogram showing a person leaving the bed.

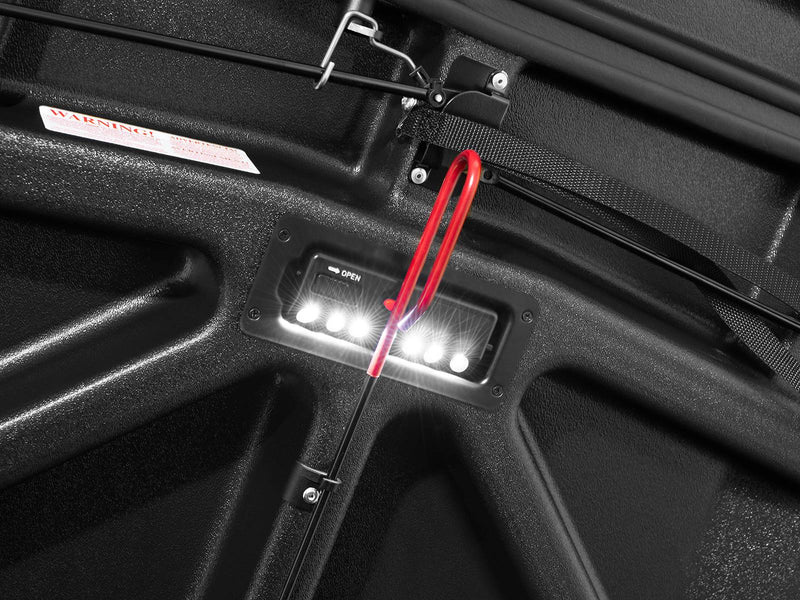

Close-up of the lit LED light module recessed into the black textured underside of the Elite lid.

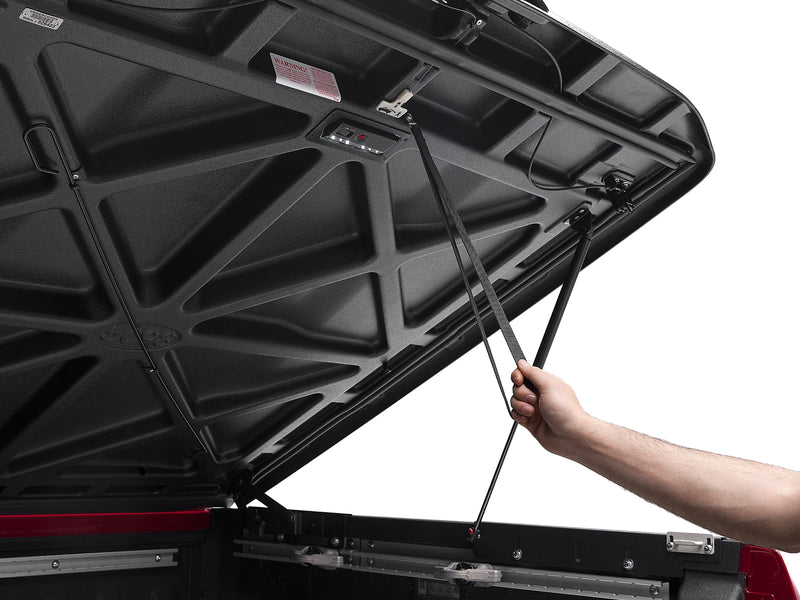

Wide macro of the Elite lid underside showing the triangular X-brace molding, the black webbing pull strap and the UnderCover serial plate.

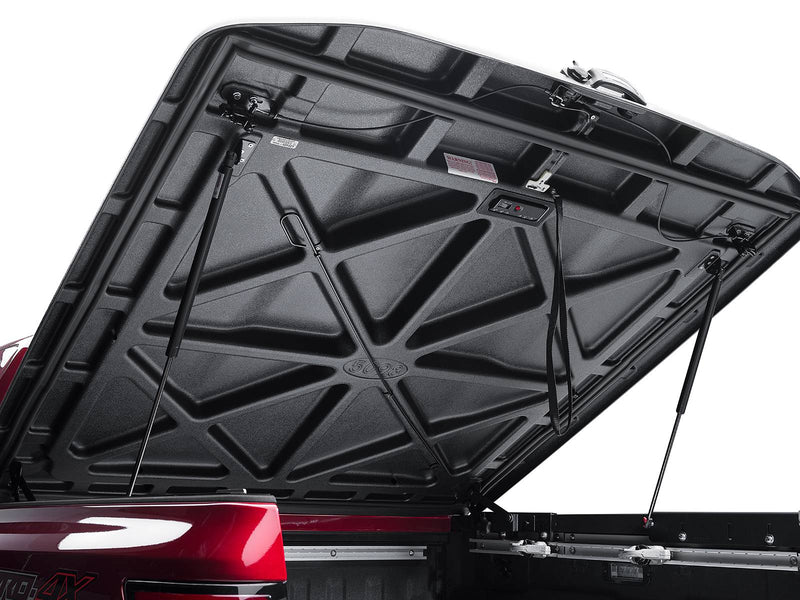

Close-up of the raised Elite lid from below, showing the full X-brace molding and the perimeter seal channel that runs around the edge.

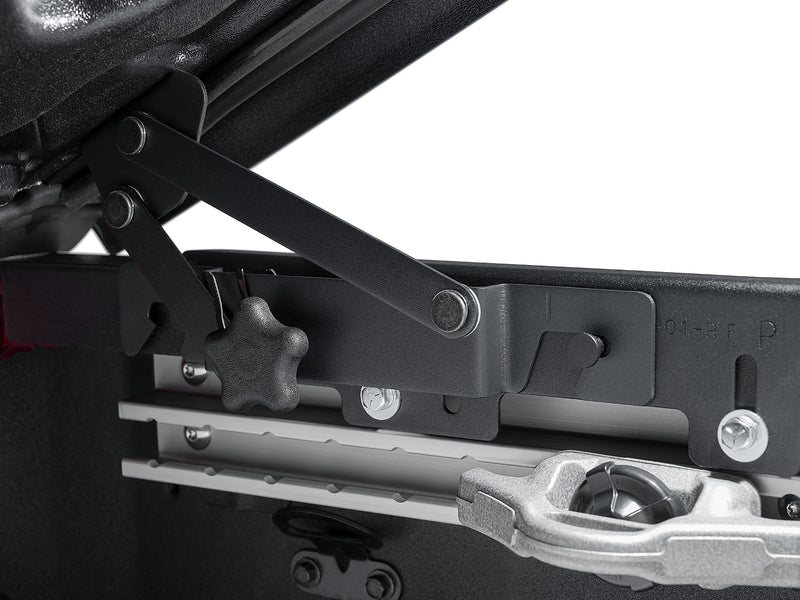

Close-up of the hinge linkage and its clamp knob where the Elite lid meets the aluminum mounting rail on the bed wall.

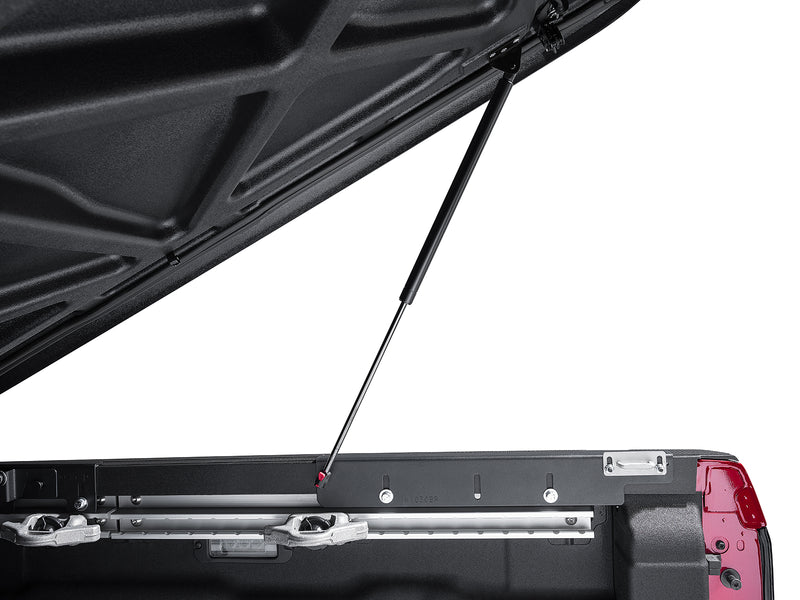

Close-up of the gas strut holding the Elite lid open above the bed rail, with the molded part stamp on the strut bracket.

UnderCover Elite One-Piece Tonneau Cover for 2021-2026 Ford F-150 / F-150 Raptor / F-150 Lightning (5'7" Bed, without Pro Access Tailgate)

Name: UnderCover Elite One-Piece Tonneau Cover for 2021-2026 Ford F-150 / F-150 Raptor / F-150 Lightning (5'7" Bed, without Pro Access Tailgate)
Brand: UnderCover
SKU: UNDUC2208
Price: 1449.99 USD
Availability: InStock

$1,449.99

FREE SHIPPINGNo sales tax Only 2 leftIn stock now Estimated delivery

Pick your free gift

Details

Ships separately and arrives in 7 to 14 days

Guaranteed FitmentTeam-confirmed fit or money back
No Sales TaxZero sales tax on every order
Price MatchWe'll beat any competitor's price

Product support & personalised quotes

Monday to Friday 9:00AM to 5:00PM EST

+1 (470) 823-2453 Email Us

This Elite is the one dimensioned for the Ford F-150 with the 5'7" box. The Elite is a single molded lid rather than a set of folding panels: it hinges at the bulkhead on a four-bar hinge, rises on two hydraulic struts and locks from a one-hand handle, and closed it is rated to carry 500 lb spread evenly across it. An EPDM double-bulb seal runs the whole perimeter, and because the lid overlaps the bed caps and the tailgate, locking it holds the tailgate shut as well. Underneath it carries a molded X-brace, an LED light module and a webbing pull strap. Two people set the lid onto the Ford F-150, and after that the brackets stay put whether the lid is on or off. This is part UC2208, the Elite built for the 2021-2026 Ford F-150 with the 5'7" (67.1") bed.

What's Included:

1x One-piece tonneau cover
2x Rear mounting brackets
2x Hydraulic struts
2x Front mounting brackets
8x Aluminum clamps, with stainless steel bolts, washers and lock washers
1x Four-bar hinge with twist knobs, pre-fitted to the lid
2x J-hooks, with wall mounting screws

Features

One Lid, Not Three Panels
The Elite is a single molded lid rather than a set of folding panels, so there are no panel seams running across the bed and nothing to unfold before you can see what is underneath. Unlock it, lift it, and the whole box is open in one movement. It is the format to pick when the bed is storage first and a cargo deck second.

500 lb Spread Across the Closed Lid
UnderCover rates the closed Elite to carry 500 lb evenly distributed, the highest figure it publishes on any cover it currently sells. That covers a winter's snow load or flat sheet goods lying across the lid. The rating is for weight spread over the lid, not concentrated on one spot.

Two Struts Do the Lifting
A pair of hydraulic struts takes the weight of the lid once it is past the first few degrees, so raising it is a push rather than a haul, and it stays up on its own while you load. The struts snap onto the rear brackets during assembly and need no tools.

Locks From a One-Hand Handle
The Elite carries an integrated lock mechanism worked by a single handle, so the lid is secured without a separate padlock or a cable running into the bed. Because the lid overlaps the bed caps and the tailgate, a locked lid also holds the tailgate shut.

A Double-Bulb Seal Around the Whole Perimeter
UnderCover specifies an EPDM double-bulb seal around the perimeter of the Elite. Two sealing lips instead of one is what lets a rigid lid sit on a bed rail that is never perfectly flat and still keep weather out of the corners.

Lit Underneath, and a Way Out
The underside carries a molded X-brace, an LED light module you press to switch on, a webbing pull strap for closing the lid from inside the bed, and a bright emergency release tab on a cord so the lid can always be opened from within the bed.

Bolted On, Nothing Drilled
The mounting brackets bolt to the inside of the bed with clamps and the supplied hardware, and no UnderCover installation sheet for a one-piece cover asks you to drill the truck. A plastic drop-in bedliner may need trimming so the brackets sit flat; trim the liner and never the mounting hardware, because modified hardware voids the warranty.

Comes Off, and Hangs on the Wall
The kit includes two J-hooks and wall mounting screws, so the lid that comes off for a tall load has somewhere to go rather than leaning against the garage wall. Taking it off is a two-person job, and the brackets stay on the truck.

Fitment & Compatibility

Ford
Years	Model	Bed	Notes
2021-2026	F-150	5'7"	w/o Pro Access Tailgate
2022-2025	F-150 Lightning	5'7"	w/o Pro Access Tailgate
2021-2026	F-150 Raptor	5'7"	w/o Pro Access Tailgate

Fit guidance: Fits the 2021-2026 Ford F-150, Ford F-150 Raptor and Ford F-150 Lightning listed above with the 5'7" (67.1") bed. It does not fit a truck with the Pro Access Tailgate. The lid closes over the bed caps and the tailgate, so the tailgate cannot be opened while the cover is closed and locked.

Specifications

Series: UnderCover Elite
Cover type: One-piece hinged hard lid
Material: Composite ABS polymer structure
Finish: Matte black textured
Load rating: 500 lb evenly distributed
Bed access: Full bed access with the lid raised on two hydraulic struts; the lid also lifts off the truck
Security: Integrated lock mechanism worked by a one-hand handle
Weather sealing: EPDM double-bulb perimeter seal
Mounting: Bolt-on brackets and clamps, nothing drilled into the truck
Warranty: 3-year limited
Country of origin: UnderCover lists these covers as made in the USA

Installation

Tools: 3/8" wrench or socket and 1/2" wrench or socket · Help: Two people to set the lid on the truck

The mounting brackets bolt and clamp to the inside of the bed, the four-bar hinge on the lid drops onto the front brackets, and the struts snap onto the rear brackets by hand. Nothing is drilled into the truck.

The bracket positions are measured from the back face of the bulkhead, and on this application UnderCover's sheet gives the front bracket at 17 1/4" and the rear bracket at 40 1/4". Those figures are for this part number only; a sibling part on another bed uses different ones.

No cutting or drilling is done to the truck itself. A plastic drop-in bedliner is a different matter: UnderCover's own sheet says a drop-in liner will need some minor trimming so the mounting brackets seat properly. A spray-in liner needs no work. Any modification is made to the liner and never to the UnderCover mounting hardware, because modified hardware voids the warranty.

Latch mounting bolts and lock strike: 8.5 ft-lb (100 in-lb)

Resources

Official UnderCover Elite installation sheet for this truck (PDF), with the bracket measurements and the steps for this exact application.
Official UnderCover one-piece tonneau cover install guide (PDF), the general fitting guide that ships with every UnderCover one-piece cover.

Warranty, Shipping & Returns

Warranty. UnderCover covers the Elite with a three (3) year limited warranty, and warranty registration and claims are handled by the manufacturer. Four conditions in the printed terms catch people out more than the rest. Do not drive with the lid in the open position and never tie it down while it is open, because that loads the front hinges and can crack them, and that damage is not treated as a manufacturer defect. When the lid is closed it should be locked with the tailgate up. Use only cleaners, waxes and products labeled safe for use on plastics, and keep insecticides and solvents off the lid. Any trimming needed to fit the brackets is done to the bedliner and never to the mounting hardware, because modifying the hardware voids the warranty. Free shipping. The Elite is a rigid one-piece lid in a carton a little over seven feet long, so it moves by freight rather than by parcel carrier, and it still ships free within the contiguous United States. The carrier will contact you to arrange a delivery window, and delivery is to the curb. Inspect on delivery. A long, shallow carton is the part that takes the knocks, so open it and look at the lid before you sign for it. If the carton is crushed, torn or soaked, write that on the delivery paperwork and tell us the same day so we can get a replacement moving.

About UnderCover

UnderCover is part of the RealTruck group of truck accessory brands and builds hard folding and one-piece bed covers for full-size and mid-size pickups. The Elite carries a three year limited warranty, and warranty registration, claims and replacement parts are handled by the manufacturer.

Elite is the matte black one-piece in UnderCover's range and the higher-rated of the two, at 500 lb evenly distributed. SE is the simpler matte black one-piece below it, with a single-point lock. Elite LX and LUX are the painted one-piece covers: the same two chassis supplied unpainted or finished to an OEM paint code, and the paint is what the tier buys. If a rigid lid is not the format you want, UnderCover's folding range gives up one-piece rigidity for the ability to fold forward: ArmorFlex with its Multi-Shield coating, Ultra Flex, the gloss black Flex, and the entry-level Select.

The Elite is built as a single composite lid on an ABS polymer structure with a matte black textured finish, hinged at the bulkhead on a four-bar hinge and held up by two hydraulic struts. An EPDM double-bulb seal runs the perimeter, and the lid overlaps the bed caps and the tailgate rather than sitting inside the bed rails. It mounts on bolt-on brackets and clamps, and nothing is drilled into the truck.

Prestige Truck is an authorized UnderCover dealer. Every cover we ship is new, in the factory carton, and covered by UnderCover's warranty direct from the manufacturer.

UnderCover Elite one-piece tonneau cover raised on its struts with the tailgate down, showing the open bed

The whole bed, one lift

A one-piece lid trades folding for a single movement. Unlock the handle, lift the rear edge, and two hydraulic struts take the weight and hold the lid up while you load, with the whole length of the box open and nothing folded forward eating into it. Drop the tailgate afterwards and you have the full bed floor and a clear opening at the rear. When you need the box completely clear for something tall, the lid comes off its four-bar hinge and the mounting brackets stay on the truck, so putting it back on is a lift and two twist knobs.

Frequently Asked Questions

Straight answers on specs, fit and support

Does my tailgate still open when the cover is closed?

No, and this surprises people who are moving over from a folding cover. The Elite is a one-piece lid that overlaps the bed caps and the tailgate, so the tailgate is held shut while the lid is closed and locked. That is the security trade: there is no way into the bed without the key, but there is also no reaching in over a dropped tailgate. In practice you unlock the lid, lift it on its struts, and then drop the tailgate, which is one extra step rather than a different way of using the truck. If you need the tailgate to work independently of the cover, a folding cover is the format that does that.

Do I have to drill into my truck, and how long does it take to fit?

Nothing is drilled into the truck. UnderCover's installation sheets for the one-piece covers do not call for a drill anywhere, and the mounting brackets clamp and bolt to the inside of the bed. UnderCover does not publish a fitting time for the Elite, so we are not going to quote one. What the sheets do say is that you need a second person to set the lid onto the truck, and that a plastic drop-in bedliner may need minor trimming so the brackets sit flat. Trim the liner, never the mounting hardware, because modifying the hardware voids the warranty. Work from the vehicle-specific sheet in the carton rather than a video, because the bracket measurements change from truck to truck.

How much weight can the closed lid take?

UnderCover rates the Elite at 500 lb evenly distributed, which is the highest figure it publishes for any cover in its current range. Evenly distributed is doing real work in that sentence: it means weight spread across the lid, not a point load in the middle and not somebody standing on one spot. A snow load, a couple of sheets lying flat, or a rooftop bag on a long drive are what the number is for. And it applies to the lid closed and latched, never to the lid open.

Will it keep my bed dry, and what happens in snow and ice?

It keeps weather out well for a bed cover, and UnderCover does not call it waterproof. A rigid one-piece lid has no panel seams to leak, which is its main advantage over a folding cover here, and UnderCover specifies an EPDM double-bulb seal around the whole perimeter. Wind-driven rain and a jet wash can still find the bulkhead corners on any bed cover, so keep anything that genuinely must stay dry in a sealed container. In snow, clear the lid before you open it rather than lifting a loaded lid, and expect rubber seals to stiffen in deep cold like any rubber seal. UnderCover publishes no operating temperature range for the Elite.

How does the lock work, and does it use my truck key?

The Elite locks through an integrated lock mechanism worked by a one-hand handle, and it comes with its own keys. It does not use your truck's factory key and UnderCover does not offer it keyed to a vehicle. Because the lid overlaps the tailgate, locking the lid also secures the tailgate, so one key covers the whole bed. Keep the spare somewhere other than the glovebox, because the glovebox is inside a truck whose bed you have just locked.

Can one person lift it off, and where does it go then?

Plan on two people. UnderCover's own sheet says to set the lid on the truck with assistance, and a rigid full-bed lid is awkward long before it is heavy. UnderCover publishes no weight for the lid on its own, so we are not printing a figure. The kit includes two J-hooks and wall mounting screws precisely because the lid needs somewhere to live once it is off, and the sheets give a wall mounting height. The mounting brackets stay bolted to the truck, so putting it back on is a lift and two twist knobs rather than a full refit.
