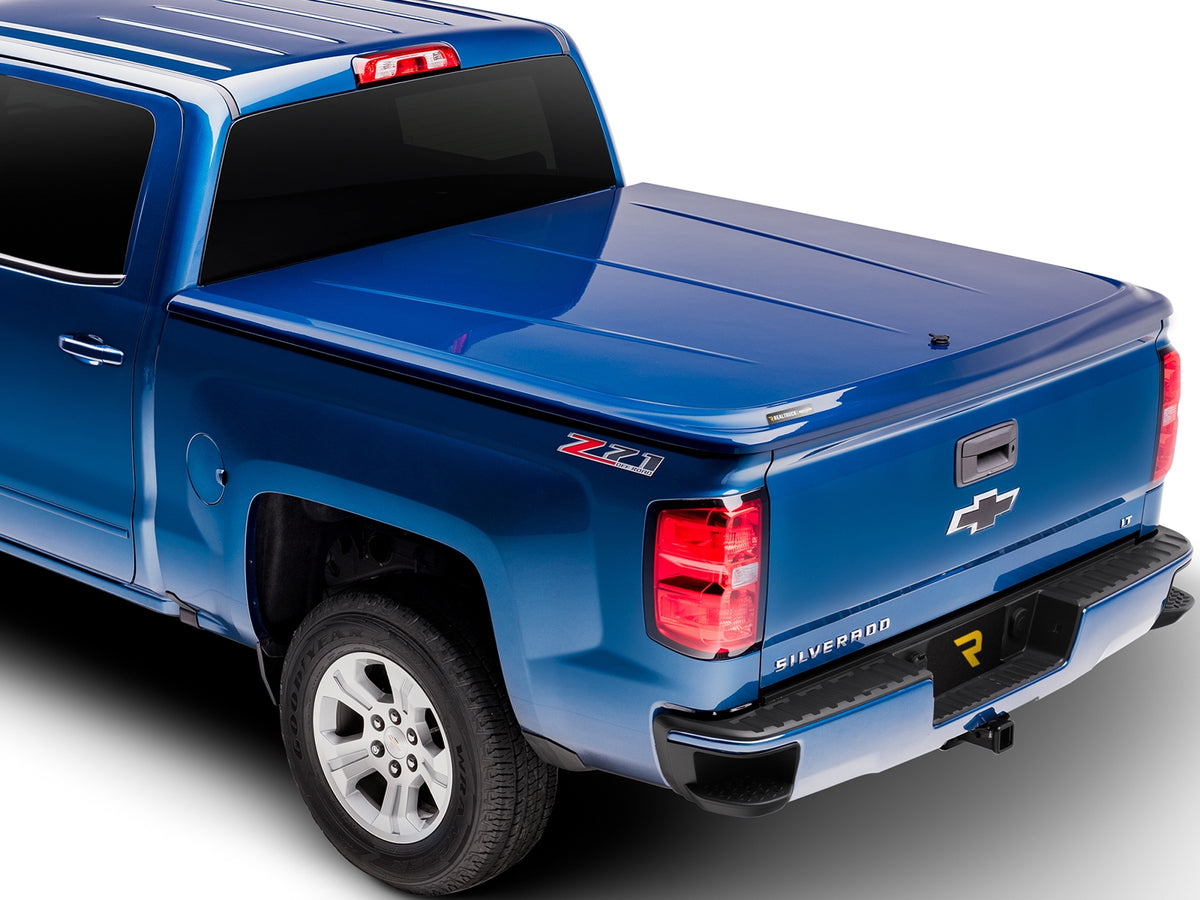

UnderCover LUX one-piece tonneau cover closed and latched on a pickup bed, rear three-quarter studio view, the lid sitting flush across the tailgate with no bed floor showing.

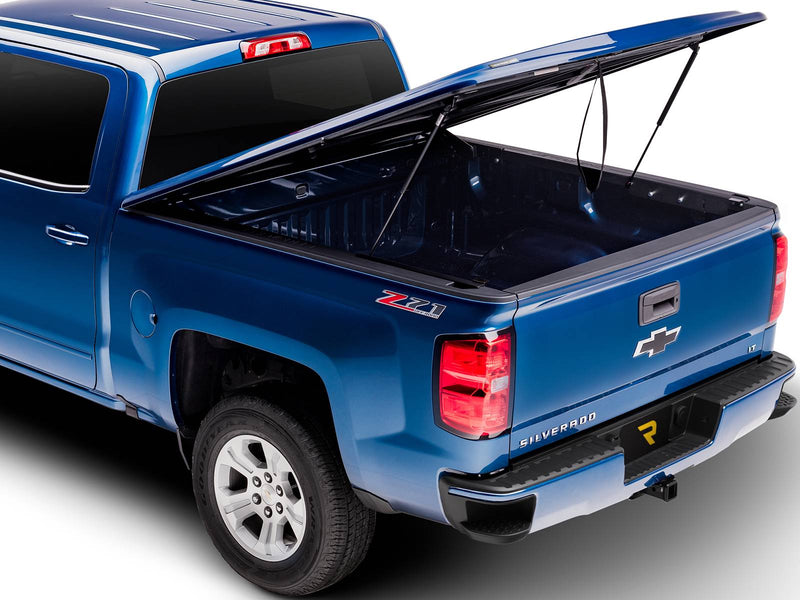

UnderCover LUX one-piece tonneau cover raised on its struts, rear three-quarter view, the underside of the lid and the empty bed floor both in frame.

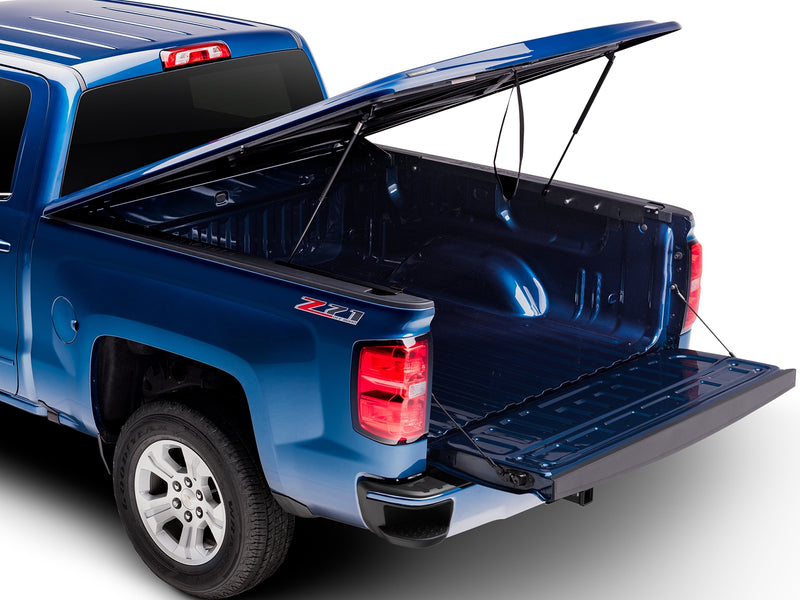

UnderCover LUX one-piece tonneau cover raised on its strut with the tailgate down, rear three-quarter view looking the full depth of the open bed.

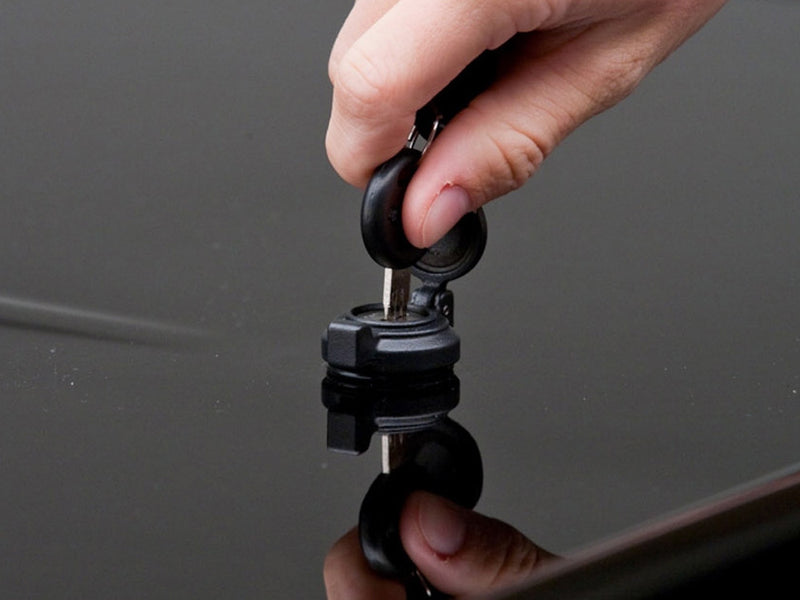

A hand turning a key in the center lock of the closed LUX lid.

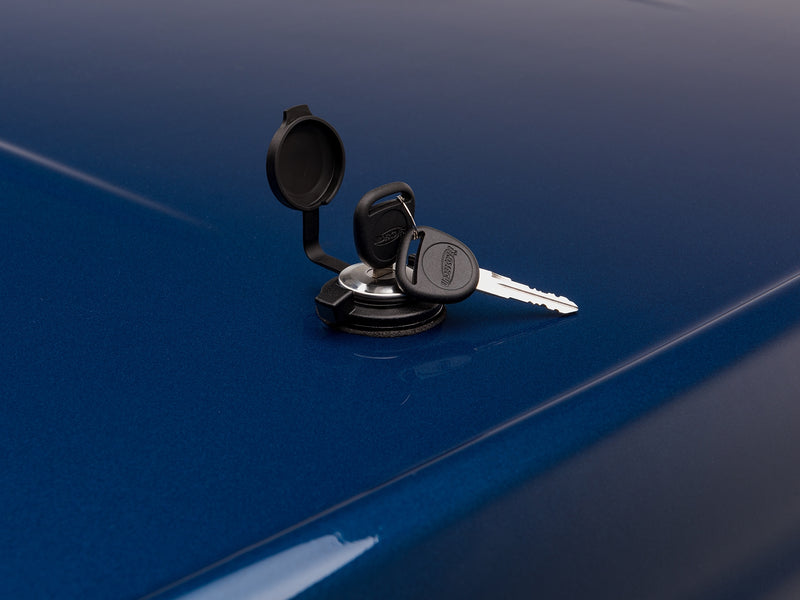

Close-up of the LUX lock cylinder with its weather cap flipped open, and the two supplied keys resting on the lid beside it.

Close-up of the small gray UnderCover nameplate applied to the rear lip of the LUX lid.

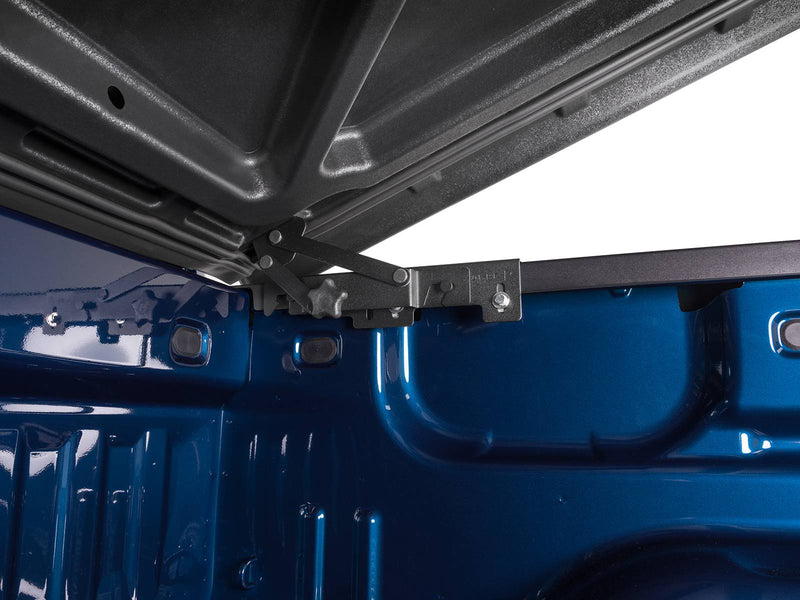

Close-up of the bare black textured underside of the raised LUX lid and the hinge mechanism at its forward edge.

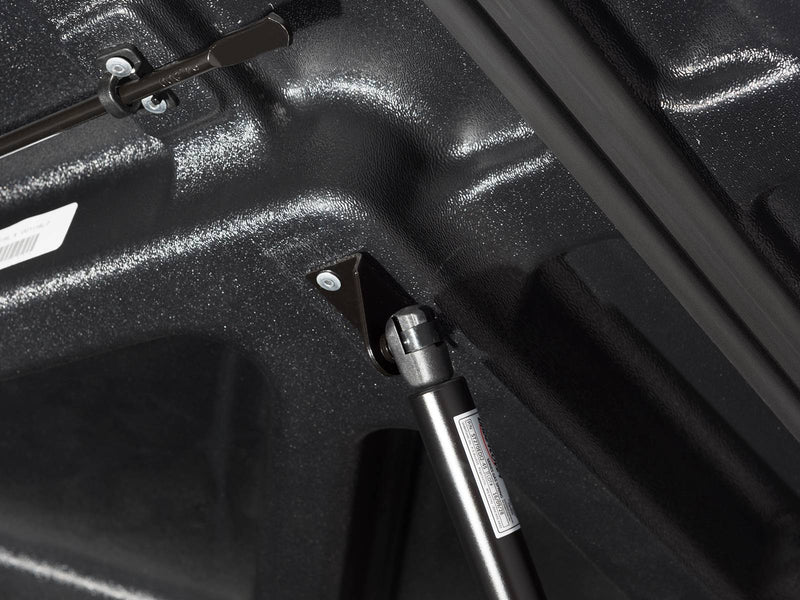

Close-up of the LUX lid underside showing the gas strut, the prop rod and the printed compliance labels.

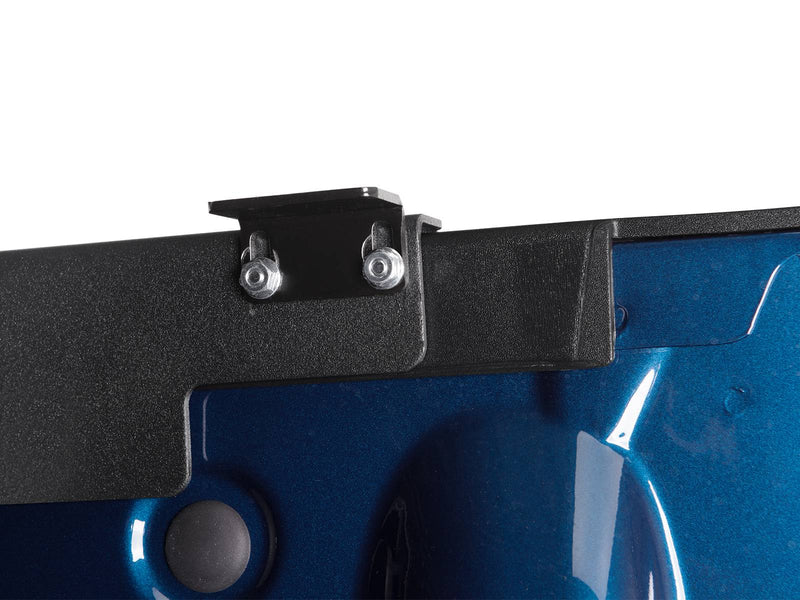

Close-up of the textured perimeter edge of the LUX lid and one mounting bracket below it.

UnderCover LUX One-Piece Tonneau Cover for 2017-2026 Honda Ridgeline (5'4" Bed)

Name: UnderCover LUX One-Piece Tonneau Cover for 2017-2026 Honda Ridgeline (5'4" Bed)
Brand: UnderCover
SKU: UNDUC8016S
Price: 1299.99 USD
Availability: InStock

$1,299.99

FREE SHIPPINGNo sales tax Only 2 leftIn stock now Estimated delivery

GO

Clear

Color

Unpainted

Pick your free gift

Details

Ships separately and arrives in 7 to 14 days

Guaranteed FitmentTeam-confirmed fit or money back
No Sales TaxZero sales tax on every order
Price MatchWe'll beat any competitor's price

Product support & personalised quotes

Monday to Friday 9:00AM to 5:00PM EST

+1 (470) 823-2453 Email Us

Honda Ridgeline owners who want a rigid locking lid they can have finished in body color are the audience for the LUX, and the 5'4" box takes its own part. The LUX is one molded ABS polymer panel rather than a set of folding sections. The lid pivots at the bulkhead, struts take its weight on the way up, and a center twist lock secures it at a single point with two keys in the box. The headliner underneath is left as bare textured molding and carries an LED light and a lanyard pull strap. The lid overlaps the bed caps and the tailgate instead of dropping inside the rails, so locking it holds the tailgate shut too. UnderCover supplies this cover unpainted for this truck, ready for a body shop to finish in your truck's own color. There is no factory-painted option in the catalog for this platform. Mounting is bracket and clamp work inside the bed rails, and no hole is made in the Honda Ridgeline. The part number is UC8016S, built for the 2017-2026 Honda Ridgeline with the 5'4" bed.

About the finish and the photographs. This platform is supplied unpainted only, ready for a body shop to finish, and a cover painted outside UnderCover's factory is excluded from UnderCover's paint warranty. The photographs on this page show a painted lid from this series and stand for the product, not for the finish you will receive.

What's Included:

1x One-piece tonneau cover
2x Rear mounting brackets
2x Hydraulic struts
2x Front mounting brackets
8x Aluminum clamps, with stainless steel bolts, washers and lock washers
1x Four-bar hinge with twist knobs, pre-fitted to the lid
2x J-hooks, with wall mounting screws

Features

The Paint Warranty at the Lower Price
The LUX and the Elite LX carry the same warranty structure, a limited lifetime term on the ABS polymer structure and on paint UnderCover applied itself, with one year on the gas struts and mounting hardware. What the LUX gives up to sit below the flagship is the carpeted headliner, the higher published load rating and the rotating-handle latch, not the finish or the warranty behind it.

Center Twist Lock, Two Keys
Security is a single-point locking system worked from a center twist lock, with a hinged weather cap over the cylinder and two keys in the box. One turn secures the whole lid, and because the lid overlaps the tailgate, that turn holds the tailgate closed with it.

Covers the Bed Caps and the Tailgate
The lid sits over the bed caps and across the tailgate rather than down inside the bed rails, so the rails themselves are under cover and the closed truck presents a continuous painted surface from the bulkhead to the back of the tailgate.

A Light and a Strap Underneath
UnderCover fits an LED light and a lanyard pull strap to the underside of the lid. The light is for the times you open the bed after dark, and the strap is what you use to bring the lid back down without reaching over the bed rail.

Lifts on Struts, Comes Off Entirely

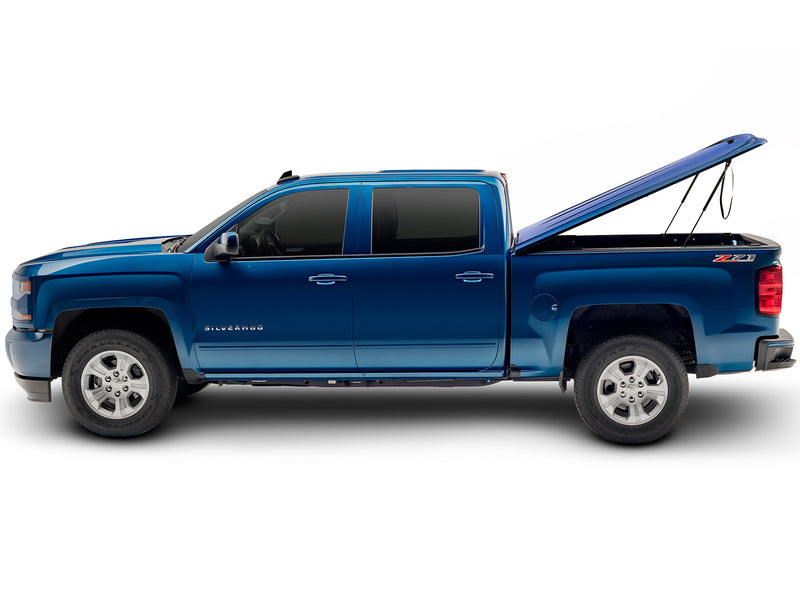

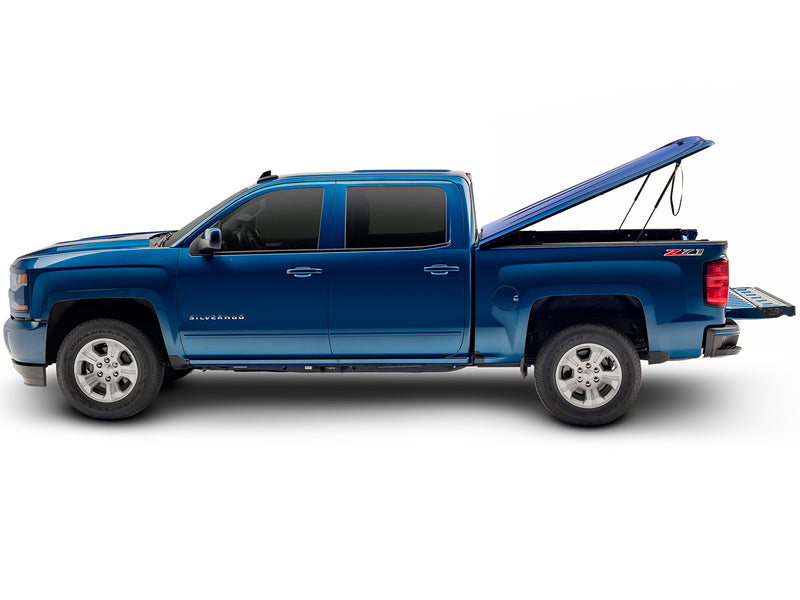

The lid rises on its struts and stays up on its own while you load, with a prop rod behind the struts. When the load is taller than the bed the lid comes off the hinge completely, the brackets stay bolted to the truck, and the supplied J-hooks and wall screws give it somewhere to hang.

Bolted On, Nothing Drilled
The brackets clamp and bolt to the inside of the bed, and no UnderCover installation sheet for a one-piece cover asks you to drill the truck. A plastic drop-in bedliner is the exception that does need work: it may need minor trimming so the brackets seat flat. Trim the liner and never the mounting hardware, because modified hardware voids the warranty.

Fitment & Compatibility

Honda
Years	Model	Bed	Notes
2017-2026	Ridgeline	5'4"	—

Fit guidance: Fits the 2017-2026 Honda Ridgeline listed above with the 5'4" bed. The lid closes over the bed caps and the tailgate, so the tailgate cannot be opened while the cover is closed and locked. UnderCover does not offer a painted lid for this truck, so this listing ships unpainted only. The color list below carries the single Unpainted option and no factory paint code to match.

Specifications

Series: UnderCover LUX
Cover type: One-piece hinged hard lid
Material: Composite ABS polymer structure
Finish: Supplied unpainted for this platform, ready for a body shop to finish
Bed access: Full bed access with the lid raised; the lid also lifts off the truck
Security: Single-point locking system with a center twist lock
Lock type: Center twist lock, single-point, 2 keys supplied
Underside: Black textured molding with an LED light and a lanyard pull strap
Coverage: The lid covers the bed caps and the tailgate
Mounting: Bolt-on brackets and clamps, nothing drilled into the truck
Warranty: Limited lifetime on the structure and on factory-applied paint; 1 year on the gas struts and mounting hardware
Country of origin: UnderCover lists these covers as made in the USA

Installation

Tools: 3/8" wrench or socket and 1/2" wrench or socket · Help: Two people to set the lid on the truck

The mounting brackets bolt and clamp to the inside of the bed, the four-bar hinge on the lid drops onto the front brackets, and the struts snap onto the rear brackets by hand. Nothing is drilled into the truck.

The bracket positions are measured from the back face of the bulkhead, and on this application UnderCover's sheet gives the front bracket at 18 1/4" and the rear bracket at 33 3/4". Those figures are for this part number only; a sibling part on another bed uses different ones.

No cutting or drilling is done to the truck itself. A plastic drop-in bedliner is a different matter: UnderCover's own sheet says a drop-in liner will need some minor trimming so the mounting brackets seat properly. A spray-in liner needs no work. Any modification is made to the liner and never to the UnderCover mounting hardware, because modified hardware voids the warranty.

Resources

Official UnderCover LUX installation sheet for this truck (PDF), with the bracket measurements and the steps for this exact application.
Official UnderCover one-piece tonneau cover install guide (PDF), the general fitting guide that ships with every UnderCover one-piece cover.

Warranty, Shipping & Returns

Warranty. UnderCover's printed terms for the one-piece covers warrant the ABS polymer structure of the LUX to be free from defects in material and workmanship for the life of the product, and warrant the gas and hydraulic lift struts and the mounting hardware for one (1) year from the date of purchase. On top of that, covers painted at UnderCover's own factory carry the UnderCover Lifetime Paint Warranty: for the life of the product the exterior paint will not abnormally fade or peel from a material or workmanship defect faster than the paint on the truck it is fitted to. , and it is explicit that covers not painted at the UnderCover factory are excluded, so an unpainted lid finished by your own body shop is covered for structure and components but not for paint. UnderCover also does not guarantee a 100% paint match. The warranty runs to the original purchaser, on the original truck, when the cover is bought from an authorized dealer, and registration and claims are handled by the manufacturer. Four conditions in the printed terms catch people out more than the rest. Do not drive with the lid in the open position and never tie it down while it is open, because that loads the front hinges and can crack them, and that damage is not treated as a manufacturer defect. When the lid is closed it should be locked with the tailgate up. Use only cleaners, waxes and products labeled safe for use on plastics, and keep insecticides and solvents off the lid. Any trimming needed to fit the brackets is done to the bedliner and never to the mounting hardware, because modifying the hardware voids the warranty. Free shipping. The LUX is a rigid one-piece lid in a carton a little over seven feet long, so it moves by freight rather than by parcel carrier, and it still ships free within the contiguous United States. The carrier will contact you to arrange a delivery window, and delivery is to the curb. Inspect on delivery. A long, shallow carton is the part that takes the knocks, and a painted lid shows a scuff that a black one hides, so open it and look at the finish before you sign for it. If the carton is crushed, torn or soaked, write that on the delivery paperwork and tell us the same day so we can get a replacement moving.

About UnderCover

UnderCover is part of the RealTruck group of truck accessory brands and builds hard folding and one-piece bed covers for full-size and mid-size pickups. The LUX carries a limited lifetime warranty on its structure and on paint applied at the UnderCover factory, with one year on the struts and mounting hardware, and warranty registration, claims and replacement parts are handled by the manufacturer.

LUX is the lower-priced of UnderCover's two painted one-piece covers, finished to an OEM paint code with a center twist lock and a molded textured underside. Elite LX is the flagship above it, adding a carpeted headliner, a published 500 lb load rating and a rotating-handle latch with an integrated thumb lock. Elite and SE are the matte black one-piece covers, which trade the paint warranty for a lower price. If a rigid lid is not the format you want, UnderCover's folding range gives up one-piece rigidity for panels that fold to the cab: ArmorFlex with its Multi-Shield coating, Ultra Flex, the gloss black Flex and the entry-level Select.

The LUX is built as a single molded lid on an ABS polymer structure, hinged at the bulkhead and held up by struts with a prop rod behind them. The underside is left as the bare black textured molding and carries an LED light and a lanyard pull strap. The lid overlaps the bed caps and the tailgate rather than sitting inside the bed rails, and it mounts on bolt-on brackets and clamps with nothing drilled into the truck.

Prestige Truck is an authorized UnderCover dealer. Every cover we ship is new, in the factory carton, and covered by UnderCover's warranty direct from the manufacturer.

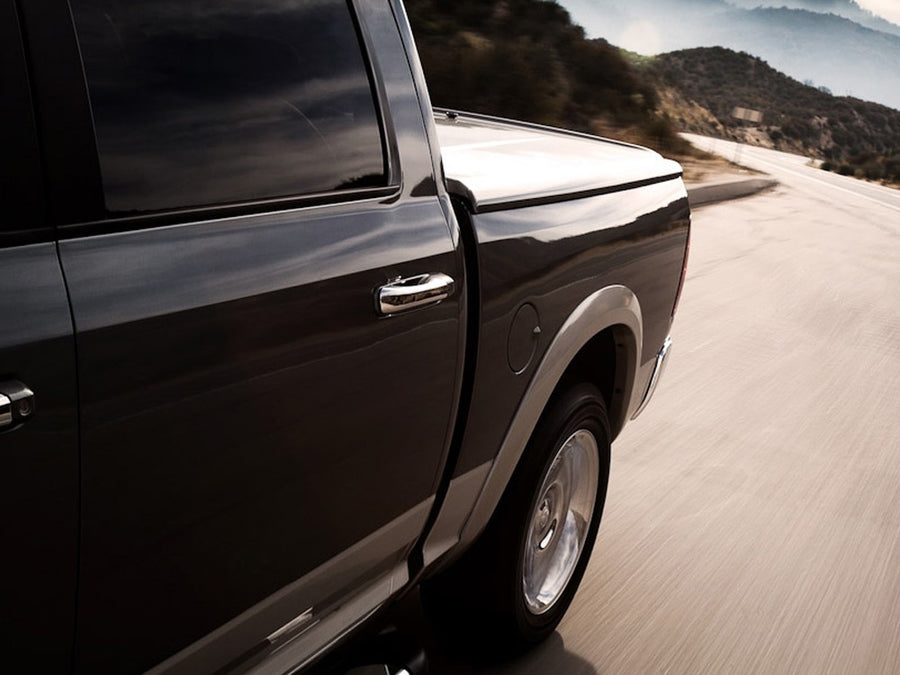

UnderCover LUX one-piece tonneau cover closed and sealed over a loaded pickup bed

Built to live outside

A one-piece lid has no panel seams to work loose and no fabric to stretch, which is most of why a rigid cover survives weather that a folding cover only tolerates. The LUX closes onto the bed caps and the tailgate rather than into a frame inside the rails, so water runs off the outside of the box instead of collecting in a channel. UnderCover does not call it waterproof, and no seal specification for it exists in its literature, so treat it as weather resistant rather than sealed and keep anything that genuinely must stay dry in a closed container.

Frequently Asked Questions

Straight answers on specs, fit and support

How close is the paint match to my truck?

Close enough that most people never look twice, and UnderCover will not promise more than that. Its printed warranty says in as many words that it does not guarantee a 100% match, because paint varies from one truck to another and a body that has spent a few summers outside has already moved away from the code on the door jamb. What you are buying is a lid sprayed to the same OEM code at UnderCover's own paint line, not a lid color-matched to your individual truck by eye. Give us the code from your driver's door jamb sticker rather than the marketing name, because several codes share a name and several names share a code.

Which paint code do I pick, and what if mine is not listed?

Use the code printed on your driver's door jamb sticker, not the name your dealer used. The list on this page is every code UnderCover sprays this cover in, pooled across all the model years the cover fits, so a code may be there for a year other than yours and your year's code may be absent. Factory palettes change annually and UnderCover follows them rather than leading them. If your code is not in the list, the unpainted option exists for exactly that reason: the lid arrives ready for a body shop to spray, though a cover painted outside UnderCover's factory is excluded from the lifetime paint warranty.

What is the difference between the LUX and the Elite LX?

Both are painted one-piece lids from the same brand, sprayed to the same OEM codes and carrying the same warranty structure. The Elite LX sits above the LUX: it publishes a 500 lb evenly distributed load rating where UnderCover publishes no load figure for the LUX at all, its underside is a carpeted headliner rather than bare textured molding, and its latch is a one-hand rotating handle with a key lock and an integrated thumb lock rather than the LUX's center twist lock. If the finish is what you are buying and the extra hardware is not, the LUX is the cheaper way to the same paint.

Does my tailgate still open when the cover is closed?

No. The LUX is a one-piece lid that sits over the bed caps and across the tailgate, so a closed and locked lid holds the tailgate shut. That is how one key ends up securing the entire bed, and it is also the thing that catches out people coming from a folding cover. The sequence becomes unlock, lift the lid on its struts, then drop the tailgate. If you need the tailgate to work with the cover still closed, look at a folding cover instead, because no one-piece lid behaves that way.

Do I have to drill into my truck, and how long does it take?

Nothing is drilled into the truck. UnderCover's installation sheets for the one-piece covers do not call for a drill anywhere, and the mounting brackets clamp and bolt to the inside of the bed. UnderCover publishes no fitting time for the LUX, so we are not going to quote one. What the sheets do say is that you need a second person to set the lid onto the truck, and that a plastic drop-in bedliner may need minor trimming so the brackets sit flat. Trim the liner, never the mounting hardware, because modifying the hardware voids the warranty. Work from the vehicle-specific sheet in the carton rather than a video, because the bracket measurements and the platform steps change from truck to truck.

Will it keep the bed dry in heavy rain, snow and ice?

It keeps most weather out, and UnderCover does not call the LUX waterproof or publish a seal specification for it. A one-piece lid has no panel seams, which is the main structural advantage over a folding cover in the wet, and the lid closes down onto the bed caps rather than into a frame inside the rails. In sustained heavy rain or at a jet wash expect some water at the bulkhead corners, so keep anything that must stay dry in a sealed container. In winter, clear snow off the lid before opening it rather than lifting a loaded lid, and give stiff seals a moment in deep cold.
