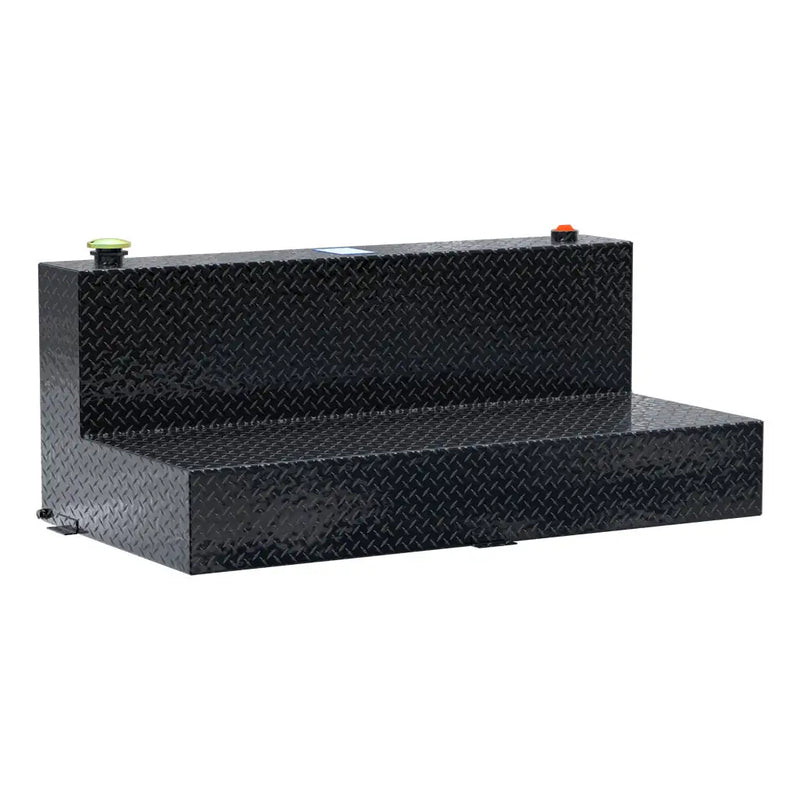

The UWS TT-100-L-T-P-B moves diesel and other non-flammable liquids out to the equipment that cannot come to the pump. One hundred gallons is the top of the UWS range and the point at which a transfer tank stops being a convenience and becomes the reason the truck exists. It is around 710 lb of diesel, so payload, not bed space, is usually the binding constraint. The L-shape is what earns this tank its keep over a plain rectangle. The tall section sits against the bulkhead and the low shelf runs out toward the tailgate, so you can still slide long material, a tool box or a pallet over the top of it instead of losing the whole bed to fuel. The tank is welded from .125" aluminum alloy and 100% pressure-tested before it ships, with internal baffles inside so the load does not surge forward every time you brake. The gloss black powder coat goes on over the aluminum tread plate, so you get the texture of diamond plate with a finish that matches a blacked-out truck. The fill cap is a lockable commercial-grade vented unit with a reinforced collar, and the drain plug sits nearly flush with the tank floor so it actually empties. At 59.5" long and 31" wide it is a spec-fit product, not a vehicle-specific one, so measure your bed floor and the gap between the wheel wells before you order. UWS rates this tank as DOT-compliant for transporting Class 3 combustible fuels only, such as diesel.
What's Included:
1 x UWS 100-gallon transfer tank
1 x filler neck and cap
1 x drain plug, 3/8"
NOT included, and you have to buy them separately: mounting hardware (UWS states you must purchase your own), an automatic shutoff nozzle, a fuel filter, a padlock for the fill cap, and any pump, hose or transfer kit
Features
100 Gallons of Usable Capacity This tank holds 100 gallons, which is about 710 lb of diesel once it is full. That is the number to plan around, not the empty weight: a full TT-100-L-T-P-B puts roughly 810 lb into the bed before you load anything else, so check it against your truck's payload rating.
Heavy-Duty .125" Aluminum Alloy The tank is welded from .125" aluminum alloy, which is thicker than the material most transfer tanks use, and every tank is 100% pressure-tested before it ships. Aluminum also saves real weight: this one is 100.4 lb empty, which is payload you get to spend on cargo instead of on the tank.
Gloss Black Diamond-Plate Finish Gloss black powder coat over aluminum tread plate. You keep the diamond-plate texture and the corrosion resistance of aluminum underneath, with a finish that matches a blacked-out truck. UWS backs the finish for one year and the tank itself for life.

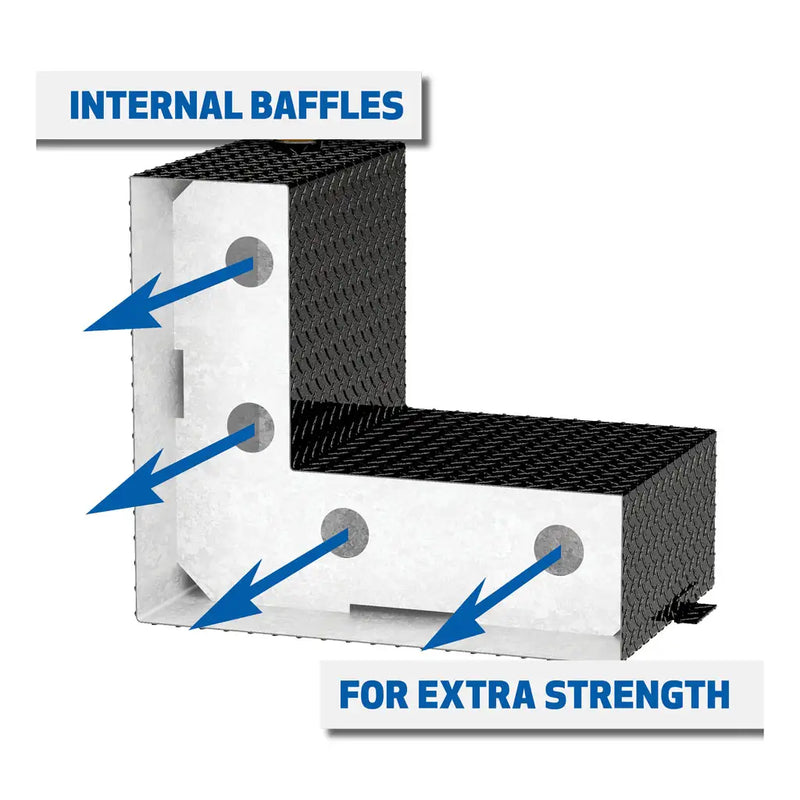

Internal Baffles Baffles are partial walls welded inside the tank. They stop 710 lb of liquid from surging forward under braking or sideways through a corner, which is a handling and a safety issue on a loaded truck, and they add structural stiffness to the tank at the same time.

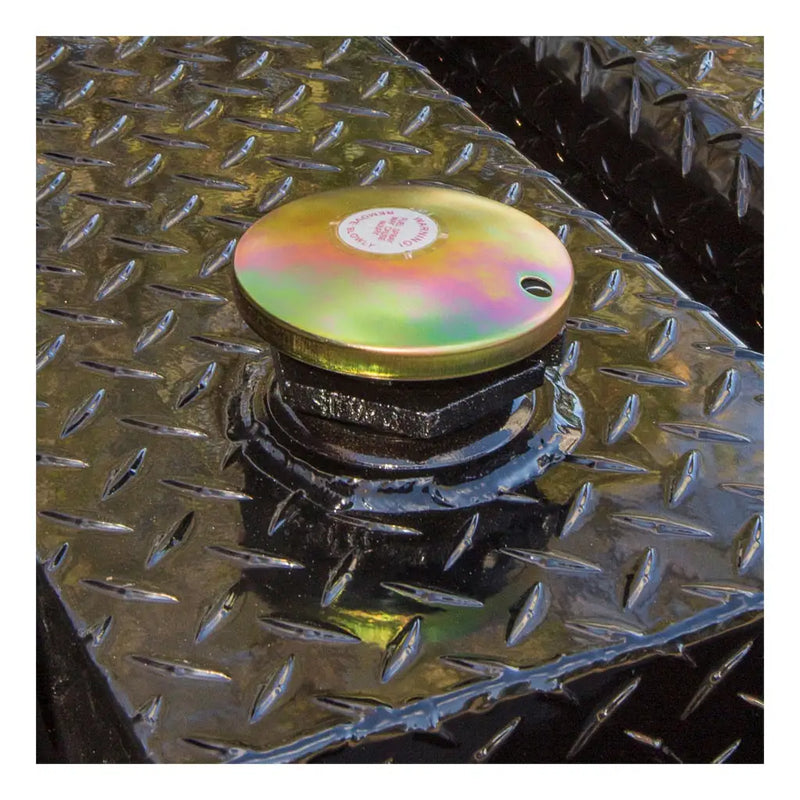

Lockable Commercial-Grade Vented Fill Cap The fill cap vents properly as the tank drains, which is what stops a tank pulling a vacuum and slowing the flow, and it has a reinforced collar and a lockable hasp so the contents are not an open invitation overnight. Bring your own padlock; UWS does not supply one.

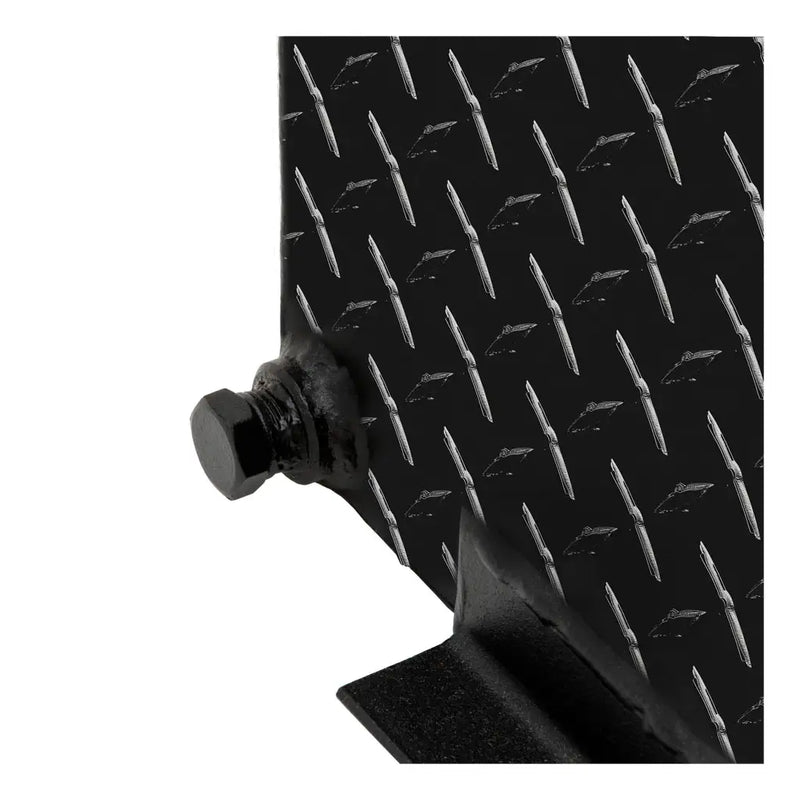

Drain Plug Set Nearly Flush The drain plug sits nearly flush with the bottom of the tank so it actually empties, which matters if you ever switch what you are hauling or need to drop the weight before moving the tank. UWS specifies removing all liquid before relocating a tank.
Designed, Fabricated and Welded in Florida UWS states that this tank is designed, fabricated and welded at its own plant in Florida. The country of origin on record for this part is the USA.
Fitment & Compatibility
Truck or Application
Fit
Full-size long-bed trucks (8' bed)
✓ Yes
Full-size short-bed trucks (5'8" to 6'6" bed)
✓ Yes if your bed floor is at least 59.5" long, measure first
Compact and mid-size trucks (Tacoma, Ranger, Colorado, Frontier)
✗ No, 59.5" x 31" is too large and the loaded weight is too high
Short beds with a gooseneck hitch fitted
● Measure carefully, a tank this size usually conflicts with the ball
Flatbeds, trailers and stationary use
✓ Yes, on a flat surface rated for the loaded weight

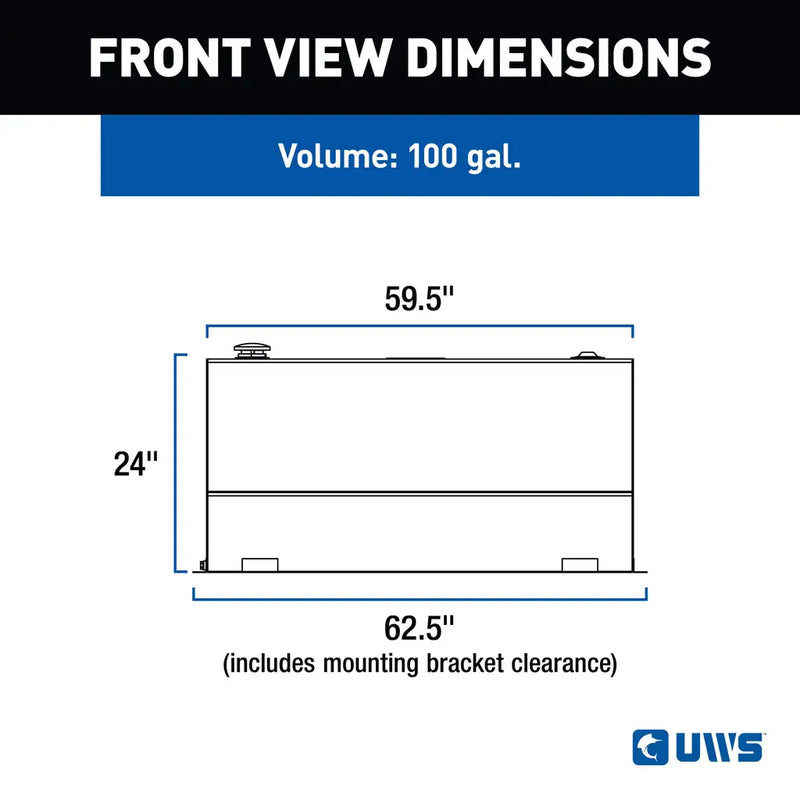

Fit guidance: This is a spec-fit product, not a vehicle-specific kit, so it fits whatever bed it physically fits. The tank is 59.5" long, 31" wide and 24" tall, and UWS notes the fill cap adds about 2-3/4" to the overall height, which is the figure that decides whether the tank clears a tonneau or sits below the bed rails. Measure your bed floor length and the gap between the wheel wells before ordering. Filled with diesel this tank carries about 710 lb of fuel on top of its 100.4 lb empty weight, roughly 810 lb in total, so confirm your truck's payload rating. Mounting hardware is not included.
Specifications
UWS Part Number: TT-100-L-T-P-B
Tank Capacity: 100 gallons
Tank Style: L-Shaped
Material: Aluminum alloy
Wall Thickness: .125"
Finish: Gloss Black Powder Coat
Overall Length: 59.5"
Overall Width: 31"
Overall Height: 24"

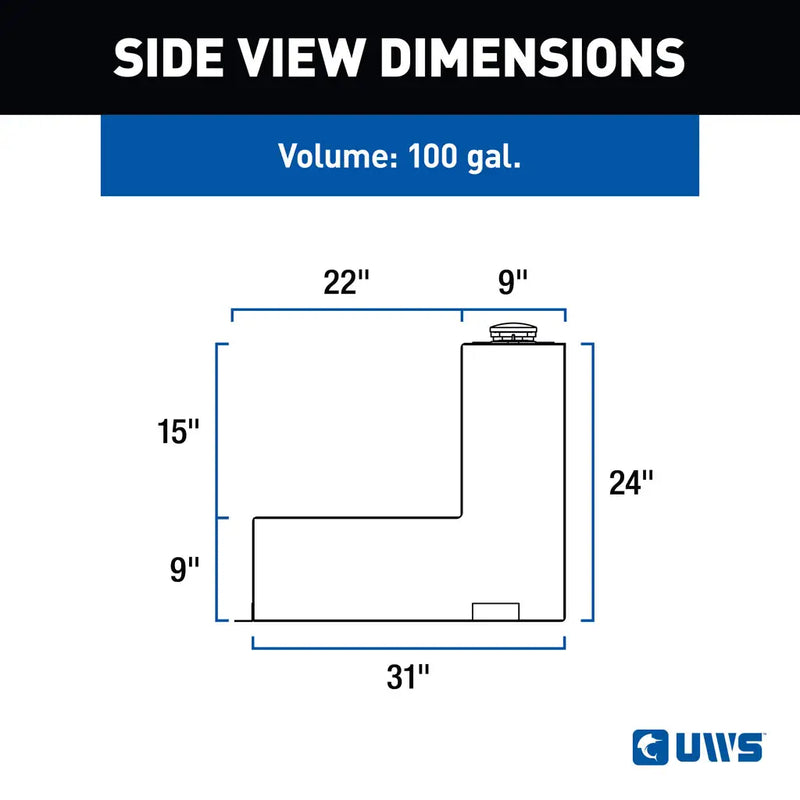

Upper Section Height: 15"
Lower Tub Width: 22"
Tub Width: 9"
Tub Height: 9"
Internal Baffles: Yes
Fill Cap: Lockable commercial-grade vented cap with reinforced collar (padlock not included)
Drain Plug: 3/8", set nearly flush with the tank floor
Pressure Test: 100% pressure-tested
Mounting: Commercial-grade mounting flanges (mounting hardware not included)
DOT Rating: DOT-compliant for transporting Class 3 combustible fuels only, such as diesel
Intended Use: Private use only; UWS states the tank is not intended for commercial use and does not meet 49 CFR 393.65 or 393.67
Not Compatible With: Gasoline and other flammable fuels, diesel exhaust fluid (DEF), and other corrosive materials
Type: Set the tank into the bed and bolt it down through the mounting flanges · Time: About 1 hour with a second person or a hoist · Tools: Drill and a 3/8" drill bit, ratchet and socket set, tape measure and a marker, plus a hoist or a second person to lift the tank · Difficulty: Easy, and UWS rates the installation difficulty as Easy
Empty the tank completely before you ever move it; UWS states it should be lifted only when empty. Before you drill into the bed, look underneath and confirm the bit cannot reach a brake or fuel line, wiring or the fuel tank, and keep fasteners far enough from the fuel tank that a collision cannot drive one into it. The tank must finish up securely bolted to the bed. Mounting hardware is not supplied, so match the fastener size to your bed and use backing plates or large washers underneath; UWS's general torque guidance is 16 ft-lb for a 3/8" bolt and 28 ft-lb for a 1/2" bolt, but if your hardware comes with its own figures, use those. The tank must stay vented at all times, must not be pressurized, and UWS requires an automatic shutoff nozzle and a fuel filter, none of which are supplied. Read the UWS installation manual through before you start, and check your state and local rules on transporting fuel before the first fill.
Resources
Everything you need for your UWS 100-Gallon L-Shape Aluminum Transfer Tank, Gloss Black, in one place.
Warranty. Limited lifetime warranty from UWS on the tank, with one year on the finish and one year on parts. Damage from overloading, improper installation, or hauling a liquid outside the tank's rating is not covered.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
Compliance. DOT-compliant for transporting Class 3 combustible fuels only, such as diesel. UWS states this tank is NOT approved for transporting flammable fuels such as gasoline, must never be connected to a vehicle's fuel system or used as an auxiliary fuel tank, and is not compatible with diesel exhaust fluid (DEF) or other corrosive materials. UWS also states the tank is for private use only, is not intended to be used commercially, and does not meet 49 CFR 393.65 and 393.67.
About UWS
UWS, United Welding Services, builds truck tool boxes and liquid transfer tanks and is part of the CURT Group family of towing and truck accessory brands under Lippert. The company is best known for two things it engineered rather than bought in: the patented RigidCore lid, which sandwiches solid foam between two metal plates so a tool box lid does not flex, bind or warp under load, and the MicroSeal gasket that keeps water, dust and road grime out of the box. Those details show up across the whole catalog, from a crossover box to a 100-gallon combo tank.
UWS aluminum transfer tanks are built for the same job the tool boxes are: living in a work truck bed and being useful on the worst day of the week. Every tank is welded from heavy-duty .125" aluminum alloy, fitted with internal baffles so the load does not surge when you brake or corner, given a lockable commercial-grade vented fill cap and a near-flush drain plug, and 100% pressure-tested before it ships. UWS states these tanks are designed, fabricated and welded in Florida.
Prestige Truck is an authorized UWS dealer. Everything we ship is new, covered by the full UWS factory warranty, and backed by UWS's own service and parts support.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneUWS 100-Gallon L-Shape Aluminum Transfer Tank, Gloss Black (TT-100-L-T-P-B)
A short UWS brand film.
It is company background rather than a product demo, useful if you want a sense of who builds this equipment and how they talk about their own work before you commit to a large purchase.
Frequently Asked Questions
Straight answers on specs, fit and support
What can I legally haul in this tank, and what can I not?
Diesel is the intended use. UWS rates the tank DOT-compliant for transporting Class 3 combustible fuels only, such as diesel, and for non-flammable liquids including water. The exclusions are explicit in UWS's own installation manual and worth reading before you buy: it is NOT approved for flammable fuels such as gasoline; it must never be connected to your truck's fuel system or used as an auxiliary tank; and it is not compatible with diesel exhaust fluid or other corrosive materials, so DEF is out. UWS also states the tank is for private use only, is not intended for commercial use, and does not meet 49 CFR 393.65 or 393.67, which are the federal fuel-system rules for commercial motor vehicles. If you run under a DOT number, check that against your own compliance requirements before ordering.
Will it fit my truck bed?
Measure before you order. The tank is 59.5" long, 31" wide and 24" tall, and the fill cap adds about 2-3/4" on top of that. The two numbers that decide it are your bed floor length and the gap between your wheel wells. A tank this size is a full-size truck product; it will not work in a compact or mid-size bed.
How much does it weigh when it is full?
The tank is 100.4 lb empty. Diesel runs about 7.1 lb per gallon, so a full 100 gallons adds roughly 710 lb, for about 810 lb sitting in the bed before any other cargo. That is more than a half-ton truck's remaining payload in many configurations, so check the door-jamb sticker rather than assuming. Always drain the tank completely before relocating it.
What exactly comes in the crate?
UWS's installation manual lists the carton contents as the tank, the filler neck and cap, and a 3/8" drain plug. Keys are supplied only with combo models, so there are none with this tank. Mounting hardware is not included and UWS is explicit that you must buy your own to suit your bed. You will also need an automatic shutoff nozzle, which UWS requires and does not provide, and a fuel filter. There is no pump, hose or padlock in the crate.
How well does the finish hold up?
The gloss black powder coat is applied over aluminum tread plate, so if the coating does get chipped the metal underneath is aluminum and will not rust. UWS warrants the finish for one year and the tank for life.
How does it ship, and what is the warranty?
This is a freight item, not a parcel item. At about 108 lb it moves by LTL freight, so expect a delivery appointment and plan how you will get it off the truck: a forklift, a loading dock or several people. UWS covers the tank with a limited lifetime warranty, with one year on the finish and one year on parts.
