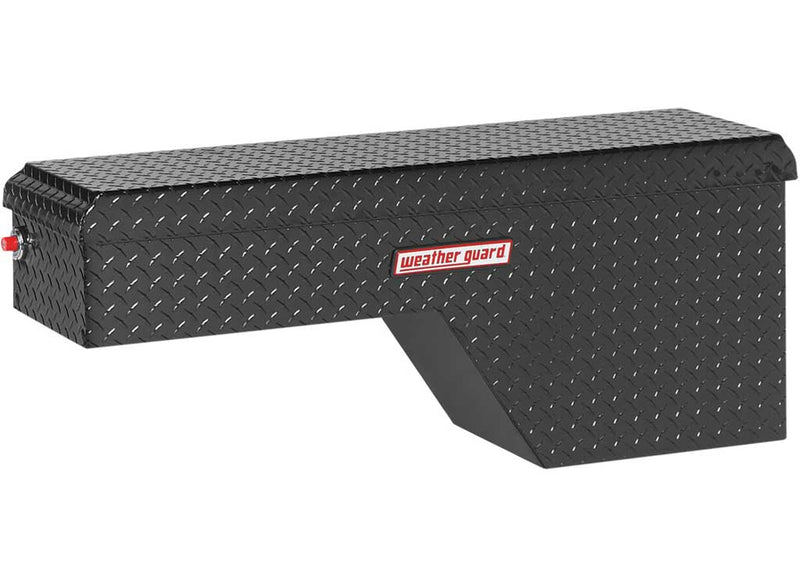

Weather Guard 173 Pork Chop Truck Tool Box, Passenger Side Gloss Black Aluminum (173-5-01)
Free gift included with your order
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Uses wheel-well space: The box sits over the rear wheel well and puts that awkward space to work, leaving the open bed floor for cargo.
- Side-specific fit: Each box is shaped for one side of the bed, so you can run one alone or pair it with its opposite-side twin.
- Gloss black diamond plate: Gloss black ARMOR TUF covers the aluminum diamond plate, a light metal that will not rust.
- EXTREME PROTECTION lock: A tamper-resistant lock retracts flush when locked, and two keys come with the box.
- Full weather seal: A seal around the lid keeps rain, dust and grit away from your tools.
- Works with some caps: Weather Guard says the low body suits some truck bed caps, so check your cap's inside clearance first.
Description & Fitment
For the passenger side, the 173-5-01 Pork Chop puts 3.4 ft³ of gloss black aluminum storage over the wheel well. Its 46.75" x 13.5" x 19.5" body is the earlier -01 shape, with two keys for the EXTREME PROTECTION lock.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1999-2027 | Silverado 1500 | — | |
| 2001-2027 | Silverado 2500 HD | — | |
| 2001-2027 | Silverado 3500 HD | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1997-2027 | F-150 | — | |
| 2022-2027 | F-150 Lightning | — | |
| 1999-2027 | F-250 Super Duty | — | |
| 1999-2027 | F-350 Super Duty | — | |
| 1999-2027 | F-450 Super Duty | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 1999-2027 | Sierra 1500 | — | |
| 2001-2027 | Sierra 2500 HD | — | |
| 2001-2027 | Sierra 3500 HD | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2004-2024 | Titan | — | |
| 2016-2024 | Titan XD | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2011-2027 | 1500 | — | |
| 2019-2024 | 1500 Classic | — | |
| 2011-2027 | 2500 | — | |
| 2011-2027 | 3500 | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2000-2027 | Tundra | — |
Check your fit: this passenger-side box is on our fitment list for full-size pickups: Chevrolet Silverado 1500, 2500 HD and 3500 HD; GMC Sierra 1500, 2500 HD and 3500 HD; Ford F-150 (Lightning included) and F-250, F-350 and F-450 Super Duty; Ram 1500, 1500 Classic, 2500 and 3500; Toyota Tundra; Nissan Titan and Titan XD. Measure the space over your wheel well before you order.
Not for: the driver side (order the 172-5-01 for that side); mid-size pickups, which are not on this box's fitment list. Current version of this side: 173-5-04.
About Weather Guard
Weather Guard is the truck and van storage brand of Werner Co., the Illinois company also known for its ladders. Its tool boxes are built in the USA, and the line runs from crossover, Lo-Side and gull-wing boxes to chests, underbody boxes, bed drawers, transfer tanks, ladder racks and van shelving.
Weather Guard's current boxes use the 1Key UltraLock, a red push-button lock you can code so one key opens every box on a truck or across a fleet, and many are finished in ARMOR TUF powder coat.
Buying Weather Guard from Prestige Truck. Weather Guard asks for the original sales receipt with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Will it fit my Silverado 1500?
It is on our fitment list for that truck. Wheel wells differ by bed, so measure the space over yours before ordering.
Can I put it on the driver side?
No. It is built for the passenger side. The 172-5-01 is the matching box for the other side.
Do I have to drill my truck?
Yes. Weather Guard's Pork Chop manual mounts the box with blind fasteners in drilled holes. Check under the vehicle first, and near the fuel tank install the floor bolts from below in 3/8" holes instead of using blind fasteners.
How does the -01 differ from the -04?
The -01 is the classic Pork Chop shape with the EXTREME PROTECTION lock, at 46.75" x 13.5" x 19.5". The current -04 wheel-well box is 46.63" x 15.43" x 16.4" and uses the 1Key UltraLock.
Will it work under a bed cap?
Weather Guard says the low body works with some caps. Measure the clearance inside your cap against the box's 19.5" height before ordering.
What about an aluminum truck bed?
Weather Guard's manual calls for zinc-rich primer on every drilled hole and plastic washers around each blind fastener in an aluminum bed.
Installation
Here's the short version. Follow Weather Guard's install sheet (below) for the exact positions and hardware.
- Set the box in place with the cover open, flat on the floor and about 1" from the bed rail; check the tailgate closes. Fasten to the bed floor, not a liner or mat.
- Hold the end mounting angle against the box with its foot on the stake pocket or inner wall, mark and center punch one hole on each.
- Drill both 3/16", open the box hole to 3/8" and the stake-pocket hole to 1/2", set the blind fastener and bolt on the angle.
- Fit the floor mounting angle (spacer if needed) or the lower mounting angle as shown.
- If the box can rest on the wheel well, drill 3/16" then 3/8" through box bottom and wheel well top and bolt through instead.
- Check each hole is deep enough before setting a blind fastener; on aluminum beds follow the upfit steps on p2.
Stuck on a step?
Specifications
| Brand | Weather Guard |
|---|---|
| Part Number | 173-5-01 |
| Generation | Previous generation (-01) |
| Box type | Pork Chop wheel-well box, single lid |
| Material | Aluminum |
| Finish | Gloss Black ARMOR TUF powder coat |
| Lock | EXTREME PROTECTION retracting lock, two keys included |
| Weather seal | Full weather seal |
| Exterior dimensions | 46.75" L x 13.5" W x 19.5" H |
| Capacity | 3.4 ft³ |
| Mounting | Over the rear wheel well |
| Country of origin | USA |
| Series | 173 Series Pork Chop box (previous generation -01) |
| Side | Passenger side |
| Shipping weight | 42 lb |
| Warranty | Weather Guard Limited Lifetime |
| UPC | 783965026727 |
Warranty, shipping & returns
-
Warranty
Weather Guard backs this box with its Limited Lifetime Warranty, issued by Werner Co.: the box is warranted against defects in material and workmanship for its expected lifetime, counted from the day you buy it.- Only the original purchaser is covered, and coverage ends if the box passes to a new owner.
- Every claim needs a copy of the original sales receipt, so keep your Prestige Truck order receipt with your records.
- Werner Co. picks the remedy: it repairs the faulty part or replaces the whole box at no charge for parts or labor, or it may refund what you paid or issue a credit toward a new Weather Guard product.
- Not covered: normal wear and tear, cosmetic rust, scratches, accident damage, repairs Werner Co. did not authorize, misuse, overloading, or a box that was not mounted or used as Weather Guard's written instructions describe. Damage to what is stored in the box or to the vehicle is excluded too.
- Where the law allows, Werner Co. accepts no liability for incidental, special, indirect or consequential damages, economic loss included. This is the only express warranty on Weather Guard products, and no dealer can change it.
- Report a problem promptly once you find it. To start a claim, contact us with your order number and photos of the issue, and we will take it up with Weather Guard for you.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Make sure the two keys and the hardware kit with its mounting angles and blind fasteners are in the carton, and check the seal and finish before mounting. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
