Access Original Soft Roll-Up Tonneau Cover for 2009-2010 Dodge 1500 & 2011-2027 Ram 1500 & 2019-2024 Ram 1500 Classic (5'7" Bed, with RamBox, without OEM tonneau rails)

Access Original part 14199 is the 5'7" bed application for the 2009-2027 Dodge 1500 and Ram 1500 and 1500 Classic. Rolled up, the cover rests against the front of the bed on nylon storage straps, leaving the rest of the box open for tall or bulky loads. The fitment table confirms the exact trucks, and the Installation tab lists the mounting method and any extra hardware this truck calls for.

What's Included:

• Pre-rolled cover assembly with front bar, Slantback rear bar, support bows and AutoLatch II latches
• Driver and passenger side rails with weather strip
• Left and right XT-Dial tension adjusters with bolts and nuts
• Tight Bite rail clamps (quantity set by bed length)
• Bulkhead seal gasket and rear seals
• Premium nylon storage straps
• Alcohol prep pad

Tools, sealant for factory holes and stake pockets, and optional add-ons such as a tailgate gasket, bed light or cargo reaching tool are not included.

Features

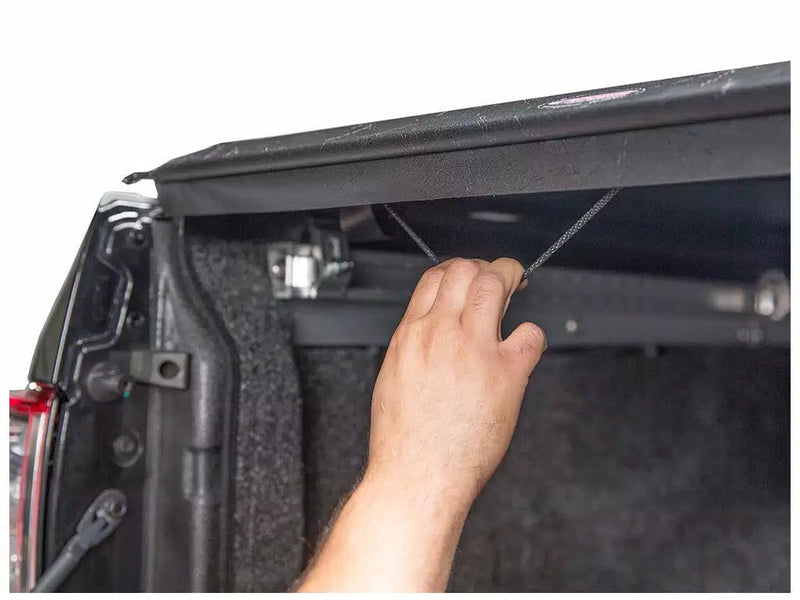

AutoLatch II dual latches
One pull on the cord from either side frees both nylon latches at once. Close the cover and they lock under the side rails on their own, with 1/2" of latch engagement.

XT-Dial tension control
Hand-turned dials tighten or loosen the vinyl in small steps. Turn both sides by the same amount and no tools are needed.

Sealed on four sides
Vinyl seals at the front and rear, foam on both side rails, an Element Seal gasket across the bulkhead and rear corner seals close off the usual gaps around the bed.

Hook-and-loop side closure
A 1-1/2" wide slide-in hook strip meets the angled rail to close each edge, and the cover rolls up tight enough for one person to manage.

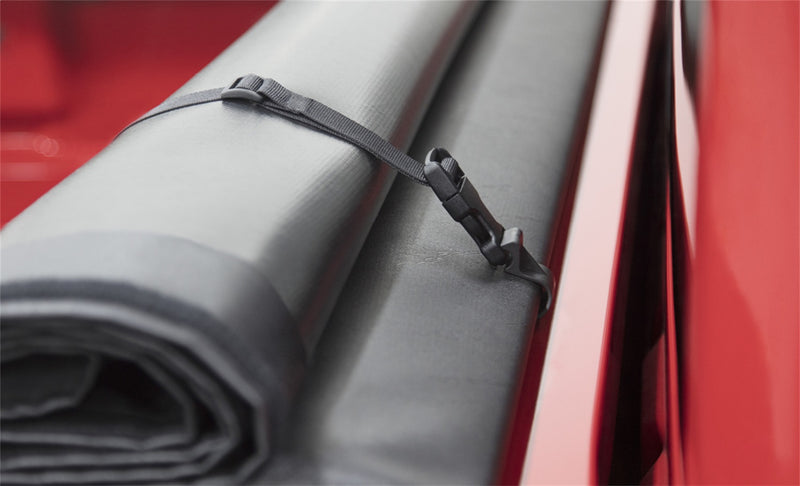

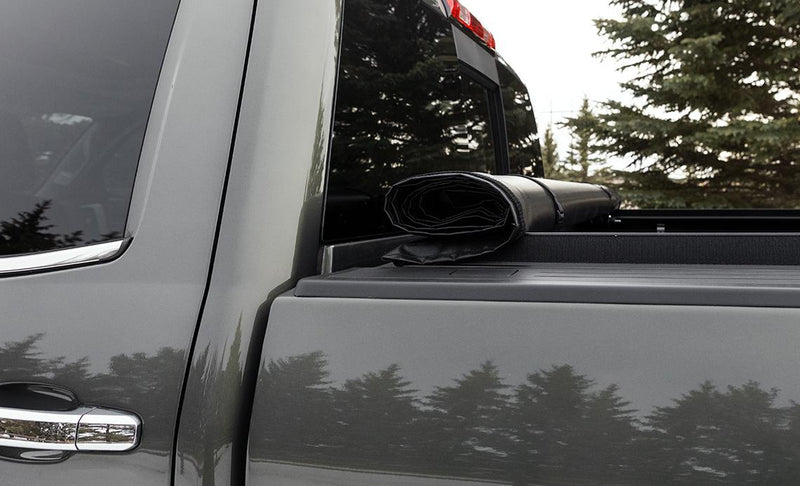

Cab guard storage straps
Heavy-duty nylon straps and buckles hold the rolled cover at the front of the bed and keep it from rubbing the cab. With the cover closed, the straps clip away underneath.

Increased capacity profile

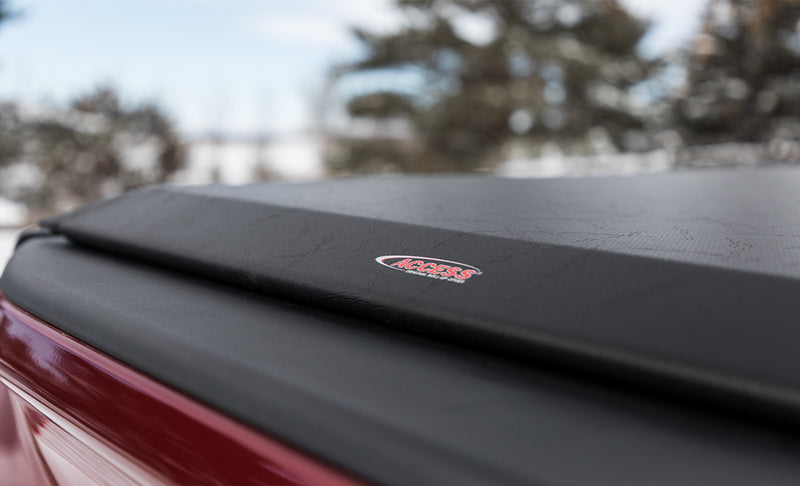

The cover sits 1-1/2" above the bed rails over black aluminum rails, bars and 3 bows, finished at the tailgate by the Slantback rear bar.

Cold-flexible textured vinyl
Reinforced, commercial-grade vinyl with UV protection stays pliable down to -40°F, so the cover keeps rolling through winter.

Fitment & Compatibility

Specifications

• Brand: Access
• Series: Original
• Cover style: Soft roll-up tonneau cover
• Cover material: Textured vinyl, reinforced, commercial grade, UV protected
• Color: Black
• Cold weather: Vinyl stays flexible to -40°F
• Profile: 1-1/2" above the bed rails
• Latch: AutoLatch II dual locking system, nylon latches
• Tension adjustment: XT-Dial tension adjusters, tool-free
• Sealing: Front and rear vinyl seals, side-rail foam, Element Seal bulkhead gasket, rear corner seals
• Side fastening: 1-1/2" wide slide-in hook and loop
• Frame: Black aluminum side rails, bars and 3 bows
• Rear bar: Slantback rear design
• Storage straps: Premium nylon straps with cab guard design
• Mounting: Tight Bite clamps on most trucks; some applications use special or bolt-on hardware (see Installation tab)
• Warranty: 5-year limited
• Fits: 2009-2027 Dodge 1500 and Ram 1500 and 1500 Classic
• Bed: 5'7" (67.4") bed
• Truck requirements: with RamBox; without OEM tonneau rails; with or without Multifunction Tailgate
• Part number: 14199

Installation

Type: Clamp-on for most trucks, special or bolt-on hardware on some  ·  Install: side rails, bulkhead and rear seals, then the pre-rolled cover and tension adjusters

Follow the standard Original manual together with any truck-specific sheet listed on the Installation tab. Recheck the clamps and front bar bolts from time to time after the install.

What the instructions for this truck call for:

• Tools listed: (2) 1/2" Wrenches, Marking pen, Protective eyewear, Tape measure or ruler, Ft-lb Torque wrench with 1/2" socket, Scissors, Spring clamp - optional, In-lb Torque wrench with 10 mm socket, Ratchet with short extension and 7/16" socket, 7/16" Wrench, Tape measure, Utility knife or scissors, 1/2" Wrench, 1/2" Open end wrench, Ft-lbs torque wrench with 1/2" socket
• Torque: L. Torque factory bolts to 65 in-lbs (5.5 ft-lbs), then fully tighten serrated flange nuts holding side rail to side rail bracket.
• Drilling: the instructions for this truck include no drilling step.
• Bed liners: Under the rail drop-in bed liner requires minimal modification at front corner of box and back by tailgate. Over the rail drop-in bed liner requires considerable modification.
• After installing: For trucks with electric tailgates, cover and tailgate should remain closed after installation for at least 24 hours. (electric tailgates only)

Resources

• Official Access Original installation instructions (PDF), Access's step-by-step manual for this cover.
• Access special instructions for this truck (PDF, 4009505), the truck-specific supplement that goes with the manual.
• Access special instructions for trucks with the Multifunction Tailgate (PDF, 2000283, printed for 2020-on Ram 1500), use only if the truck has the Multifunction Tailgate.
