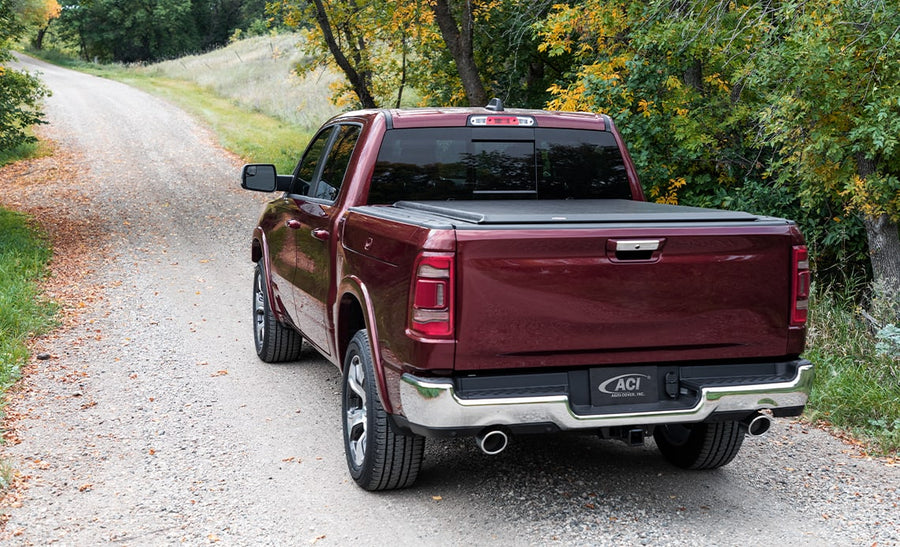

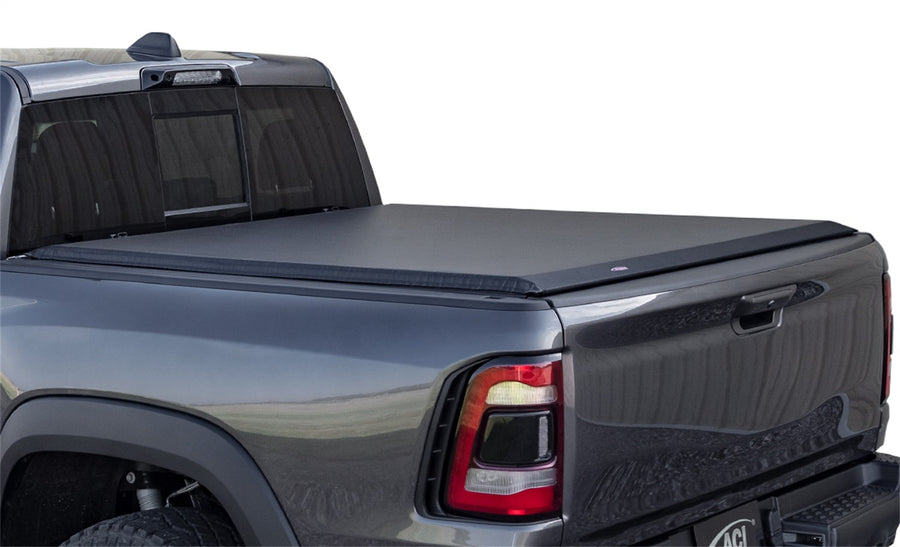

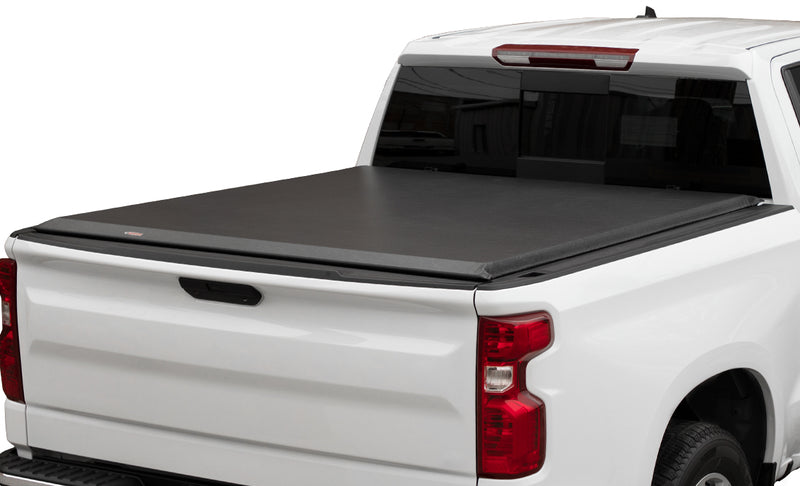

Access Original Soft Roll-Up Tonneau Cover for 2019-2027 Ram 1500 (5'7" Bed, with Multifunction Tailgate, without RamBox)

Access Original part 14289 is the 5'7" bed application for the 2019-2027 Ram 1500. Agri-Cover stands behind the Original with a 5-year limited warranty covering defects under normal use. The fitment table confirms the exact trucks, and the Installation tab lists the mounting method and any extra hardware this truck calls for.

What's Included:

• Pre-rolled cover assembly with front bar, Slantback rear bar, support bows and AutoLatch II latches
• Driver and passenger side rails with weather strip
• Left and right XT-Dial tension adjusters with bolts and nuts
• Tight Bite rail clamps (quantity set by bed length)
• Bulkhead seal gasket and rear seals
• Premium nylon storage straps
• Alcohol prep pad

Tools, sealant for factory holes and stake pockets, and optional add-ons such as a tailgate gasket, bed light or cargo reaching tool are not included.

Features

AutoLatch II dual latches

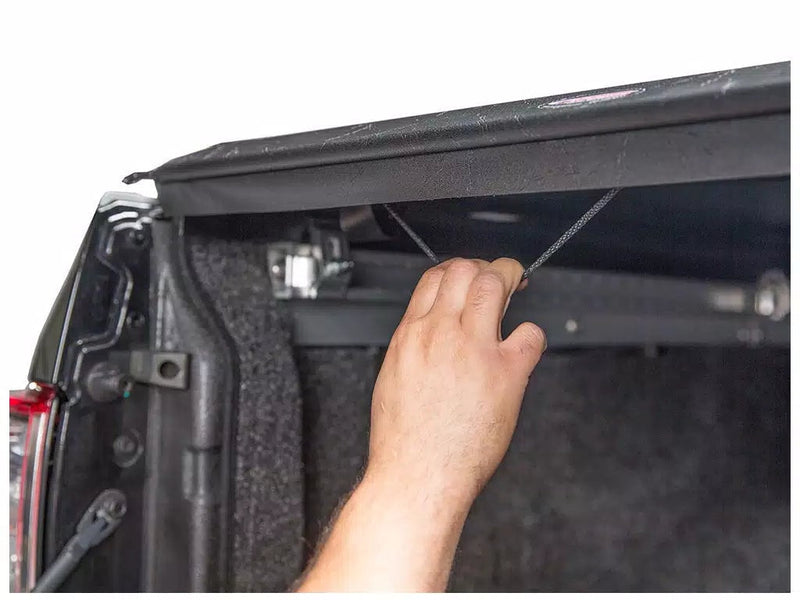

One pull on the cord from either side frees both nylon latches at once. Close the cover and they lock under the side rails on their own, with 1/2" of latch engagement.

XT-Dial tension control
Hand-turned dials tighten or loosen the vinyl in small steps. Turn both sides by the same amount and no tools are needed.

Sealed on four sides
Vinyl seals at the front and rear, foam on both side rails, an Element Seal gasket across the bulkhead and rear corner seals close off the usual gaps around the bed.

Hook-and-loop side closure

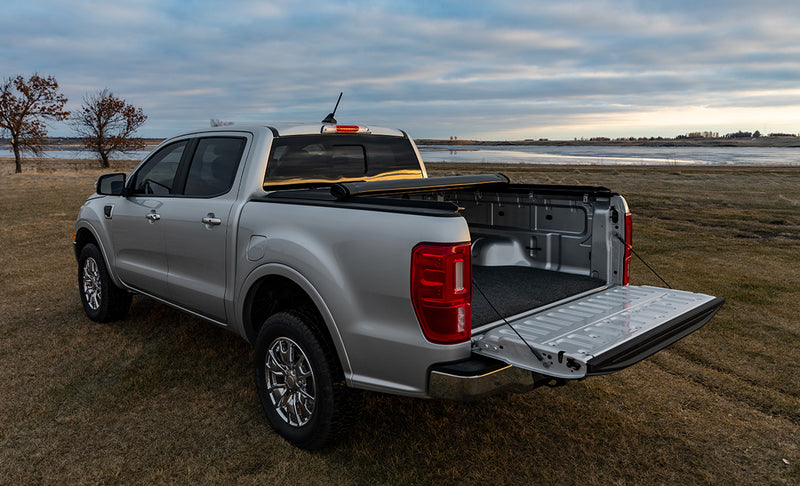

A 1-1/2" wide slide-in hook strip meets the angled rail to close each edge, and the cover rolls up tight enough for one person to manage.

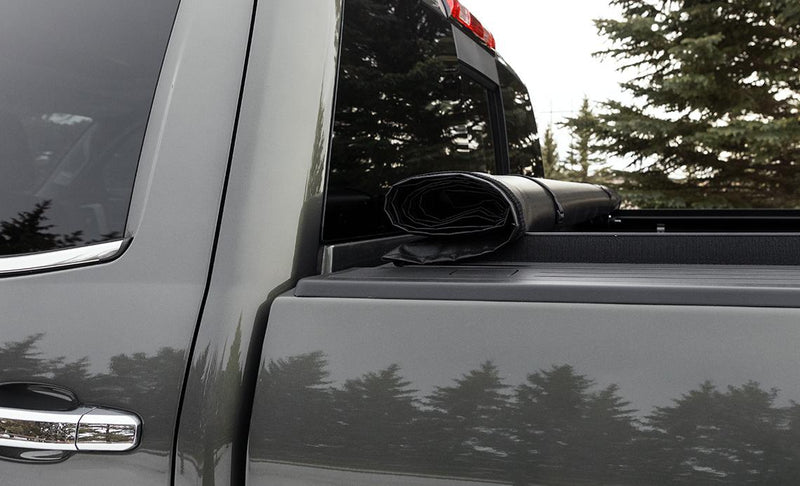

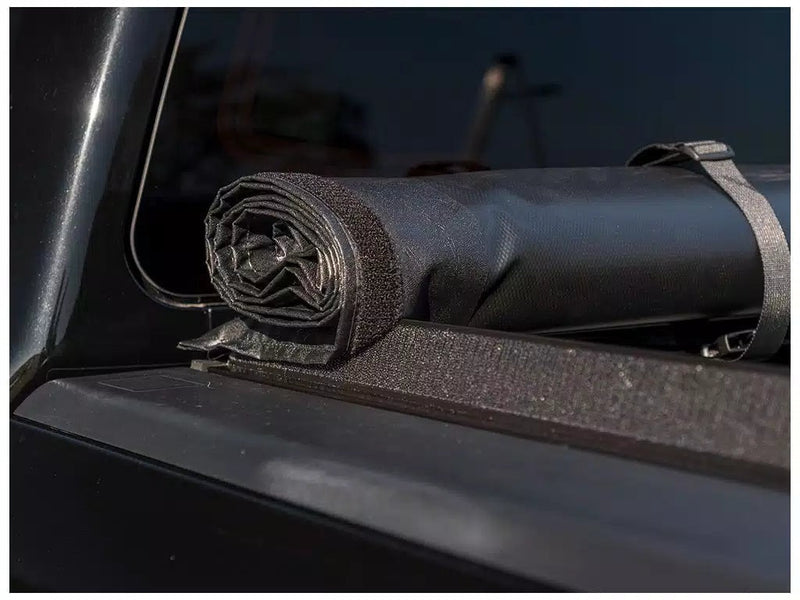

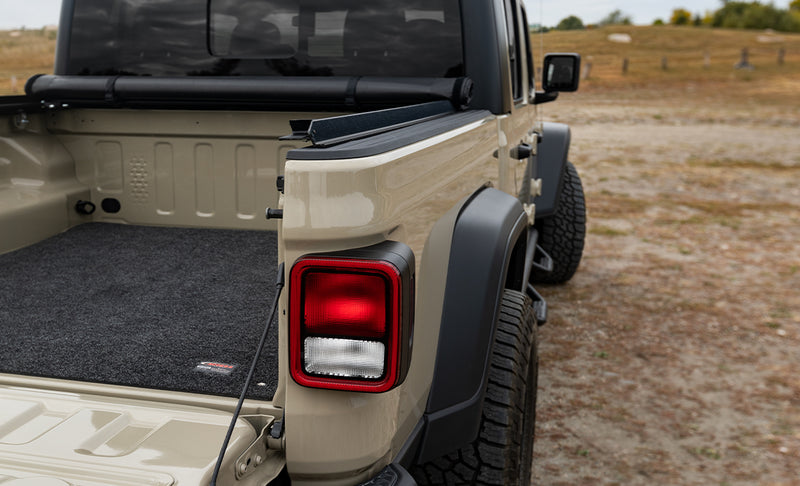

Cab guard storage straps
Heavy-duty nylon straps and buckles hold the rolled cover at the front of the bed and keep it from rubbing the cab. With the cover closed, the straps clip away underneath.

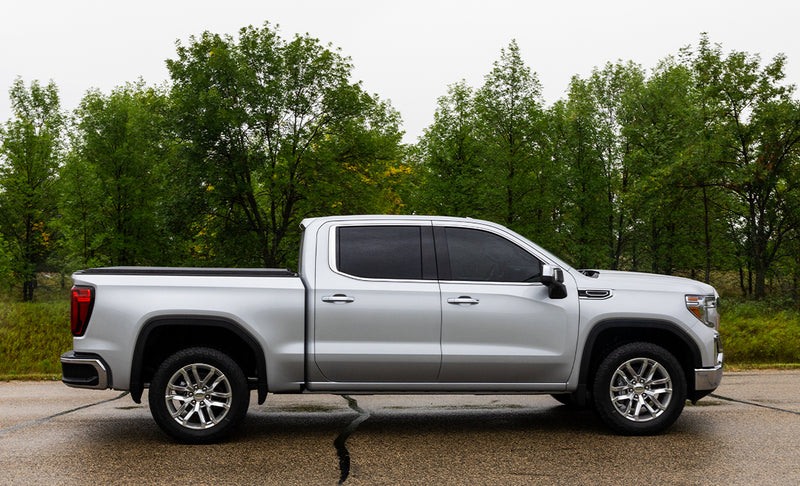

Increased capacity profile

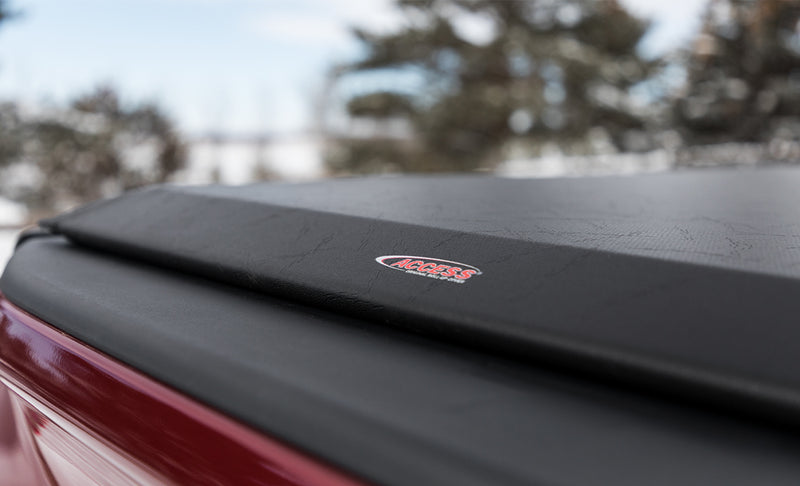

The cover sits 1-1/2" above the bed rails over black aluminum rails, bars and 3 bows, finished at the tailgate by the Slantback rear bar.

Cold-flexible textured vinyl
Reinforced, commercial-grade vinyl with UV protection stays pliable down to -40°F, so the cover keeps rolling through winter.

Fitment & Compatibility

Specifications

• Brand: Access
• Series: Original
• Cover style: Soft roll-up tonneau cover
• Cover material: Textured vinyl, reinforced, commercial grade, UV protected
• Color: Black
• Cold weather: Vinyl stays flexible to -40°F
• Profile: 1-1/2" above the bed rails
• Latch: AutoLatch II dual locking system, nylon latches
• Tension adjustment: XT-Dial tension adjusters, tool-free
• Sealing: Front and rear vinyl seals, side-rail foam, Element Seal bulkhead gasket, rear corner seals
• Side fastening: 1-1/2" wide slide-in hook and loop
• Frame: Black aluminum side rails, bars and 3 bows
• Rear bar: Slantback rear design
• Storage straps: Premium nylon straps with cab guard design
• Mounting: Tight Bite clamps on most trucks; some applications use special or bolt-on hardware (see Installation tab)
• Warranty: 5-year limited
• Fits: 2019-2027 Ram 1500
• Bed: 5'7" (67.4") bed
• Truck requirements: with Multifunction Tailgate
• Part number: 14289

Installation

Type: Clamp-on for most trucks, special or bolt-on hardware on some  ·  Install: side rails, bulkhead and rear seals, then the pre-rolled cover and tension adjusters

Follow the standard Original manual together with any truck-specific sheet listed on the Installation tab. Recheck the clamps and front bar bolts from time to time after the install.

What the instructions for this truck call for:

• Tools listed: (2) 1/2" Wrenches, Marking pen, Protective eyewear, Tape measure or ruler, Ft-lb Torque wrench with 1/2" socket, Scissors, Spring clamp - optional, 1/2" Wrench, 1/2" Open end wrench, Ft-lbs torque wrench with 1/2" socket
• Torque: Torque all clamps to 20 ft-lbs or, if supplied, a value specified in special instructions.
• Torque: Verify each clamp is torqued to 20 ft-lbs or value specified in special instructions (if supplied).
• Drilling: the instructions for this truck include no drilling step.
• Bed liners: Under the rail drop-in bed liner requires minimal modification at front corner of box and back by tailgate. Over the rail drop-in bed liner requires considerable modification.
• After installing: For trucks with electric tailgates, cover and tailgate should remain closed after installation for at least 24 hours. (electric tailgates only)

Resources

• Official Access Original installation instructions (PDF), Access's step-by-step manual for this cover.
• Access special instructions for this truck (PDF, 2000283), the truck-specific supplement that goes with the manual.

Warranty, Shipping & Returns

Warranty. Agri-Cover covers the Access Original with a 5-year limited warranty against defects under normal use on the truck it was made for. It repairs or replaces defective parts at its option; labor is not covered. Shipping. Shipping options and delivery estimates for this cover are shown at checkout. Inspect on delivery. On arrival, unpack the cover and check the rails, bars, vinyl and hardware against the component list in the manual before you start the install. Keep every carton and piece of packing until the cover is installed and working correctly.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
