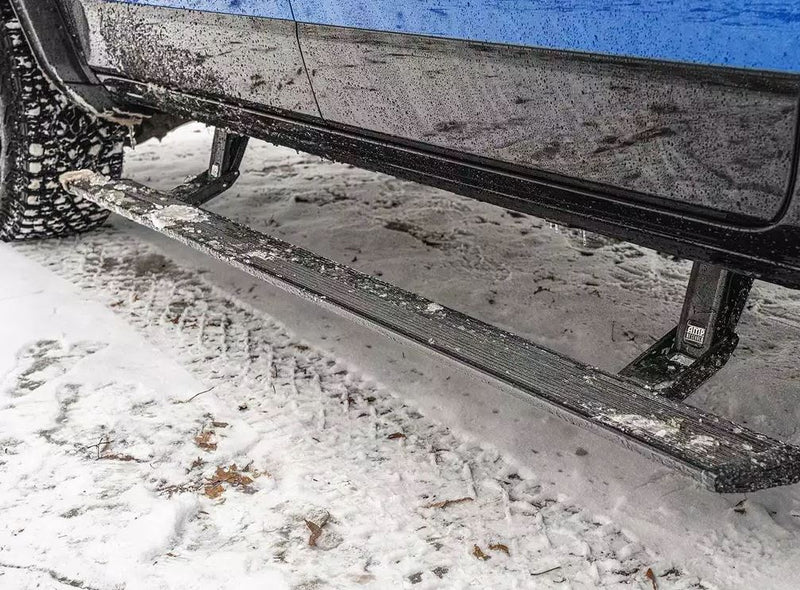

PowerStep Xtreme deployed under the doors of a mud-splashed blue pickup parked in snow

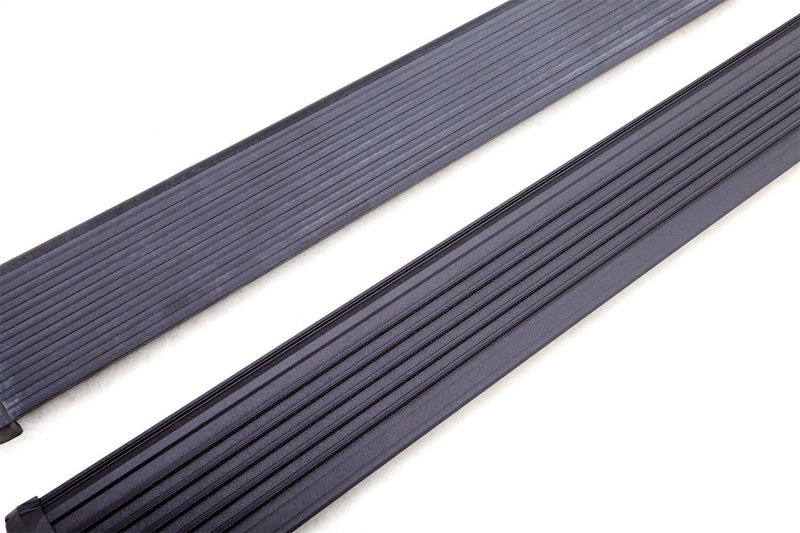

Pair of black PowerStep Xtreme running boards on a white background

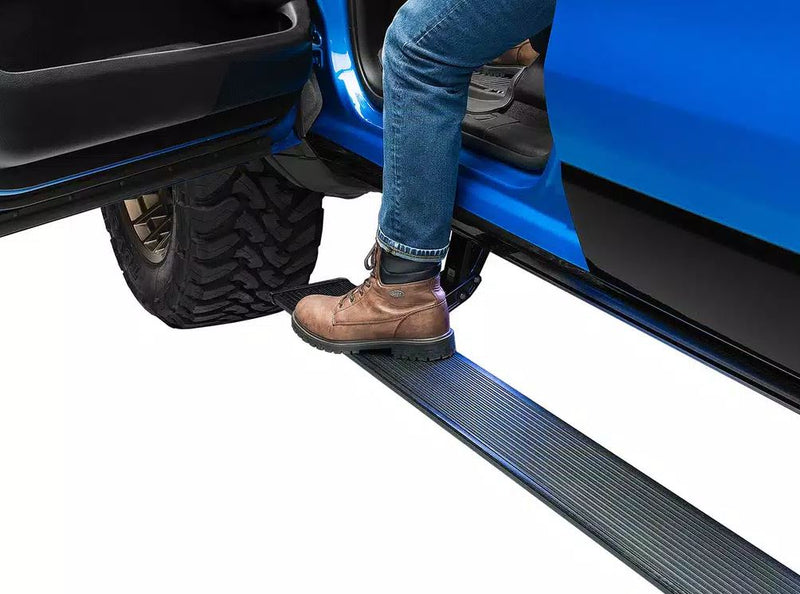

A boot steps onto the deployed running board of a blue pickup with the door open

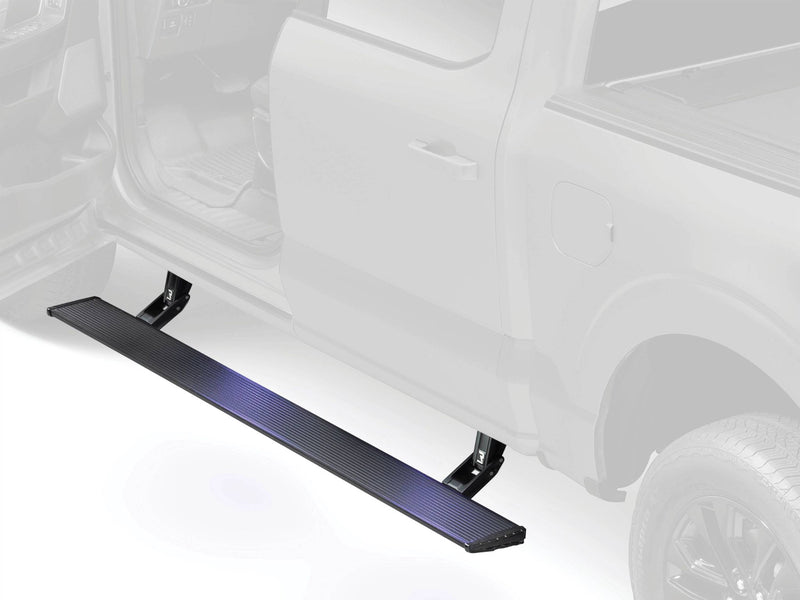

PowerStep Xtreme deployed under a ghosted pickup outline

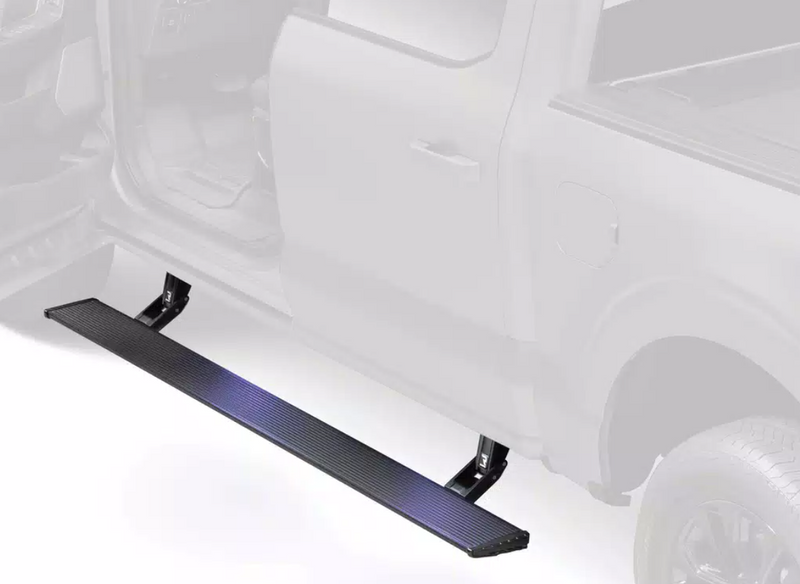

PowerStep Xtreme deployed under a ghosted pickup outline, second angle

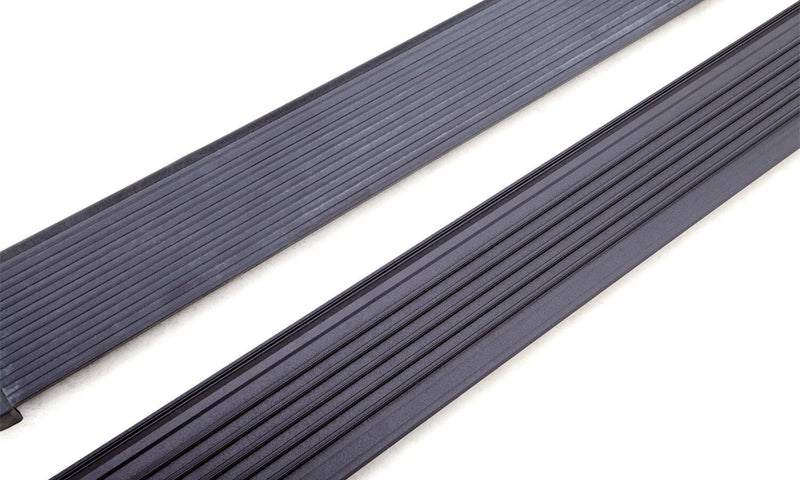

Close view of a pair of PowerStep Xtreme boards on white

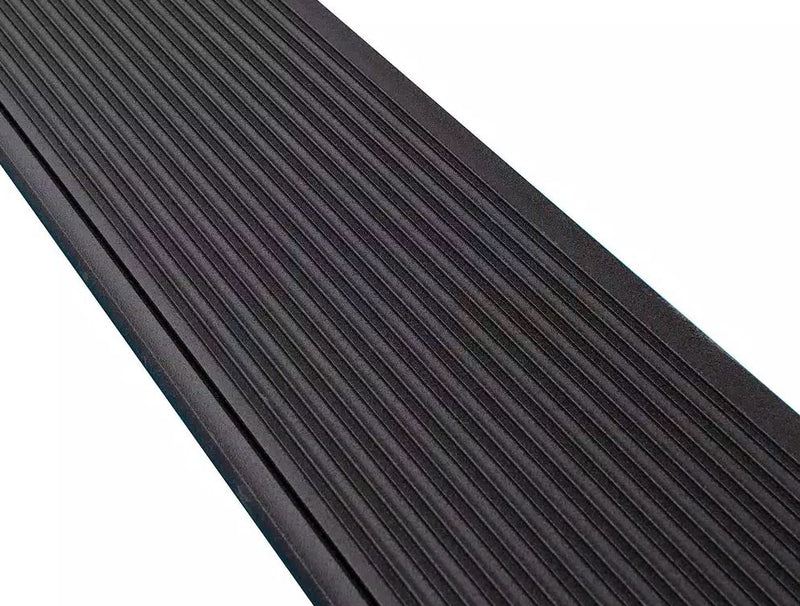

Close-up of the ribbed PowerStep Xtreme step surface on white

AMP Research PowerStep Xtreme Running Boards for 2021-2026 Ford Bronco

Name: AMP Research PowerStep Xtreme Running Boards for 2021-2026 Ford Bronco
Brand: AMP Research
SKU: AMP78140-01A
Price: 2199.99 USD
Availability: InStock

$2,199.99

FREE SHIPPINGNo sales tax Only 1 leftIn stock now Estimated delivery

GO

Clear

Free gifts included with your order

Details

Guaranteed FitmentTeam-confirmed fit or money back
No Sales TaxZero sales tax on every order
30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund

Questions or a custom quote?

Mon to Fri, 9am to 5pm EST

+1 (470) 823-2453 Email Us

Where the rest of the PowerStep line drives each side with a single motor, the Xtreme uses two. That doubled drive is meant for ice build-up, packed snow and caked mud, the conditions that slow a single motor. Aluminum construction, a textured black powder coat and stainless hinge pins carry over from the rest of the range. Part number 78140-01A fits the 2021-2026 Ford Bronco.

What's Included:

Running boards
Motor linkage assemblies
End caps
Mounting hardware
Full parts list in the installation guide for this vehicle

Features

Two motors on each side
The Xtreme is AMP Research's dual-motor PowerStep: two motors per side supply the extra torque that a single-motor board lacks when the going gets heavy.

Made for bad-weather mornings
Ice build-up, packed snow, mud and debris are exactly what the second motor is there to push through, so the step keeps deploying when a single motor would struggle. Cleaning still matters; see the FAQ.

Automatic, door to door
Opening a door brings the board down; shutting the doors sends it back beneath the body. Everyday use needs no switch at all.

Clearance kept on the trail
Retracted, the board sits under the vehicle, keeping the side profile clean and ground clearance intact, which counts on the terrain this model is meant for.

Stainless pivots, 300 lb rating
Every Xtreme board carries a 300 lb per door rating, and its pivots turn on stainless steel pins and hardware.

A lit, textured, 6" wide step
The aluminum board wears a textured black powder coat and a slip-resistant 6" wide surface, with LED lamps that light it as it deploys.

Manual control if you want it
AMP Research offers an override switch as a separate accessory for times you want the boards held in or out.

Fitment & Compatibility

Fit guidance: Fits the 2021-2026 Ford Bronco; does not fit Bronco Raptor Installation; on the Bronco, the factory rock rails must be removed first (if equipped); boards must be trimmed for 2-Door applications, so confirm your cab, engine and trim level against these notes before ordering.

Specifications

Step material: Aluminum
Finish: Textured black powder coat
Step width: 6"
Step length: Cab length; trimmed to fit on some shorter cabs, per the guide
Mounting: Mounts to the rocker panel area with vehicle-specific brackets
Load rating: Up to 300 lb per door
Hinge pins and hardware: Stainless steel
Step lighting: Integrated LED lamps
Operation: Deploys when a door opens, retracts when the doors close
Step type: Dual-motor retracting step, two motors per side
Door-signal connection: OBD-II plug-in module, plus crimp or Posi-style connectors
Installation: Professional installation recommended
Warranty: AMP Research limited warranty
Part number: 78140-01A
UPC: 815410015175

Installation

Type: OBD-II plug-in module, plus crimp or Posi-style connectors · Time: 3 to 5 hours · Tools: Safety goggles, Measuring tape, 10 mm socket, 10 mm ratchet wrench, 13 mm ratchet wrench, 15 mm ratchet wrench, Ratchet wrench and extension, Pliers, Wire crimpers, Wire stripper / cutter, 3/16" Hex key wrench (allen wrench), Electrical tape, Weather proof caulking (silicone sealer), 1/8" Drill bit, 9/32" Drill bit, Drill, Heat Gun, 6" Extension, T-25 Torx · Drilling: Required · Difficulty: Level 4 of 4 (experienced); professional installation recommended

An Xtreme kit is built for one vehicle and puts a motorized linkage at each end of every board, so there are twice as many motors to seat and connect as on a single-motor board. Most applications drill holes along the pinch weld or floor, and shorter cabs trim the boards to the lengths the guide lists. The wiring is joined with crimp or Posi-style connectors, and with four motors on the harness the wiring has to follow the guide exactly, so work through it closely or have a shop do the job. Torque each fastener to its listed value, then open every door to confirm both boards deploy and the lamps come on. On this application the boards are cut to length for some cabs: Bronco 2 Door 55" (trim 17").

Resources

AMP Research PowerStep Xtreme installation guide, part 78140-01A (PDF), the manufacturer's step-by-step guide for this application.

Warranty, Shipping & Returns

Warranty. The PowerStep Xtreme carries AMP Research's limited warranty for defects in materials or workmanship on boards installed as the instructions describe. The remedy is a repair or replacement at AMP Research's choice; taking the part off and refitting it is not covered. It protects the original buyer only, ends if the boards go onto another vehicle or the vehicle is sold, and leaves out misuse, accidents, poor installation, modification, lack of maintenance and road hazards.

Inspect on delivery. With four motors and their linkages in the box, inspect everything before you sign, and record any damage on the delivery receipt right away. Count the parts against the guide's list well before the install, so a missing motor or bracket turns up early.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.

About AMP Research

Power-retractable running boards have been AMP Research's core product since the first PowerStep in 2002, and the range now also covers bed steps and bed extenders. Its limited warranty answers for material or workmanship defects when a product has been installed by the book, protects the original buyer, and holds only while the product remains on the vehicle it first went onto.

The Xtreme is the heavy-weather model among AMP Research's five powered running boards. The standard PowerStep and the lifted-vehicle PowerStep XL each drive a side with one motor; the Xtreme doubles that. The PowerStep Vision builds a full-length LED edge strip into the board, and the PowerStep Smart Series brings control from a phone app. For the pickup bed, AMP Research also makes the BedStep, the BedStep2 and the BedXTender HD extenders.

Each PowerStep variant, the Xtreme included, starts with aluminum that resists corrosion, finished in a textured black powder coat, turning on stainless pins and fasteners, with LED lighting integrated. Mounting kits are specific to each vehicle, and AMP Research protects the design with its own patents.

Two motors for rough weather

The Xtreme gives each side two motors instead of one, adding the torque to push a board out through ice, packed snow or mud. Open a door on a frozen morning and the step is meant to be there, then back under the body once the doors close.

Folds up tight under the cab

When the doors close, each Xtreme board retracts beneath the body instead of hanging off the rocker. The profile stays clean, ground clearance stays where it was, and the board is out of the way while you drive.

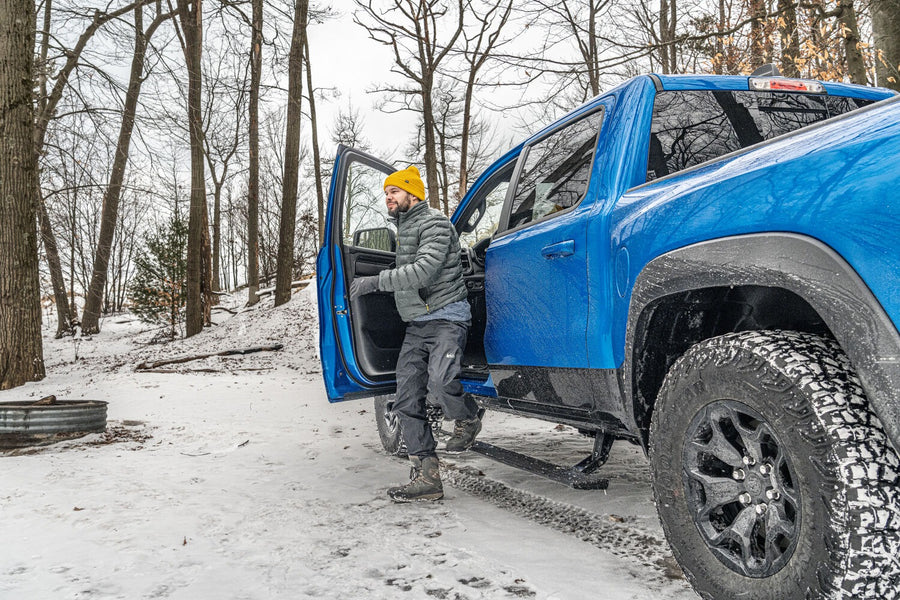

A man in a yellow beanie climbs out of a blue pickup onto the deployed running board in a snowy forest

Built for harsh climates

Under the dual-motor drivetrain is a corrosion-resistant aluminum board with a textured black powder coat and stainless steel hinge pins, rated to 300 lb per door. LED lamps light the 6" wide step on dark winter mornings.

Frequently Asked Questions

Straight answers on specs, fit and support

What is actually different about the Xtreme?

The drivetrain. The Xtreme uses two motors on each side where the standard PowerStep, the XL, the Vision and the Smart Series use one. The board itself is the same 6" wide aluminum step rated to 300 lb per door. Choose the Xtreme when snow, ice, mud or trail debris regularly get into the mechanism.

Does two motors mean it will never freeze up?

No. The second motor adds torque to push through build-up, but it does not make the linkage immune to it. Keep the pivots clean: blast the front and rear linkages with a pressure washer while keeping the jet off the motors, mist each pivot with dry-film silicone spray, and cycle the doors. Skip grease, oil, WD-40 and penetrants.

Is it plug-and-play?

Newer Xtreme applications draw the door signal from an OBD-II plug-in module, while some earlier ones are wired into the vehicle's circuits; the guide for your vehicle shows which. Either way the job includes electrical work: the harness is joined with crimp or Posi-style connectors, and on some vehicles a factory wire is tapped or a lead runs to the battery.

Will I need to drill or trim anything?

Usually. Most Xtreme applications drill holes in the pinch weld or floor, and on shorter cabs the boards are cut to a length the guide specifies. Read the installation guide for your vehicle before deciding whether to fit it yourself.

How long is the install, and can I do it myself?

The Xtreme guides estimate between 2 and 5 hours by vehicle and class the install as experienced-level work, and AMP Research advises professional installation. With four motors to seat and connect, follow the wiring steps exactly, and check every part against the list before you start.

What does the warranty cover?

Faults in materials or workmanship on boards installed the way the supplied instructions describe. The remedy is repair or replacement of the part at AMP Research's option; removal and reinstallation labor is excluded. It is the original buyer's cover, it lapses if the boards go onto another vehicle or the vehicle is sold, and misuse, accidents, poor installation, modification, lack of maintenance and road hazards fall outside it.
