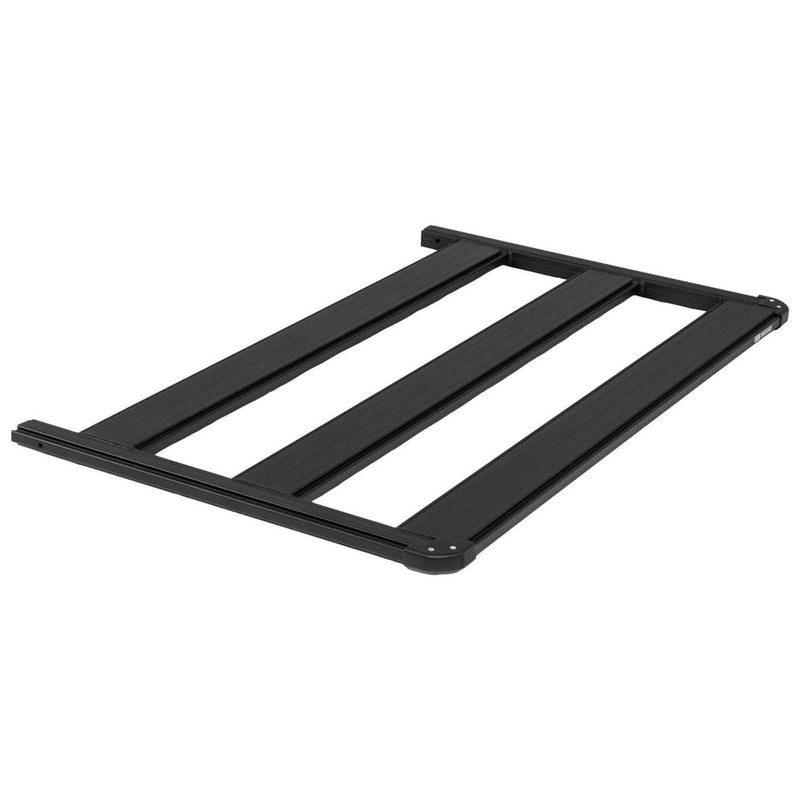

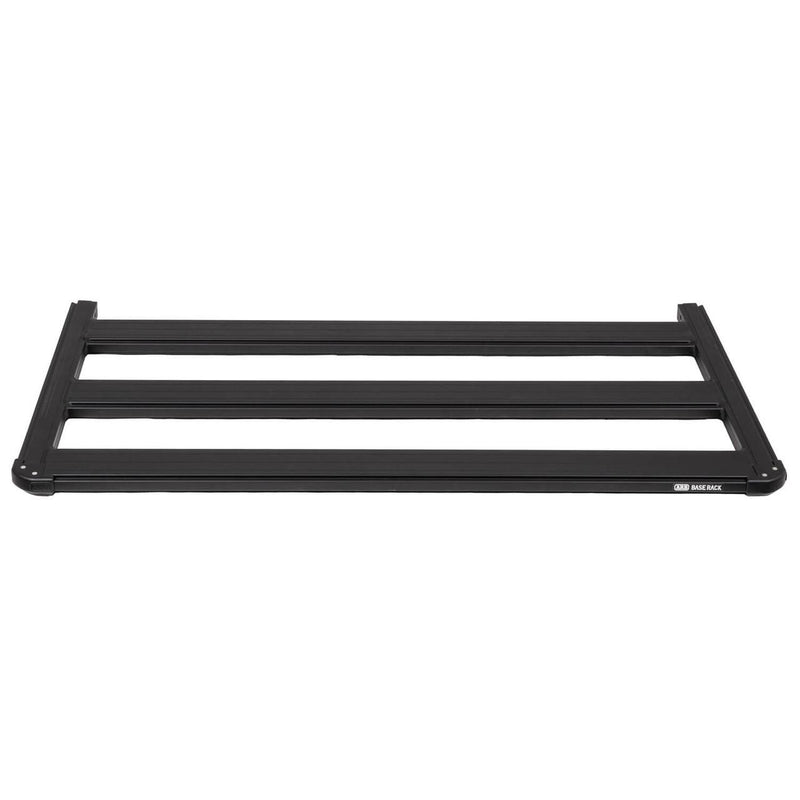

ARB's modular take on the BASE Rack splits the platform into two identical welded sections that bolt together on the roof. Each section is extruded aluminum with the same cross beam structure, internal bracing and zero flex under load as the one piece racks, and the same dovetail extrusion around the perimeter and along each internal beam. Splitting the deck cuts the shipping cost and makes it a rack one person can actually carry up a ladder, without giving up the strength or the low profile fit that keeps it tucked close to the roof line.
Read this before you order: this listing is one 30.5" x 51" section, and ARB states that two sections are required to complete one full rack. Buying a single section gets you half a rack. On top of that, the sections still need an ARB BASE Rack vehicle mount kit, sold separately, to attach to the roof at all.
What's Included:
One BASE Rack modular platform section, 30.5" x 51", fully welded and assembled
Corner caps fitted
ARB fitting instructions
Features
Two Piece Rack, One Piece Strength Each section is fully welded from extruded aluminum with the cross beam structure and internal bracing ARB uses on the one piece racks, so joining two sections gives the same zero flex deck.
Two Sections Make One Rack ARB is explicit that two of these sections are required to complete a full rack. The modular split exists to cut freight cost and make the parts manageable, not to sell you a half size rack.
Full Dovetail Accessory Rail The dovetail extrusion runs the perimeter and both edges of every internal beam on each section, so BASE Rack accessories clamp in anywhere and lift out without disturbing the rest of the load.
Low Profile Deck Sits close to the roof for a streamlined look and less drag than a basket style rack, and keeps the drive through clearance a tall cage costs you.
Sheds Dirt The dovetail profile does not trap the dust and grit that pack into a traditional channel, so clamps still slide and lock long after the first dusty trip.
Integrit Textured Black Powder Coat ARB's textured black finish, chosen to hide the marks roof loads leave and to clean up without showing swirls.
Fitment & Compatibility
Application
Fit
Paired with a second 1770180 section and an ARB BASE Rack mount kit
✓ Fits, both sold separately
Ordered as a single section
● Incomplete. ARB requires two sections for one rack
Vehicle with no ARB BASE Rack mount kit fitted
● Cannot be installed
ARB BASE Rack accessories
✓ Fits, clamps to the dovetail
Factory crossbars or a third party channel rack
✗ Does not fit
Fit guidance: Two things are sold separately and both are required: a second modular section to complete the deck, and the ARB BASE Rack vehicle mount kit that attaches the assembled rack to the roof.
Specifications
Model: ARB BASE Rack modular platform section
Part Number: 1770180
Section Size: 30.5" x 51"
Sections Required For A Full Rack: Two
Material: Extruded aluminum, fully welded
Finish: Integrit textured black powder coat
Color: Black
Accessory Attachment: ARB dovetail extrusion, full perimeter plus both edges of each internal beam
Shipping Weight: 26 lb
Mounting: ARB BASE Rack vehicle mount kit, sold separately
Warranty: 3 years
UPC: 9332018133465
Installation
Type: Two sections bolt together, then bolt to an ARB BASE Rack vehicle mount kit · Time: 1-2 hours with the mount kit already fitted · Tools: Metric socket set, torx drivers, torque wrench · Difficulty: Moderate
Join the two sections first, then set the assembled rack onto the vehicle mount kit and torque to ARB's figures. A single person can lift each section, which is the practical reason the modular version exists.
Warranty, Shipping & Returns
Warranty. ARB covers this product with a 3-year, unlimited mileage warranty through ARB North America (Air Locker Inc., Auburn, WA). ARB's own schedule puts wear items such as bushes, bearings, shackles, pins and U-bolts on a shorter 1-year term. We describe ARB's warranty exactly as ARB publishes it rather than restating or extending it, and it is honored through any ARB-authorized dealer in the US.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About ARB
ARB started in 1975 when Tony Brown came home from a Cape York trip convinced that the four wheel drives crossing Australia deserved better equipment than anything then on sale. He began hand building roof racks and bull bars in his Melbourne driveway, and the initials of Anthony Ronald Brown ended up on what is now the largest 4x4 accessory manufacturer and distributor in the southern hemisphere. The engineering campus at Kilsyth in Victoria still designs and tests the load carrying, air and recovery equipment the brand is known for, and ARB now runs offices in the USA, Europe and the Middle East with an export network reaching more than 100 countries.
In North America ARB trades as Air Locker Inc. from Auburn, Washington, and backs its products with a published US and Canada warranty program. Prestige Truck is an authorized ARB dealer. Every rack, rail and bracket we ship is genuine US market stock covered by ARB North America's warranty and supported by ARB's own fitting instructions.
The Dovetail Mounting System
ARB's own short walkthrough of the dovetail extrusion that makes the BASE Rack what it is: a clamp that drops in anywhere along the rail instead of a channel you have to thread accessories onto from one end.
It is the clearest thirty seconds available on why accessories come on and off this rack without disturbing the rest of the load.
The ARB Story
How a Melbourne driveway operation building roof racks and bull bars in 1975 grew into the southern hemisphere's largest 4x4 accessory manufacturer.
Filmed by ARB across its own Australian factories and proving grounds, it is worth seven minutes if you want to know who builds the gear before you bolt it to your roof.
Frequently Asked Questions
Straight answers on specs, fit and support
Is one of these a complete roof rack?
No. ARB states that two sections are required to complete one full rack. Order two of 1770180 for a single rack, and add the ARB BASE Rack vehicle mount kit on top of that.
Why sell it in two pieces?
Freight and handling. A split deck ships far cheaper than a full length welded platform and each half is light enough for one person to carry, without changing the beam structure or the finished strength.
Is it weaker than the one piece racks?
ARB builds each section fully welded from the same extruded aluminum beams with the same internal bracing, and states the modular design keeps the strength, durability and zero flex performance of the one piece BASE Rack.
Do BASE Rack accessories fit it?
Yes. The dovetail extrusion is the same, running the full perimeter and along each internal beam, so guard rails, holders, brackets and light mounts clamp in exactly as they do on a one piece rack.
What mounts it to the roof?
An ARB BASE Rack vehicle mount kit, which is the vehicle specific part and is sold separately. Without it there is nothing to bolt the sections to.
What is the warranty?
Three years unlimited mileage through ARB North America, honored through authorized dealers like us. Keep your invoice and register with ARB after purchase.
