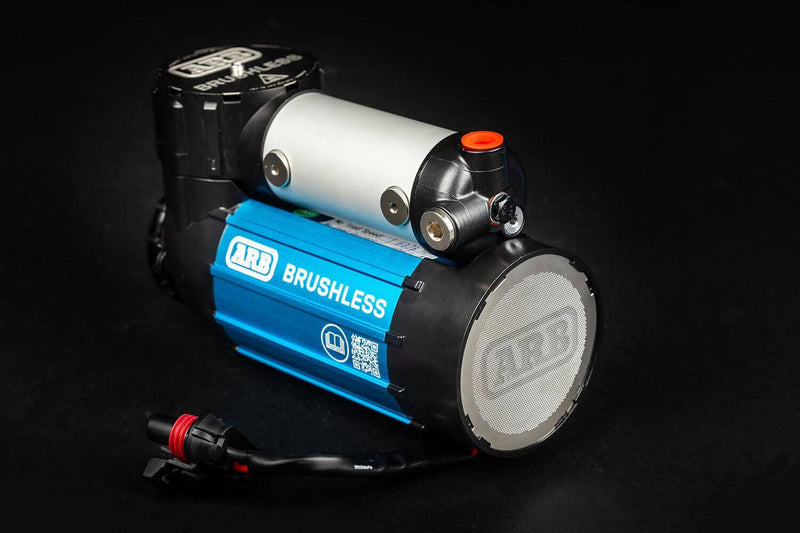

ARB Brushless Single Motor On-Board 12V Air Compressor, 4.59 CFM, IP67 (CKBLA12)

ARB's brushless range is the first real redesign of its compressors in years, and the headline is 50 percent more output than the brushed unit it sits above. This single motor on-board model delivers 4.59 CFM at free flow and 3.10 CFM at 29 psi, with a fan in each motor and compressor assembly actively cooling it rather than relying on airflow past the housing.

The brushless motor is only half the story. Electronic speed control holds performance across the whole pressure and ambient temperature range, the unit constantly monitors itself and adjusts for temperature and for variations in the vehicle charging system, and it reports faults through audio and visual alerts instead of just stopping. Voltage and overload protection guards against spikes, drops, overcurrent and motor stalls. Sealing is IP67 water resistant, a step above the IP55 of the brushed range. On-board units use cam lock quick release mounts and need no relays, both of which cut the install time considerably.

What's Included:

• Brushless single motor 12 V on-board compressor
• Cam lock quick release mounts
• Wiring harness
• Mounting hardware

Features

50% More Air
ARB's own figure against its market leading brushed compressor: 4.59 CFM free flow and 3.10 CFM at 29 psi.

Active Cooling
A fan in each motor and compressor assembly, electronically controlled, rather than passive cooling. That is where the higher sustained performance and the longevity come from.

Electronic Speed Control
Holds optimum performance across the full range of pressures and ambient temperatures instead of falling away as things heat up.

It Tells You What Is Wrong
Live diagnostics through audio and visual alerts, so a fault is reported rather than just being a compressor that stopped.

Protected Against The Vehicle
Voltage and overload protection guards against spikes, drops, fluctuations, overcurrent and motor stalls, and the unit adjusts for variations in the charging system as it runs.

IP67 Sealing
Water resistant to IP67, a step up from the IP55 of the brushed range.

Faster To Install
Cam lock quick release mounts let the unit be removed without tools, and the brushless design eliminates the relays entirely, which takes real time out of the install.

Fitment & Compatibility

Specifications

• Model: ARB Brushless Single Motor On-Board Air Compressor
• Part Number: CKBLA12
• Voltage: 12 V DC
• Motors: Single, brushless
• Free-Flow Air Delivery: 4.59 CFM
• Air Delivery at 29 psi: 3.10 CFM
• Maximum Current: 45 A
• Duty Cycle: 100%
• Ingress Protection: IP67 water resistant
• Cooling: Active, fan in each motor and compressor assembly
• Kit Dimensions: 12.8"L x 10.8"W x 6.1"H
• Compressor Only Dimensions: 5.5" x 8.3" x 3.5"
• Compressor Only Weight: 6.8 lb
• Product Weight: 9.5 lb
• Shipping Weight: 9.5 lb
• Warranty: 3 years
• UPC: 9332018082435

Installation

Type: Bolt-on using the cam lock quick release mounts; no relays required  ·  Time: 1 to 3 hours, less than the brushed equivalent  ·  Tools: Drill, socket set, crimper; basic 12 V wiring competence  ·  Difficulty: Moderate

The brushless design removes the relays from the install, and the cam lock mounts let the unit come off without tools afterwards. Size the supply cable and fusing to the 45 A maximum. Mount away from exhaust heat and leave clear air for the cooling fans, which are doing real work on this unit rather than being incidental.
