ARB's brushless range is the first real redesign of its compressors in years, and the headline is 50 percent more output than the brushed unit it sits above. This single motor portable model delivers 4.59 CFM at free flow and 3.10 CFM at 29 psi, with a fan in each motor and compressor assembly actively cooling it rather than relying on airflow past the housing.
The brushless motor is only half the story. Electronic speed control holds performance across the whole pressure and ambient temperature range, the unit constantly monitors itself and adjusts for temperature and for variations in the vehicle charging system, and it reports faults through audio and visual alerts instead of just stopping. Voltage and overload protection guards against spikes, drops, overcurrent and motor stalls. Sealing is IP67 water resistant, a step above the IP55 of the brushed range. The portable kit adds a polarity correction harness, so either alligator clamp can go on either battery terminal, plus a 20 ft air hose, an inflation tire chuck and a blow gun.
What's Included:

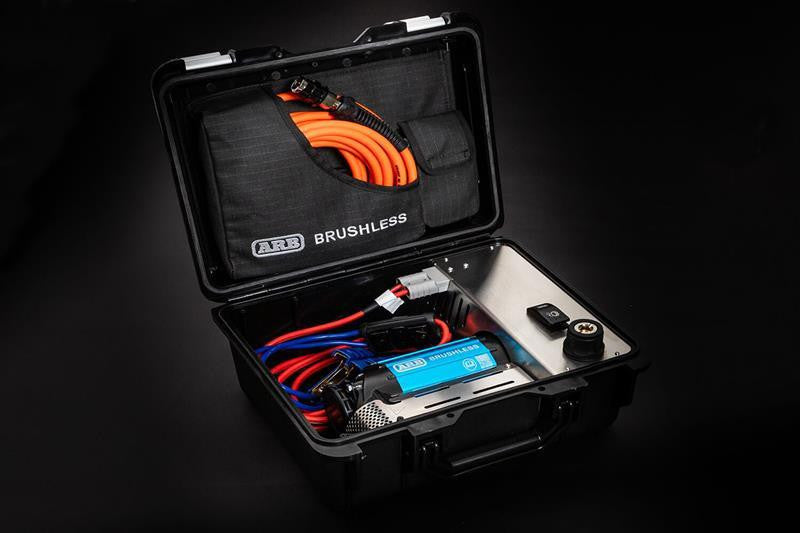

Brushless single motor 12 V portable compressor in a hard case
Polarity correction harness with battery clamps
20 ft air hose
Inflation tire chuck
Blow gun
Features
50% More Air ARB's own figure against its market leading brushed compressor: 4.59 CFM free flow and 3.10 CFM at 29 psi.
Active Cooling A fan in each motor and compressor assembly, electronically controlled, rather than passive cooling. That is where the higher sustained performance and the longevity come from.
Electronic Speed Control Holds optimum performance across the full range of pressures and ambient temperatures instead of falling away as things heat up.
It Tells You What Is Wrong Live diagnostics through audio and visual alerts, so a fault is reported rather than just being a compressor that stopped.
Protected Against The Vehicle Voltage and overload protection guards against spikes, drops, fluctuations, overcurrent and motor stalls, and the unit adjusts for variations in the charging system as it runs.
IP67 Sealing Water resistant to IP67, a step up from the IP55 of the brushed range.
Polarity Cannot Be Wrong A polarity correction harness means either blue alligator clamp goes on either battery terminal. On a tool used at night in the cold, that matters.
Fitment & Compatibility
Application
Fit
Any 12 V vehicle, via the supplied clamps and polarity correction harness
✓ Fits
ARB Air Lockers and ARB air accessories and hose kits
✓ Fits, the brushless range is compatible with the existing ARB air system
Tires up to about 35"
✓ Fits
The fastest possible air up
● The twin brushless CKBLTP12 doubles the output if speed is the priority
24 V vehicles
✗ Does not fit, the brushless range is 12 V
Fit guidance: Not a vehicle specific part. A portable clamps to the battery, so the only question is space and weight in the load area. ARB states the brushless range is compatible with its existing air accessories, hose kits and Air Lockers, so an upgrade does not mean replacing the rest of the system.
Specifications
Model: ARB Brushless Single Motor Portable Air Compressor
Part Number: CKBLP12
Voltage: 12 V DC
Motors: Single, brushless
Free-Flow Air Delivery: 4.59 CFM
Air Delivery at 29 psi: 3.10 CFM
Maximum Pressure: 150 psi
Maximum Current: 45 A
Duty Cycle: 90%
Ingress Protection: IP67 water resistant
Cooling: Active, fan in each motor and compressor assembly
Case Dimensions: 14"L x 12.1"W x 7.2"H
Product Weight: 17.4 lb
Supplied Hose: 20 ft
Shipping Weight: 17.4 lb
Warranty: 3 years
UPC: 9332018112392
Installation
Type: Portable, no installation · Time: Minutes to connect · Tools: None, the polarity correction harness and clamps are supplied · Difficulty: Easy
Clamp to the battery terminals. The polarity correction harness means either clamp can go on either terminal, but the current draw of up to 45 A still means clamping to the battery rather than to any accessory socket.
Resources
Everything you need for your ARB Brushless Single Motor Portable 12V Air Compressor, 4.59 CFM, IP67, in one place.
Warranty. ARB covers this product with a 3-year unlimited-mileage warranty through ARB North America (Air Locker Inc., Auburn, WA), the term ARB publishes for it in its own product record. Wear items such as filter elements and seals fall under ARB's 1-year wear-item schedule. We describe ARB's warranty exactly as published and it is honored through any ARB-authorized dealer in the US.
Free shipping. This item ships free to the lower 48 states and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect your order on arrival. If anything is damaged or missing, contact us right away and we will make it right.
About ARB
ARB started in 1975 in a Melbourne garage, when Tony Brown began building bull bars for the four-wheel drives crossing Australia's outback, and the company has grown into the largest 4x4 accessories maker in the southern hemisphere. Its engineering campus in Kilsyth, Victoria still designs and builds the products the brand is known for, and ARB now runs offices in the USA, Europe and the Middle East with an export network reaching more than 100 countries.
Air is one of the things ARB is best known for. The compressor line, the Air Locker system it was built to feed, and the fittings, hoses and gauges that tie them together are engineered as one system, which is why an ARB air part is specified by the same part numbers the factory uses. In North America ARB operates from Auburn, Washington as Air Locker Inc., backing every product with a US warranty program. Prestige Truck is an authorized ARB dealer. Every part we ship is a genuine US-market unit with full ARB North America warranty coverage.
All New ARB Brushless Compressor
ARB's Australian channel on the brushless range: the electronic speed control, the active cooling fans, the diagnostics and where the extra 50 percent of output comes from.
The same material as the introduction film, filmed and narrated for ARB's home market.
The ARB Story
How a Melbourne garage operation building bull bars for outback tourers in 1975 became the southern hemisphere's biggest 4x4 accessories maker.
Seven minutes on the company behind this compressor, filmed by ARB itself across its Australian factories and proving grounds.
Frequently Asked Questions
Straight answers on specs, fit and support
What does brushless actually get me?
ARB's figure is 50 percent more output than its brushed compressor, plus active cooling, electronic speed control that holds performance as things heat up, live fault reporting and IP67 sealing instead of IP55. Fewer wear parts is a side benefit rather than the headline.
Will it work with my existing ARB air accessories?
Yes. ARB states the brushless range is compatible with its existing air accessories, hose kits and Air Lockers, so upgrading the compressor does not mean replacing the plumbing.
Can I connect the clamps either way round?
Yes, and that is a deliberate feature. The portable kits include a polarity correction harness so either blue alligator clamp connects to either battery terminal without harm.
What is the duty cycle?
90%, as published by ARB for this model. ARB's Australian site lists 100 percent for the portable brushless range while the US product record says 90 percent. We print the US figure because this is a US market listing and it is the more conservative of the two, and we have flagged the disagreement rather than picking the flattering number.
How much current does it draw?
ARB publishes a maximum of 45 A. Size the supply cable and fusing to that figure.
Why is there no installation video?
ARB has published no compressor installation film for any model, brushed or brushless. We checked every product page and both official ARB channels. The installation guide in the Resources tab is the authoritative source, and we would rather show you nothing than a fitting video for a different product.
