ARB Brushless Twin Motor Portable 12V Air Compressor, 9.18 CFM, IP67 (CKBLTP12)

ARB's brushless range is the first real redesign of its compressors in years, and the headline is 50 percent more output than the brushed unit it sits above. This twin motor portable model delivers 9.18 CFM at free flow and 6.20 CFM at 29 psi, with a fan in each motor and compressor assembly actively cooling it rather than relying on airflow past the housing.

The brushless motor is only half the story. Electronic speed control holds performance across the whole pressure and ambient temperature range, the unit constantly monitors itself and adjusts for temperature and for variations in the vehicle charging system, and it reports faults through audio and visual alerts instead of just stopping. Voltage and overload protection guards against spikes, drops, overcurrent and motor stalls. Sealing is IP67 water resistant, a step above the IP55 of the brushed range. On the twins, a staggered power on sequence reduces the current spike at start up so they will start on vehicles with smaller charging systems. The portable kit adds a polarity correction harness, so either alligator clamp can go on either battery terminal, plus a 20 ft air hose, an inflation tire chuck and a blow gun.

What's Included:

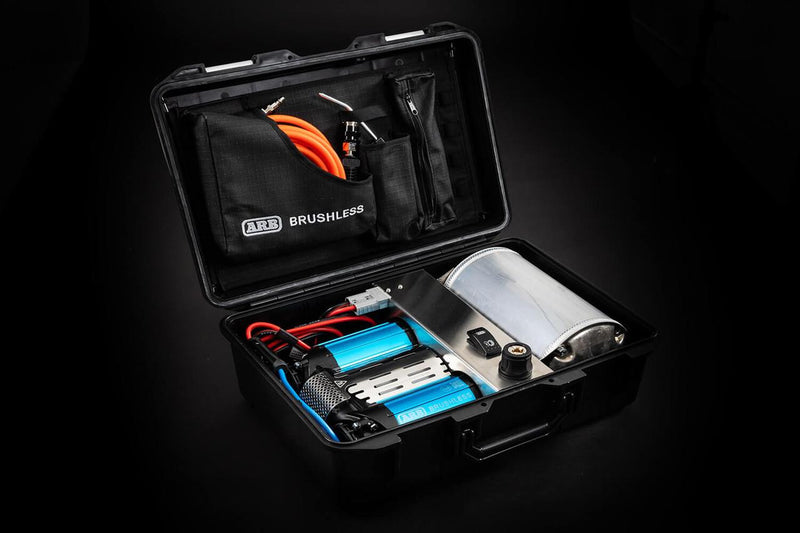

• Brushless twin motor 12 V portable compressor in a hard case
• Polarity correction harness with battery clamps
• 20 ft air hose
• Inflation tire chuck
• Blow gun

Features

50% More Air
ARB's own figure against its market leading brushed compressor: 9.18 CFM free flow and 6.20 CFM at 29 psi.

Active Cooling
A fan in each motor and compressor assembly, electronically controlled, rather than passive cooling. That is where the higher sustained performance and the longevity come from.

Electronic Speed Control
Holds optimum performance across the full range of pressures and ambient temperatures instead of falling away as things heat up.

It Tells You What Is Wrong
Live diagnostics through audio and visual alerts, so a fault is reported rather than just being a compressor that stopped.

Protected Against The Vehicle
Voltage and overload protection guards against spikes, drops, fluctuations, overcurrent and motor stalls, and the unit adjusts for variations in the charging system as it runs.

IP67 Sealing
Water resistant to IP67, a step up from the IP55 of the brushed range.

Smart Start
A staggered power on sequence across the two motors reduces the current spike at start up, so a brushless twin will start on vehicles with smaller charging systems.

Polarity Cannot Be Wrong
A polarity correction harness means either blue alligator clamp goes on either battery terminal. On a tool used at night in the cold, that matters.

Fitment & Compatibility

Specifications

• Model: ARB Brushless Twin Motor Portable Air Compressor
• Part Number: CKBLTP12
• Voltage: 12 V DC
• Motors: Twin, brushless
• Free-Flow Air Delivery: 9.18 CFM
• Air Delivery at 29 psi: 6.20 CFM
• Maximum Pressure: 150 psi
• Maximum Current: 90 A
• Duty Cycle: 90%
• Ingress Protection: IP67 water resistant
• Cooling: Active, fan in each motor and compressor assembly
• Case Dimensions: 18.8"L x 14"W x 7.3"H
• Product Weight: 29.3 lb
• Supplied Hose: 20 ft
• Shipping Weight: 31 lb
• Warranty: 3 years
• UPC: 9332018112408

Installation

Type: Portable, no installation  ·  Time: Minutes to connect  ·  Tools: None, the polarity correction harness and clamps are supplied  ·  Difficulty: Easy

Clamp to the battery terminals. The polarity correction harness means either clamp can go on either terminal, but the current draw of up to 90 A still means clamping to the battery rather than to any accessory socket.
