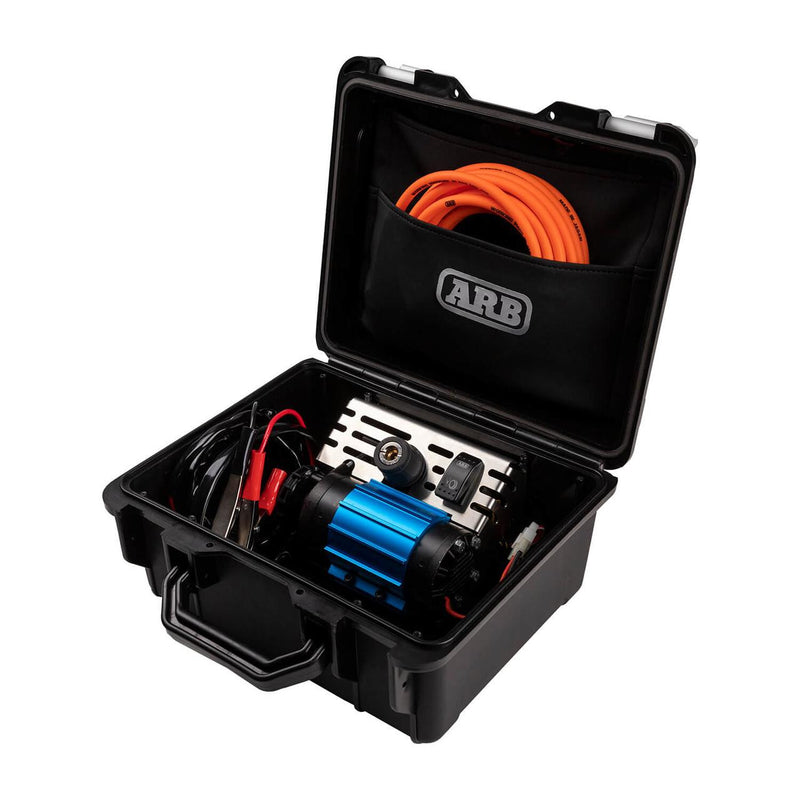

The portable version of ARB's single motor compressor: the same 3.08 CFM, 100 psi, IP55 sealed unit as the on-board CKMA12, mounted on a plate in a hard carry case with a switch, a hose and battery clamps. Nothing gets drilled, nothing gets wired, and it moves between vehicles.
For most people running 33" tires this is the sensible amount of compressor. It airs a 33" tire from 15 to 30 psi in around two and a half minutes and does a full four tire set inside its 50 percent duty rating of 30 minutes on and 30 minutes off. If you run 35s or want to drive air tools, the twin portable CKMTP12 is the tool for that instead.
What's Included:
CKMP12V2 single motor 12 V portable compressor in a hard case
Air hose
Battery clamps
Hard carry case
Features
No Installation Clamp it to the battery and go. Nothing drilled, nothing wired, and it moves between vehicles or lends out.
3.08 CFM Free flow 3.08 CFM and 2.34 CFM at 29 psi, which is around two and a half minutes on a 33" tire from 15 to 30 psi.
Sealed To IP55 The same IP55 sealing as the on-board unit, protecting the motor from dust and water spray in a load space.
Honest Duty Cycle 50 percent, rated 30 minutes on and 30 minutes off. A full four tire air up on 33s sits comfortably inside that.
Switched And Ready A panel mounted ARB switch and the hose and clamps are packed with it, so the case is the whole system.
Hard Case A molded hard case with handles, which is what keeps a compressor working after a few years of living in a load space.
Fitment & Compatibility
Application
Fit
Any 12 V vehicle, via the supplied battery clamps
✓ Fits
Tires up to about 33"
✓ Fits comfortably
35" tires and larger
● Works, but the twin portable CKMTP12 is the better match
Air tools
✗ Not suitable, there is no tank. Use the twin portable with its integrated tank
24 V vehicles
✗ Does not fit, this is the 12 V unit
Fit guidance: Portable compressors are universal: they clamp to a battery. Choose between this and the twin on tire size and on whether you want to run tools, not on which vehicle you have.
Specifications
Model: ARB High Output Portable Air Compressor, single motor
Part Number: CKMP12V2
Voltage: 12 V DC
Motors: Single
Free-Flow Air Delivery: 3.08 CFM (87.2 L/min)
Air Delivery at 29 psi: 2.34 CFM (65.9 L/min)
Maximum Pressure: 100 psi
Current Draw: 14.2 A at free flow, 25.2 A at 29 psi
Maximum Current: 32 A
Duty Cycle: 50%, rated 30 minutes on / 30 minutes off
Ingress Protection: IP55
Case Dimensions: 14"L x 12.1"W x 7.2"H
Product Weight: 15.4 lb (7 kg)
Shipping Weight: 17 lb
Warranty: 3 years
UPC: 9332018103291
Installation
Type: Portable, no installation · Time: Minutes to connect · Tools: None, battery clamps are supplied · Difficulty: Easy
Clamp directly to the battery terminals. At up to 32 A this is more than a cigarette socket should be asked to supply, and the clamps are provided precisely so you do not have to.
Resources
Everything you need for your ARB Portable Air Compressor, 12V Single Motor, 3.08 CFM, 100 psi, in one place.
Warranty. ARB covers this product with a 3-year unlimited-mileage warranty through ARB North America (Air Locker Inc., Auburn, WA), the term ARB publishes for it in its own product record. Wear items such as filter elements and seals fall under ARB's 1-year wear-item schedule. We describe ARB's warranty exactly as published and it is honored through any ARB-authorized dealer in the US.
Free shipping. This item ships free to the lower 48 states and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect your order on arrival. If anything is damaged or missing, contact us right away and we will make it right.
About ARB
ARB started in 1975 in a Melbourne garage, when Tony Brown began building bull bars for the four-wheel drives crossing Australia's outback, and the company has grown into the largest 4x4 accessories maker in the southern hemisphere. Its engineering campus in Kilsyth, Victoria still designs and builds the products the brand is known for, and ARB now runs offices in the USA, Europe and the Middle East with an export network reaching more than 100 countries.
Air is one of the things ARB is best known for. The compressor line, the Air Locker system it was built to feed, and the fittings, hoses and gauges that tie them together are engineered as one system, which is why an ARB air part is specified by the same part numbers the factory uses. In North America ARB operates from Auburn, Washington as Air Locker Inc., backing every product with a US warranty program. Prestige Truck is an authorized ARB dealer. Every part we ship is a genuine US-market unit with full ARB North America warranty coverage.
The Compressor Range Explained
ARB's own walk through of how the single and twin, portable and on-board compressors differ, and which job each one is actually for.
Useful if you are still choosing between them rather than committed to this one.
Why A Premium ARB Compressor
ARB walks through what separates its compressor line from bargain units: sealed motors, real duty cycle ratings, serviceable filters and the electrical kit that comes standard.
If you are comparing this against a parts store special, it is the honest comparison from the people who build it.
The ARB Story
How a Melbourne garage operation building bull bars for outback tourers in 1975 became the southern hemisphere's biggest 4x4 accessories maker.
Seven minutes on the company behind this compressor, filmed by ARB itself across its Australian factories and proving grounds.
Frequently Asked Questions
Straight answers on specs, fit and support
Single or twin, which do I need?
On 33" tires and without air tools, this single is the right amount of compressor. On 35s and up, or if you want to run tools, the twin portable CKMTP12 doubles the air, raises the pressure to 150 psi and adds a tank.
Do I need to install anything?
No. It clamps to the battery and the hose comes with it. That is the entire setup.
Can I plug it into a cigarette socket?
No. It draws up to 32 A and the battery clamps are supplied for that reason. An accessory socket cannot supply it.
How long can I run it for?
ARB rates the duty cycle at 50 percent, 30 minutes on and 30 minutes off. A four tire air up on 33s from trail pressure sits well inside that.
What is the difference from the CKMA12?
The compressor is the same. The CKMA12 is the on-board version that bolts into the vehicle and wires to a dash switch. This is the portable version in a case with clamps and a hose.
Why is there no installation video?
There is nothing to install, and ARB has published no compressor installation film of any kind for any model in the range.
