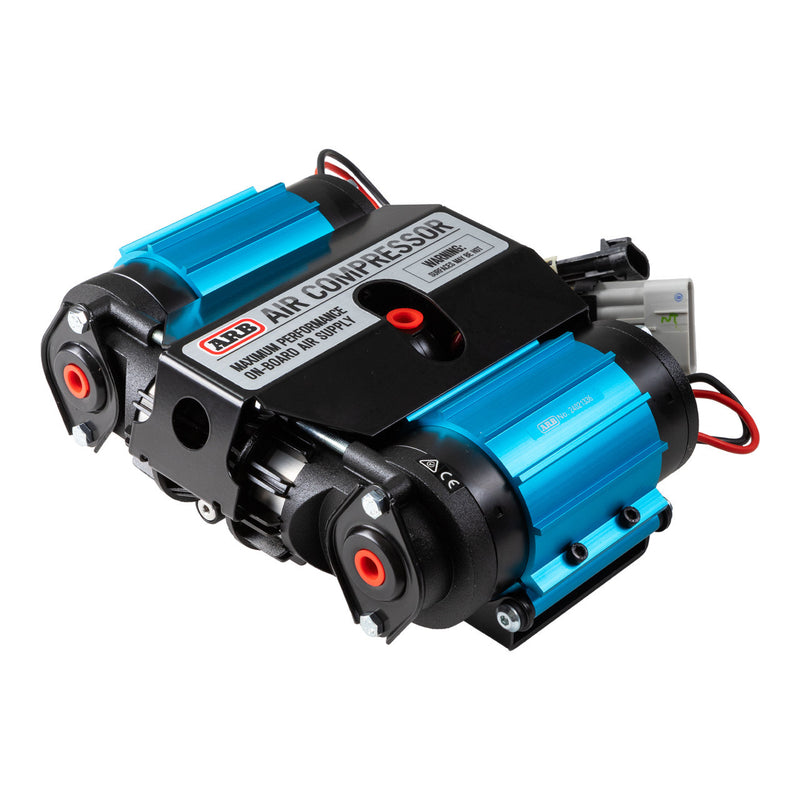

ARB On-Board Air Compressor, 12V Twin Motor, 6.16 CFM, 150 psi, 100% Duty Cycle (CKMTA12)

The twin is what you buy when the single is not enough. Two motors, 6.16 CFM of free flow air and 4.68 CFM at 29 psi, 150 psi maximum, and the specification that actually changes how you use it: a 100 percent duty cycle. It does not need 30 minutes off after 30 minutes on, so a full set of 35" tires is one continuous job rather than a schedule.

It is designed for tires and Air Locker activation, and with a 1 gallon air tank it will run most air tools properly rather than intermittently. Integrated pressure switch and relays, an IP55 rated brushless cooling fan over the electronics, motors and cylinder heads, hard anodized cylinder bores, Teflon impregnated carbon fiber piston seals and an over-pressure safety valve are all standard. On 12 V it draws 28.4 A at free flow, 50.4 A at 29 psi.

What's Included:

• Twin motor 12 V compressor assembly with integrated pressure switch and relays
• Anodized mounting bracket
• Washable air filter assemblies
• Complete wiring loom with illuminated ARB dash switch
• Mounting hardware and terminals

Features

100% Duty Cycle
The specification that matters. It runs continuously rather than on a 30 on, 30 off schedule, so a full air up on big tires is one uninterrupted job.

Twice The Air
6.16 CFM free flow and 4.68 CFM at 29 psi from two motors, against 3.08 and 2.34 from the single. On 35" tires that difference is the trip.

150 psi
A higher maximum pressure than the single motor units, which is what makes tank charging and bead seating realistic.

Air Tools With A Tank
Paired with a 1 gallon air tank it will run most air tools properly, rather than the intermittent use a tankless single motor unit allows.

Cooled And Sealed
An IP55 rated brushless fan cools the electronics, motors and cylinder heads, and the whole assembly is sealed against moisture and dust.

Built To Last
Hard anodized cylinder bores for reduced friction, Teflon impregnated carbon fiber piston seals, an anodized bracket that dissipates heat, and an over-pressure safety valve.

Fitment & Compatibility

Specifications

• Model: ARB Maximum Performance On-Board Air Compressor, twin motor
• Part Number: CKMTA12
• Voltage: 12 V DC
• Motors: Twin
• Free-Flow Air Delivery: 6.16 CFM (174.4 L/min)
• Air Delivery at 29 psi: 4.68 CFM (131.8 L/min)
• Maximum Pressure: 150 psi
• Current Draw: 28.4 A at free flow, 50.4 A at 29 psi
• Maximum Current: 68.6 A
• Duty Cycle: 100%
• Ingress Protection: IP55
• Dimensions: 10.8"L x 7.5"W x 4"H
• Product Weight: 17.4 lb (8.8 kg)
• Thermal Protection: Internal thermal protection with brushless cooling fan
• Shipping Weight: 25 lb
• Warranty: 3 years
• UPC: 9332018003836

Installation

Type: Bolt-on to a flat surface; full electrical kit supplied  ·  Time: 2 to 4 hours for a tidy engine bay install with switch wiring  ·  Tools: Drill, socket set, crimper; basic 12 V wiring competence  ·  Difficulty: Moderate

The twin draws considerably more current than the single, so size the supply cable and fusing to ARB's figures rather than reusing a single motor installation. Mount away from exhaust heat and direct water spray, and leave clearance for the cooling fan to breathe.

Resources

Everything you need for your ARB On-Board Air Compressor, 12V Twin Motor, 6.16 CFM, 150 psi, 100% Duty Cycle, in one place.

• ARB CKMTA12 Installation Guide (PDF), the manufacturer's step-by-step guide covering mounting, included hardware and adjustment.
