ARB Portable Air Compressor, 12V Twin Motor with 1 Gallon Air Tank, 6.16 CFM, 150 psi (CKMTP12)

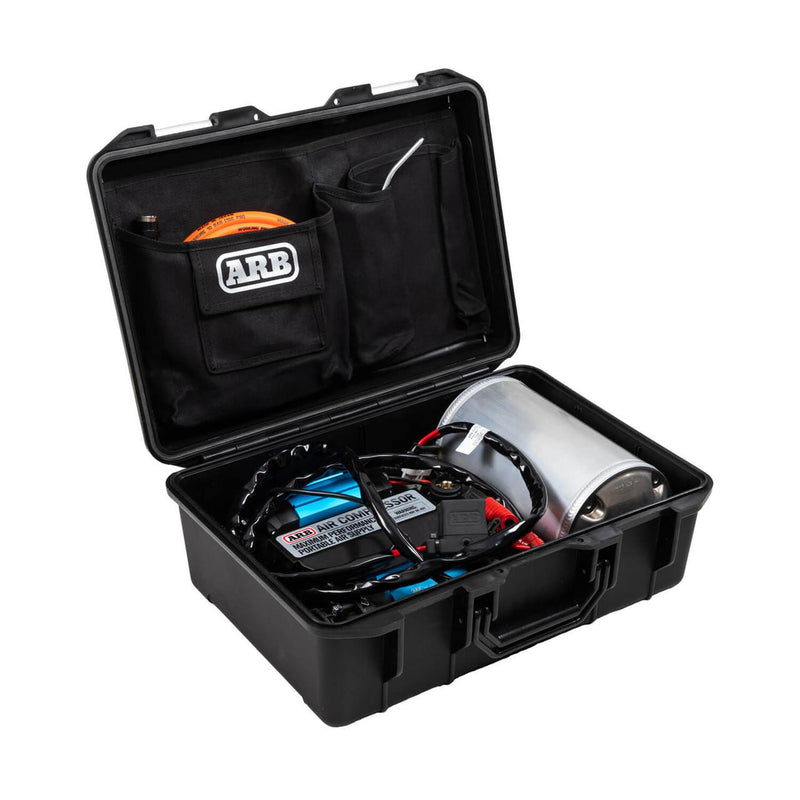

This is the twin motor compressor built as a self contained kit: the same 6.16 CFM, 150 psi, 100 percent duty cycle unit as the on-board twin, plus an integrated air tank, a 7 meter air hose, battery clamps and an inflation accessory kit, all packed into a hard carry case. Nothing is bolted to the vehicle, so it moves between vehicles, gets lent to whoever is stuck, and comes out only when it is needed.

ARB designed it around two jobs that a tankless portable cannot do well: rapid inflation of large tires, and the high volume air demand of most air powered tools. It is a recreational product built to commercial and industrial standards, which is ARB's own framing and, on a unit that lives in a load space and gets used in the dirt, a reasonable one.

What's Included:

• CKMTP12 twin motor 12 V portable compressor with integrated air tank
• 7 m air hose
• Battery clamps
• Inflation accessory kit
• Hard carry case

Features

Twin Motor Output, Nothing Installed
6.16 CFM free flow and 4.68 CFM at 29 psi with no wiring, no drilling and no permanent home in the vehicle.

Air Tank Built In
The integrated tank is what makes air tools genuinely usable rather than intermittent, and it steadies the supply for bead seating.

100% Duty Cycle
It runs continuously rather than resting between cycles, which is what a full set of large tires actually needs.

150 psi Maximum
Enough pressure for tank charging, tools and seating a bead, not just for topping up tires.

Complete Kit
7 m hose, battery clamps and an inflation accessory kit, packed in the case with the compressor.

Moves Between Vehicles
Nothing is fixed to the truck, so one compressor covers a fleet, a trailer, a camper and whoever else is stuck.

Fitment & Compatibility

Specifications

• Model: ARB Maximum Performance Portable Air Compressor, twin motor with tank
• Part Number: CKMTP12
• Voltage: 12 V DC
• Motors: Twin
• Free-Flow Air Delivery: 6.16 CFM (174.4 L/min)
• Air Delivery at 29 psi: 4.68 CFM (131.8 L/min)
• Maximum Pressure: 150 psi
• Current Draw: 28.4 A at free flow, 50.4 A at 29 psi
• Maximum Current: 68.6 A
• Duty Cycle: 100%
• Ingress Protection: IP55
• Case Dimensions: 18.8"L x 14"W x 7.3"H
• Product Weight: 33 lb (15 kg)
• Supplied Hose: 7 m (23 ft)
• Shipping Weight: 33 lb
• Warranty: 3 years
• UPC: 9332018003850

Installation

Type: Portable, no installation  ·  Time: Minutes to connect  ·  Tools: None, battery clamps are supplied  ·  Difficulty: Easy

Clamp directly to the battery terminals rather than to an accessory socket. A twin motor unit drawing up to 68.6 A will not run properly through a cigarette outlet and will damage the socket trying.

Resources

Everything you need for your ARB Portable Air Compressor, 12V Twin Motor with 1 Gallon Air Tank, 6.16 CFM, 150 psi, in one place.

• ARB CKMTP12 Operation Guide (PDF), the manufacturer's step-by-step guide covering mounting, included hardware and adjustment.
