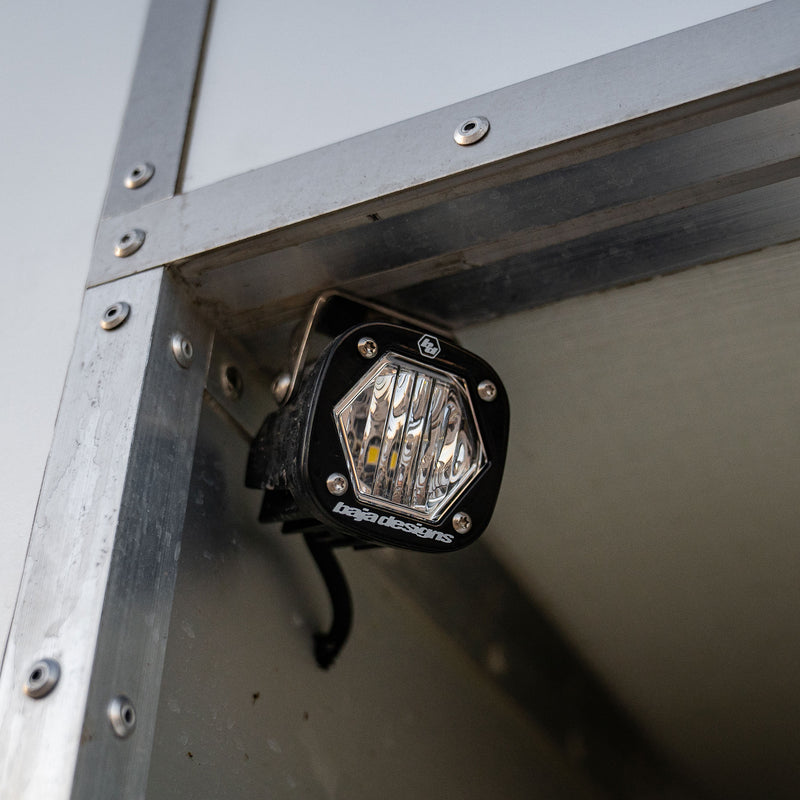

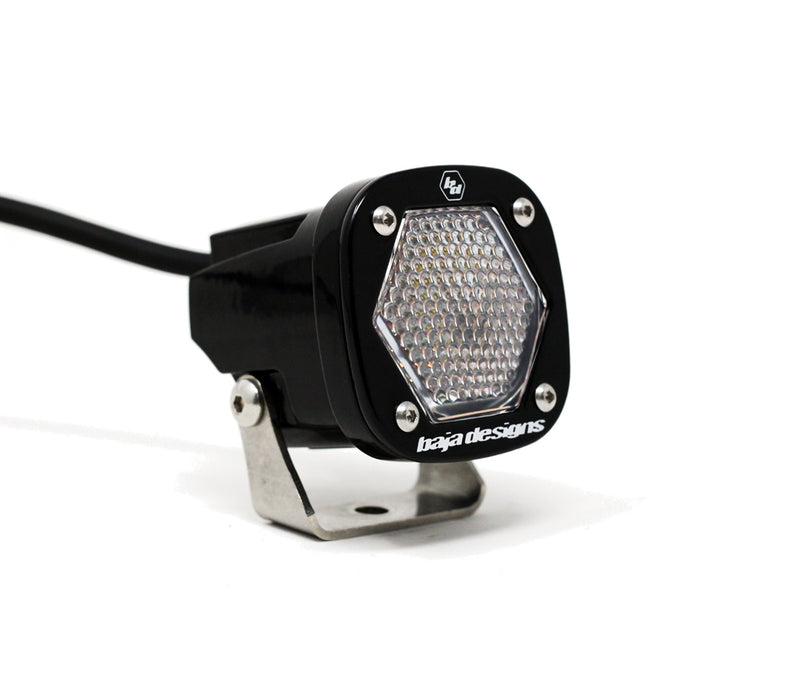

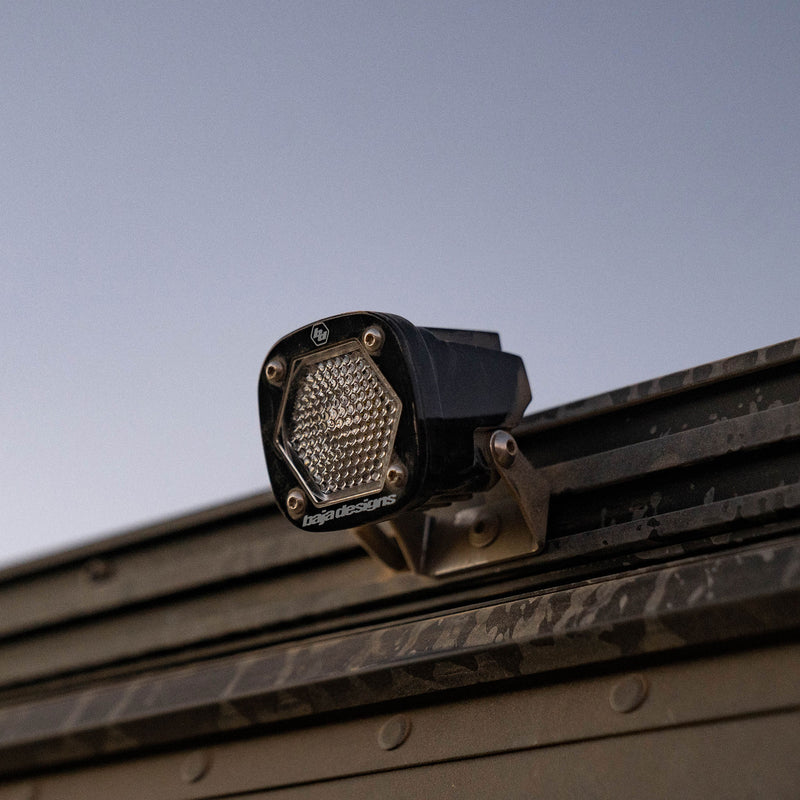

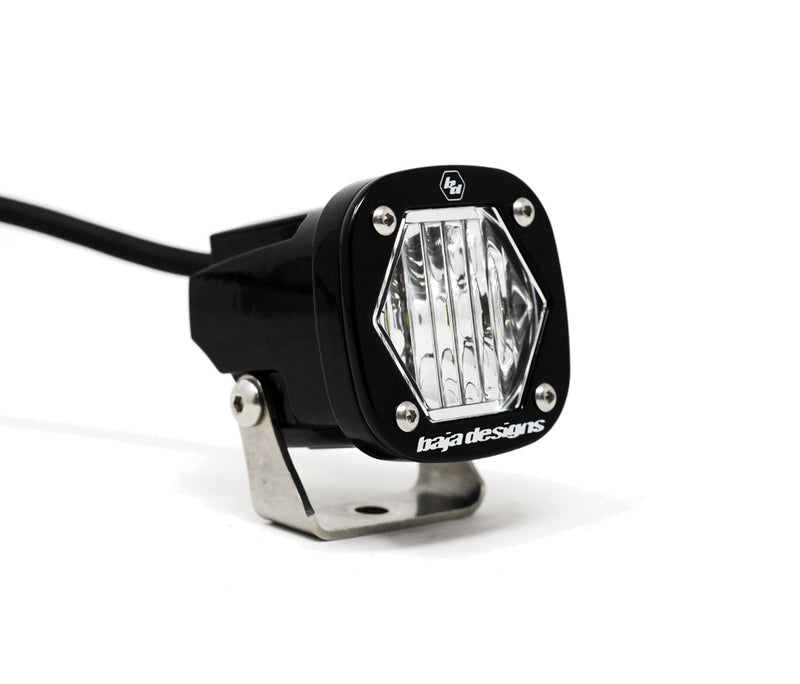

The S1 Black LED Auxiliary Light Pod is a compact cube-shaped Baja Designs pod made for tight spaces where a larger auxiliary light will not fit, while still throwing usable light. Use it to light a trail, a work area or a campsite, or tuck it into a bumper, hitch or rack as a compact accent light. It ships as Baja Designs part 380001. Choose light pattern and lens color from the options above; each option is its own Baja Designs part number, listed under Specifications.
Single S1 pods ship without a wiring harness, while S1 pairs include one; add a Baja Designs Squadron/S2/S1 2-pin harness if you buy a single pod.
Features
Big light, tiny footprint
The S1 is the most compact pod in the Baja Designs range, so it fits tight spots on bumpers, racks, hitches and body panels.
Reflector tuned for output
A specialized reflector matched to the LED shapes the beam efficiently, giving strong output for the size of the light.
Cast aluminum construction
The housing is cast aluminum, hard anodized and powder coated, with a hardcoated polycarbonate lens.
Sealed and impact rated
Baja Designs rates the S1 IP69K for water and dust, IK10 for impact, and tests it beyond MIL-STD-810G.
Replaceable lens design
Baja Designs uService construction seals the lens with an O-ring, so the lens can be changed later with an S1 lens kit to switch pattern or color.
Stainless mounting hardware
Stainless steel mounting hardware comes with every S1.
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Housing Material: Hard anodized and powder coated cast aluminum
-
Lens Material: Hardcoated polycarbonate
-
Water Resistance: IP69K
-
Impact Resistance: IK10
-
Durability: Exceeds MIL-STD-810G
-
Mounting Hardware: Included, stainless steel
-
Overvoltage Protection: Built-in
-
Brightness: 2,320 lumens
-
Power draw: 19.6 W
-
Current draw: 1.42 A
-
Voltage: 9-28 V
-
Light source: LED
-
LEDs per light: 1
-
Lighting Modes: Beam
-
Housing Color: Black
-
Bezel Material: Powder Coated Cast Aluminum
-
Rated LED life: 49,930 hours
-
Wiring Harness Included: No
-
Mounting Hardware Included: Yes
-
Mounting Hardware Material: Stainless Steel
-
Water resistance: IP69K (Waterproof up to 9' & Pressure Washable)
-
Impact resistance: IK10 Compliant (Mechanical Impact Testing)
-
Durability testing: Exceeds MIL-STD810G (Mil-Spec Testing)
-

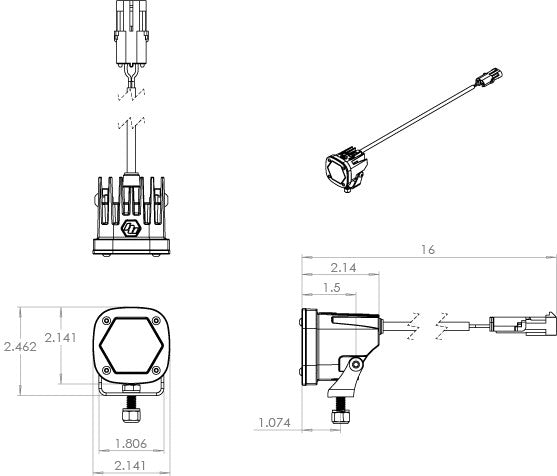

Length: 2.1"
-
Height: 2.1"
-
Depth: 2.1"
-
Weight: 0.4 lb
-
Fitment: Universal (not tied to one vehicle)
-
Road use: Baja Designs notes that some of its lights may only be used off-road. Check the lighting laws where you drive before using this light on public roads.
-
Light type: Light Pod
-
Mount location: Universal
-
Color temperature: 5000K
-
Beam distance: 155 ft (Spot), measured to 10 lux with a pair of lights (Baja Designs ELS rating, clear lens)
-
Part numbers: 380001, 380005, 380006, 380015

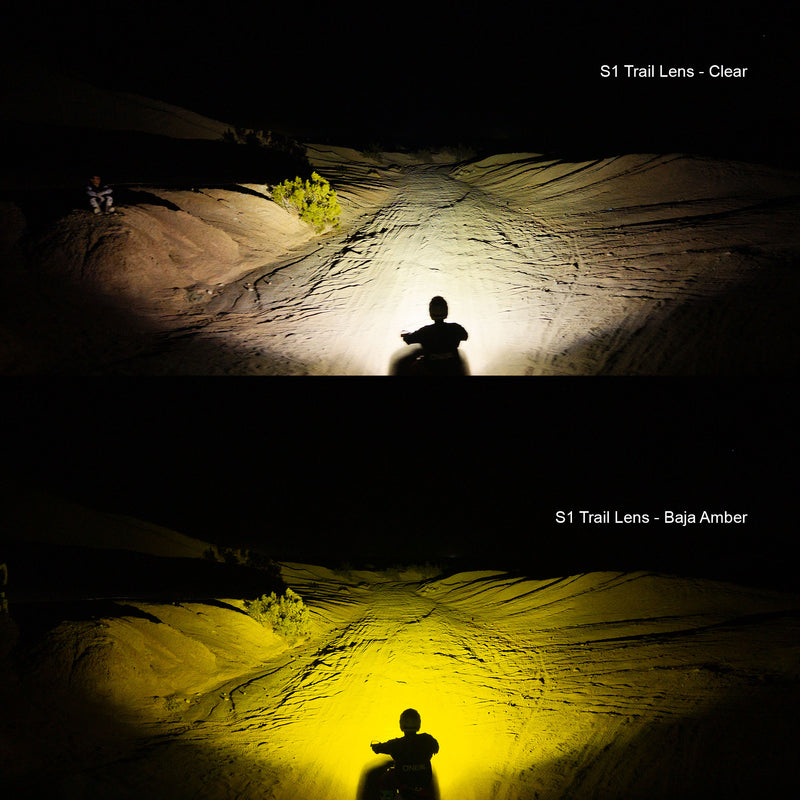

Options and part numbers
| Light Pattern |
Lens Color |
Baja Designs part number |

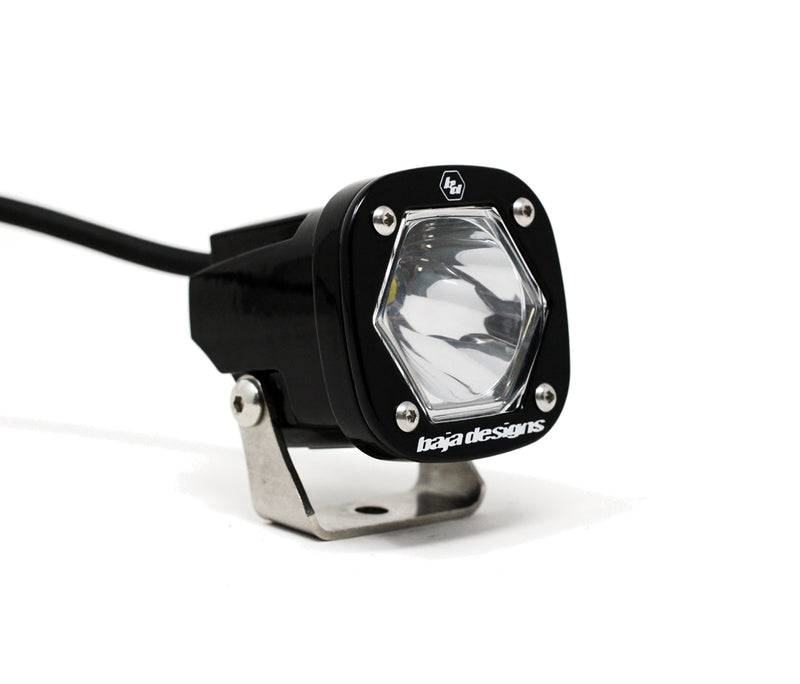

| Spot |
Clear |
380001 |
| Wide Cornering |
Clear |
380005 |

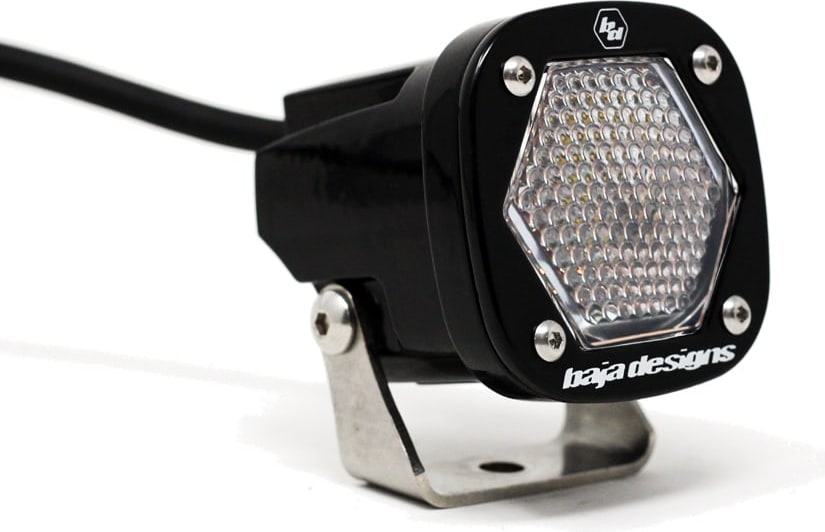

| Work/Scene |
Clear |
380006 |

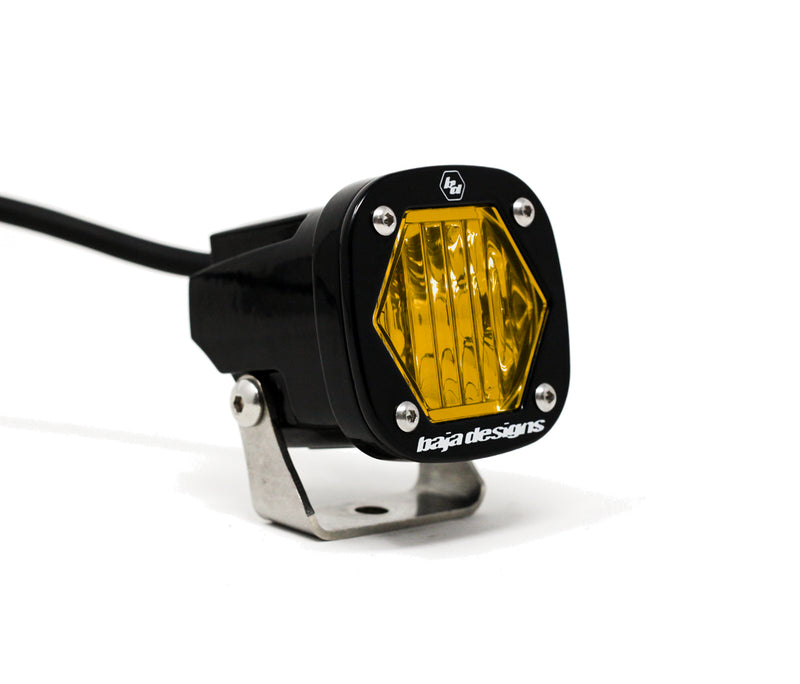

| Wide Cornering |
Baja Amber |
380015 |
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation
The S1 mounts with the supplied stainless hardware to a bracket, bumper, rack or flat panel and connects to a fused, relay-switched harness through its 2-pin plug. Aim the light once it is secured and route the wiring away from heat and moving parts.
Baja Designs's installation instructions for this product are linked under Resources. Read them fully before starting.
Resources
Warranty, Shipping & Returns
Warranty. Baja Designs warranties cover defects in design and manufacturing only, and the term depends on the product type. LED light bars and auxiliary lights for recreational use carry a limited lifetime warranty capped at 49,930 hours of operation. Brackets, wiring harnesses and switches that Baja Designs resells from other makers carry that maker's own warranty, which Baja Designs passes through. Installation errors, wear and tear, misuse, accidents, collisions, modifications and installation labor are not covered, and claims need proof of purchase or product registration. Shipping. The carrier and ship method are set by the size and weight of the carton when the order is placed. Inspect on delivery. Please inspect the package and every part as soon as it arrives, and report shipping damage or missing items before installing so a replacement can be arranged quickly.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Baja Designs
Baja Designs was founded in San Diego, California in 1992 by Alan Roach, a motorcycle racer who competed in the Baja 1000. The first product was a dual sport kit for off-road motorcycles, and the company went on to build HID race lights that ended up on many winning Baja 1000 bikes, trucks and buggies.
That racing work earned the engineering team the nickname The Scientists of Lighting, and professional teams began asking them to design and aim their lighting. In 2005 Baja Designs raced a forward-projecting LED light bar at the Baja 1000, the starting point for the LED pods and bars in the current range.
The company is now based in San Marcos, California, where it engineers and builds LED lighting for trucks, Jeeps, SUVs, UTVs and motorcycles.
