Baja Designs Squadron-R Racer Edition LED Auxiliary Light Pod
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Small Pod, Full Output: The 3" Squadron footprint fits bumper pockets, A-pillar brackets and racks while still giving real auxiliary-light output.
- Round Bezel Option: Squadron-R versions add a round bezel for a traditional look and for bumpers with round openings.
- Lens Patterns by Lighting Zone: Baja Designs sorts its patterns by Lighting Zone: Spot for distance, Driving/Combo to blend reach with spread, Wide Cornering for the sides of the trail and Work/Scene for close-up light.
- Serviceable, Swappable Lenses: Baja Designs' uService O-ring design lets the light be opened and fitted with a different lens kit later, so a cracked lens is not a dead light.
- Sealed Against Water and Dust: Baja Designs seals its lights with O-rings rather than silicone beads and rates them IP69K, so rain, pressure washing and river crossings stay outside the housing.
- Lifetime Limited Warranty: The lights carry Baja Designs' limited lifetime warranty for recreational use plus its 30-day satisfaction guarantee; brackets and harnesses carry their maker's warranty.
Description & Fitment

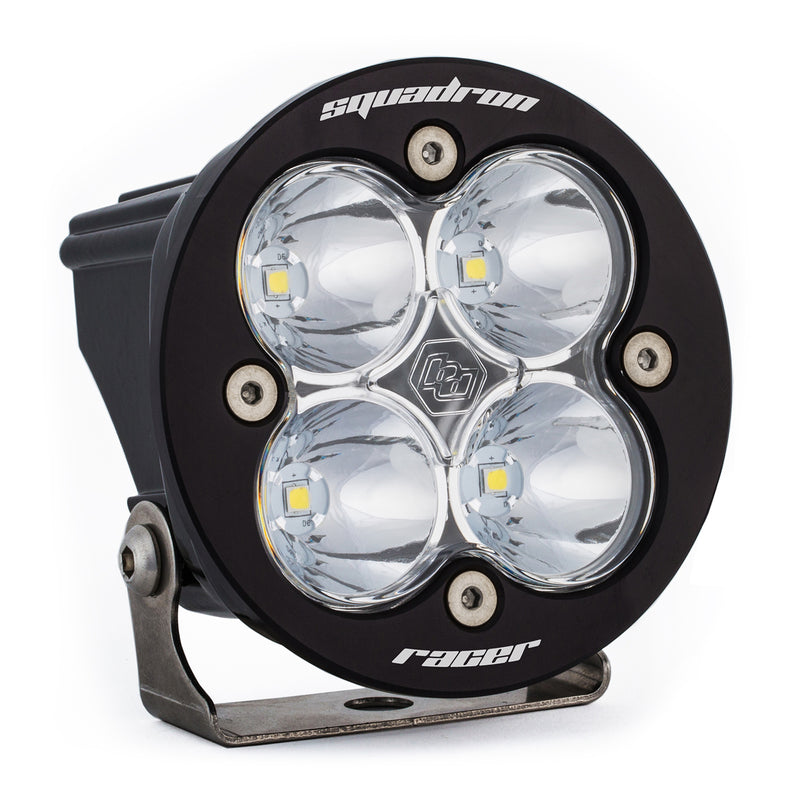

The Squadron-R Racer Edition is a single 3" Baja Designs Squadron-series pod with a round bezel and the Racer spot beam, the tightest beam in the Squadron line, made for high-speed night driving where you need to see far down the road (Lighting Zone 5). Baja Designs rates it at 2,800 lumens from 45.54 W and recommends adding it to a balanced lighting setup. A wiring harness is not included (Baja Designs harness 640117 fits). Baja Designs part number: 730001.
Fitment & Compatibility
Check your vehicle: It is universal, not tied to one vehicle. The housing is 3.07" x 3.07" x 2.77" and Baja Designs includes stainless mounting hardware. Check the space where you plan to mount it, and ask us if you want a vehicle-specific bracket.
About Baja Designs
Baja Designs started in San Diego, California in 1992, founded by riders who raced the Baja 1000. Its engineers tuned race lights for night stages, which earned them the nickname The Scientists of Lighting, and in 2005 the company ran its first forward-projecting LED light bar in the Baja 1000.
Today Baja Designs lights trucks, Jeeps, SUVs, vans, UTVs and motorcycles. Its Lighting Zones method matches the lens pattern to the job and the mounting spot on the vehicle: dust and fog, cornering, driving, spot, rock and cargo, and reverse. Baja Designs is part of the Bestop Premium Accessories Group.
Authorized Baja Designs dealer. Prestige Truck is an authorized Baja Designs dealer. Baja Designs says its full limited warranty does not apply to lights bought from unauthorized marketplace sellers; a purchase here carries it, and you can bring any claim to us first.
Frequently Asked Questions
Will the Squadron-R Racer Edition pod fit my vehicle?
It is universal, not tied to one vehicle. The housing is 3.07" x 3.07" x 2.77" and Baja Designs includes stainless mounting hardware. Check the space where you plan to mount it, and ask us if you want a vehicle-specific bracket.
Does it come with a wiring harness?
No. Baja Designs sells this pod without a harness; its 640117 harness is the one it lists for this light.
Squadron or Squadron 2.0?
Squadron 2.0 is Baja Designs' redesign: new optics, a 4-pin Deutsch connector and a color-selectable backlight. Squadron 2.0 lights need Squadron 2.0 harnesses and lens kits.
Are Squadron pods street legal?
Only the Squadron SAE pairs, which Baja Designs builds to the SAE J583 fog standard. Its Sport, Pro and Racer pods are rated for off-road use only.
Can I change the lens later?
On the off-road pods, yes: Baja Designs' uService design takes a Squadron lens kit. Squadron 2.0 pods use their own lens kits.
What does the warranty cover?
Baja Designs' limited lifetime warranty for recreational use covers defects in design and manufacturing; details are in the warranty tile.
Installation
Stuck on a step?
- 1 Squadron-R Racer Edition LED pod (Racer spot, clear lens)
- Stainless mounting hardware
Specifications
| Brand | Baja Designs |
|---|---|
| Part Number | 730001 |
| Light type | Light Pod |
| Water resistance | IP69K (Waterproof up to 9' & Pressure Washable) |
| Mounting Hardware Included | Yes |
| Light Pattern | Racer Spot |
| Lens Color | Clear |
| Brightness | 2,800 lumens |
| Power draw | 45.54 W |
| Current draw | 3.3 A |
| Beam distance | 374 ft (Racer Spot), measured to 10 lux (Baja Designs ELS rating, clear lens) |
| Light source | High Intensity Cree LED |
| LEDs per light | 4 |
| Lens Material | Hardcoated Polycarbonate |
| Housing Material | Cast aluminum, hard-anodized then powder-coated |
| Housing Color | Black |
| Bezel Material | Powder Coated Cast Aluminum |
| Rated LED life | 49,930 hours |
| Wiring Harness Included | No (Baja Designs harness 640117 sold separately) |
| Impact resistance | IK10 Compliant (Mechanical Impact Testing) |
| Length | 3.07" |
| Height | 3.07" |
| Depth | 2.77" |
| Weight | 0.75 lb |
| Road use | Baja Designs notes that some of its lights may only be used off-road. Check the lighting laws where you drive before using this light on public roads. |
| Mount location | Universal |
| Color temperature | 5000K |
| UPC | 819314022031 |
