BEDSLIDE 1500 MAX Extension Truck Bed Cargo Slide, 63" x 47", 1,500 lb, Black Edition (15-6347-MXB)

The BEDSLIDE 1500 MAX Extension in 63" x 47" is the version of this tray for people who are tired of climbing into the bed. Where the Classic, Contractor and Heavy Duty trays run out to 75% of their length, the MAX runs out to 100%: the deck clears the tailgate completely, so the far end of the load finishes up in front of you rather than an arm's reach inside the truck. It carries 1,500 lb evenly distributed on a WEATHERDECK composite deck with BEDTRAX rails, four D-ring tie-downs and the full perimeter guardrail kit included, and it rides on heavy duty cam-follower bearings with a hard latch so it will hold that load out at full stretch. The trade is height and weight: the MAX sits on a 7" profile rather than the 4.5" of the other series, and at 339 lb it is a two person install. It is offered in the Black Edition finish only, and it is covered by a 5 year warranty rather than the lifetime-with-registration term the other BEDSLIDE series carry.

What's Included:

• BEDSLIDE 1500 MAX Extension cargo slide, 63" x 47"
• Full perimeter guardrail kit
• BEDTRAX T-slot rails
• (4) D-ring tie-downs
• Mounting hardware for a standard drill-in installation
• BEDSLIDE assembly and installation manual

Features

1,500 lb of Evenly Distributed Capacity
The 1500 MAX Extension is rated to carry 1,500 lb spread across the deck. Evenly distributed is the operative phrase and it is worth reading literally: the rating assumes the load is spread over the tray rather than stacked on one corner or concentrated over the extended end. Loaded that way, this tray will take tools, materials and site gear on a working truck.

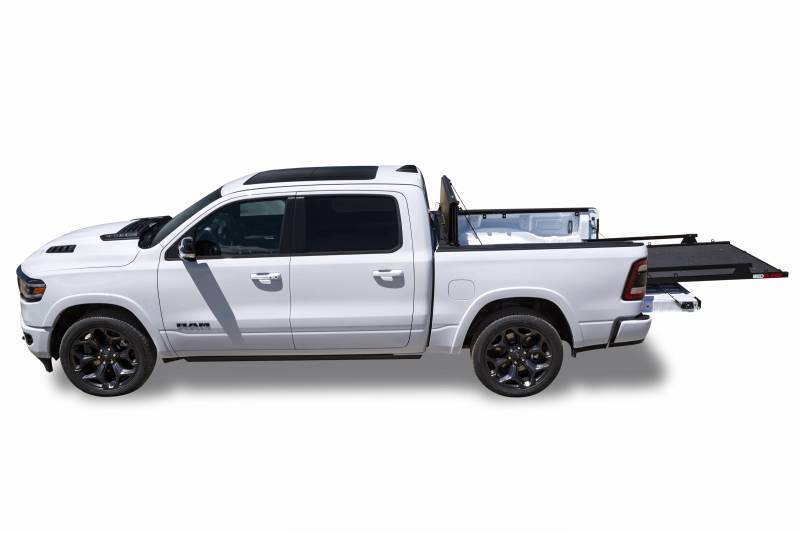

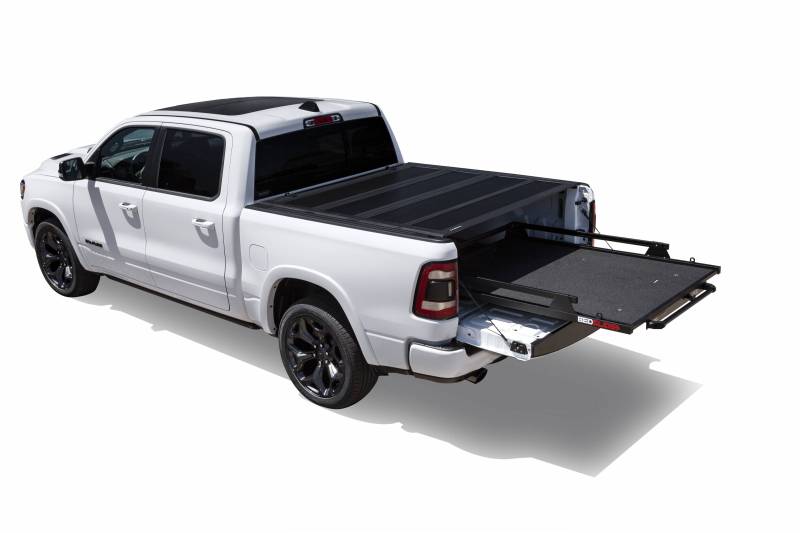

100% Full Extension, Not Three Quarters
This is what separates a MAX from the rest of the BEDSLIDE range. The deck runs all the way out, clear of the tailgate, so the far end of the tray finishes up where you are standing instead of still inside the bed. Everything on the deck becomes reachable without climbing in, which is the whole point if you load heavy or work out of the truck all day. The other BEDSLIDE series extend 75%.

WEATHERDECK Composite Deck
The deck is BEDSLIDE's own WEATHERDECK composite rather than plywood or bare steel. It lives outdoors for its entire life, so it is built not to swell, rot or de-laminate when it gets rained on, loaded wet or hosed out. It also takes a textured surface that stops light loads sliding around on the tray.

BEDTRAX Rails and Four D-Ring Tie-Downs
BEDTRAX T-slot rails run the length of the deck with four D-ring tie-downs supplied, so you can strap a load down properly instead of hoping it stays put. The rails also take the BEDSLIDE accessory range, including the BedBin storage boxes, if you want to divide the tray up later.

Full Perimeter Guardrail Included
The guardrail kit is in the box, not an upsell. It runs the full perimeter of the deck, so loose cargo stays on the tray while it is moving and while it is running in and out.

Heavy Duty Cam-Follower Bearings and a Hard Latch

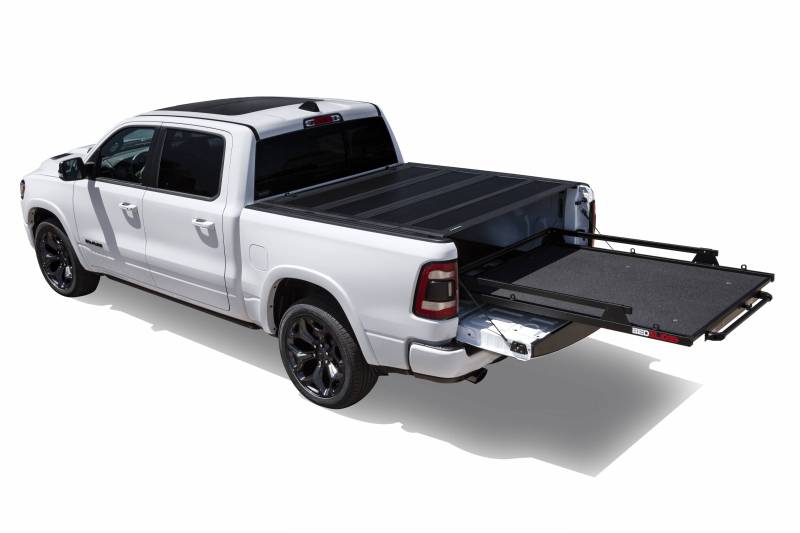

The MAX runs heavy duty cam-follower bearings with a hard latch system, which is what lets it hold a rated load at full extension rather than only when the deck is home. It locks in multiple positions, so you can run it part way out and leave it there.

Made in the USA and Backed for the Long Term
BEDSLIDE builds these in the USA. The MAX Extension range carries a 5 year warranty. Note that the lifetime registration upgrade offered on the other BEDSLIDE series does not apply to MAX models, so the 5 year term is the term.

Fitment & Compatibility

Specifications

• Model: BEDSLIDE 1500 MAX Extension
• Part Numbers: 15-6347-MXB
• Weight Capacity: 1,500 lb evenly distributed
• Extension: 100% full extension
• Deck Size (L x W): 63" x 47" outer dimensions, handle included, built to a .25" tolerance
• Profile Height: 7" from the truck bed floor to the top of the deck
• Bearings: Heavy duty cam-follower bearings with a hard latch system
• Deck Material: WEATHERDECK composite decking
• Rails: BEDTRAX T-slot rails with (4) D-ring tie-downs
• Guardrail: Full perimeter guardrail kit included
• Latching: Multiple locking positions with a hard latch system
• Finish Options: Black Edition
• Shipping Weight: 339 lb
• UPC: 15-6347-MXB 850001518574
• Warranty: 5 year warranty
• Country of Origin: Made in the USA
• Installation: About 1 hour, dealer installation recommended

Installation

Type: Bolt-in to the truck bed floor  ·  Time: About 1 hour  ·  Tools: Socket set, drill and bits for a standard drill-in installation, tape measure, and a second person to lift the tray into the bed  ·  Difficulty: Intermediate. BEDSLIDE recommends having a dealer carry out the installation

Measure the inside of the bed floor and dry fit the rails before committing to any holes. BEDSLIDE specifically advises against installing over a bed liner, because liners vary in thickness and profile and the tray may need adjusting to sit flat and run true. On an aluminum bed, use BEDSLIDE's aluminum bed kit, part BSA-HALUMKT: fastening steel directly to an aluminum bed invites galvanic corrosion, and BEDSLIDE's warranty excludes corrosion caused by improper installation. The tray weighs 339 lb, so lift it in with two people and check the deck runs cleanly through its full travel and latches in every position before you load it.

Watch the installation walkthrough:

Resources

Everything you need for your BEDSLIDE 1500 MAX Extension Truck Bed Cargo Slide, 63" x 47", 1,500 lb, Black Edition, in one place.

• BEDSLIDE Assembly and Installation Manual (PDF), the manufacturer's step-by-step guide covering mounting, included hardware and adjustment.

Warranty, Shipping & Returns

Warranty. 5 year warranty from BEDSLIDE, original owner only and not transferable on resale. The MAX Extension range does NOT carry the lifetime-with-registration upgrade that the other BEDSLIDE series offer, so 5 years is the full term. BEDSLIDE excludes misuse, exceeding the rated capacity, corrosion of the steel frame caused by exposure, de-lamination of the deck from water fuel or chemical spills, modifications that alter the design, improper installation, accidents and lack of maintenance.

Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.

Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.

About BEDSLIDE

BEDSLIDE invented this product category. The company has been building slide-out truck bed cargo trays in the USA since the 1990s, and the design that everyone else copied, a rolling deck on cam-follower bearings that pulls the load out to the tailgate, is theirs. BEDSLIDE is part of the LEER and JB Poindexter family of truck equipment brands, and it is a member of the NTEA, the association for the work truck industry, which is the room its commercial and fleet products are built for.

The range is deliberately narrow and deep. There are four slide series, the 1000 Classic, the 1500 Contractor, the 2000 Heavy Duty and the MAX Extension models, and each one is offered across sixteen deck sizes so the tray matches the bed rather than the bed being asked to accept a compromise. Every slide gets the same core build: a WEATHERDECK composite deck that is made to live outdoors, BEDTRAX T-slot rails with D-ring tie-downs, a full perimeter guardrail kit in the box, and a frame built to be loaded rather than to look loaded. Everything is made in the USA.

Prestige Truck is an authorized BEDSLIDE dealer. Every slide we ship is new, factory packed and covered by the full BEDSLIDE factory warranty, and registering it within 30 days of purchase is what upgrades the standard 5 year cover to the lifetime term on the series that offer it.
