This is the no-drill mounting kit for a 2016 to 2019 Toyota Tacoma with the 6' bed. Rather than putting fasteners through the bed floor, BEDSLIDE's patented brackets clamp to the factory bed bolts, so the slide anchors to structure Toyota already built to carry load and the composite bed is left alone. That last part matters more on a Tacoma than on most trucks, because the bed is not steel and a drilled hole in it is not something you undo. The kit is a set of cab end brackets, a set of center mount brackets, and (8) 5/16-18 serrated flange nuts with Locktite 242. Confirm before ordering that your bed bolts will loosen. Removing them needs a T-55 Torx bit and a ratchet, and neither those nor replacement bed bolts are included. The BEDSLIDE is sold separately.
What's Included:
(8) 5/16-18 serrated flange nuts with Locktite 242
(1) set of cab end brackets
(1) set of center mount brackets
Installation instructions
Features
No Drilling Into Your Truck Bed This is the whole point. BEDSLIDE's patented mounting brackets use your truck's existing factory bed bolts to secure the slide, so the bed floor stays exactly as the factory made it. Nothing to seal, nothing to touch up, and nothing that shows when the slide comes out.
Built for One Truck These brackets are cut for the 2016 to 2019 Toyota Tacoma and nothing else. That is why BEDSLIDE sells a kit per application rather than a universal bracket: the mounting points move between generations and bed lengths, and a bracket that nearly lines up is worse than no bracket at all.
Installs With Hand Tools BEDSLIDE lists the job as easy installation with hand tools. There is no welding, no cutting and no drilling. The brackets go to the factory mounting points and the slide goes on top of them.
Safe and Secure Mounting Points Using the truck's own bed bolts means the slide is anchored to structure the manufacturer already engineered to take load, rather than to sheet metal you have made a hole in.
Check Your Bed Bolts Can Be Loosened First BEDSLIDE asks you to confirm this before ordering, and it is worth taking seriously on an older or salted truck. The install starts by removing the factory bed bolts, which needs a T-55 Torx bit and a ratchet that are not included, and a seized bolt turns a straightforward afternoon into a much longer one. New bed bolts are not included in the kit.
Matched to Specific BEDSLIDE Sizes This kit is listed as working with BEDSLIDE parts 10-7142-CLS and 10-7142-CLB. The no-drill kits fit the 1000 lb models, which means the S model and the CLASSIC in Silver and Black Edition, and they are not compatible with 2017 and previous CL parts.
Fitment & Compatibility
Make
Models
Years
Bed size
Toyota
Tacoma
2016 to 2019
● 6'
Fit guidance: This kit is cut for one application: Toyota Tacoma, 2016 to 2019, 6'. BEDSLIDE also asks you to confirm your bed bolts can be loosened before ordering, and a T-55 Torx bit and ratchet are needed to remove them. The no-drill kits fit the 1000 lb BEDSLIDE models only, which is the S model and the CLASSIC in Silver and Black Edition, and they are not compatible with 2017 and previous CL parts. If you are fitting these to a slide you already own, all serial numbers after 102951 will accept the no-drill brackets. The BEDSLIDE itself is not included.
Specifications
Part Number: BSA-TOY71
Type: No-drill factory mount install kit
Vehicle: Toyota Tacoma
Years: 2016 to 2019
Bed Lengths: 6'
Mounts To: Factory bed bolts
Contents: (8) 5/16-18 serrated flange nuts with Locktite 242, (1) set of cab end brackets and (1) set of center mount brackets
Compatible BEDSLIDE Models: 1000 lb models only: the S model and the CLASSIC in Silver and Black Edition
Listed BEDSLIDE Part Numbers: 10-7142-CLS, 10-7142-CLB
Not Compatible With: 2017 and previous CL parts
BEDSLIDE Serial Number Requirement: After 102951
BEDSLIDE Included: No
Tools Required But Not Supplied: T-55 Torx bit and ratchet, plus new bed bolts if yours are not reusable
Brand: BEDSLIDE
Country of Origin: Made in the USA
Warranty: 5 years, extended to lifetime with registration within 30 days
Shipping Weight: 8 lb
UPC: 850001518215
Installation
Type: No-drill, brackets mount to the factory bed bolt locations · Time: About 1 hour · Tools: A T-55 Torx bit and a ratchet for the bed bolts, plus a socket set. Neither the Torx bit nor new bed bolts are included. · Difficulty: Easy to intermediate, DIY
Loosen the factory bed bolts, fit the cab end and center mount brackets to those locations, then retighten with the supplied 5/16-18 serrated flange nuts and the Locktite 242 that comes in the kit. Confirm before you start that your bed bolts will actually come loose, which is BEDSLIDE's own advice and matters most on an older or road-salted truck. New bed bolts are not included, so have replacements on hand if yours look tired. Set the slide down onto the brackets last, and re-check every fastener after the first few loaded trips.
Watch the installation walkthrough:
Warranty, Shipping & Returns
Warranty. BEDSLIDE covers all of its products with a 5-year warranty, extended to a LIFETIME warranty when the product is registered within 30 days of purchase. Coverage is for the original owner only and does not transfer if the product is resold. The warranty does not cover misuse, exceeding the rated capacity, corrosion of the steel frame caused by exposure, deck de-lamination from water, fuel or chemical spills, modifications that alter the design, improper installation, accidents, or lack of maintenance.
Free shipping. This item ships free to the lower 48 states and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect your order on arrival. If anything is damaged or missing, contact us right away and we will make it right.
About BEDSLIDE
BEDSLIDE invented the slide-out truck bed cargo tray. The idea is simple and it has not needed much improving: put the whole bed floor on heavy-duty bearings so it rolls out to you instead of making you climb in after your gear. Contractors, utility fleets, overlanders and anyone who has ever crawled the length of a bed looking for one tool have been buying them for the same reason for decades. Today BEDSLIDE is part of the LEER family under JB Poindexter and Co, which is the largest truck cap and accessory group in North America, and it remains an active NTEA member supplying commercial and work-truck upfitters. Every BEDSLIDE product is made in the USA.
The accessory line exists because the deck is only half the system. BEDTRAX T-slot rails run the length of every current BEDSLIDE, and the bins, trays, guardrails, tie-downs and mounting kits all drop into that same track, so you can add capability years after the slide went in without drilling anything new. Parts are built from aluminum and composite with an all-weather soft surface inside the bins, and they are designed to live outdoors in the same weather the slide does.
Prestige Truck is an authorized BEDSLIDE dealer. Every part we ship is new, in the factory box, and covered by the full BEDSLIDE factory warranty.
Install The BEDSLIDE Easily
BEDSLIDE's general installation video for the slide itself.
Useful for seeing where the mounting hardware ends up in the bed and how the deck sits once it is bolted down.
Which BEDSLIDE Is Right For You?
BEDSLIDE's buying guide across the 1000 Classic, 1500 Contractor, 2000 Heavy Duty and MAX Extension lines.
Useful if you are still choosing the slide this part will attach to.
The Lifetime Warranty
BEDSLIDE explains its warranty: five years on every slide, extended to lifetime coverage when you register within 30 days of purchase.
It is the original owner's warranty, so register it when it arrives and the slide is covered for as long as you keep the truck.
Frequently Asked Questions
Straight answers on specs, fit and support
Will this fit my truck?
It fits the 2016 to 2019 Toyota Tacoma with the 6' bed. The other bed length takes the matching kit in this range, and BEDSLIDE cuts these brackets per application, so both the year range and the box length have to match.
Which BEDSLIDE models can I use these brackets with?
The 1000 lb models only. BEDSLIDE is explicit about this: the no-drill kits work with the S model and the CLASSIC in Silver and Black Edition, and they are not compatible with 2017 and previous CL parts. If you are ordering brackets for a slide you already own, check the serial number, because everything after serial 102951 will accept the no-drill brackets. A 1500 CONTRACTOR, a 2000 HEAVY DUTY or a MAX Extension needs a conventional mount.
Do I really not have to drill anything?
Correct, and on a Tacoma that is worth more than usual. The brackets use the factory bed bolts, so nothing new goes through the composite bed. A drilled hole in a Tacoma bed is permanent in a way it is not in a steel one.
What do I need that is not in the box?
A T-55 Torx bit and a ratchet to remove the factory bed bolts, and possibly new bed bolts, which BEDSLIDE does not include. Confirm your bed bolts will actually come loose before you order.
Does this come with the BEDSLIDE?

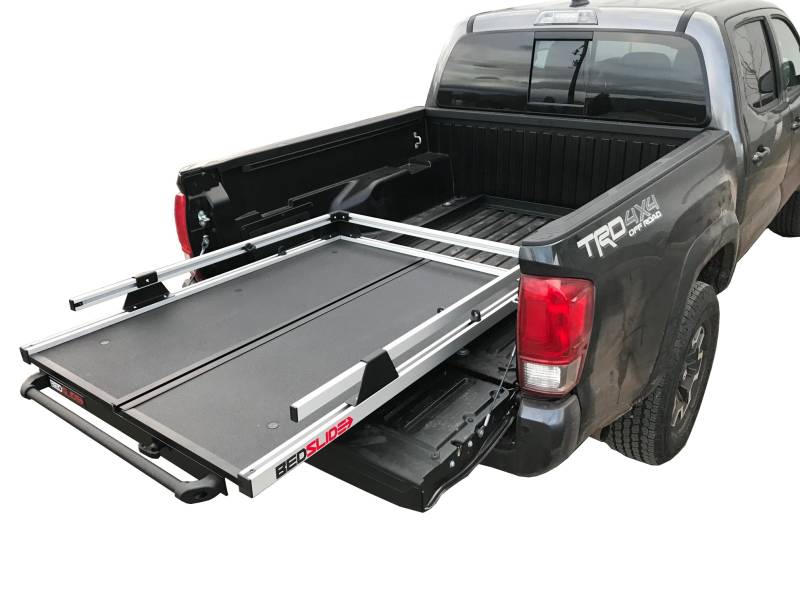

No. This listing is the mounting bracket kit only, and BEDSLIDE states plainly that the BEDSLIDE is not included. You buy the slide once and the bracket kit is what attaches it to your particular truck without drilling. Some of the photographs show a slide fitted in a bed, because that is what the brackets are holding up, but the slide itself is a separate purchase.
What does the BEDSLIDE warranty cover on an accessory like this?
Every BEDSLIDE product carries a 5-year warranty, and BEDSLIDE extends it to a lifetime warranty if you register the product within 30 days of purchase. Coverage is for the original owner and does not transfer if you sell the truck or the part. What is not covered is worth knowing up front: misuse, loading past the rated capacity, corrosion of the steel frame from exposure, deck de-lamination caused by water, fuel or chemical spills, modifications that change the design, improper installation, accidents, and neglect. Register it when it arrives, not later.
