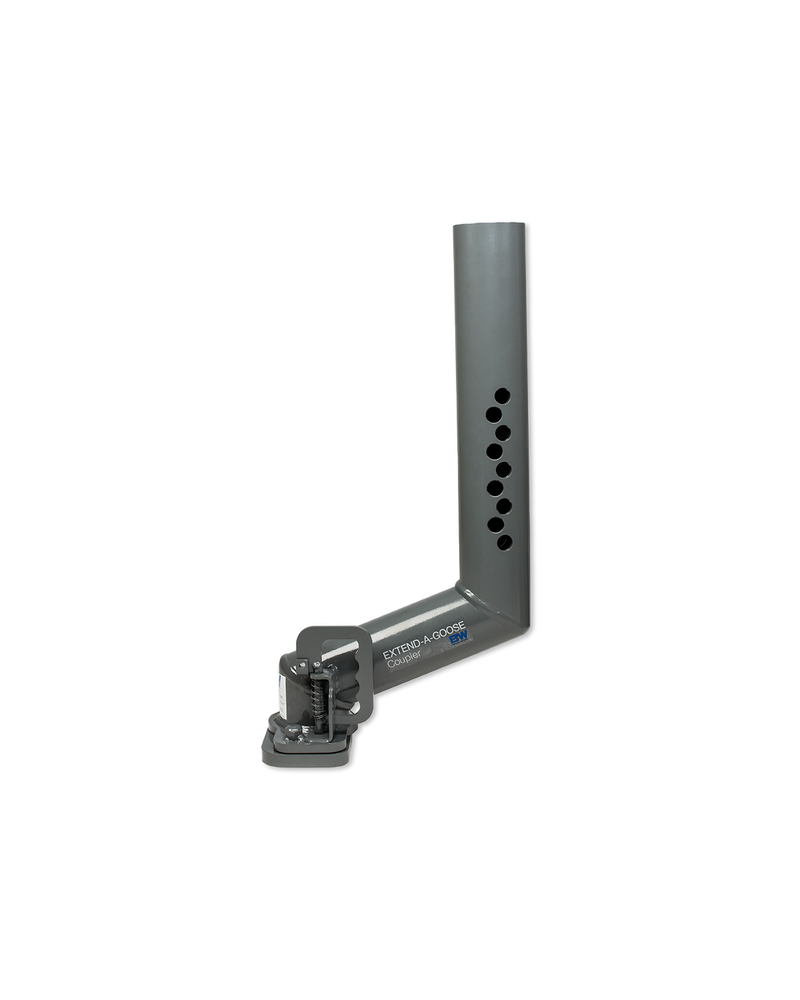

Short-bed trucks and gooseneck trailers do not naturally get along. Turn sharply enough and the trailer's nose arrives at the back glass, and the repair bill for a cab corner and a rear window makes the problem worth solving before it happens rather than after. The Extend-A-Goose is B&W's answer from the trailer side: an inner tube that fits into your trailer's gooseneck and offsets the coupler by 10", moving the pivot point back and buying clearance at the tailgate and the cab. It is heavy-wall tube with internal gussets rather than a light spacer, the coupler on the end is funnel shaped and self-aligning so hookups are easier rather than harder, and the spring-loaded handle is sized to grip properly with a glove on. It takes a padlock. Rated 24,000 lb gross trailer weight and 6,000 lb vertical tow weight, and it fits all standard 4" inner diameter round trailer tubes. B&W finishes it to look like it belongs on the trailer rather than like an extension bolted on afterwards.
What's Included:
- B&W Extend-A-Goose gooseneck coupler extension
- Spring-loaded latch handle
- Installation instructions
Features
10" of Offset
It moves the trailer's coupler, and with it the pivot point, 10" back. On a short bed that is usually the difference between a turn you can complete and one that puts the gooseneck into the cab. Measure the swing you actually need before ordering, because 10" is generous but it is a fixed figure.
Heavy Wall Tube With Internal Gussets
Everything the trailer does to the truck now passes through a part that holds the coupler out behind where it used to be, so the tube is heavy wall and gusseted internally. This is a structural component of the trailer, and it is built like one.
Easier Hookups, Not Harder
The coupler on the end is funnel shaped and self-aligning, so the extra length does not make lining up worse. The spring-loaded handle is easy to grip, which matters at the end of a long day and in gloves.
More Room at the Tailgate
Beyond turning clearance, the extra offset makes hooking up easier because there is more room between the trailer and the tailgate to stand and work, and it reduces how often you drop the tailgate just to get to the coupler.
Takes a Padlock
The coupler accommodates a padlock, so the trailer is not simply available to anyone who backs a truck under it while it is parked.
24,000 lb GTW and 6,000 lb VTW
The Extend-A-Goose's own ratings. Your trailer, your truck and the ball in the bed all carry their own numbers, and the lowest one governs. Note that these figures are the extension's, not your trailer's, so if your trailer is rated higher, fitting this caps you at these.
Fitment & Compatibility
| What It Fits |
Detail |
| Mounts on |
● The trailer's gooseneck tube |
| Trailer tubing |
● Standard 4" inner diameter round tube |
| Offset gained |
● 10" |
| Gross trailer weight |
● Up to 24,000 lb |
| Vertical tow weight |
● Up to 6,000 lb |
| Truck year, make and model |
✗ Not a factor; this is a trailer part |
Fit guidance: This is a trailer part, so fitment is decided by your trailer's gooseneck tube and not by your truck. It fits all standard 4" inner diameter round tubes, which is the common size, but measure yours rather than assuming: square tubing and non-standard diameters exist. The reason to fit it is a short-bed truck, so it is worth confirming that turning clearance is your actual problem before you spend the money. With the extension fitted the ratings are 24,000 lb gross and 6,000 lb vertical, which may be below what your trailer alone is rated for.
Specifications
-
B&W Part Number: TEXA4200
-
What It Is: Gooseneck coupler extension, mounts on the trailer
-
Offset: 10"
-
Fits Trailer Tubing: Standard 4" inner diameter round tubes
-
Gross Trailer Weight: 24,000 lb
-
Vertical Tow Weight: 6,000 lb
-
Coupler: Funnel shaped and self-aligning, with a spring-loaded handle
-
Construction: Heavy wall tube with internal gussets
-
Security: Accommodates a padlock
-
Appearance: Sleek OEM-style finish
-
Shipping Weight: About 60 lb
-
UPC: 843233000054
-
Warranty: B&W Lifetime Exclusive Limited Warranty
-
Made In: Made in the USA, built by B&W in Humboldt, Kansas
Installation
Type: Inner tube fits into the trailer's existing 4" gooseneck tube · Time: Allow a couple of hours · Tools: Per B&W's instruction sheet; support for the gooseneck while it is apart · Difficulty: Intermediate, and it is a structural part of the trailer
Support the trailer's nose properly before you remove the existing coupler. Follow B&W's instruction sheet for this part number rather than improvising, since this is what the trailer hangs from. Once it is on, couple up empty and swing the truck through the sharpest turn you expect to make, with someone watching the gap at the cab, before you load anything.
Resources
Everything you need for your B&W Extend-A-Goose Gooseneck Coupler Extension, 10" Offset, for 4" Round Tubes, in one place.
Warranty, Shipping & Returns
Warranty. B&W covers this product with its Lifetime Exclusive Limited Warranty. B&W warrants its products to the original consumer purchaser, for as long as that purchaser owns the product, against defects in material and workmanship. The remedy is replacement, or repair or a full refund at B&W's option. Installation and removal labor, shipping costs, and damage caused by misuse, overloading, alteration or improper installation are not covered. Warranty service goes directly through B&W at 800-248-6564, which issues a return authorization before anything is sent back. B&W states that it does not authorize dealers or distributors to create any other warranty, so what is described here is B&W's own coverage and nothing has been added to it.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About B&W Trailer Hitches
B&W Trailer Hitches started in 1987 in a Humboldt, Kansas garage, where Roger Baker and Joe Works built the first Turnoverball gooseneck hitch. The idea was simple and nobody else had done it: a gooseneck ball that turns over and stores flush with the bed floor, so the truck bed goes back to being a truck bed the moment you unhook. That one product built the company, and B&W still makes its hitches in Humboldt, in a plant that has grown to about 600,000ft². The company has been 100% employee-owned since 2007, with roughly 500 employee-owners who have a stake in what comes off the line.
The testing story is worth knowing, because it is not how the rest of the industry does it. SAE J-2638, the standard for gooseneck and fifth-wheel hitches, is a recommended practice, and it is common to satisfy it with a fresh sample for each test. B&W runs a single hitch through all three 300,000-cycle dynamic tests and the six static tests, one after another, on the same unit. The Tow & Stow line is tested to SAE J-684. Every B&W-brand product is covered by the company's Lifetime Exclusive Limited Warranty to the original consumer, against defects in material and workmanship, for as long as that person owns it.
Prestige Truck is an authorized B&W dealer. Every B&W product we ship is new, in the factory carton, and backed by B&W's own warranty and its US-based support team in Humboldt, Kansas.
