Fill-Rite 1210KTF7026 Fuel Filter Kit with F2510HM0 10 Micron Water Detecting Filter and 3/4" Filter Head
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Complete Filter Kit: Each kit pairs a Fill-Rite spin-on filter with the 1200KTG9075 filter head and the threaded fittings to plumb it in, so the filter, head and fittings arrive together.
- 3/4" NPT Filter Head: The 1200KTG9075 head in every kit has 3/4" NPT fuel ports on the line side.
- 10 Micron At 25 GPM: Fill-Rite rates the filter in each kit to 10 micron for transfer systems moving up to 25 GPM (94 LPM).

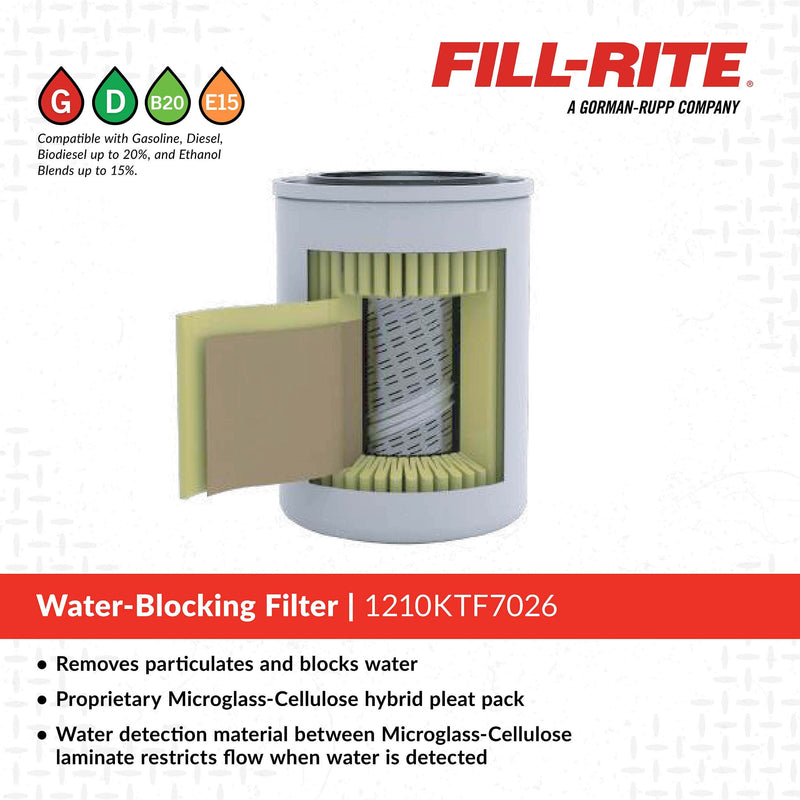

- Particulate Or Water Detecting: The 1200KTF7018 and 1200KTF7025 carry particulate filters. The 1210KTF7019 and 1210KTF7026 carry Hydrosorb water-detecting filters, which Fill-Rite says restrict flow once they take on excess water, a sign the fuel needs attention.
- 1"-12 UNF Spin-On Thread: The filter spins onto the head on a 1"-12 UNF thread, so a fresh element swaps on while the head and fittings stay plumbed in place.
- Fluids And Change Interval: Fill-Rite lists diesel, gasoline, B20 and E15 for the 1200KTF7018, 1210KTF7019 and 1210KTF7026 and advises a new filter every six months. It prints no fluid list for the 1200KTF7025.
Description & Fitment

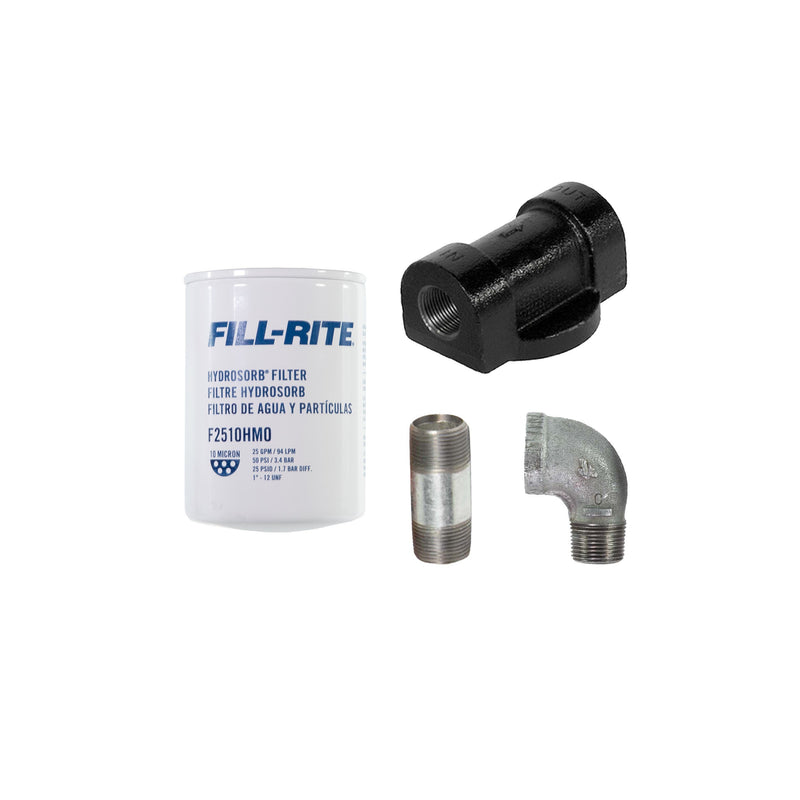

In the 1210KTF7026 box: Fill-Rite's F2510HM0 water-detecting filter (10 micron, Hydrosorb), the 1200KTG9075 head (3/4" NPT ports, 1"-12 UNF), a 90° street elbow and a 2-1/2" pipe nipple. The filter restricts flow once it absorbs excess water. Rated to 25 GPM (94 LPM), with diesel, gasoline, B20 and E15 on Fill-Rite's fluid list.
Fitment & Compatibility
Check your setup: a 3/4" NPT fuel line up to 25 GPM. Particulate-only version: 1200KTF7025. Replacement filter: F2510HM0.
Not for: fluids outside Fill-Rite's list (diesel, gasoline, B20, E15) and flow above 25 GPM.
About Fill-Rite
Fill-Rite is a Gorman-Rupp company that designs and builds transfer equipment for fuel, oil and chemicals: electric and hand-operated transfer pumps, plus the meters, nozzles, hose and filters that go with them. Its sites are in Fort Wayne, Indiana and Lenexa, Kansas.
Its filter line protects the discharge side of a fuel system: spin-on canisters for 25 and 40 GPM systems in particulate, microglass and Hydrosorb water-detecting media, clear-bowl units for 18 GPM pumps, plus the filter heads and fittings that plumb them in.
Buying Fill-Rite from Prestige Truck. Fill-Rite asks for proof of purchase with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Which filter is in the 1210KTF7026?
The F2510HM0, a 10 micron Hydrosorb water-detecting spin-on filter with a 1"-12 UNF thread.
Does the 1210KTF7026 include two pipe nipples?
No. It ships with one 2-1/2" pipe nipple and a 90° street elbow. The 1210KTF7019 is the kit with two nipples.
Which filter head comes in these kits?
The 1200KTG9075, with 3/4" NPT fuel ports and a 1"-12 UNF filter thread.
How often should the filter be changed?
Fill-Rite recommends a new filter every six months. A water-detecting filter that starts to slow the flow is due for a change sooner.
How do particulate and water-detecting kits differ?
Both stop particles down to 10 micron. The Hydrosorb filters in the 1210KTF7019 and 1210KTF7026 also react to excess water by restricting flow.
Which replacement filters do these kits use?
The 1200KTF7018 uses the F1810PM0 and the 1210KTF7019 the F1810HM0. The 1200KTF7025 uses the F2510PM0 and the 1210KTF7026 the F2510HM0.
Installation
Stuck on a step?
Specifications
| Brand | Fill-Rite |
|---|---|
| Part Number | 1210KTF7026 |
| Filter head | 1200KTG9075, 3/4" NPT ports, 1"-12 UNF |
| Filter thread | 1"-12 UNF |
| Filtration | 10 micron |
| Max flow | 25 GPM (94 LPM) |
| Filter | F2510HM0, 10 micron Hydrosorb (water detecting) |
| Fittings | 90° street elbow, 2-1/2" pipe nipple |
| Fluids | Diesel, gasoline, B20, E15 |
| Weight | 4.8 lb |
| Shipping weight | 4.25 lb |
| UPC | 089404250273 |
