Fill-Rite ARCH07520A 3/4" x 20' Sub-Zero Fuel Transfer Hose with Static Wire
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Rated Down To -70°F: Fill-Rite rates this hose from -70°F all the way to 212°F (-56°C to 100°C), so it stays usable when standard hoses turn stiff.
- Nitrile Tube, Neoprene Cover: Fuel runs through a nitrile tube, and a tough neoprene cover protects it from scrapes and weather.
- Internal Spring Guard: An internal spring guard limits kinking where the hose bends, which keeps the flow steady and the hose in service longer.
- Static Wire Built In: A stainless steel ground wire runs end to end inside the hose to carry away static.
- 3/4" By 20': A 20' length with 3/4" male NPT on both ends, rated for 50 PSI (3.4 bar) working pressure.
- Fuel And Light Oil Ready: Fill-Rite lists it for diesel, gasoline, kerosene, B20, E15 and light oils.
Description & Fitment

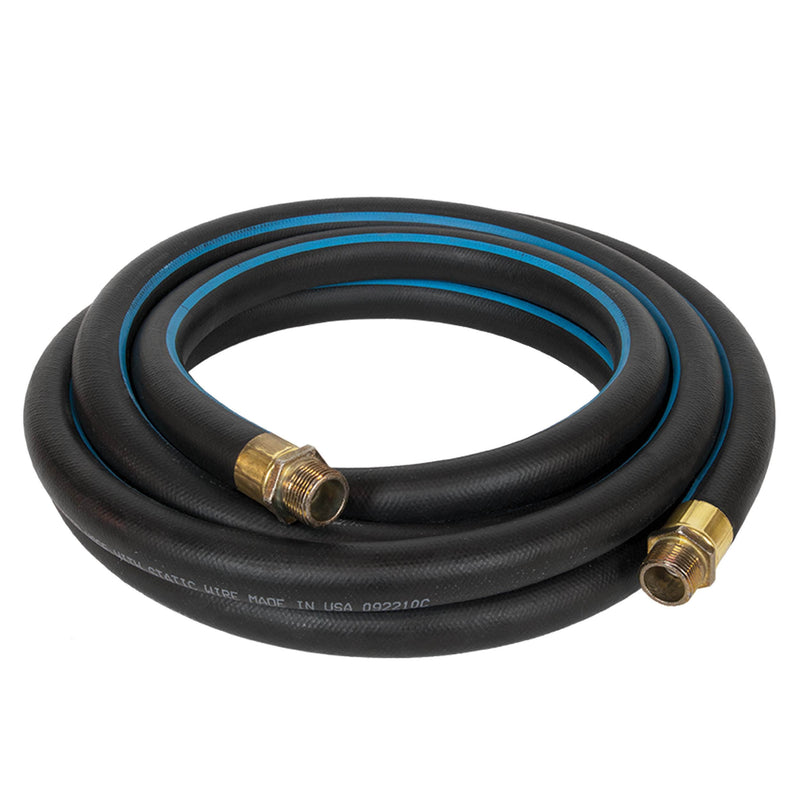

The Fill-Rite ARCH07520A is a 3/4" x 20' fuel transfer hose made for sub-zero fueling. It is rated from -70°F to 212°F (-56°C to 100°C) and up to 50 PSI, for fuel and light oil. A nitrile tube sits under a neoprene cover, and an internal spring guard helps prevent kinks. A built-in static wire and 3/4" male NPT ends round it out.
Fitment & Compatibility
Check your setup: 3/4" NPT threads at the pump outlet and nozzle. For milder climates, the FRH07520 is the same size rated to -40°F; for 1" ports, see the FRH10020.
Not for: hydraulic or high-pressure lines (Fill-Rite rates it for 50 PSI), DEF or any fluid Fill-Rite does not list for it, and fittings in another thread size. Nozzle sold separately.
About Fill-Rite
Fill-Rite is a Gorman-Rupp company that designs and builds transfer equipment for fuel, oil and chemicals: electric and hand-operated transfer pumps, plus the meters, nozzles, hose and filters that go with them. Its sites are in Fort Wayne, Indiana and Lenexa, Kansas.
Its hose line covers the discharge side of a fuel system in 3/4" and 1" sizes, from short whip hoses to 25' UL Listed lengths and a sub-zero version, plus the breakaways that guard the hose if a vehicle pulls away while still connected.
Buying Fill-Rite from Prestige Truck. Fill-Rite asks for proof of purchase with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
How is the ARCH07520A different from the FRH07520?
Both are 3/4" x 20'. The ARCH07520A is rated down to -70°F; the FRH07520 to -40°F.
Does the ARCH07520A include a nozzle?
No. Fill-Rite lists the hose with its static wire only.
How cold can this hose work?
Fill-Rite rates it down to -70°F (-56°C), and up to 212°F (100°C).
Does it have a static wire?
Yes. Fill-Rite lists a static ground wire for this hose.
What pressure is it rated for?
50 PSI (3.4 bar) maximum working pressure.
Will it fit my pump?

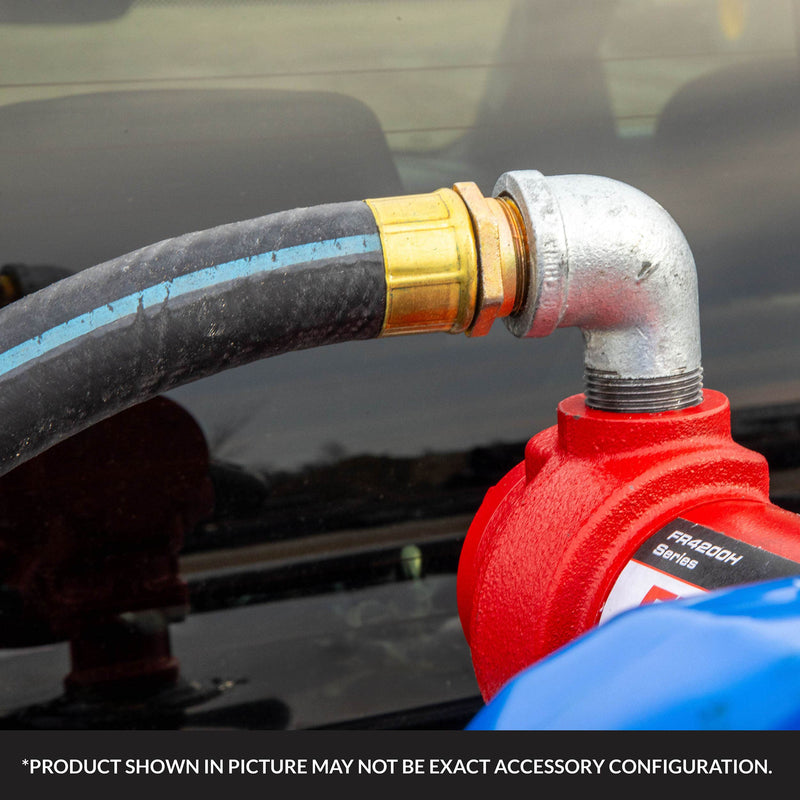

It has 3/4" male NPT ends, so it suits a pump outlet and nozzle with 3/4" threads, such as Fill-Rite's FR1200 pumps.
Installation
Stuck on a step?
Specifications
| Brand | Fill-Rite |
|---|---|
| Part Number | ARCH07520A |
| Hose type | Fuel transfer hose, sub-zero |
| Size | 3/4" x 20' |
| Operating temperature | -70°F to 212°F (-56°C to 100°C) |
| Max operating pressure | 50 PSI (3.4 bar) |
| End threads | 3/4" male NPT, both ends |
| Static ground wire | Yes |
| Compatible fluids | Diesel, gasoline, kerosene, B20, E15, light oils |
| Diameter | 3/4" |
| Length | 20' |
| Inlet | 3/4" NPT (male) |
| Outlet | 3/4" NPT (male) |
| Shipping weight | 8 lb |
| UPC | 089404249802 |
More media
2 videosWarranty, shipping & returns
-
Warranty
Fill-Rite lists its fuel transfer hoses under its Accessories and Parts terms with a 1-year limited warranty: all components are covered against defects in material and workmanship for 1 year.- Coverage runs from the date of sale, or the delivery date if that is later, and only the original purchaser is covered; it does not transfer to a later owner.
- It applies to products bought from Fill-Rite or a seller Fill-Rite authorizes in the United States or Canada, and Fill-Rite needs proof of purchase with a claim. Without proof of purchase or delivery, Fill-Rite starts the clock at the date code on the product.
- Small items such as fasteners, washers, labels, nameplates, rivets, emblems, packaging, thread tape, wire nuts and paperwork are not covered.
- It does not cover misuse, neglect, accident, negligence, improper installation or maintenance, or repairs done by anyone other than Fill-Rite or its authorized representative.
- Fill-Rite's remedy is a replacement, or a refund of the price paid when a replacement or repair is not practical. Its liability is capped at the purchase price and it excludes incidental and consequential damages where the law allows. Implied warranties are limited to the length of this warranty.
- Please do not send the product back on your own: if Fill-Rite asks for a return, it issues a return number and pays the freight.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Check the cover for cuts, the spring guard for dents and both 3/4" male NPT ends for thread damage before you connect the hose. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
