Fill-Rite F1810HM0 10 Micron Hydrosorb Spin-On Fuel Filter, 1"-12 UNF, 25 GPM
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Rated Up To 25 GPM: Fill-Rite rates this canister for fuel transfer systems running up to 25 GPM (94 LPM), with a 50 PSI maximum operating pressure.
- 1"-12 UNF Spin-On Thread: It spins onto a 1"-12 UNF Fill-Rite head: the 1200KTG9075 for 3/4" plumbing or the 1200KTG9100 for 1".
- 10 Micron Rating: The element strains out particles down to 10 micron, keeping dirt and rust away from your pump, meter and nozzle.

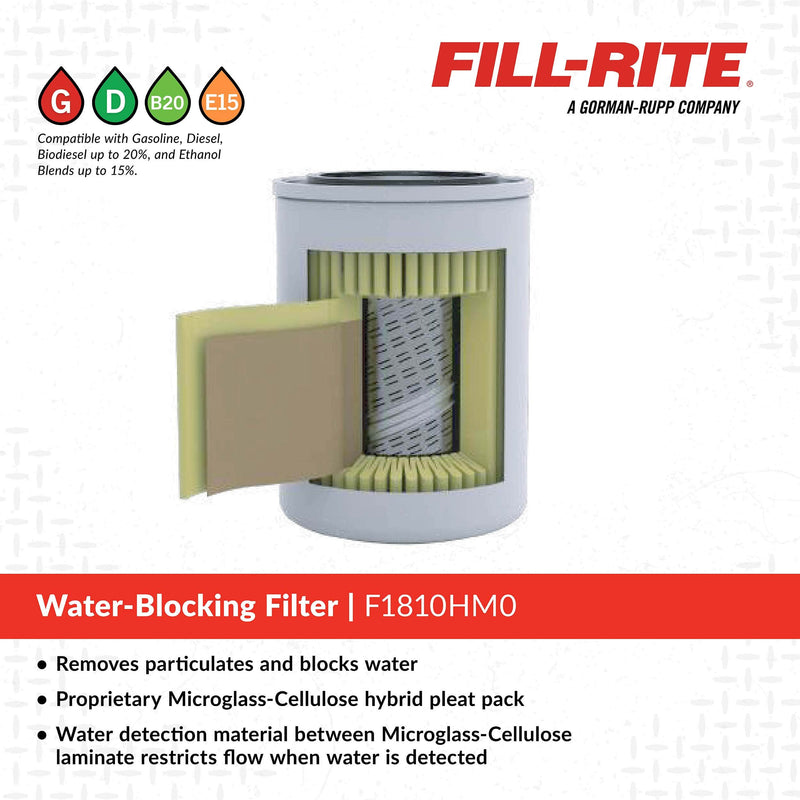

- Hydrosorb Water Detecting Media: Hydrosorb media absorbs water as it filters, and once it holds excess water it restricts flow so you know it is time to change it.

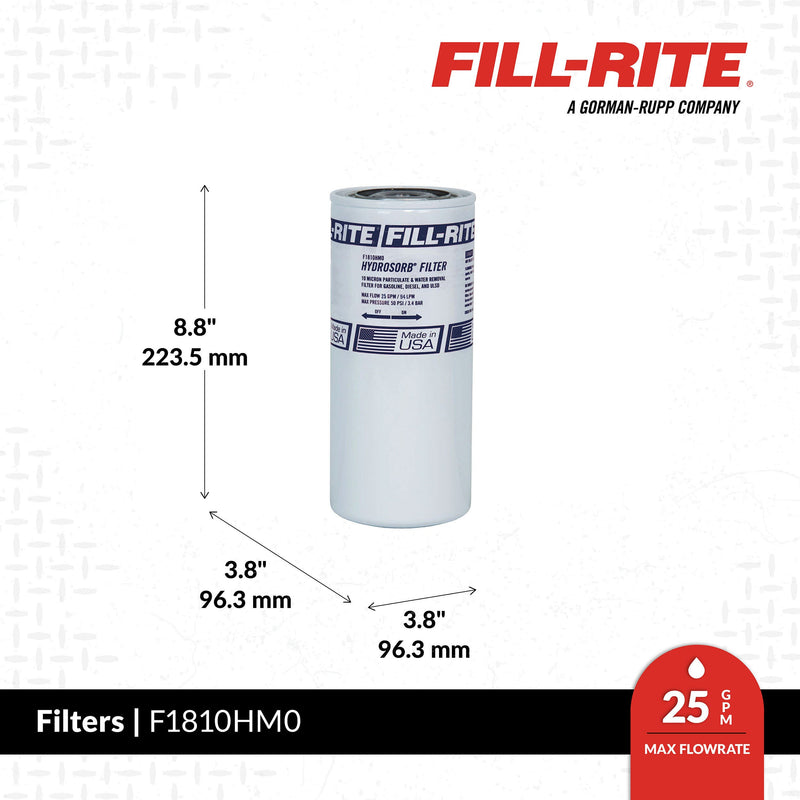

- Full-Size Canister: Fill-Rite lists it at 3.7" x 3.7" x 8.6" and 1.7 lb.
- Diesel, Gasoline, B20 and E15: Fill-Rite lists diesel, gasoline, B20 and E15 for this filter and recommends a new filter every six months.
Description & Fitment

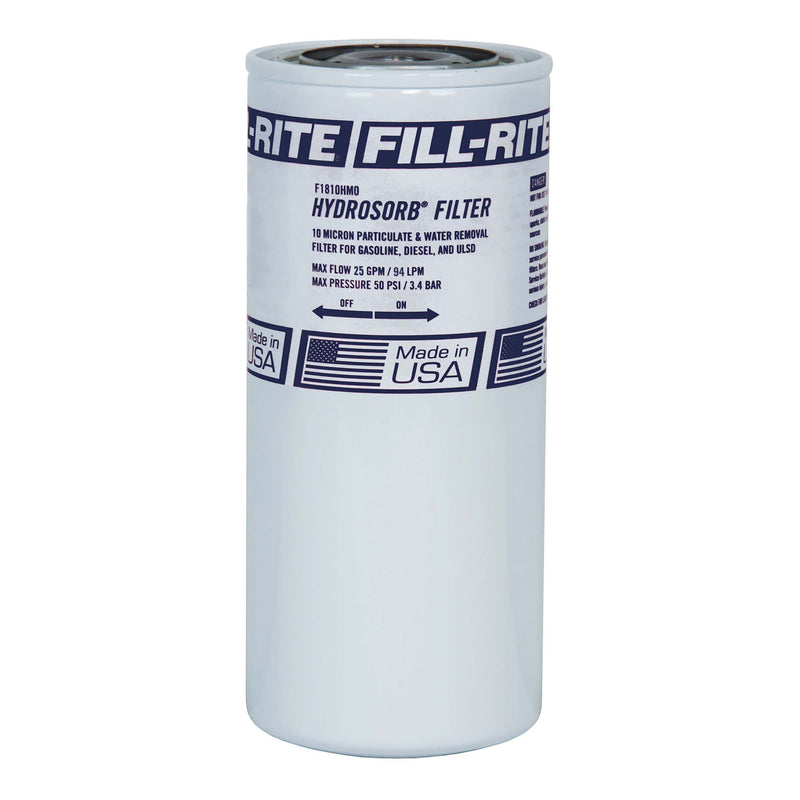

The F1810HM0 is a 10 micron Hydrosorb spin-on filter for fuel systems up to 25 GPM (94 LPM). It threads onto a 1"-12 UNF Fill-Rite head (1200KTG9075 or 1200KTG9100), catches particles and restricts flow once it absorbs excess water. Fill-Rite lists a 50 PSI maximum operating pressure and diesel, gasoline, B20 and E15.
Fitment & Compatibility
Check your setup: a Fill-Rite 1200KTG9075 or 1200KTG9100 head on a system up to 25 GPM. It is the replacement for the filter in the 1210KTF7019 kit. Particulate-only: F1810PM0.
Not for: fluids Fill-Rite does not list for it (diesel, gasoline, B20, E15), pressure above 50 PSI and flow above 25 GPM. Head not included.
About Fill-Rite
Fill-Rite is a Gorman-Rupp company that designs and builds transfer equipment for fuel, oil and chemicals: electric and hand-operated transfer pumps, plus the meters, nozzles, hose and filters that go with them. Its sites are in Fort Wayne, Indiana and Lenexa, Kansas.
Its filter line protects the discharge side of a fuel system: spin-on canisters for 25 and 40 GPM systems in particulate, microglass and Hydrosorb water-detecting media, clear-bowl units for 18 GPM pumps, plus the filter heads and fittings that plumb them in.
Buying Fill-Rite from Prestige Truck. Fill-Rite asks for proof of purchase with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Does the F1810HM0 fit the 1210KTF7019 kit?
Yes. It is the filter that kit ships with, on the 1200KTG9075 head.
What pressure is the F1810HM0 rated for?
Fill-Rite lists a 50 PSI maximum operating pressure.
Which filter heads do these canisters fit?
Fill-Rite names its 1200KTG9075 (3/4" ports) and 1200KTG9100 (1" ports) heads, both with a 1"-12 UNF thread.
What is a water-detecting filter?
Fill-Rite's Hydrosorb filters trap particles and restrict flow when they absorb excess water, a cue to check the fuel and change the filter.
How often should I change the filter?
Fill-Rite recommends every six months to keep protection and flow where they should be.
Is the filter head included?
No. These are replacement canisters. The 1200KTG9100 head and the 1200KTF filter kits are sold separately.
Installation
Stuck on a step?
Specifications
| Brand | Fill-Rite |
|---|---|
| Part Number | F1810HM0 |
| Type | Spin-on canister |
| Max flow | 25 GPM (94 LPM) |
| Filter thread | 1"-12 UNF |
| Media | Hydrosorb (water detecting) |
| Filtration | 10 micron |
| Max pressure | 50 PSI |
| Thread | 1"-12 UNF |
| Fits heads | 1200KTG9075, 1200KTG9100 |
| Fluids | Diesel, gasoline, B20, E15 |
| Dimensions | 3.7" x 3.7" x 8.6" (H x W x D) |
| Weight | 1.7 lb |
| Shipping weight | 1.6 lb |
| UPC | 089404190937 |
