Fill-Rite F1810PC1 10 Micron Particulate Clear Bowl Fuel Filter, 18 GPM
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Rated Up To 18 GPM: Fill-Rite rates both clear-bowl filters for 18 GPM (68 LPM), a fit for lower-flow transfer pumps.

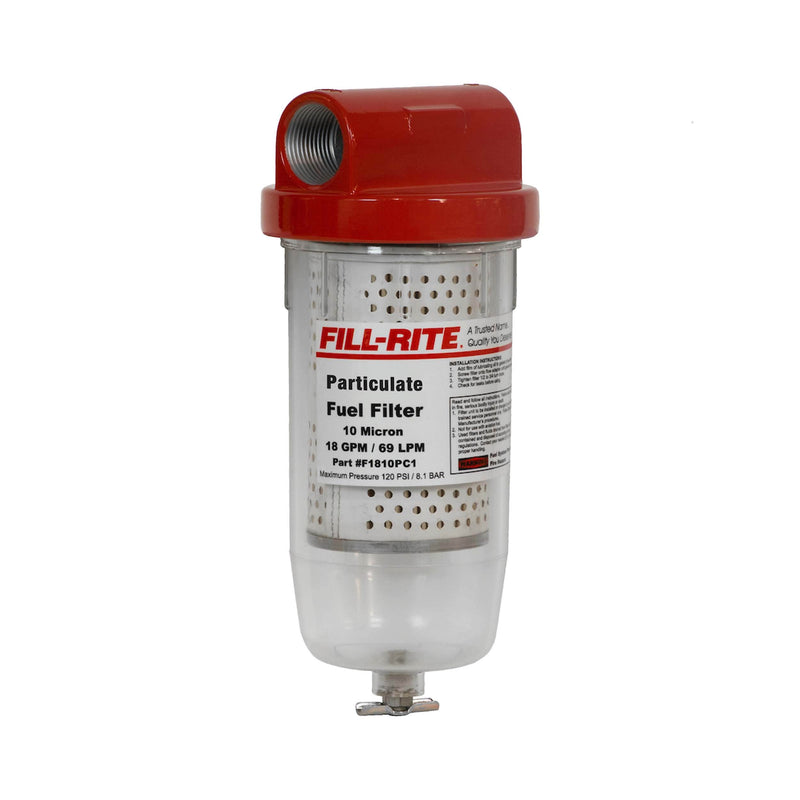

- Clear Bowl Design: The element sits in a clear bowl instead of a solid spin-on can, so the inside of the housing stays in view.
- 10 Micron Filtration: Both stop particles down to 10 micron, the dirt, rust and debris Fill-Rite warns can shorten equipment life.
- Water Detecting Or Particulate: The F1810HC1 uses Fill-Rite's Hydrosorb water-detecting media. The F1810PC1 is a particulate filter.
- 1"-12 UNF, 1" NPT: Fill-Rite lists a 1"-12 UNF filter thread and a 1" female NPT connection for both units.
- Diesel, Gasoline, B20, E15: Fill-Rite lists diesel, gasoline, B20 and E15 for both and recommends a fresh filter every six months.
Description & Fitment

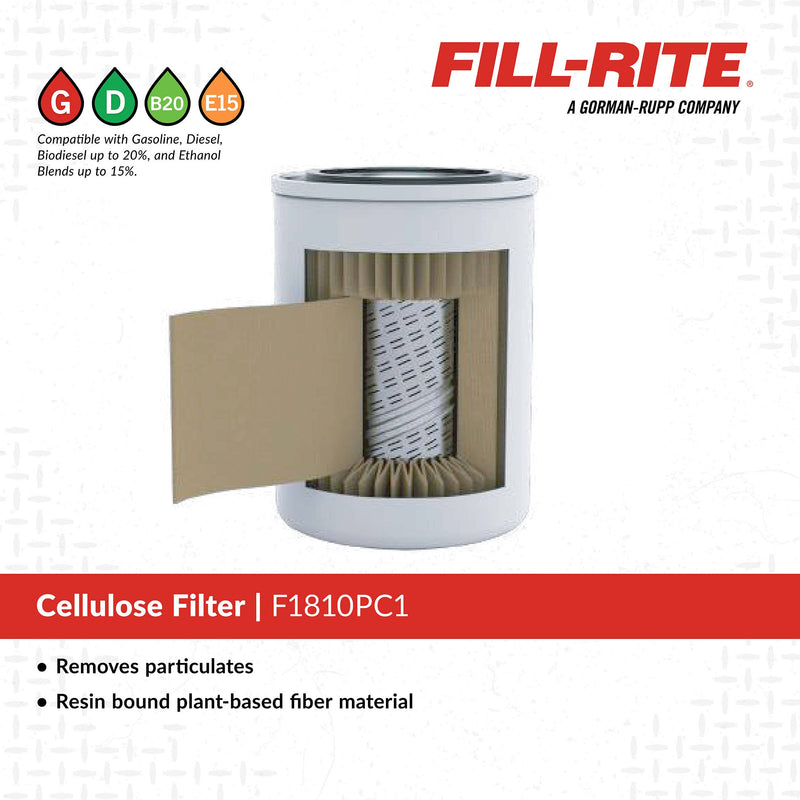

The F1810PC1 is the particulate version of Fill-Rite's clear-bowl fuel filter. It traps dirt and rust down to 10 micron in systems up to 18 GPM (68 LPM). Fill-Rite gives it a 50 PSI maximum operating pressure, a 1"-12 UNF thread and a 1" female NPT connection. It is listed for diesel, gasoline, B20 and E15.
Fitment & Compatibility
Check your setup: a pump of 18 GPM or less on 1" plumbing. Need water detection? The F1810HC1 is the Hydrosorb clear bowl.
Not for: fluids outside Fill-Rite's list (diesel, gasoline, B20, E15), pressure above 50 PSI and flow above 18 GPM.
About Fill-Rite
Fill-Rite is a Gorman-Rupp company that designs and builds transfer equipment for fuel, oil and chemicals: electric and hand-operated transfer pumps, plus the meters, nozzles, hose and filters that go with them. Its sites are in Fort Wayne, Indiana and Lenexa, Kansas.
Its filter line protects the discharge side of a fuel system: spin-on canisters for 25 and 40 GPM systems in particulate, microglass and Hydrosorb water-detecting media, clear-bowl units for 18 GPM pumps, plus the filter heads and fittings that plumb them in.
Buying Fill-Rite from Prestige Truck. Fill-Rite asks for proof of purchase with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Does the F1810PC1 detect water?
No. It is a particulate filter. The F1810HC1 is the water-detecting clear bowl.
What is the F1810PC1 pressure limit?
Fill-Rite lists a 50 PSI maximum operating pressure.
Which clear-bowl filter detects water?
The F1810HC1. Its Hydrosorb media restricts flow when it takes on excess water. The F1810PC1 handles particles only.
What flow rate do they handle?
Fill-Rite rates both at up to 18 GPM (68 LPM). For 25 GPM systems, look at the F1810HM0 or F1810PM0 spin-ons.
How often should I replace the filter?
Fill-Rite recommends a new filter every six months, sooner if a water-detecting filter starts restricting flow.
Is a filter head part of the unit?
These clear-bowl units come as the filter and filter head together. Contact us and we will confirm exactly what ships.
Installation
Stuck on a step?
Specifications
| Brand | Fill-Rite |
|---|---|
| Part Number | F1810PC1 |
| Max flow | 18 GPM (68 LPM) |
| Filtration | 10 micron |
| Filter thread | 1"-12 UNF |
| Connection | 1" female NPT |
| Bowl | Clear |
| Compatible fluids | Diesel, gasoline, B20, E15 |
| Media | Particulate |
| Max pressure | 50 PSI |
| Thread | 1"-12 UNF |
| Dimensions | 3.7" x 3.7" x 4.5" (H x W x D) |
| Weight | 1.7 lb |
| Shipping weight | 1.7 lb |
| UPC | 089404191453 |
