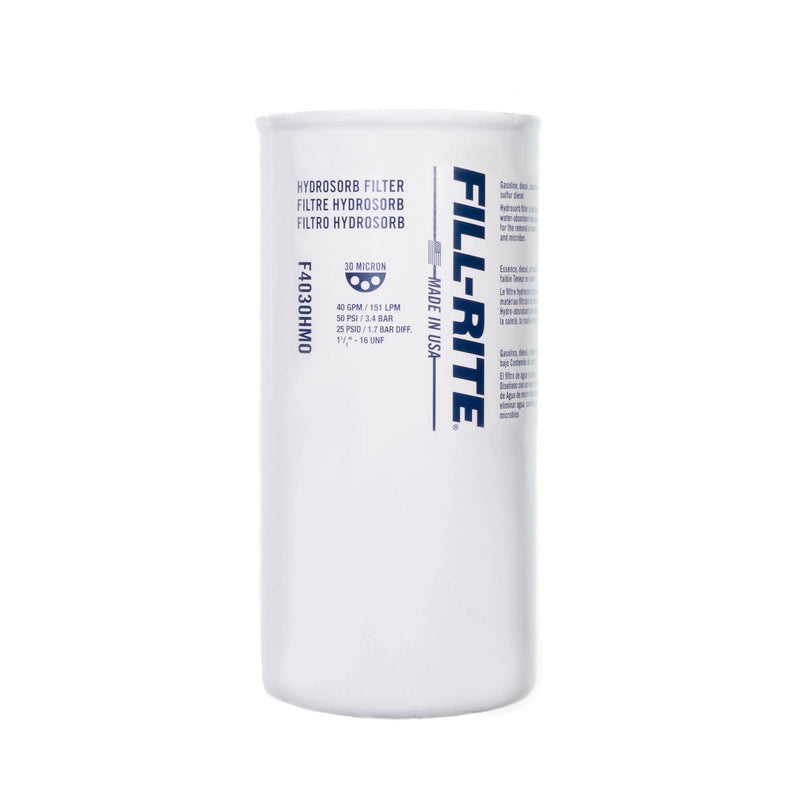

Fill-Rite F4030HM0 30 Micron Water Detecting Spin-On Fuel Filter, 1-1/2"-16 UNF, 40 GPM
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Rated Up To 40 GPM: Fill-Rite rates this canister for fuel transfer systems moving up to 40 GPM (151 LPM).
- 1-1/2"-16 UNF Thread: It threads onto a 1-1/2"-16 UNF head, and Fill-Rite pairs it with its 700ACCF7017 filter head.

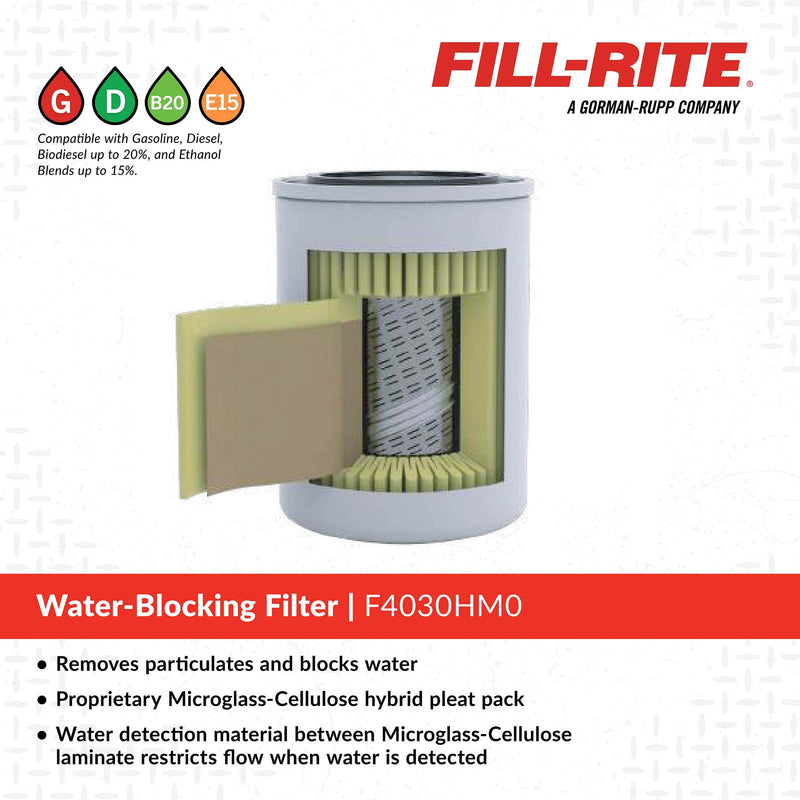

- Water Detecting Media: Along with trapping particles, the element restricts flow once it absorbs excess water, a clear signal to change the filter.
- 30 Micron Rating: A 30 micron rating stops coarser particles such as dirt and rust before they reach your pump, meter and equipment.
- Large Canister Size: Fill-Rite lists it at 10.9" x 5.1" x 5" and 3.1 lb.
- Fluid List Not Published: Fill-Rite prints no compatible-fluid list for this filter and recommends replacing filters every six months. Contact us to confirm your fluid.
Description & Fitment
Fill-Rite's F4030HM0 pairs a 30 micron rating with water detection in a 10.9" tall spin-on can built for flow up to 40 GPM (151 LPM). Once excess water collects in the element, flow drops so you know to act. It mounts on the 700ACCF7017 head (1-1/2"-16 UNF). No compatible fluids are printed by Fill-Rite.
Fitment & Compatibility
Check your setup: a Fill-Rite 700ACCF7017 filter head on a system up to 40 GPM. Finer 10 micron version: F4010HM0.
Not for: 1"-12 UNF heads (1200KTG9075, 1200KTG9100) and any fluid until confirmed, since Fill-Rite publishes no fluid list for it. Head not included.
About Fill-Rite
Fill-Rite is a Gorman-Rupp company that designs and builds transfer equipment for fuel, oil and chemicals: electric and hand-operated transfer pumps, plus the meters, nozzles, hose and filters that go with them. Its sites are in Fort Wayne, Indiana and Lenexa, Kansas.
Its filter line protects the discharge side of a fuel system: spin-on canisters for 25 and 40 GPM systems in particulate, microglass and Hydrosorb water-detecting media, clear-bowl units for 18 GPM pumps, plus the filter heads and fittings that plumb them in.
Buying Fill-Rite from Prestige Truck. Fill-Rite asks for proof of purchase with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Why choose the 30 micron F4030HM0?
It is the coarser of Fill-Rite's two 40 GPM water-detecting canisters. For finer filtration, the F4010HM0 is rated to 10 micron.
Is the F4030HM0 head included?
No. It is the canister only; the 700ACCF7017 head is a separate part.
Which head do these filters fit?
Fill-Rite lists its 700ACCF7017 filter head, which takes the 1-1/2"-16 UNF thread.
Will they fit a 1200KTG9075 or 1200KTG9100 head?
No. Those heads take 1"-12 UNF filters such as the F1810HM0 and F2510HM0.
How do I know when to change one?
Fill-Rite recommends a new filter every six months, and sooner if the filter starts restricting flow from absorbed water.
Which fluids can they filter?
Fill-Rite does not print a fluid list for these two canisters. Contact us and we will confirm before it ships.
Installation
Stuck on a step?
Specifications
| Brand | Fill-Rite |
|---|---|
| Part Number | F4030HM0 |
| Type | Spin-on canister, water detecting |
| Max flow | 40 GPM (151 LPM) |
| Filter thread | 1-1/2"-16 UNF |
| Filter head | 700ACCF7017 (sold separately) |
| Weight | 3.1 lb |
| Media | Water detecting |
| Filtration | 30 micron |
| Thread | 1-1/2"-16 UNF |
| Fits heads | 700ACCF7017 |
| Dimensions | 10.9" x 5.1" x 5" (H x W x D) |
| Shipping weight | 2.85 lb |
| UPC | 089404250211 |
