Fill-Rite FR1210HDSPA 4 Fr1210g Pumps & 1 Fr189155
$2,119.99
Free gift included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
See it on a truck
Cast-Iron Construction
Fits 2-Inch Tank Bungs

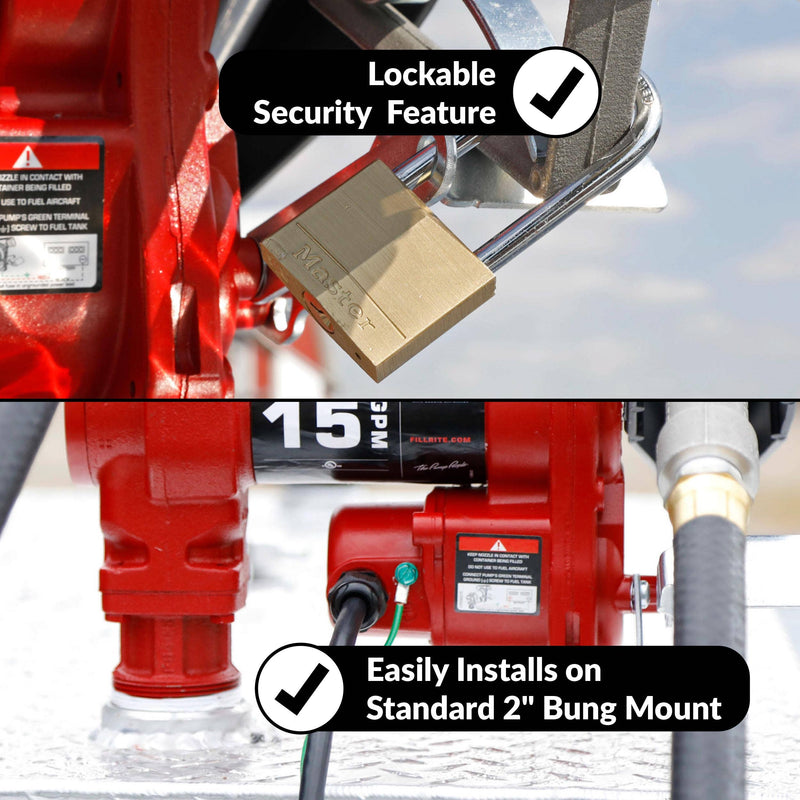

Lockable Nozzle Hook
Features

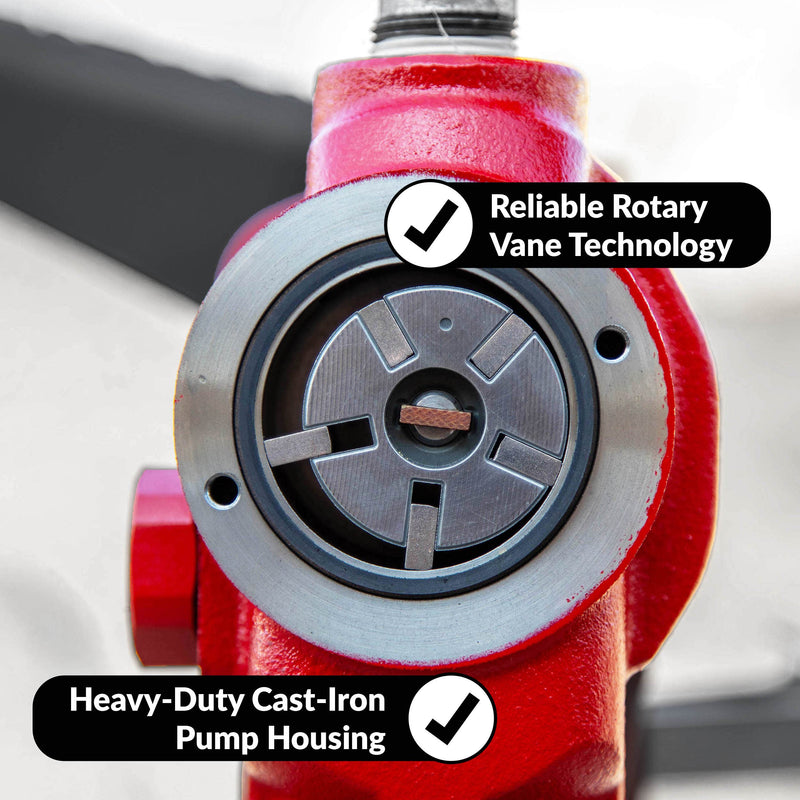

- Cast-Iron Construction: Fill-Rite builds the FR1200 around a cast-iron pump housing with a powdered iron rotor and sintered bronze vanes, and a stainless steel strainer screen in the inlet catches debris before it reaches the vanes.
- Fits 2" Tank Bungs: An inlet flange threads onto a 2" tank bung and takes a 1" suction pipe; the outlet is 3/4". US models are NPT, while the FR1205HE export pump-only model uses a 2" BSPT adapter and BSPP ports.
- Lockable Nozzle Hook: Beside the on/off lever is a locking link. Switch off, rest the nozzle in its boot, and run a padlock through the link and the nozzle handle to keep fuel from being taken.

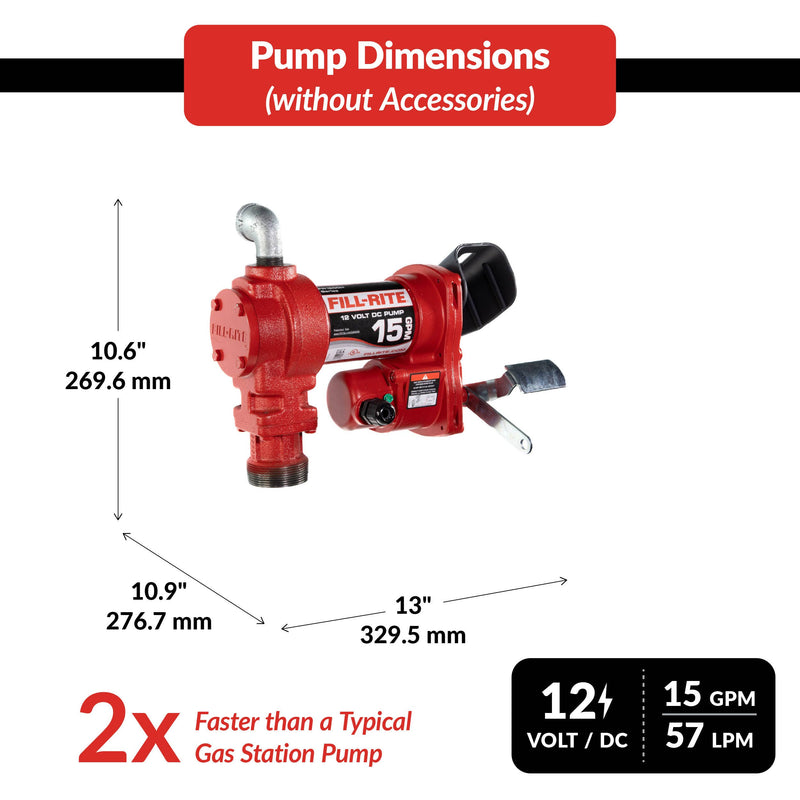

- 15 GPM Rotary Vane: The rotary vane design primes itself and delivers as much as 15 GPM (57 LPM) on 12V DC, pulling fuel through as much as 8' of suction lift and pushing it up to 37' of outlet head.
- Rotatable Junction Box: The wiring junction box turns through 180 degrees, so the power cable can enter from the side that suits your tank layout, and the nozzle boot bolts on in either of two positions.
- Many Fluids, One Pump: The FR1200 is approved by Fill-Rite for diesel, kerosene, mineral spirits, gasoline including E15 ethanol blends, and biodiesel up to B20.
Description & Fitment
The FR1210HDSPA is a retail display pack rather than a single pump: Fill-Rite's part data lists four FR1210G pumps from its 12V FR1200 line and one FR189155. Fill-Rite publishes no product page or spec sheet for the pack, so the pump figures here are the FR1200 series ratings: 15 GPM (57 LPM), 12V DC, 1/4 HP, 30 minutes on and 30 off.
Fitment & Compatibility
Check your setup: that you want four pumps for resale or fleet stock. For a single pump kit choose the FR1210H; the display pack with TT10AN meters is the FR1210TT10HDSP.
Not for: DEF, water or any fluid meant for drinking or food, and fueling aircraft (Fill-Rite's manual rules these out). Fill-Rite does not publish the FR1210G kit contents or what the FR189155 item is.
About Fill-Rite
FILL-RITE.
Fill-Rite is a Gorman-Rupp company that designs and builds transfer equipment for fuel, oil and chemicals: electric and hand-operated transfer pumps, plus the meters, nozzles, hose and filters that go with them. Its sites are in Fort Wayne, Indiana and Lenexa, Kansas.
Its transfer pumps are built around cast-iron rotary vane bodies, and Fill-Rite stands behind them with a tiered warranty that runs for the life of the pump castings, 5 years on the motor and 2 years on wear parts.
Buying Fill-Rite from Prestige Truck. Fill-Rite asks for proof of purchase with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
How many pumps are in the FR1210HDSPA?
Four FR1210G pumps, plus one item Fill-Rite lists as FR189155.
Is there a spec sheet for this pack?
No. Fill-Rite has no page or data sheet for it, so we quote the FR1200 series ratings.
What power does it need?
A 12V DC battery or supply. Fill-Rite requires a 30 A fuse in the 12V circuit and has the wiring done by a licensed electrician. Never power it from thin vehicle wiring such as a lighter socket.
How long can it run at a time?
Fill-Rite rates the motor for 30 minutes of running followed by 30 minutes off. A thermal protector stops it if it overheats.
Which tanks does it fit?
Tanks with a 2" bung: NPT on US models, BSPT on the FR1205HE pump-only version. The tank needs a vent, and a fixed suction pipe should end 1-2" above the tank floor.
Can I lock the pump?
Yes. The switch has a locking link next to the lever. With the switch off and a nozzle resting in its boot, a padlock passes through that link and the nozzle handle.
Installation
Install time
Not printed in Fill-Rite's manual
DifficultyNot printed in Fill-Rite's manualFill-Rite has the wiring done by a licensed electrician
TypeBolts to a 2" tank bung through the supplied inlet flange, then wired to a fused 12V DC supply (Fill-Rite H-Series manual)
Tools7/16" wrench or socket, pipe wrench, T-25 Torx driver, fuel-rated thread sealant
Here's the short version. Follow Fill-Rite's manual (below) for the full procedure, wiring and safety steps.
- Optional: take the inlet flange off the pump by loosening its four 1/4" bolts with a 7/16" wrench; keep the bolts, screen and gasket.
- Thread the suction pipe into the inlet bung 1.5 to 2.5 turns past hand tight with a pipe wrench, using a sealant made for fuel.
- Thread the bung and pipe onto the tank 1.5 to 2.5 turns past hand tight, again with fuel-rated sealant.
- If you removed the flange, seat the screen and gasket, set the pump on the bung and tighten the four bolts to at least 40 in-lbs.
- Open the junction box (two T-25 screws), feed the red and black power leads through the 1/2" NPT opening with the black cable connector, and keep the gasket in place when you close it.
- Mount the nozzle boot to the switch plate with its 5/16" bolt at 40 in-lbs; it has two positions. Wire to a 12V supply with a 30 A fuse.
- Fill-Rite H-Series fuel transfer pump installation and operation manual (PDF)
- Fill-Rite H-Series technical data sheet (PDF)
Stuck on a step?
Specifications
| Brand | Fill-Rite |
|---|---|
| Part Number | FR1210HDSPA |
| Series | FR1200 (H-Series) |
| Pump type | Cast-iron rotary vane, self-priming |
| Voltage | 12V DC |
| Max flow | 15 GPM (57 LPM) per pump, FR1200 series rating |
| Motor | 1/4 HP |
| Current | 20 A rated / 26 A full load |
| Duty cycle | 30 min on / 30 min off |
| Suction lift | 8' |
| Max outlet head | 37' |
| Bypass pressure | 16 PSI |
| Tank mount | 2" bung (NPT; BSPT on the FR1205HE pump-only model) |
| Inlet | 1" |
| Outlet | 3/4" (BSPP on the FR1205HE) |
| Required fuse | 30 A (12V DC circuit) |
| Compatible fluids | Diesel, gasoline and blends up to E15, biodiesel up to B20, kerosene, mineral spirits |
| Quantity | 4 pumps |
| Included | 4 FR1210G pumps, 1 FR189155 |
| Warranty | Tiered limited lifetime |
| UPC | 089404248034 |
More media
2 videosWarranty, shipping & returns
-
Lifetime Tiered limited warranty
Fill-Rite covers the FR1200 Series pump with its tiered Limited Lifetime Warranty against defects in material and workmanship:- Lifetime: pump castings, such as the pump and motor housings, motor frame, inlet flange and bung adapter, junction box cover, switch plate and end bells. Paint and corrosion issues are excluded.
- 5 years: the motor and its components, such as magnets, armature, brushes, thermal protector, lead wires and circuit boards.
- 2 years: wear parts, such as seals, gaskets, O-rings, springs, vanes, rotor and rotor cover, bypass cap, nozzle boot, switch parts and paint adhesion. Paint wear from use, weather or chemicals is excluded.
- 1 year: accessories packed with the pump, such as hoses, nozzles, suction pipes, cables and connectors, elbows and swivels.
- The meter on metered kits falls under Fill-Rite's 800 and 900 Series terms instead: 2 years on all meter components.
- Coverage runs from the date of sale, or the delivery date if that is later, and only the original purchaser is covered; it does not transfer to a later owner.
- It applies to products bought from Fill-Rite or a seller Fill-Rite authorizes in the United States or Canada, and Fill-Rite needs proof of purchase with a claim. Without proof of purchase or delivery, Fill-Rite starts the clock at the date code on the product.
- Small items such as fasteners, washers, labels, nameplates, rivets, emblems, packaging, thread tape, wire nuts and paperwork are not covered.
- It does not cover misuse, neglect, accident, negligence, improper installation or maintenance, or repairs done by anyone other than Fill-Rite or its authorized representative.
- Fill-Rite's remedy is a replacement, or a refund of the price paid when a replacement or repair is not practical. Its liability is capped at the purchase price and it excludes incidental and consequential damages where the law allows. Implied warranties are limited to the length of this warranty.
- Please do not send the product back on your own: if Fill-Rite asks for a return, it issues a return number and pays the freight.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Check the cast-iron housing, junction box cover and switch lever for cracks or chips, and confirm that every item listed for your part number, from cable and suction pipe to hose, nozzle, meter, filter or TankDefender, is in the box. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
