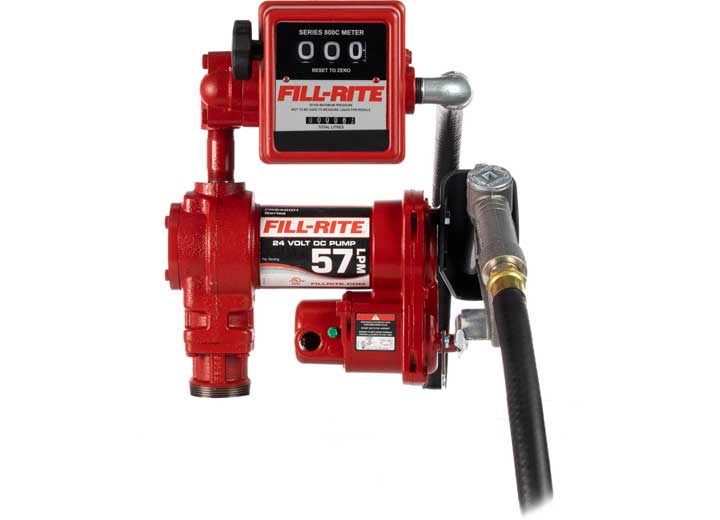

Fill-Rite FR2411HL 15 GPM, 24V DC Pump, 3/4" X 12' Hose, 3/4" Manual Nozzle, 5' Ground Wire
Free gift included with your order
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
See it on a truck
Cast-Iron Construction
Fits 2-Inch Tank Bungs
Lockable Nozzle Hook
Features
- Cast-Iron Construction: Fill-Rite casts the pump housing in iron and turns it with a rotary vane set (powdered iron rotor, sintered bronze vanes), a build it designs for daily mobile fuel transfer off a tank.
- Fits 2" Tank Bungs: The supplied inlet flange threads onto a 2" tank bung and takes a 1" suction pipe, with a 3/4" outlet for the hose. US models use NPT threads; the HE pump-only export version uses a 2" BSPT bung adapter and BSPP ports.
- Lockable Nozzle Hook: A locking link sits next to the on/off lever. With the pump off and the nozzle stowed in its boot, a padlock through the link and the nozzle handle keeps the fuel from walking away.
- 15 GPM on 24V DC: Every model in this line is rated at up to 15 GPM (57 LPM) on a 24V DC supply, the voltage found on many heavy trucks and machines, from a 1/4 HP motor.
- Thermally Protected Motor: The motor carries thermal protection against overheating and is rated for 30 minutes on, then 30 minutes off. Fill-Rite lists a 10 A rated draw for this series and asks for a 20 A fuse in the 24V circuit.
- Many Fluids, One Pump: Fill-Rite approves this series for diesel, gasoline and gasoline blends up to E15, biodiesel blends up to B20, kerosene and mineral spirits.
Description & Fitment

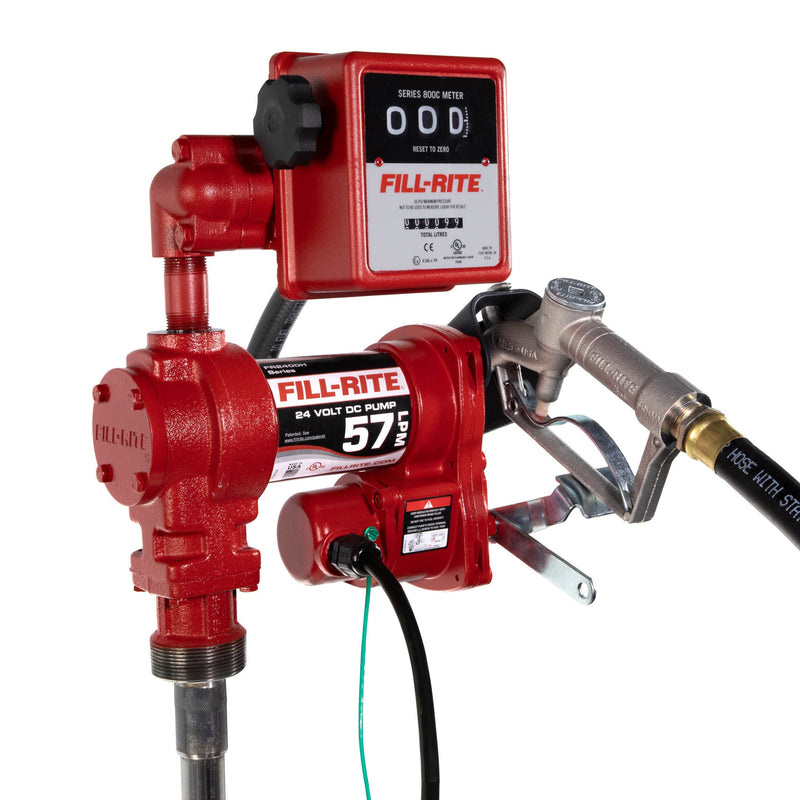

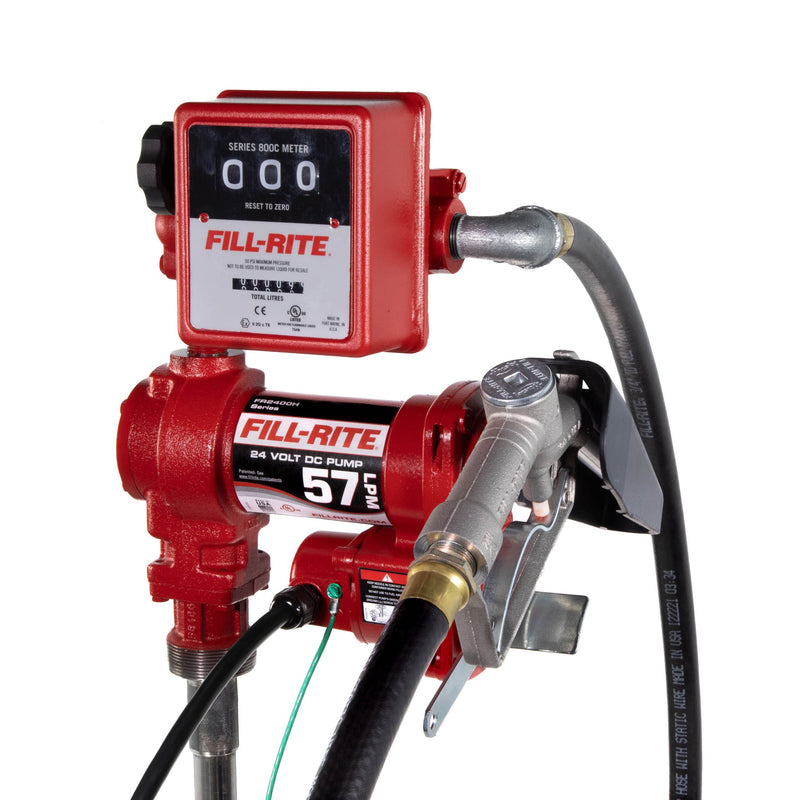

For fleets that log fuel in liters, the FR2411HL is Fill-Rite's 57 LPM, 24V DC pump kit with an 807CL liter meter. It ships with a 3/4" x 12' hose, a 3/4" manual nozzle, the 20" to 34-1/2" telescoping steel suction pipe, an 18' 12 AWG power cable and a 5' ground wire, ready for a 2" NPT tank bung.
Fitment & Compatibility
Check your setup: a 24V DC supply with a 20 A fuse and a 2" NPT bung. For a gallon meter pick the FR2411H; without a meter, the FR2410H. The automatic-nozzle liter kit is the FR2411GELA.
Not for: DEF, water or any fluid meant for drinking or food, and fueling aircraft (Fill-Rite's manual rules these out).
About Fill-Rite
Fill-Rite is a Gorman-Rupp company that designs and builds transfer equipment for fuel, oil and chemicals: electric and hand-operated transfer pumps, plus the meters, nozzles, hose and filters that go with them. Its sites are in Fort Wayne, Indiana and Lenexa, Kansas.
Its transfer pumps are built around cast-iron rotary vane bodies, and Fill-Rite stands behind them with a tiered warranty that runs for the life of the pump castings, 5 years on the motor and 2 years on wear parts.
Buying Fill-Rite from Prestige Truck. Fill-Rite asks for proof of purchase with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Does the FR2411HL meter read in gallons?
No. The 807CL reads in liters; the FR2411H has the gallon 807C meter.
Is a power cable included?
Yes, an 18' 12 AWG two-wire cable plus a 5' ground wire.
What power does it need?
A 24V DC supply. Fill-Rite requires a fuse in the circuit, 20 A for 24V, and its manual has the wiring run done by a licensed electrician. Do not wire it to thin vehicle circuits such as a lighter socket.
Can it run all day?
No. Fill-Rite rates the motor for 30 minutes on, then 30 minutes off, and a thermal protector shuts it down if it overheats.
What tank does it fit?
Any tank with a 2" bung (NPT on US models, BSPT on the HE pump-only versions). The tank needs a vent cap, and the suction pipe should stop 1-2" above the bottom unless it is the telescoping steel pipe.
Can I lock it?
Yes. With the pump off and the nozzle in its boot, a padlock fits through the locking link beside the switch lever and the nozzle handle.
Installation
Here's the short version. Follow Fill-Rite's manual (below) for the full procedure, wiring and safety steps.
- Optional: take the inlet flange off the pump by loosening its four 1/4" bolts with a 7/16" wrench; keep the bolts, screen and gasket.
- Thread the suction pipe into the inlet bung 1.5 to 2.5 turns past hand tight with a pipe wrench, using a sealant made for fuel.
- Thread the bung and pipe onto the tank 1.5 to 2.5 turns past hand tight, again with fuel-rated sealant.
- If you removed the flange, seat the screen and gasket, set the pump on the bung and tighten the four bolts to at least 40 in-lbs.
- Open the junction box (two T-25 screws), feed the power leads through the 1/2" NPT opening with the black cable connector, and keep the gasket in place when you close it.
- Mount the nozzle boot to the switch plate with its 5/16" bolt at 40 in-lbs; it has two positions. Wire to a 24V supply with a 20 A fuse.
- Fill-Rite H-Series fuel transfer pump installation and operation manual (PDF)
- Fill-Rite H-Series technical data sheet (PDF)
Stuck on a step?
Specifications
| Brand | Fill-Rite |
|---|---|
| Part Number | FR2411HL |
| Series | FR2400 |
| Pump type | Cast-iron rotary vane, self-priming |
| Voltage | 24V DC |
| Max flow | 57 LPM (15 GPM) |
| Motor | 1/4 HP |
| Rated current | 10 A |
| Duty cycle | 30 min on / 30 min off |
| Suction lift | 8' |
| Max outlet head | 37' |
| Bypass pressure | 16 PSI |
| Tank mount | 2" NPT bung |
| Inlet | 1" |
| Outlet | 3/4" (BSPP on HE pump-only models) |
| Required fuse | 20 A (24V DC circuit) |
| Compatible fluids | Diesel, gasoline and blends up to E15, biodiesel up to B20, kerosene, mineral spirits |
| Meter | 807CL mechanical (liters) |
| Hose | 3/4" x 12' |
| Nozzle | 3/4" manual |
| Suction pipe | Telescoping steel, 20" to 34-1/2" |
| Power cable | 18' 12 AWG, 2-wire |

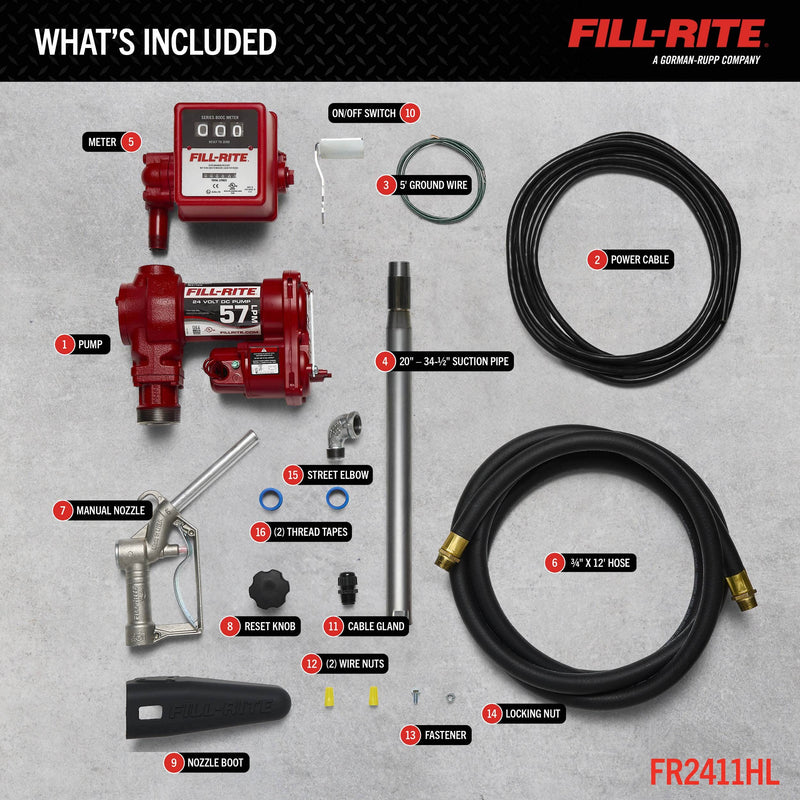

| Included | Pump, 807CL meter, hose, manual nozzle, suction pipe, power cable, 5' ground wire |
| Warranty | Tiered limited lifetime |
| UPC | 089404248171 |
More media
2 videosWarranty, shipping & returns
-
Lifetime Tiered limited warranty
Fill-Rite covers the FR2400 Series pump with its tiered Limited Lifetime Warranty against defects in material and workmanship:- Lifetime: pump castings, such as the pump and motor housings, motor frame, inlet flange and bung adapter, junction box cover, switch plate and end bells. Paint and corrosion issues are excluded.
- 5 years: the motor and its components, such as magnets, armature, brushes, thermal protector, lead wires and circuit boards.
- 2 years: wear parts, such as seals, gaskets, O-rings, springs, vanes, rotor and rotor cover, bypass cap, nozzle boot, switch parts and paint adhesion. Paint wear from use, weather or chemicals is excluded.
- 1 year: accessories packed with the pump, such as hoses, nozzles, suction pipes, cables and connectors, elbows and swivels.
- The meter on metered kits falls under Fill-Rite's 800 and 900 Series terms instead: 2 years on all meter components.
- Coverage runs from the date of sale, or the delivery date if that is later, and only the original purchaser is covered; it does not transfer to a later owner.
- It applies to products bought from Fill-Rite or a seller Fill-Rite authorizes in the United States or Canada, and Fill-Rite needs proof of purchase with a claim. Without proof of purchase or delivery, Fill-Rite starts the clock at the date code on the product.
- Small items such as fasteners, washers, labels, nameplates, rivets, emblems, packaging, thread tape, wire nuts and paperwork are not covered.
- It does not cover misuse, neglect, accident, negligence, improper installation or maintenance, or repairs done by anyone other than Fill-Rite or its authorized representative.
- Fill-Rite's remedy is a replacement, or a refund of the price paid when a replacement or repair is not practical. Its liability is capped at the purchase price and it excludes incidental and consequential damages where the law allows. Implied warranties are limited to the length of this warranty.
- Please do not send the product back on your own: if Fill-Rite asks for a return, it issues a return number and pays the freight.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Look over the cast-iron housing, junction box cover and switch lever for cracks or chips, and check that every item listed for your part number, from cable to hose, nozzle, suction pipe or meter, is in the box. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
