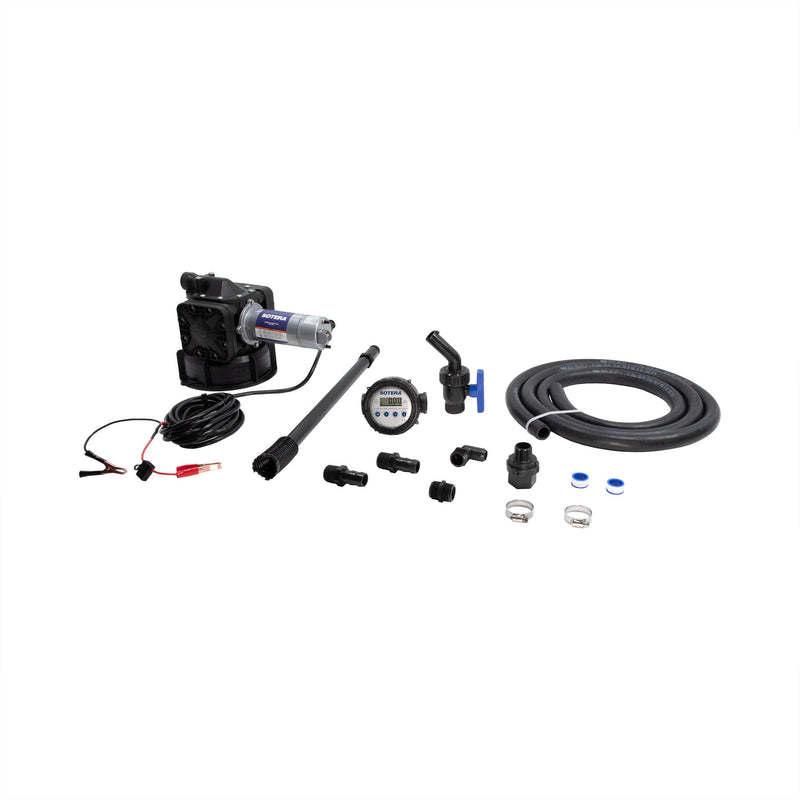

The Fill-Rite SS445BX700 is a 12v dc chemical transfer pump with meter & suction pipe, built to move chemicals and fluids reliably with chemical-resistant construction. Built by Fill-Rite in the USA and backed by a Limited Warranty.

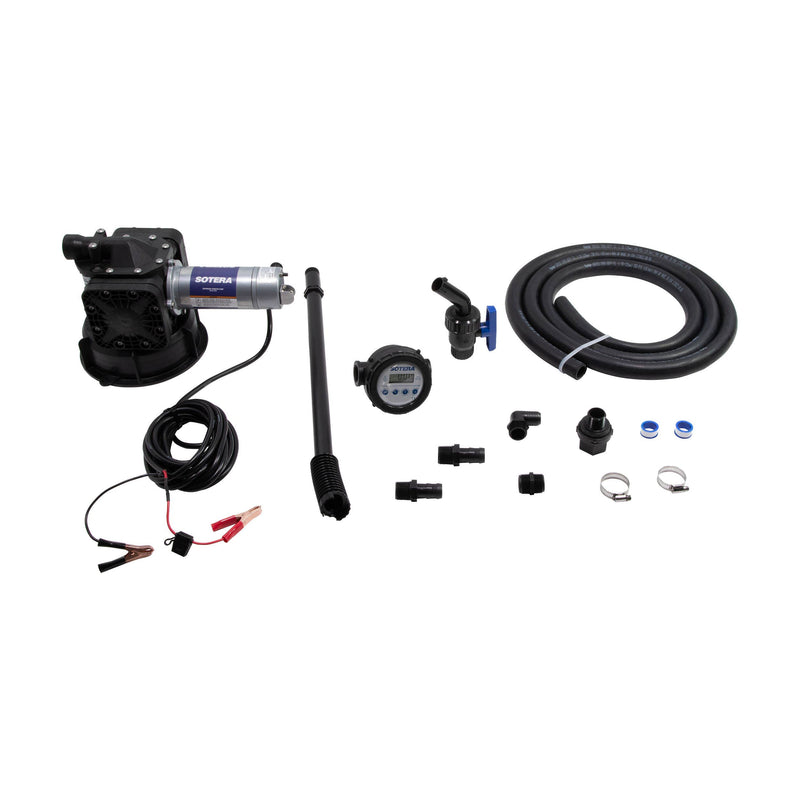

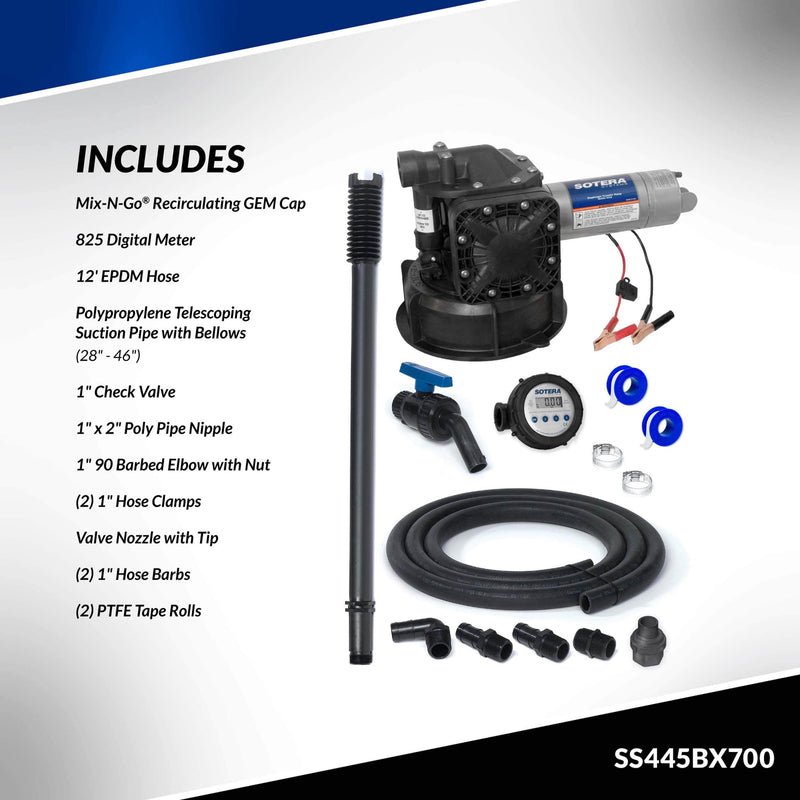

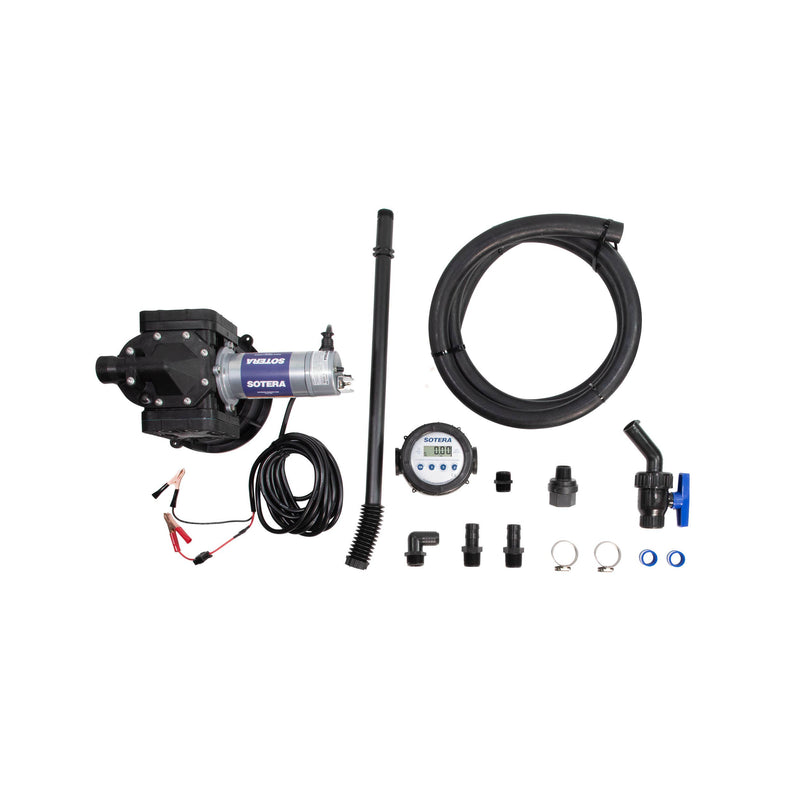

What's Included:
Mixngo 12V
Epdm Seals
Watch Fill-Rite's official product overview:
Features
Built For Chemicals And Fluids Chemical-resistant construction moves the fluids fuel pumps cannot, for ag and industrial transfer.
Powered Transfer Delivers steady flow for real-world duty.
Specifications
Max Flow Rate: 13
Power Type: 12V DC
Duty Cycle: 30 min on / 30 min off
Motor Power: 0.25 HP
Max Current: 20 A
Suction Lift: 9'
Discharge Head: 38'
Max Operating Pressure: 15 PSI
Inlet: 1 in / NPT
Outlet: 1 in / NPT
Dimensions (H x W x D): 10.5 x 17.2 x 10.0
Weight: 22.1
Installation
Mounting is done on a 55-gallon drum: install the pipe and the pump, then attach the elbow, hose, and nozzle. Follow the owner's manual that ships with the pump for exact fitting figures.
Watch Fill-Rite's official installation walkthrough:
Resources
Everything you need for your Fill-Rite SS445BX700, in one place.
Warranty. Fill-Rite backs this product with a Limited Warranty against defects in materials and workmanship. It applies to the original purchaser and does not cover misuse, neglect, accident, or improper installation.
Free shipping. This item ships free to the lower 48 states. In-stock orders placed by 2 PM ET, Monday through Friday, typically ship the same business day and arrive in 3 to 5 business days.
Returns. Covered by our 30-day return policy on unused product in the original packaging. Please inspect the shipment on delivery, and if anything is damaged, note it on the delivery receipt and contact us right away.
About Fill-Rite
Fill-Rite has been building fuel transfer equipment in Fort Wayne, Indiana since 1957. Now a Tuthill brand, it earned its reputation the hard way, by making cast-iron rotary-vane pumps that stand up to continuous, real-world duty on fleets, farms, construction sites, and equipment yards across the country.
Today Fill-Rite makes a complete fuel-handling lineup, from 12-volt and 24-volt DC pumps to 115-volt and 230-volt AC pumps, hand pumps, flow meters, nozzles, hoses, and filtration. Whatever you are moving and however you power it, the parts are engineered to work together as a system.
That focus is why Fill-Rite is the name so many operators specify by default: durable where it counts, simple to service, and backed by a Limited Warranty. When fueling your own equipment is part of the job, it is the brand you buy once.
Authorized Fill-Rite dealer. Prestige Truck is an authorized dealer of Fill-Rite, so every pump, meter and accessory you buy is 100% genuine and factory-new, covered by the full Fill-Rite manufacturer warranty, and backed by our own US-based support team.
Sotera IBC Tote Cage Bracket Installation
Fill-Rite's official installation walkthrough for the Sotera IBC tote cage bracket configuration. This is a sibling mounting arrangement within the Sotera 400 Series rather than the configuration this particular model ships in, and it is included here so you can see how the same pump adapts to a tote.
The steps cover connecting the pump to the IBC tote, connecting the suction hose, connecting the discharge hose, and using the anti-drip spout.
Sotera Chemtraveller Installation
Fill-Rite's official installation walkthrough for the Sotera Chemtraveller configuration, shot connecting it to an IBC tote. This is a sibling mounting arrangement within the Sotera 400 Series rather than the configuration this model ships in, and it is included so you can see how the same pump platform adapts to a portable frame.
The steps cover connecting the pump to the tote, connecting the suction hose and meter, connecting the discharge hose, and using the anti-drip spout.
800 Series Digital Meter Installation
This Sotera bundle ships with an 800-series digital meter, and this is Fill-Rite's official installation walkthrough for that meter. The video names the models it covers directly: 820, 825, 850, 825D075BSPPS, and 825X700.
These meters register up to 20 gallons per minute at plus or minus 1 percent accuracy and are compatible with mineral spirits, anti-freeze, crop oil, fertilizers, pesticides, and water, which is the service this pump is built for.
Frequently Asked Questions
Straight answers on specs, fit and support
What fluids can it pump?
Agricultural and industrial chemicals, including pesticides, herbicides, fertilizers, mild acids, soaps, and water. This is a chemical transfer pump, not a fuel pump: it is not for gasoline or any other non-diluted flammable liquid with a flash point below 100°F, nor for strong acids (pH 3.4 or below), strong bases (pH above 12), or bleach.
How is it powered?
See the specifications tab. Connect it per the included owner's manual.
How fast does it transfer fuel?
See the specifications, depending on hose, lift, and fluid.
Does it need priming?
No manual priming needed. The pump is self-priming, so it pulls fuel from tanks and drums on its own.
What warranty does it carry?
Fill-Rite's 5-Year Limited Warranty on the Sotera 400B Series pump. The motor carries 1 year and meters 2 years.
Where is it made?
Fill-Rite builds its fuel transfer equipment in Fort Wayne, Indiana, USA.
