Fill-Rite TT10AN 2-35 GPM 4-Digit Digital Turbine Fuel Transfer Meter, 1" NPT
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- 4-Digit Digital Display: The LCD shows the current batch up to 9999 and a running total up to 90,000,000, in ounces, pints, quarts, liters or gallons. A rate button shows live flow, and totals survive a battery change.
- Plus or Minus 1% Accuracy: Fill-Rite rates the TT10AN turbine at ±1% after field calibration and 0.30% repeatability on batches of 2 gallons or more, across 2 to 35 GPM (8 to 132 LPM).

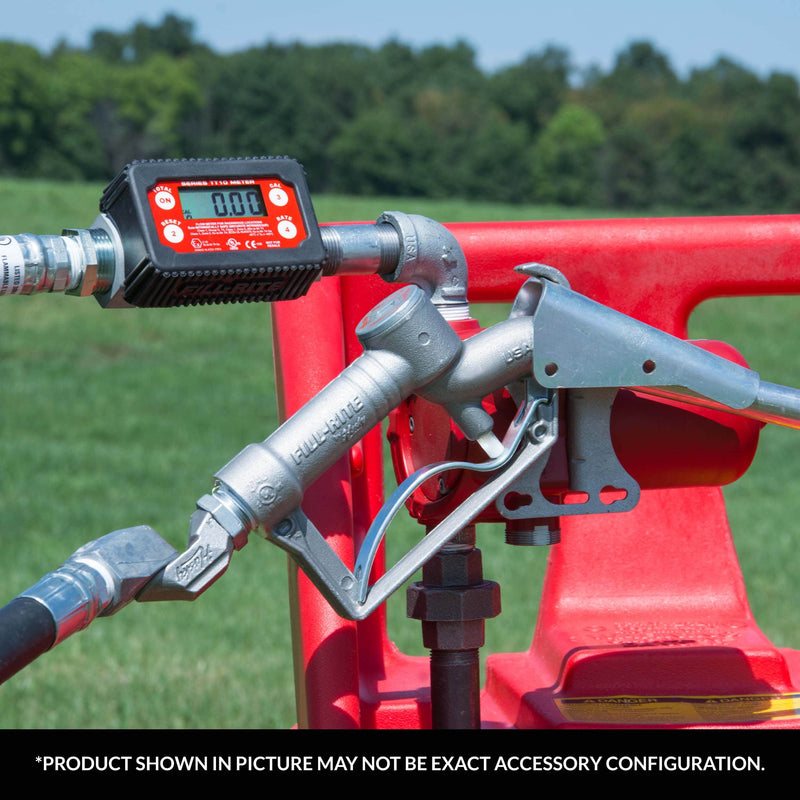

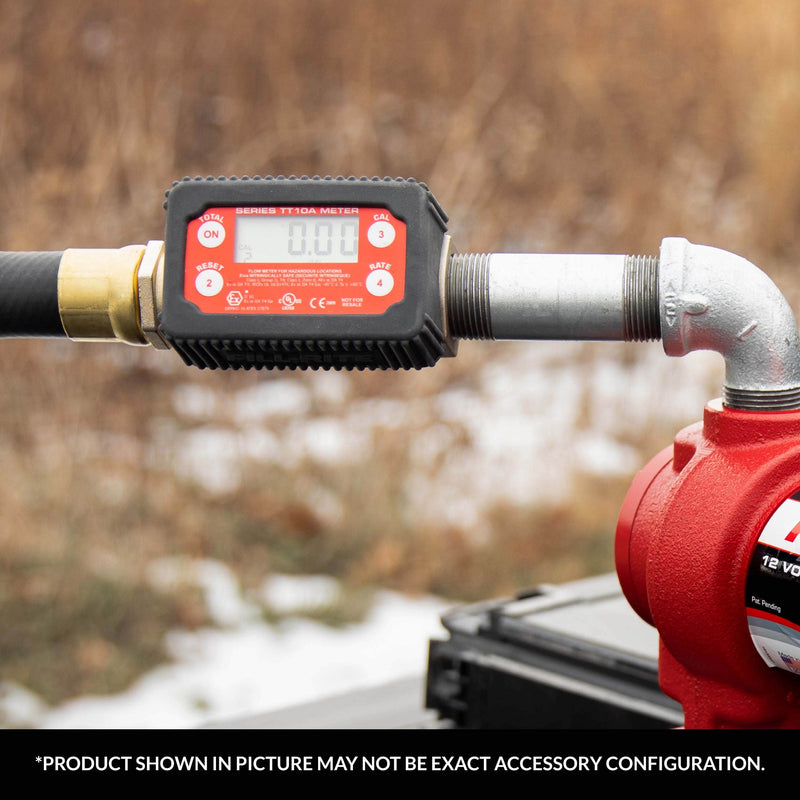

- In-Line at Pump or Nozzle: The meter weighs about 1.3 lb and threads in line, either right at the pump outlet or out at the nozzle end of the hose. Its display turns 180° so you can read it from where you stand.

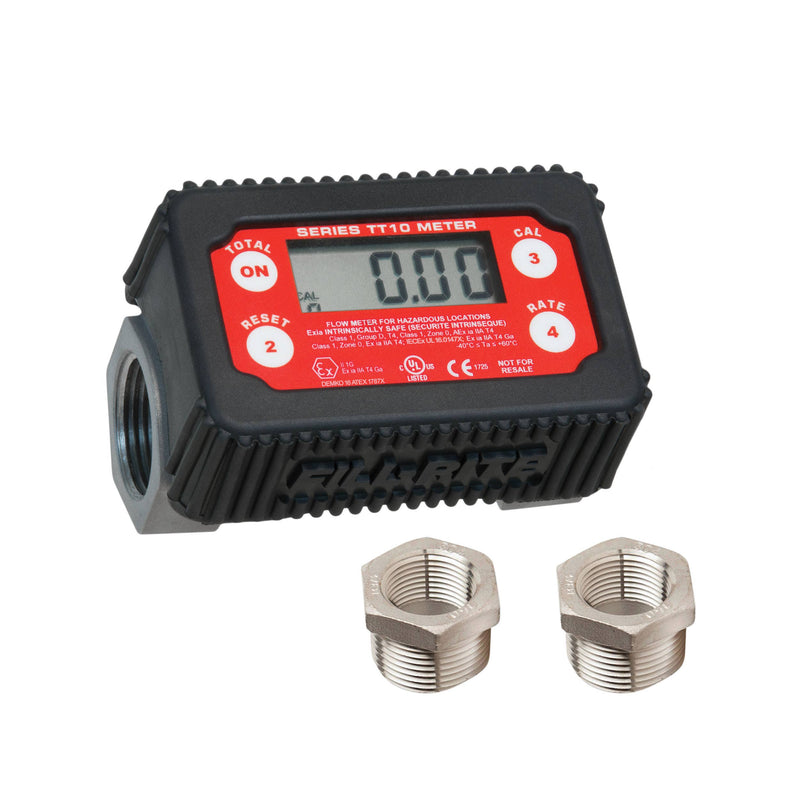

- Reducer Bushings Included: Both ports are 1" female NPT, and Fill-Rite packs two 1" x 3/4" NPT reducer bushings for 3/4" hose or fittings. Two AA alkaline batteries come in the box as well.
- Intrinsically Safe Design: Fill-Rite lists the series as intrinsically safe for hazardous locations, with electronics that ignore false counts from vibration on mobile tanks. The exact approvals are printed on the meter's faceplate.
- Multi-Fuel Compatible: Fill-Rite lists the TT10AN for diesel, gasoline, kerosene, mineral spirits and heptane. Twenty preset calibration factors let you match the fluid without a test run.
Description & Fitment
The Fill-Rite TT10AN is a 4-digit digital turbine fuel transfer meter with 1" female NPT ports. It reads 2 to 35 GPM at ±1% after field calibration and works with multiple fuels. The package adds two 1" x 3/4" NPT reducer bushings and two AA alkaline batteries, so it can go on a pump outlet or at the nozzle the day it arrives. It has an intrinsically safe design.
Fitment & Compatibility
Check your setup: 1" NPT ports, or 3/4" with the bushings supplied; line pressure at or under 50 PSI. Fluids Fill-Rite lists: diesel, gasoline, kerosene, mineral spirits, heptane.
Not for: DEF, herbicides or pesticides (Fill-Rite's TT10P chemical models cover those), and any fluid not on the TT10AN list. Fill-Rite labels it not for fluid resale.
About Fill-Rite
Fill-Rite is a Gorman-Rupp company that designs and builds transfer equipment for fuel, oil and chemicals: electric and hand-operated transfer pumps, plus the meters, nozzles, hose and filters that go with them. Its sites are in Fort Wayne, Indiana and Lenexa, Kansas.
Its transfer pumps are built around cast-iron rotary vane bodies, and Fill-Rite stands behind them with a tiered warranty that runs for the life of the pump castings, 5 years on the motor and 2 years on wear parts.
Buying Fill-Rite from Prestige Truck. Fill-Rite asks for proof of purchase with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Does the TT10AN fit 3/4" hose?
Yes, with the two 1" x 3/4" NPT reducer bushings Fill-Rite includes.
Are batteries included?
Yes, two AA alkaline batteries.
Can the TT10AN meter DEF?
No. Fill-Rite reserves DEF for its TT10P chemical models; the TT10AN is the fuel version with aluminum wetted parts.
Do I need to calibrate it?
It ships ready for common fuels: pick one of 20 preset fluid factors. Fill-Rite's ±1% rating applies after a field calibration with your fluid.
Will a battery change erase my totals?
No. The meter keeps its totals and calibration when you swap the two AA batteries.
How do I seal the threads?
Use thread compound or sealant tape sparingly. Fill-Rite prefers compound and warns that loose tape or compound upstream can jam the rotor.
Installation
- Thread compound or sealant tape
- T-20 Torx driver (turns the display)
Here's the short version. Follow Fill-Rite's manual (below) for the full procedure, wiring and safety steps.
- Use a compatible thread compound (preferred) or sealant tape on all threaded joints, sparingly; loose material upstream can jam the rotor.
- Point the arrow on the underside of the meter body in the direction of flow.
- Thread the hose or pipe into the ports until snug without cross-threading or over-tightening; use the supplied 1" x 3/4" bushings for 3/4" fittings.
- To turn the display, remove the rubber boot and the four module screws with a T-20 Torx driver, rotate the module 180° and keep the battery foam pad in place.
- Refit the four screws to 5-10 in-lb with the grounding tabs under the screw heads, then refit the boot.
- Select the calibration/fluid factor that matches your fluid from the 20 presets.
Stuck on a step?
Specifications
| Brand | Fill-Rite |
|---|---|
| Part Number | TT10AN |
| Model | TT10AN |
| Metering | Turbine, in-line |
| Flow range | 2 to 35 GPM (8 to 132 LPM) |
| Accuracy | ±1% (after field calibration) |
| Repeatability | 0.30% |
| Display | LCD, 4 digits |
| Max pressure | 50 PSI |
| Operating temperature | -40 to 140°F (-40 to 60°C) |
| Ports | 1" female NPT; 2 x 1" x 3/4" NPT reducer bushings included |
| Power | 2 AA alkaline (included) |
| Wetted materials | 304/316 stainless steel, aluminum, acetal, gold |
| Compatible fluids | Diesel, gasoline, kerosene, mineral spirits, heptane |
| Pulse output | No |
| Weight | 1.3 lb |
| Inlet | 1" female NPT (3/4" with reducer bushing) |
| Outlet | 1" female NPT |

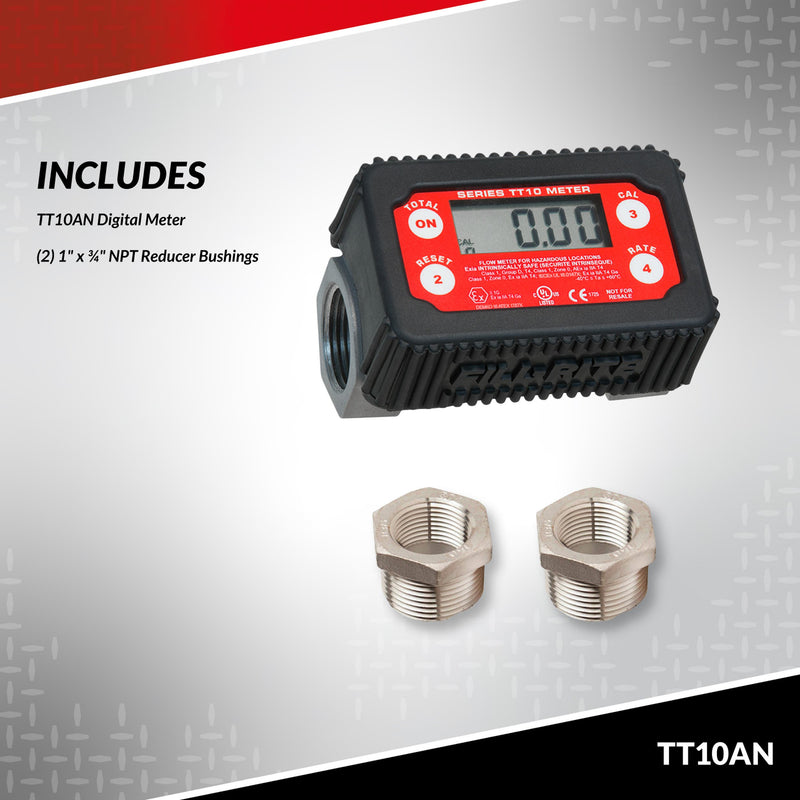

| Included | Meter, 2 x 1" x 3/4" NPT reducer bushings, 2 AA batteries |

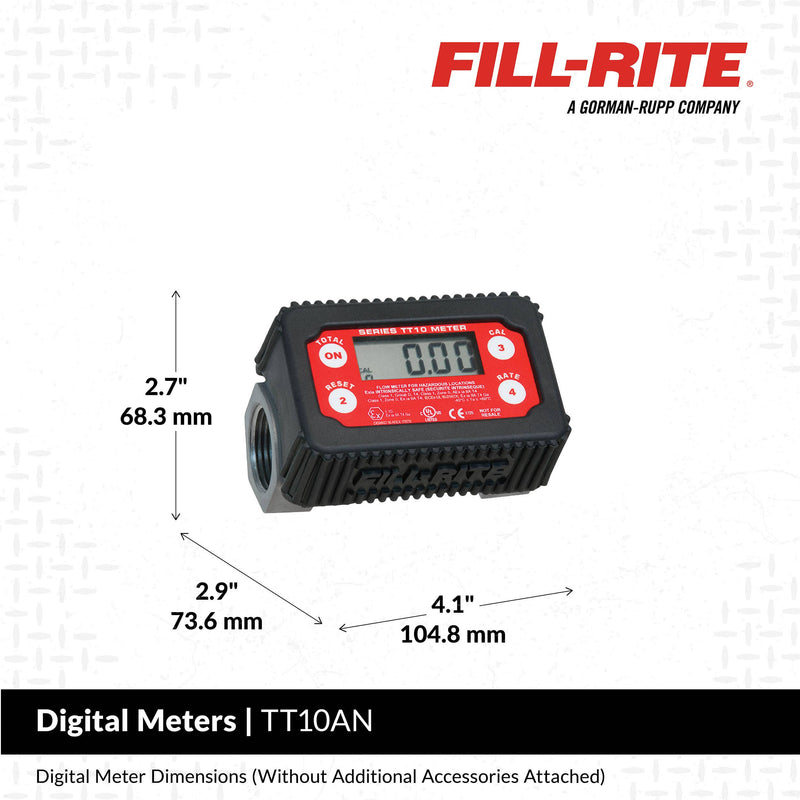

| Dimensions | 2.5" H x 4" W x 3" D |
| Shipping weight | 1.35 lb |
| UPC | 089404226285 |
