Gator SRX Soft Roll-Up Tonneau Cover for 2009-2024 Ram 1500/1500 Classic & Dodge 1500 (5'7" Bed, w/o RamBox)
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
See it on a truck
Tear-resistant vinyl
Features
- Hook-and-Loop Seal Stays Shut: Each side of the vinyl presses onto its rail with Gator's patented multi-tiered hook-and-loop strip, which Gator says holds firm in any weather. After you close the cover, run a hand along both rails to press the edges down.
- Sits Low and Flush: The side rails mount inboard, inside the bed walls, so the closed cover lies level with the top of the bed instead of riding above it. Built-in supports and rods under the vinyl help stop sagging, standing water and flapping at speed.
- Rolls Out Straight: Gator's stay-straight controls keep the roll tight and square, so the cover opens and closes evenly without pulling to one side or twisting. The rear trigger latch releases with one finger.

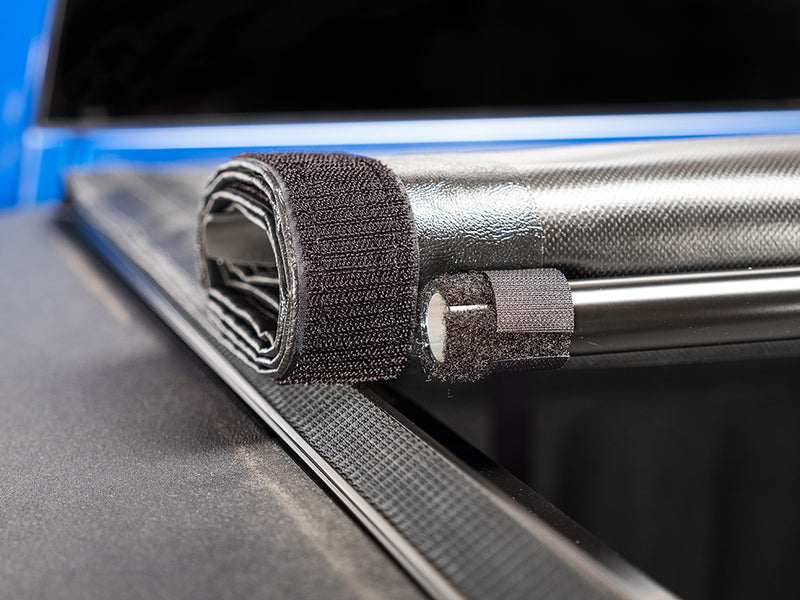

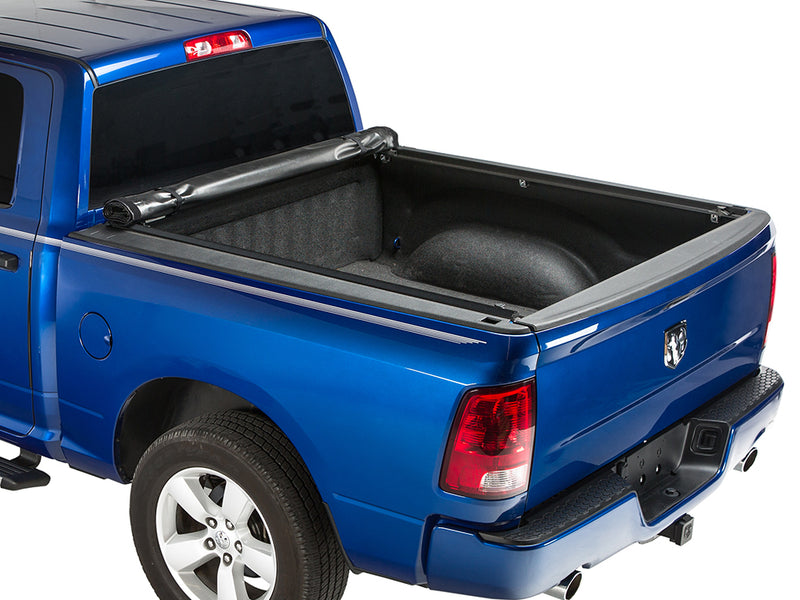

- Straps Up at the Cab: Release the rear latches and roll the cover to the cab to open the entire bed. Two built-in straps hold the roll in place, so you can drive with tall cargo on board; never drive with it partly rolled.
- Tear-Resistant Vinyl: The top is a vinyl that resists tears and weather, and a spring-loaded tension system keeps it taut through heat and cold with nothing to adjust by hand. Gator says the vinyl keeps its looks without fading.
- Clamps On, No Drilling: The rails clamp to the bed walls, and none of Gator's SRX install sheets call for drilling. Most trucks need just two wrenches. The 2019-23 Ranger adds metric wrenches for its brackets, and a few newer platforms (Tacoma, Ranger, Ridgeline) mount to factory rails or bolt points and add a ratchet, Torx bit or Allen key, listed on the sheet Gator includes for that truck.
Description & Fitment
The Gator SRX is a soft vinyl roll-up tonneau cover for the 5'7" bed on the 2009-2010 Dodge Ram 1500, the 2011-2018 Ram 1500 and the 2019-2024 Ram 1500 Classic, without RamBox. It suits owners who want a low cover that rolls to the cab and straps there for tall loads. The vinyl closes with a patented hook-and-loop seal, opens with a one-finger trigger latch and sits flush instead of above the rails. The rails clamp to the bed walls with no drilling, and Gator backs it with a 2-year limited warranty.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2009-2010 | 1500 | 5'7" | w/o RamBox |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2011-2018 | 1500 | 5'7" | w/o RamBox |
| 2019-2024 | 1500 Classic | 5'7" | w/o RamBox |
Check your fit: this is the 5'7" box on the older-body Ram 1500 (2009-2018, plus the 2019-2024 Ram 1500 Classic), WITHOUT RamBox. Measure along the bed rail from the bulkhead to the closed tailgate.
Not for: RamBox-equipped beds, the 6'4" box (SRX 1346993) or the 8' box (1348993). The new-body 2019 and newer Ram 1500 (not the Classic) takes 1385993.
About Gator
Gator makes truck bed covers in soft roll-up, soft tri-fold, hard folding and retractable styles, along with bed mats and floor liners. The brand started from one plain idea: a pickup bed should get protection that keeps working, season after season.
Gator builds its covers around everyday toughness and weather resistance, and it designs them for a home install. Every cover comes with Gator's install guide.
Buying Gator from Prestige Truck. Gator sells its covers only through authorized retailers, and Prestige Truck is an authorized Gator dealer. Every Gator cover we sell is new, genuine Gator product. Gator's warranty covers the original buyer and may ask for proof of purchase, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
I have a 2021 Ram 1500 Classic with a 5'7" bed. Does this fit?
Yes, if it has no RamBox. The Classic keeps the older body, which is what this part is listed for.
Will it fit my 2020 Ram 1500 Big Horn?
Only if it is a Ram 1500 Classic. The new-body 2019 and newer Ram 1500 5'7" bed takes SRX 1385993.
Is the SRX waterproof?
No soft cover is watertight. Bulkhead and perimeter seals and the hook-and-loop edges keep most rain out, and the supports under the vinyl stop water from pooling on top. To keep the edges sealed, press the hook-and-loop down along both rails each time you close it.
Can I drive with the cover rolled open?
Yes, once it is rolled all the way to the cab and held by both retainer straps. Driving with it partly open voids Gator's warranty, and the roll should never rest against the cab or rear window.
Does the SRX lock?
It has no key lock. The trigger latches sit under the cover at the tailgate, so with your tailgate locked it keeps cargo out of sight and deters casual theft. Vinyl can be cut, so it is not a hard security cover.
How do I clean and care for the vinyl?
Wash it with mild car soap and water, using a soft brush if needed. Don't use vinyl conditioners: Gator says they shrink the vinyl. Keep cargo from pushing up against the top, and brush off snow and ice before you roll it open.
Installation
- 9/16" wrench or socket
- 1/2" wrench or socket
Here's the short version. Follow Gator's install sheet (below) for your truck's exact steps.
- Clean the rail ends with isopropyl alcohol and stick the foam weather seals to each end of both side rails.
- Tailgate closed: set the driver rail on the bed rail, slide it back until the rear seal just compresses on the tailgate, seal flush with the bed caps.
- Fit three clamps starting in the middle (about 8" from each end), finger tight so the teeth engage, then tighten with a 1/2" wrench.
- Level the rails with the bed caps by moving the clamps up or down; repeat on the passenger rail.
- Fit the tension blocks (holes 2 & 3 in the cut-out, hole 4 on top toward the cab) against the front header; pin through hole 2.
- Pull the front header end plugs, slide the bolts into the header both sides, refit the plugs.
- Gator Soft Roll-Up Tonneau Cover Standard install sheet (PDF)
- Gator Soft Roll-Up Tonneau Cover Tension Block Supplemental install sheet (PDF)
Stuck on a step?
Specifications
| Brand | Gator |
|---|---|
| Part Number | 1345993 |
| Cover Type | Soft roll-up |
| Top Material | Tear- and weather-resistant vinyl, vinyl-grain finish |
| Side Closure | Patented multi-tiered hook-and-loop |
| Tension | Spring-loaded automatic tension control |
| Latching | Rear trigger latches |
| Rails | Inboard-mounted, low profile |
| Seals | Bulkhead and perimeter seals |
| Bed Access | Full bed when rolled to the cab; straps hold it open |
| Stake Pockets | Stay accessible |
| Mounting | Clamp-on, no drilling |
| Bed Length | 5'7" |
| UPC | 845742021636 |
More media
2 videosWarranty, shipping & returns
-
Warranty
Gator backs the SRX with a 2-year limited warranty against defects in materials and workmanship.- The hard parts (rails, clamps and bows) and the vinyl fabric are each covered for 2 years from the original purchase date.
- If a cover, tarp or hardware part is defective, Gator repairs or replaces it at its choice, and may substitute a newer model of similar form and function.
- Coverage is for the first buyer and can't be transferred. Gator may ask for proof of purchase, such as a dated, itemized receipt, so keep your order receipt.
- To keep it valid: wash with mild car soap and water only, and skip vinyl conditioners; drive only with the cover fully closed and latched, or rolled to the cab with both straps on; keep cargo from pressing on the vinyl; don't roll or stow it against the cab or rear window, and re-roll it now and then if it stays open a long time; re-check the rail clamps after the first week and now and then after that; clear snow and ice before opening; and take the cover off before the truck is towed from the rear.
- Claims need a return authorization number before anything is sent back. Gator may ask for the part, postage prepaid, to inspect it, and shipping for a repair or replacement is at the owner's cost; Gator charges nothing else for a covered repair or replacement.
- Not covered: accident damage, neglect, unforeseeable use, improper installation or servicing, or anything not caused by a defect in material or workmanship. Your state may give you other rights as well.
- For a claim or help registering your warranty, contact us with your order number and photos of the problem, and we'll walk you through Gator's process.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
This cover ships rolled in a long box, so check the vinyl for cuts and the side rails for bends before you install it. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
