This Go Rhino VoltStep listing covers the 2022-2026 Toyota Tundra. LED lamps light the step area whenever the boards are out, and an interior switch overrides the automatic function for car washes or loading cargo. It is offered in textured black and bedliner coating under Go Rhino part numbers 20444587PC and 20444587T.

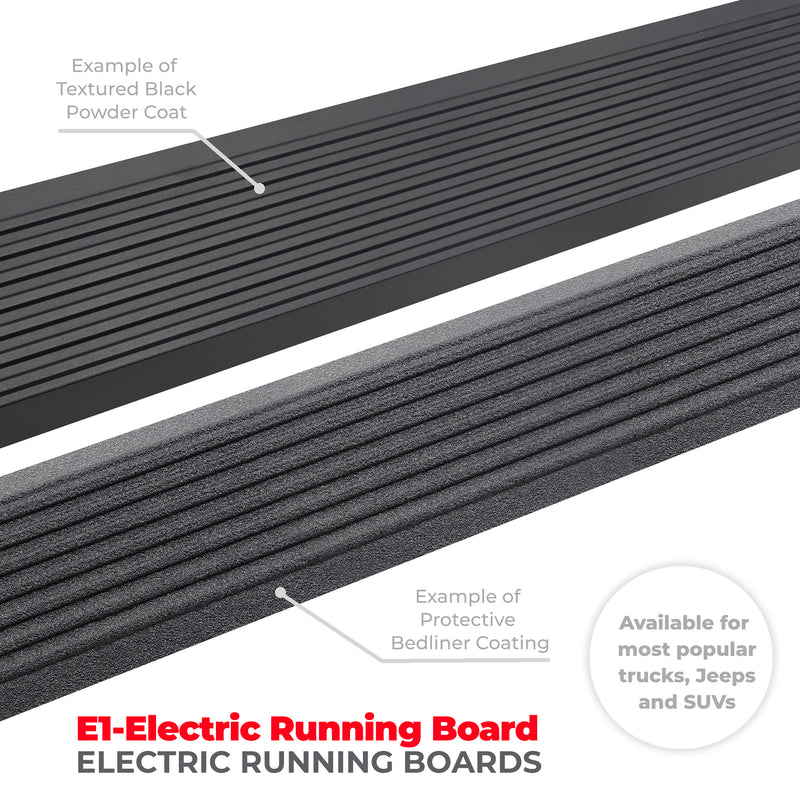

Choosing your finish:
-
Finish, Textured Black: Textured black powder coat on the aluminum board, a durable finish that resists corrosion.
-
Finish, Bedliner Coating: A protective bedliner-style coating on the aluminum board for a rugged, textured look.

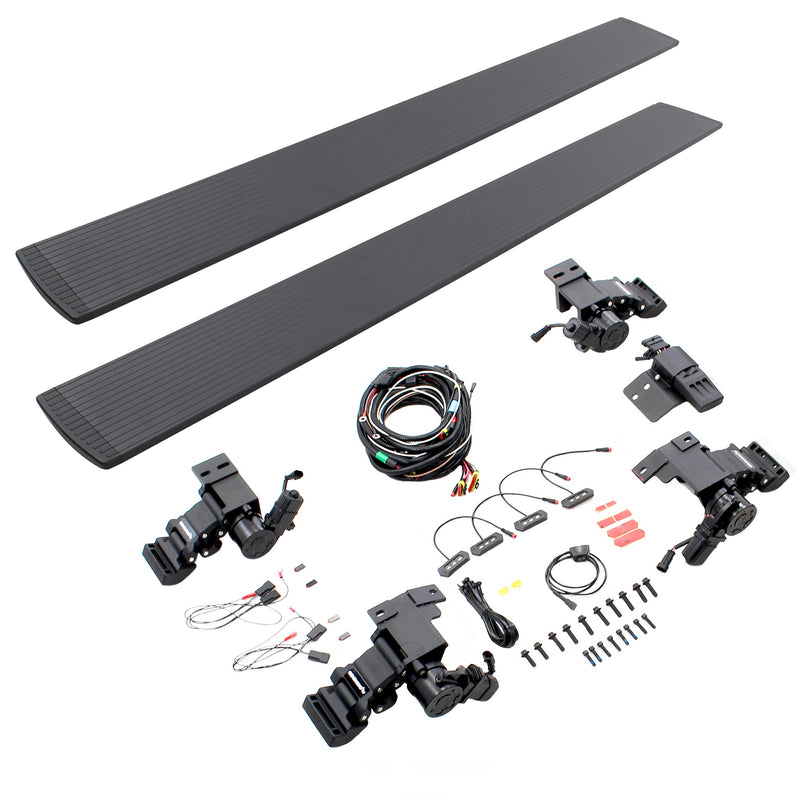

What's Included:
- Driver and passenger side aluminum running boards
- Four electric motor assemblies, two per board
- Control module and wiring harness with fuses
- Wired magnetic door sensors and door magnets
- LED step lamps
- Manual override switch
- Vehicle-specific mounting hardware, plus brackets on applications that use them
- Go Rhino installation guide
The number of door magnets and LED lamps follows the doors on the vehicle, so a 2-door application includes two of each; the guide for each part number lists its exact parts.
Features
Deploys When a Door Opens
Magnetic sensors at the doors trigger the boards. Open a door and the steps move into position for entry; close the doors and they retract beneath the rocker panels.
Two Motors per Board
Each board is driven by two electric motors, which Go Rhino specifies to keep the steps working through snow and slush.
Automatic Safety Stop
An automatic safety-stop system halts the board when it meets an unexpected obstruction, protecting the step and the people around it.
LED Lighting on the Step

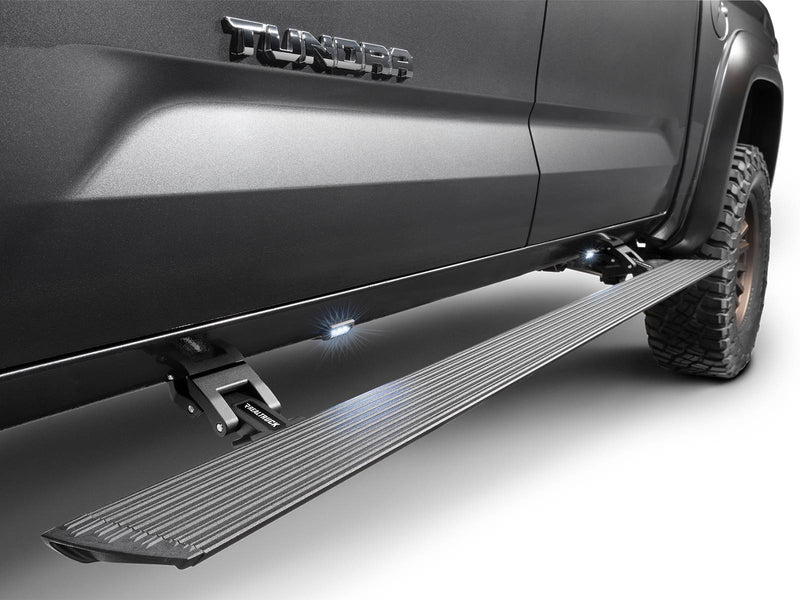

LED lamps mounted under the rocker panels light the step area when the boards are deployed, so footing is easy to see at night.
Override Switch Inside the Cab
An interior bypass switch turns off the automatic step function for car washes, loading cargo or any time you want the boards to stay put.
Aluminum Step, Sealed Ends
The boards are lightweight, high-strength aluminum alloy with a ribbed, board-length 6" step, finished in a textured coating and sealed at the ends with molded nylon end caps.
Tucks Away While Driving
Retracted, the boards sit beneath the rocker panels, keeping the vehicle's body lines and ground clearance clean when no one is getting in or out.
Fitment & Compatibility
Fit guidance: Fits the 2022-2026 Toyota Tundra, with the cab and equipment notes shown in the table. Every finish on this page fits these vehicles.
Cab and equipment: CrewMax
Specifications
-
Brand: Go Rhino
-
Series: VoltStep
-
Type: Powered retracting running boards, two motors per board
-
Step material: Aluminum alloy
-
Step width: 6"
-
Length: Cab length
-
Activation: Magnetic door sensors, automatic deploy and retract
-
Lighting: LED step lamps
-
Override: Interior bypass switch
-
Rated voltage: 12V
-
Load rating: 600 lb per side
-
Mounting: Under the rocker panels, vehicle-specific kit
-
Warranty: 5-year limited
-
Finishes: Textured Black, Bedliner Coating
-
Part numbers: 20444587PC (Textured Black); 20444587T (Bedliner Coating)
Installation
Type: Powered, wired installation · Mount: under the rocker panels, on a vehicle-specific kit · Power: 12V battery connection · Drilling: some applications call for a wiring pass-through hole or chasing mounting holes (the guide for each part number says) · Professional installation recommended
VoltStep is a wired installation. The motors bolt under the rocker panels and the boards attach to the motor linkages, the harness runs along the frame to the control module and the battery, and interior trim comes off so the door sensor wires can be routed to the door jambs, where the sensors pair with magnets on the doors. Go Rhino recommends professional installation, and the guide for each part number lists the tools, parts and steps for that vehicle.
Resources
An installation guide for this part number is not available to download. Our team can answer installation questions before you order; contact us with the part number.
Warranty, Shipping & Returns
Warranty. VoltStep electric running boards carry a 5-year limited warranty. For a claim, Go Rhino asks for a copy of the purchase receipt, a photo of the issue and a photo of the vehicle the boards are installed on, and every warranty return needs an approved RGA number.
Shipping. The boards, motors and wiring ship together in a long carton by ground carrier. The carrier and service are chosen by the size and weight of the carton when the order ships.
Inspect on delivery. Open the carton when it arrives and check the boards, all four motors, the harness, sensors, magnets and lamps against the parts list in the Go Rhino guide before you start. Note any visible carton damage on the delivery receipt and photograph it, because damage reported later is much harder to claim.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
