A direct swap for the factory fog lights on a Toyota Tundra Gen 3 2022+, and the emphasis is on direct. The kit contains two NACHO Quatro SAE amber lights, two vehicle-specific mounting brackets and OEM connectors that plug straight into the factory fog light plug. No cutting, no trimming, no splicing into the vehicle harness.
That matters for two reasons. The factory switching stays intact, so the fog lights operate from the stock control exactly as they did before. And because nothing is cut, the whole thing is reversible, which is worth something on a leased or warrantied vehicle.
The polyester powder coated steel mount fits to the factory mount threads and uses the factory mounting hardware, and a branded silicone filler cone surrounds the light and compresses against the factory fog bezel to finish the installation.
The Quatro SAE runs an SAE J583 compliant fog beam, and it keeps the Trail Running Light feature. A light connector and fuse tap harness are included to power the running light from an auxiliary circuit.

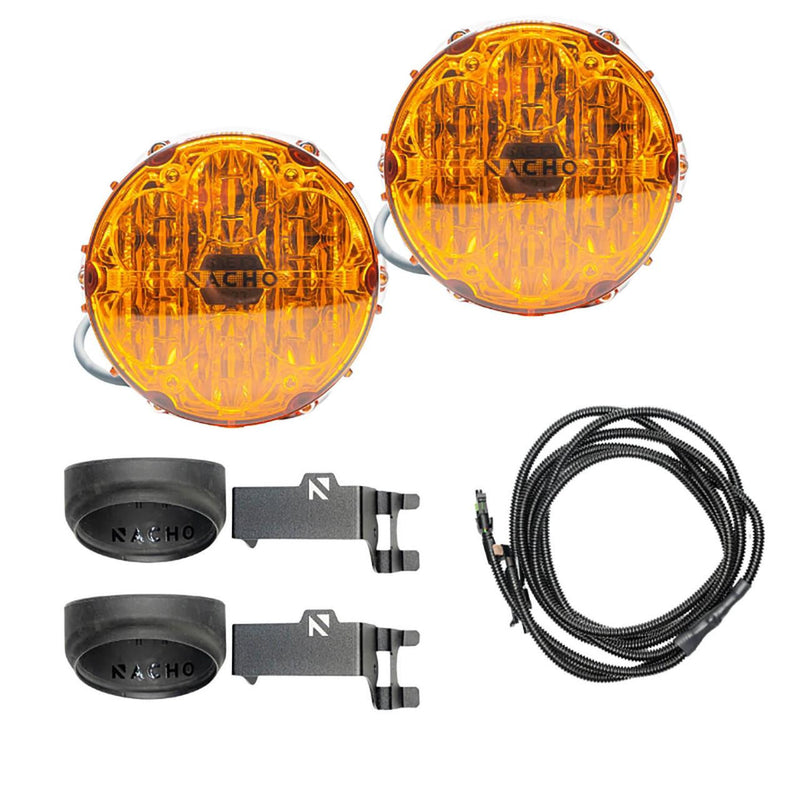

What's Included:
- Two NACHO Quatro SAE amber lights
- Two vehicle-specific mounting brackets
- OEM fog light connectors
- Light connector and fuse tap harness for the Trail Running Light
- Two branded silicone filler cones
Features
Plugs Into The Factory Fog Light Connector
OEM connectors mean the lights plug straight into the factory fog light plug. Factory switching is retained and the vehicle harness is not cut.
No Cutting Or Trimming
NACHO builds these kits specifically so nothing is modified. That keeps the install reversible and avoids the spliced joints in a wet bumper cavity that cause faults years later.
Vehicle Specific Brackets
The brackets are pressed for the Toyota Tundra mounting points rather than being universal plates bent to fit, which is why this kit is sold by vehicle rather than as a generic pair of lights.
SAE J583 Compliant Fog Beam
The Quatro SAE runs a beam pattern certified to SAE J583, the US front fog lamp standard, so this is a fog light upgrade rather than an off-road pod in a fog light position.
Trail Running Light Retained
The Quatro SAE keeps its Trail Running Light, and the kit includes a light connector and fuse tap harness to power it from an auxiliary circuit.
Everything Needed In The Box
Lights, brackets, OEM connectors and the running light harness. There is nothing else to source, which is the point of a plug and play kit.
Fitment & Compatibility
| Application |
Fit |
| Toyota Tundra Gen 3 2022+ |
✓ Direct fit |
| Vehicles with factory fog lights |
● Required, the kit plugs into the factory fog light connector |
| Other makes and models |
✗ Does not fit, the brackets and connectors are vehicle specific |
| Same platform with the single-piece bumper |
● Check the bumper type, NACHO sells separate kits for each |
Fit guidance: THIS IS A VEHICLE SPECIFIC KIT. It fits the Toyota Tundra Gen 3 2022+ and nothing else, because the brackets are pressed for that vehicle's mounting points and the connectors match that vehicle's factory fog light plug. Your vehicle must have factory fog lights for the plug and play connection to work. If you are unsure which bumper you have, send us a photograph and we will confirm before you order.
Specifications
-
Model: NACHO Quatro SAE Plug N Play Fog Light Kit, Amber
-
Part Number: V3TO1KASO
-
Vehicle: Toyota Tundra Gen 3 2022+
-
Lens Color: Amber
-
Quantity: Pair, plus brackets and harness
-
Light Model: NACHO Quatro SAE 4"
-
Beam: SAE J583 compliant fog beam
-
Running Light: Trail Running Light with fuse tap harness
-
Connectors: OEM fog light connectors
-
Installation: No cutting or trimming required
-
Shipping Weight: 6 lb
-
Warranty: Lifetime against manufacturing defects
-
UPC: 850051761418
Installation
Type: Direct replacement of the factory fog lights, plug and play · Time: 45 minutes to 90 minutes for the pair · Tools: Socket set, trim removal tools, and a fuse puller for the Trail Running Light tap · Difficulty: Easy
The fog lights come out, the brackets and NACHO lights go in, and the OEM connectors plug straight back into the factory plugs. The only wiring is the fuse tap for the Trail Running Light, which needs an auxiliary circuit in the fuse box. Nothing is cut at any stage.
Warranty, Shipping & Returns
Warranty. NACHO states a lifetime warranty against manufacturing defects on this product, and the distributor record independently lists the warranty term as Lifetime. Those are the two sources available and they agree. In North America it is supported through ARB (Air Locker Inc., Auburn, WA) and honored through authorized dealers like us. We describe the warranty exactly as the manufacturer publishes it and do not extend or restate its terms.
Free shipping. This item ships free to the lower 48 states and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect your order on arrival. If anything is damaged or missing, contact us right away and we will make it right.
Compliance. The NACHO Quatro SAE runs a beam pattern certified to SAE J583, the US front fog lamp standard. The Quatro platform carries IP68 ingress protection and an SAE J575 vibration rating.
