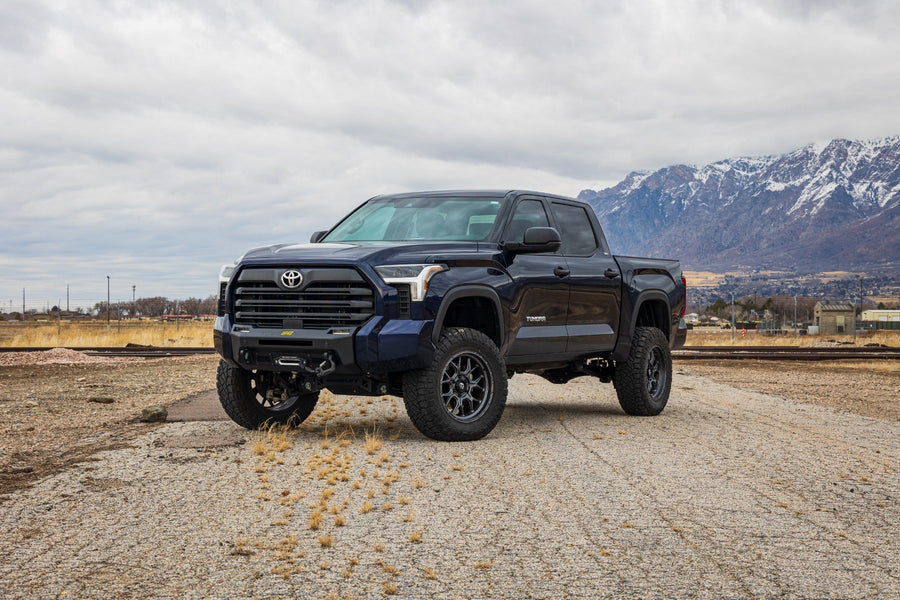

The ReadyLIFT 6" MAX3.3 Suspension System combines a tall lift with Falcon performance shocks chosen for this truck. It suits daily driving, towing and off-road trips alike. ReadyLIFT system 42-52640 is engineered for the 2022-2026 Toyota Tundra.

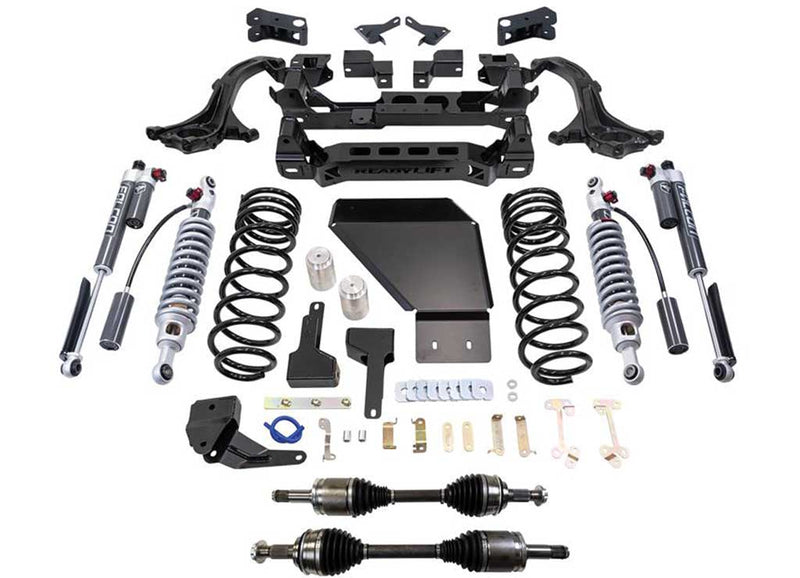

What's Included:
| Kit components (ReadyLIFT) |
|---|
| Tundra left sway bar drop bracket |
| Tundra right sway bar drop bracket |
| Tundra rear geometry correction bracket |
| Rear shock centering ring |
| 6" Rear Coil Spring |
| Knuckle, Left Hand Side |
| Knuckle, Right Hand Side |
| Falcon MAX 3.1 Tundra front left assembly |
| Falcon MAX 3.1 Tundra front right assembly |
| Falcon MAX 3.1 Tundra rear left assembly |
| Falcon MAX 3.1 Tundra rear right assembly |

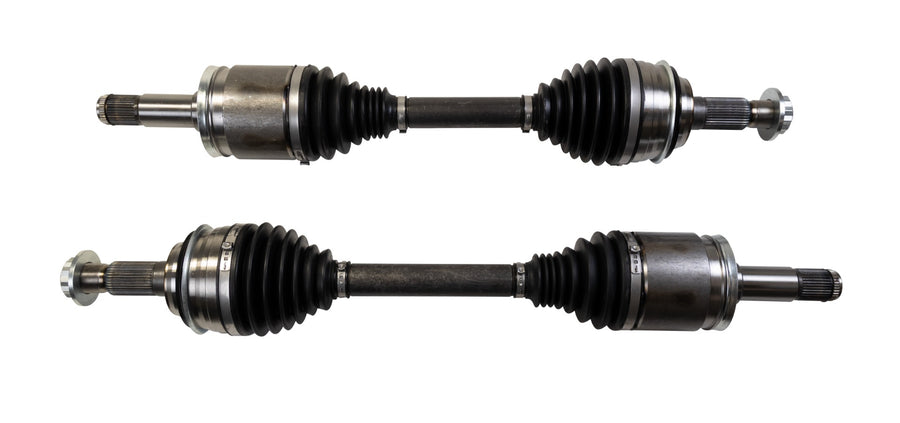

| CV axle kit |
| Front Crossmember |
| Rear Crossmember |
| Skid Plate |
| Front Sway Bar Drop, Left |
| Front Sway Bar Drop, Right |
| Front Brake Line Bracket, Right 2 |
| Front Brake Line Bracket, Right 1 |
| Front Brake Line Bracket, Left 1 |
Wheels, tires, alignment, headlamp aiming, ADAS recalibration and any trimming labor are not included.
Features
Falcon shocks in every system
Every system in this line includes Falcon performance shocks, ReadyLIFT's own damper line, selected for the truck and the lift height.
Tall lift, large tires
These systems deliver big-lift height and clear a large tire package. ReadyLIFT lists the tested tire size for each truck.
Geometry kept in check
Heavy-duty brackets, crossmembers, knuckles, radius arms or track bar brackets reposition the suspension so it works at the new height.
Tuned for mixed duty
ReadyLIFT pitches Falcon-equipped systems for daily driving, off-road trips and tow or haul work on the same truck.
Complete system per truck
Each system is engineered for one platform and ships with the components listed in its kit contents.
Fitment & Compatibility
Fit guidance: Fits: 2022-2026 Toyota Tundra, with the qualifiers shown. Check your vehicle's trim, drivetrain and factory suspension against these notes before ordering.
Qualifier: Not for TRD Pro trim
ReadyLIFT fit notes for this part
| Not compatible with Tundra TRD Pro w/ Bilstein coilovers, iForce Max Hybrid, AVS (Advanced Vehicle Suspension) and TRD rear sway bar |
Specifications
-
Brand: ReadyLIFT
-
Series: Falcon
-
Shocks: Falcon performance shocks included
-
Warranty: ReadyLIFT No Hassle warranty, original purchaser; shocks and other wear parts up to 1 year
-
Lift height: 6"
-
Install time (ReadyLIFT estimate): about 12 hours (give or take 1), alignment and wheel mounting extra
-
Shipping weight: 480 lb
-
Kit type: Suspension system
-
Largest tire: 37" (with trimming)
-
Alignment required: Yes, after installation
-
Install difficulty: Professional install recommended
-
Part number: 42-52640
Tire fitment (ReadyLIFT's published guidance for this kit)
| Allows for 5.75" backspace (18-20mm Offset) on 20x9 with 35" tires |
| Max tire with trimming 5.5" backspace (10-13mm Offset) on 20x9 with 37" tires |
Tire and wheel sizes vary by manufacturer, so test-fit your combination before installation.
Installation
Type: premium suspension lift · Install: involved, per-vehicle install sheet · Afterward: alignment, headlamp aim, ADAS check
This system installs using the steps in ReadyLIFT's instructions for this truck, including any trimming the instructions call for. Plan on a wheel alignment after installation and have headlamp aim checked. Vehicles with camera, radar or sonar driver-assistance systems need those systems checked and recalibrated, which can require dealer tools. ReadyLIFT recommends installation by a certified mechanic and says to read the full instructions before starting. Tire sizes are ReadyLIFT guidance based on specific wheel and tire brands, so test fit every combination. Larger E-rated tires have stiffer sidewalls than stock C-rated tires and can make the ride feel firmer.
ReadyLIFT estimates about 12 hours for this kit, give or take 1 hour, not counting the alignment or mounting wheels and tires.
ReadyLIFT's installation instructions for this part number are linked under Resources. Read them fully before starting.
Resources
Warranty, Shipping & Returns
Warranty. ReadyLIFT backs this product with its No Hassle warranty for the original purchaser: if a part breaks or arrives defective, ReadyLIFT ships a replacement, and a claim starts with a call to 800-549-4620. Wear items such as the included shocks, ball joints and bushings are covered for up to one year. Damage caused by off-road abuse voids coverage. Discontinued, clearance and outlet items are excluded, as are labor, installation charges and consequential vehicle damage. Shipping. The carrier and ship method are set by the size and weight of the cartons when the order is placed; larger kits ship by freight. Inspect on delivery. Check every box and part against the kit component list when it arrives, and report any shortage or shipping damage before installation begins.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
