Rigid D-XL Spot A-Pillar Kit for 2020-2027 Chevy Silverado & GMC Sierra 2500/3500 HD
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Complete A-pillar kit: A pair of pods and brackets made for one vehicle come as one Rigid kit, so the setup looks planned rather than pieced together.
- Vehicle-specific brackets: The brackets are made for one vehicle's A-pillars and use its own bolt points.
- Rigid LED pods: The kit is built on a pair of Rigid's own LED pods; the title and Specifications name the series and beam.
- Stainless steel brackets: Rigid makes the brackets in stainless steel with a powder coat rated for UV and abrasion.
- Mounted at the windshield line: The pods sit at the base of the windshield, high enough to throw light over the hood.
- Limited Lifetime warranty: Rigid backs the lights with its Limited Lifetime Warranty against manufacturing defects.
Description & Fitment

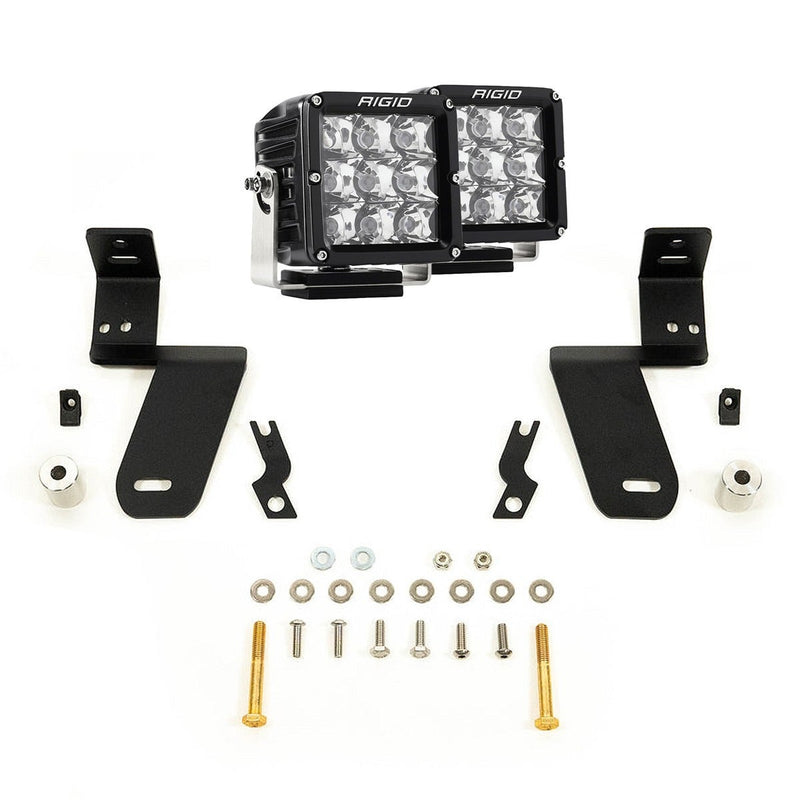

The Rigid D-XL Spot A-Pillar Kit puts a pair of D-XL pods on vehicle-specific stainless steel brackets at the A-pillars of the 2020-2027 Chevrolet Silverado 2500 HD/3500 HD and GMC Sierra 2500 HD/3500 HD. It is for heavy-duty owners who want long-throw spot lighting mounted at the windshield line. The D-XL is Rigid's long-throw cube pod, and its spot optics favor distance over spread at 68 watts and 7,128 raw lumens. A relay harness with switch, vibration isolators and mounting hardware are included, and the install calls for trimming a cowl end cap.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2020-2027 | Silverado 2500 HD | — | |
| 2020-2027 | Silverado 3500 HD | — |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2020-2027 | Sierra 2500 HD | — | |
| 2020-2027 | Sierra 3500 HD | — |
Check your fit: 2020-2027 Chevrolet Silverado 2500 HD and Silverado 3500 HD and 2020-2027 GMC Sierra 2500 HD and Sierra 3500 HD. Ships with two D-XL pods.
Not for: Model years outside the range above: the body changes between generations, so other years need a different part. Same vehicle, other lights: 46785 (D-SS pods, spot); 46787 (4" 360-Series pods, spot). Other vehicles in this range use their own part numbers (46705, 46703, 46707, 46710, 46711, 46759, 46760, 46761, 46762, 46766, and more). Road use: Rigid lists no SAE beam for these lights, so they are for off-road use only.
About Rigid Industries
INDUSTRIES.
Rigid Industries started in Gilbert, Arizona in 2006 as a seller of powersports parts. Its engineers decided halogen and HID lamps were holding drivers back and went after a better light, and the company credits that work with its patented Hybrid Optical System and with launching the first LED light bar.
Rigid has since built lighting with OEM partners including Toyota, Ford and Polaris, and it says its lights are made to pass demanding OEM test standards. The range now runs from compact pods and round lights to curved and straight light bars, SAE street-legal lights and vehicle kits. Rigid is part of Clarience Technologies, a group of vehicle lighting, vision and safety brands.
Buying Rigid from Prestige Truck. We are an authorized Rigid dealer, and every Rigid light we sell is new, genuine Rigid product. Rigid's warranty protects the original buyer with proof of purchase and does not extend to lights bought from unauthorized third-party marketplace sellers, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Which vehicles does it fit?
The 2020-2027 Chevrolet Silverado 2500 HD and Silverado 3500 HD and 2020-2027 GMC Sierra 2500 HD and Sierra 3500 HD. Other years use a different Rigid part.
How hard is the install?
Rigid's sheet calls for trimming a cowl end cap, and puts the time at about 1.5 hours, not counting wiring. Rigid recommends a professional installation; the steps are in the Installation tab.
Is everything in one box?
This is one Rigid kit: a pair of pods with A-pillar brackets made for this vehicle. The summary at the top of this page gives Rigid's box list for this kit (hardware, harness, switch, covers), or says so when Rigid no longer publishes one.
Is this kit street legal?
No. Rigid lists the pods in this kit for off-road use only, so keep them switched off on public roads.
What does the warranty cover?
Rigid's Limited Lifetime Warranty covers the lights against manufacturing defects for the original buyer with proof of purchase; Rigid limits powder coating and lenses to 1 year. The Warranty section below has the full terms.
How should I clean the lens?
With mild soap and water or mineral spirits. Rigid's polycarbonate lenses can be damaged by ammonia-based cleaners and by road salt left on them, and that damage isn't covered, so avoid glass cleaners and automatic car washes and rinse salt off with fresh water.
Installation
- 10mm and 13mm short sockets
- 13mm offset ratcheting wrench
- 1/4" ratchet and extension
- T30 Torx bit
- 4mm hex drive
- Hood prop
- Flush-cut pliers
- Razor blade
- Masking tape
Here's the short version. Follow Rigid's install sheet (below) for the exact positions, wiring and hardware.
- Cut the power first. Disconnect any power source connected to the vehicle before you touch fuses or wiring.
- Prep. Check the parts, stick the silicone pads on the mounts, clip the barrel nuts onto the support brackets, tape the hood and fender, then remove the antenna and the foam cowl end caps, prop the hood and take out the two 10mm antenna-mount bolts.
- Driver mount. Remove the 13mm bolt and the T30 Torx bolt the sheet marks, lower the mount between hood hinge and fender, and start the M8 bolt and washer through the lower slot with the aluminum spacer and O-ring between mount and hinge.
- Support bracket. Fix the support bracket with the M6 bolt and washer, join it to the mount with the 1/4" bolt, set the top of the mount level and tighten everything.
- If the hinge bolt is hard to reach. The sheet's alternative on later trucks is to pull back the fender liner and fit the spacer and bolt from underneath.
- Passenger side. Repeat on the passenger side, then tighten the two antenna-mount bolts.
Stuck on a step?
Specifications
| Brand | Rigid Industries |
|---|---|
| Part Number | 46786 |
| Product | Vehicle-specific A-pillar light kit (pod pair, brackets) |
| Voltage | 9V-36V DC |
| Road use | Off-road use only (no SAE beam on this kit's pods) |
| Beam | Spot |
| Lumens | 7,128 raw (Rigid) |
| Watts | 68 |
| Amp draw | 4.86 at 14V |
| SAE compliant | No (off-road use only) |
| Weight | 8 lbs |
| UPC | 849774037405 |
More media
2 videosWarranty, shipping & returns
-
Warranty
Rigid backs this light with its Limited Lifetime Warranty, which protects the original buyer against manufacturing defects as long as you can show proof of purchase.- Rigid sets time limits inside that cover: 5 years when the light is used in commercial, marine or industrial work (heavy-duty settings such as agriculture, mining or manufacturing), and 1 year on powder coating and lenses.
- If Rigid confirms a defect, it replaces the item, refunds it or issues store credit, at its discretion. Rigid may ask for photos or video before it approves a claim.
- Not covered: normal maintenance, service or adjustment; opening the light or breaking its water-tight seal, such as taking off the bezel or its screws (unless the light is built for lens swaps); accidents, alteration, misuse, neglect, abuse, vandalism or physical damage; repairs or changes made by anyone other than Rigid; improper installation, including electrical damage from it, or not following Rigid's instructions; use that goes against Rigid's warnings, labels or documentation; use with equipment or parts Rigid didn't make; fire, flood, lightning and other natural events; harsh road hazards, excessive heat and wear beyond normal; and damage caused by the delivering carrier.
- Lens care: the polycarbonate lens can be damaged by ammonia-based cleaners and, over time, by road salt, and Rigid does not cover either. Clean it with mild soap and water or mineral spirits, rinse salt off with fresh water, and skip automatic car washes, whose soap may contain ammonia.
- Rigid gives no other express or implied warranty, including merchantability or fitness for a particular purpose, and is not liable for indirect, special, incidental or consequential damages. Rigid also states that some of its lights are built and sold only for off-road driving.
- Rigid's warranty does not apply to products bought from unauthorized sellers on third-party marketplaces. To make a claim, contact us with your order number and photos of the problem, and we'll take it through Rigid's process with you.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Check both pods for cracked lenses and make sure the two brackets, hardware, harness and switch named on the listing are in the carton. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
