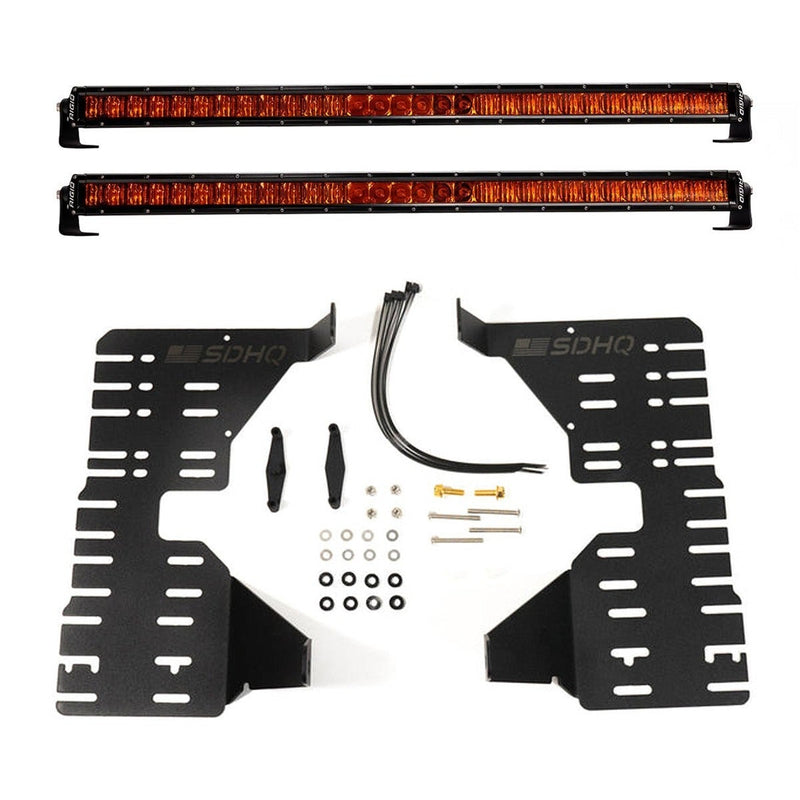

Rigid SR-Series 30" Amber PRO Behind the Grille Kit: amber-lens single-row LED light bar shown front and back, black grille mounting plates and hardware, on white

Rigid SR-Series 30" Amber PRO Behind the Grille Kit for 2022-2026 Toyota Tundra & Sequoia

$2,209.99
FREE SHIPPINGNo sales tax Only 1 leftIn stock now  Estimated delivery
Verify fitment with your vehicle
GO
Clear
  • Guaranteed FitmentTeam-confirmed fit or money back
  • No Sales TaxZero sales tax on every order
  • 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Prestige Truck customer support

Questions or a custom quote?

Mon to Fri, 9am to 5pm EST

+1 (470) 823-2453 Email Us

Features

  • Vehicle-specific kit: The kit pairs a Rigid light with mounts made for one vehicle.
  • Rigid's install sheet: Rigid's sheet for this kit sets out the mounting and wiring; the summary above notes any cutting or drilling it calls for.
  • One Rigid kit: The light and mounts come as one Rigid kit; the summary above gives Rigid's box list.
  • Rigid LED light included: The title and Specifications name the Rigid light series and beam in this kit.
  • Stainless steel brackets: The brackets are stainless steel with a powder coat Rigid rates for UV resistance.
  • Off-road lighting: Rigid lists the lights in this kit for off-road use unless the SAE compliant row says otherwise.

Description & Fitment

The Rigid SR-Series 30" Amber PRO Behind the Grille Kit places two SR-Series bars at the grille of the 2022-2026 Toyota Tundra and the Toyota Sequoia. It is for owners who want slim off-road lighting tucked behind the factory grille. The amber lens cuts glare in dust and rain, and the SR-Series is Rigid's slim single-row bar. The behind-grille bracket, a relay harness with switch and mounting hardware are included, the grille is not, and the install needs no cutting or drilling and takes about 1.5 hours, not counting wiring.

Fitment & Compatibility

Toyota
Years Model Bed Notes
2022-2026 Tundra —
2023-2026 Sequoia —

Check your fit: 2022-2026 Toyota Tundra and 2023-2026 Toyota Sequoia. Ships with two SR-Series bars.

Not for: Model years outside the range above: the body changes between generations, so other years need a different part. Same vehicle, other lights: 46809 (SR-Series bar, Amber PRO plus spot/flood); 46811 (Radiance+ bar, Radiance+ backlit). Other vehicles in this range use their own part numbers (20643, 46724, 46726, 46727, 46763, 46764, 46765, 46772, 46773, 46774, and more). Road use: Rigid lists no SAE beam for these lights, so they are for off-road use only. The grille is not included.

About Rigid Industries

RIGID
INDUSTRIES.

Rigid Industries started in Gilbert, Arizona in 2006 as a seller of powersports parts. Its engineers decided halogen and HID lamps were holding drivers back and went after a better light, and the company credits that work with its patented Hybrid Optical System and with launching the first LED light bar.

Rigid has since built lighting with OEM partners including Toyota, Ford and Polaris, and it says its lights are made to pass demanding OEM test standards. The range now runs from compact pods and round lights to curved and straight light bars, SAE street-legal lights and vehicle kits. Rigid is part of Clarience Technologies, a group of vehicle lighting, vision and safety brands.

Buying Rigid from Prestige Truck. We are an authorized Rigid dealer, and every Rigid light we sell is new, genuine Rigid product. Rigid's warranty protects the original buyer with proof of purchase and does not extend to lights bought from unauthorized third-party marketplace sellers, so keep your Prestige Truck order receipt with your records.

Frequently Asked Questions

Which vehicles does it fit?

The 2022-2026 Toyota Tundra and 2023-2026 Toyota Sequoia. Other years use a different Rigid part.

How hard is the install?

Rigid's sheet lists no cutting or drilling, and puts the time at about 1.5 hours, not counting wiring. Rigid recommends a professional installation; the steps are in the Installation tab.

Is everything in one box?

This is one Rigid kit: the light and the mounts made for this vehicle. The summary at the top of this page gives Rigid's box list for this kit, or says so when Rigid no longer publishes one.

Is this kit street legal?

Only if the SAE compliant row in Specifications says so for this kit. Rigid lists any light without an SAE rating for off-road use only, so keep it switched off on public roads.

What does the warranty cover?

Rigid's warranty against manufacturing defects for the original buyer with proof of purchase. The Warranty row in Specifications gives Rigid's term for this kit, and the Warranty section below has the full terms.

How should I clean the lens?

With mild soap and water or mineral spirits. Rigid's polycarbonate lenses can be damaged by ammonia-based cleaners and by road salt left on them, and that damage isn't covered, so avoid glass cleaners and automatic car washes and rinse salt off with fresh water.

Installation

Install time About 1.5 hours, not counting wiring
Recommended installationProfessional
What's involvedFront bumper cover and grille shutters come off, the light bar mounts to the core support behind the grille
ToolsPlastic pry tools, clip removal tool, 10mm, 14mm and 7/16" sockets, ratchet, 1/8" hex key, 3/8" wrench

Here's the short version. Follow Rigid's install sheet (below) for the exact positions, wiring and hardware.

  1. Cut the power first. Disconnect any power source connected to the vehicle before you touch fuses or wiring.
  2. Flares loose. Open the hood, remove the six 10mm flare bolts and the liner bolt below them, and unclip the flare from the bumper, leaving it on the fender. Repeat on the driver side.
  3. Bumper fasteners. Remove the four 10mm bolts under the bumper, the four into the core support and the two plastic clips by the headlights, then unplug the connectors above them.
  4. Bumper off. Pull outward at a corner with a helper and set the bumper on a blanket.
  5. Grille shutters. Remove the six 10mm shutter bolts, unplug and lift the shutters out, pull the nut clips (not reused), then pry off the trim and linkage bar to free the motor and its wiring.
  6. Free the motor. Pry off the center trim, unclip the motor, remove the bottom-left blade to reach its plug and cut the zip-tie clips off the wiring.

Stuck on a step? Ask our install experts

Specifications

BrandRigid Industries
Part Number46810
ProductVehicle-specific light kit
Voltage9V-36V DC
BeamAmber
Lumens18,810 raw (Rigid)
Watts160
Amp draw11.4 at 14V
SAE compliantNo (off-road use only)
ColorAmber
Weight26 lbs
UPC849774037610

More media

1 video

Warranty, shipping & returns

  • Warranty

    Rigid backs this light with its Limited Lifetime Warranty, which protects the original buyer against manufacturing defects as long as you can show proof of purchase.
    • Rigid sets time limits inside that cover: 5 years when the light is used in commercial, marine or industrial work (heavy-duty settings such as agriculture, mining or manufacturing), and 1 year on powder coating and lenses.
    • If Rigid confirms a defect, it replaces the item, refunds it or issues store credit, at its discretion. Rigid may ask for photos or video before it approves a claim.
    • Not covered: normal maintenance, service or adjustment; opening the light or breaking its water-tight seal, such as taking off the bezel or its screws (unless the light is built for lens swaps); accidents, alteration, misuse, neglect, abuse, vandalism or physical damage; repairs or changes made by anyone other than Rigid; improper installation, including electrical damage from it, or not following Rigid's instructions; use that goes against Rigid's warnings, labels or documentation; use with equipment or parts Rigid didn't make; fire, flood, lightning and other natural events; harsh road hazards, excessive heat and wear beyond normal; and damage caused by the delivering carrier.
    • Lens care: the polycarbonate lens can be damaged by ammonia-based cleaners and, over time, by road salt, and Rigid does not cover either. Clean it with mild soap and water or mineral spirits, rinse salt off with fresh water, and skip automatic car washes, whose soap may contain ammonia.
    • Rigid gives no other express or implied warranty, including merchantability or fitness for a particular purpose, and is not liable for indirect, special, incidental or consequential damages. Rigid also states that some of its lights are built and sold only for off-road driving.
    • Rigid's warranty does not apply to products bought from unauthorized sellers on third-party marketplaces. To make a claim, contact us with your order number and photos of the problem, and we'll take it through Rigid's process with you.

  • Free shipping

    Ships free to the lower 48 states, with no minimum order.
    • Most orders arrive within 1-5 business days.
    • We email your tracking number as soon as it ships.

  • Inspect on delivery

    Check the lens of each light for cracks and make sure the brackets, hardware and harness named on the listing are in the carton. Check it as soon as it arrives.
    • Look for crushed ends, punctures or tears in the carton.
    • If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
    • Open the box and check the parts against the parts list before you install.
    • Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.

  • 30-day returns

    Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.
    • Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
    • Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
    • Changed your mind: you pay return shipping. No restocking fee.
    • Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
Questions about fit or install?Chat with our team, Mon to Fri, 9am to 5pm EST.Ask a question
