Roll-N-Lock Cargo Manager Truck Bed Divider for 2004-2007 Chevrolet Silverado 1500 / GMC Sierra 1500 (5'8" Bed)
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck

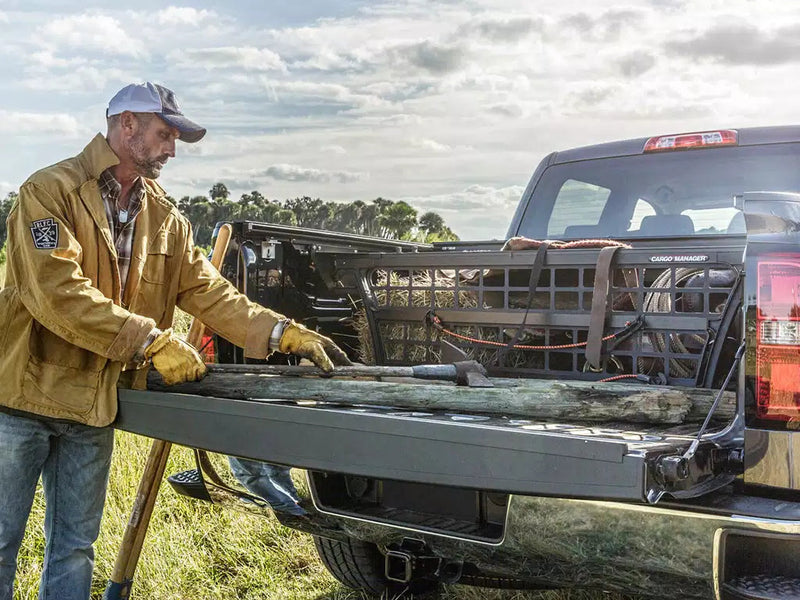

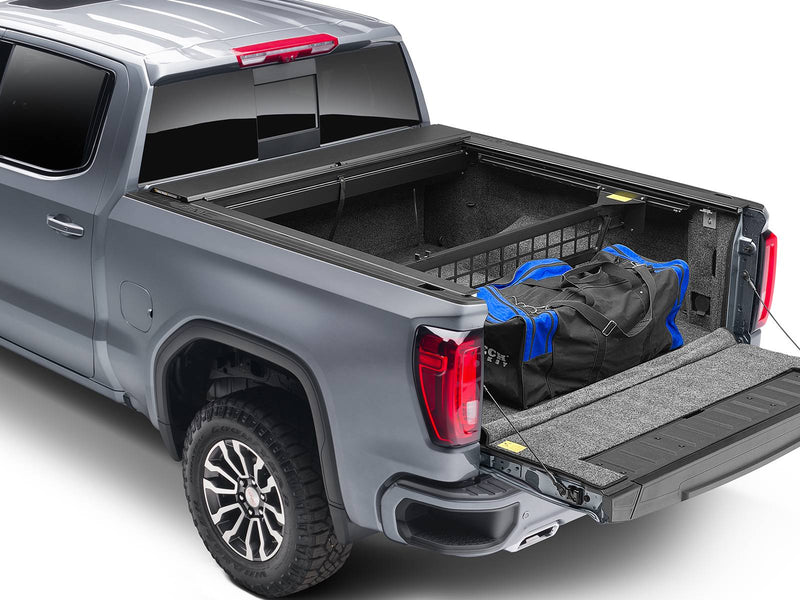

See it on a truck
Slides the length of the bed
Rotates up for long loads
Fits into your cover's rails
Features
- Slides the length of the bed: The divider rolls on wheels in its own pair of tracks, which fasten to your Roll-N-Lock cover's side rails. Squeeze the two control levers on the driver side and slide it to wherever the load sits.
- Locks every 3": Let go of the levers and it snaps into the next stop. Roll-N-Lock puts a stop every 3" along the rails, so the divider can sit close against the load instead of leaving a gap for it to slide in.
- Rotates up for long loads: Squeeze the levers and swing the divider up to horizontal, out of the way, so ladders, lumber or PVC pipe can ride underneath. Need the whole bed? Roll-N-Lock says it comes out in seconds.
- Full-width grid panel: The gate is an open grid panel spanning the bed between the tracks, with lateral tie-offs for strapping coolers, toolboxes and smaller cargo so they stop sliding around. It is built for lighter cargo.
- Works with the cover closed: It rides inside the bed, below the cover, in tracks fixed to your cover's rails. Swing it up onto its track hooks and you can close the Roll-N-Lock cover with long cargo riding underneath.
- Fits into your cover's rails: It needs a Roll-N-Lock retractable cover already on the truck: its two tracks screw to the cover's side rails with the supplied screws and cargo nuts, and nothing is drilled into the truck. It is not a standalone product.
Description & Fitment
The Roll-N-Lock Cargo Manager (part CM270) is a sliding bed divider for the 5'8" bed on the 2004-2006 Chevrolet Silverado 1500 and GMC Sierra 1500 and the 2007 Silverado 1500 Classic and Sierra 1500 Classic. It mounts in the rails of the matching Roll-N-Lock cover, such as LG270M, so that cover must be installed first. Its full-width grid panel slides the length of the bed and locks every 3" to keep lighter cargo from shifting. It swings up for long loads such as ladders or lumber, works with the cover closed and carries Roll-N-Lock's 3-year limited warranty.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2004-2006 | Silverado 1500 | 5'8" (68.4") | Requires a Roll-N-Lock retractable cover; not a standalone product |
| 2007 | Silverado 1500 Classic | 5'8" (68.4") | Requires a Roll-N-Lock retractable cover; not a standalone product |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2004-2006 | Sierra 1500 | 5'8" (68.4") | Requires a Roll-N-Lock retractable cover; not a standalone product |
| 2007 | Sierra 1500 Classic | 5'8" (68.4") | Requires a Roll-N-Lock retractable cover; not a standalone product |
Check your bed: measure along the bed rail from the bulkhead to the inside of the closed tailgate. This part is for the 5'8" bed on the 2004-2006 Chevy Silverado 1500 / GMC Sierra 1500 and 2007 Chevy Silverado 1500 Classic / GMC Sierra 1500 Classic. Measured, that box is about 68.4" long. It also needs the Roll-N-Lock retractable cover for this truck already installed.
Not for: the 6'6" bed (CM206) and the 8' bed (CM218). 2007-2013 trucks with the same bed take CM271.
About Roll-N-Lock
Roll-N-Lock makes retractable tonneau covers that roll into a canister at the front of the bed, plus the Cargo Manager bed divider that rides in their tracks. Every cover is built for one truck and one bed length.
The range covers the manual M-Series (vinyl over aluminum slats) and A-Series, the electric E-Series (5-year warranty), XT versions with T-slot rails for crossbars and racks, and the Cargo Manager. The M-Series and A-Series carry a 3-year limited warranty. The Cargo Manager is the sliding divider that rides in those covers' tracks.
Authorized Roll-N-Lock dealer. Prestige Truck is an authorized Roll-N-Lock dealer, so what we sell is new and genuine Roll-N-Lock. Roll-N-Lock's warranty covers products "purchased directly or from an authorized reseller," and Roll-N-Lock "does not warrant any products purchased from unauthorized resellers." Your Prestige Truck order receipt is your proof of purchase.
Frequently Asked Questions
Will this fit my 2004-2006 Silverado/Sierra 1500 or 2007 Silverado/Sierra 1500 Classic?
Yes, if it has the 5'8" bed, about 68.4" long. Measure along the bed rail from the bulkhead to the inside of the closed tailgate. It is not for the 6'6" bed (CM206) or 8' bed (CM218). You also need the Roll-N-Lock retractable cover for this truck installed first. If you're unsure, send us your VIN and we'll confirm.
My truck is right at a model-year change. Which one do I need?
This part covers the 2004-2006 Chevy Silverado 1500 / GMC Sierra 1500 and 2007 Chevy Silverado 1500 Classic / GMC Sierra 1500 Classic. 2007-2013 trucks with the same bed take CM271. Go by your truck's model year, or send us your VIN.
Do I need a Roll-N-Lock cover to use this?
Yes. The Cargo Manager is an add-on for a Roll-N-Lock retractable tonneau cover: its tracks fasten to the cover's side rails, so without one of those covers on the truck there is nothing to mount it to. If you don't have the cover yet, buy the one for your truck first.
Can I take it out when I need the whole bed?
Yes. Roll-N-Lock says the divider comes out in seconds, so you can lift it out when you need the full bed for a big load. Its tracks are screwed to the cover's side rails, so they stay on the truck, ready for the divider to go back in.
How do I move it, and does it lock in place?
Squeeze the two control levers on the driver side, slide the divider along its tracks, and let go. It latches into the next stop, and Roll-N-Lock spaces the stops every 3" along the rails. Squeezing the levers also lets you rotate it up out of the way for long loads.
Can it hold back heavy cargo?
It's built for lighter cargo. Roll-N-Lock describes it as a lightweight divider for keeping lighter loads from shifting, with tie-offs for strapping things like coolers and toolboxes to it. Strap heavy loads to the truck's own tie-downs.
Installation
- Phillips screwdriver plus 7/16"
- 3/8" wrenches
- 3/16" Allen wrench is in the box
Roll-N-Lock's sheet for this truck is a picture guide with no written steps, so we don't summarize it here. Follow the sheet (below) step by step, or ask us if anything is unclear.
Stuck on a step?
- Cargo Manager gate
- Cargo Manager tracks (2)
- Left and right tram plates
- Gusset bracket
- Tram plate stems (2)
- Delrin wheel and shoulder bolt
- Truss head screws, cargo nuts, washers and nuts
Specifications
| Brand | Roll-N-Lock |
|---|---|
| Part Number | ROLCM270 |
| Product | Cargo Manager bed divider |
| Requires | A Roll-N-Lock retractable tonneau cover (not a standalone product) |
| Mounting | Two tracks fasten to the cover's side rails |
| Adjustment | Two control levers on the driver side |
| Lock Positions | A stop every 3" along the rails |
| Long Loads | Rotates up to horizontal, or lifts out |
| Panel | Grid gate with lateral tie-offs |
| Intended Use | Lighter cargo |
| Bed Length | 5'8" (68.4") |
