TeraFlex 12.25" Front Sway Bar Quick Disconnect Kit (6" Lift) for 2007-2018 Jeep Wrangler JK
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Long links for 6": 12.25" links sized for a JK with 6" of lift.
- Quick trail disconnect: Slide the lower ends off and swing the links up.
- Polyurethane shoulder ball: TeraFlex says the upper end is quiet and upkeep-free.
- Stainless lower pin: The lower ball rides on a stainless-steel pin.
- Full disconnect hardware: Retainer brackets, parking studs and bow tie pins.
- Firm on the highway: Connected links take sway bar load without play.
Description & Fitment

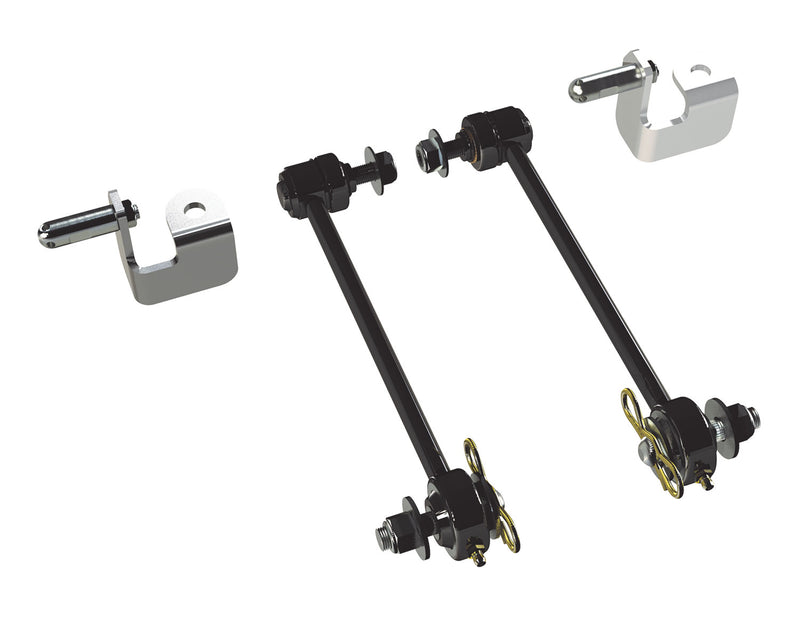

The TeraFlex 12.25" Front Sway Bar Quick Disconnect Kit is sized for a 2007-2018 Jeep Wrangler JK or JK Unlimited with a 6" lift. Its upper link ends use an OEM-grade polyurethane shoulder ball in its socket, which TeraFlex says stays quiet and needs no maintenance, and each lower end has a big polyurethane ball riding on a stainless-steel pin. Off-road, the links unhook in moments and fold up clear, so the axle can flex freely. The TeraFlex parts list includes the 6" links, retainer brackets, axle-side and upper parking studs, bow tie pins, hardware and grease zerks.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2018 | Wrangler | JK; 6" lift |
Check your Jeep: Wrangler JK or JK Unlimited 2007-2018 with a 6" lift.
Not for: 0"-4" lifts (see 1753000); JL/JT, TJ.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
What lift is it for?
TeraFlex sizes it for JK models with a 6" lift. For 3"-4" or 0"-2.5" see the 1753000 kit.
Can I buy just one link?
TeraFlex sells the 12.25" link alone as a replacement (1753020); this kit has both sides plus the disconnect hardware.
How long does it take to fit?
TeraFlex estimates about 1 hour.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right part before I order?
Yes. Send us your VIN or year, model and trim, plus your lift height and sway bar, and we'll check it against TeraFlex's fitment information before it ships.
How is sway bar link length measured?
TeraFlex measures its sway bar link lengths center-to-center, from the middle of one mounting point to the middle of the other.
Installation
- Basic mechanic's tool set
- Thread locking compound
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Remove the factory sway bar link (18mm), keeping the nut from its upper stud for later.
- Insert the lower stud into the axle bracket with the washer and nylock nut, taking care not to overtighten the soft stainless threads.
- Fit the link's upper stud into the factory sway bar with its washer and nylock nut, holding the stud with a 6mm Allen while tightening with an 18mm, and torque to 75 ft-lbs.
- Slide the lower end of the link onto the axle stud (a little grease helps; it should be a tight fit), add the washer and insert the bow tie pin.
- Remove the front body mount nut, slide on the retaining bracket and secure it with the saved factory nut, then thread the parking stud into the bracket with thread lock and the jam nut; torque the body mount to 80 ft-lbs and the jam nut to 75 ft-lbs.
- Repeat on the other side.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 1756000 |
| Product Type | Front sway bar quick disconnect kit |
| Link Length | 12.25" (center-to-center) |
| Lift Range | 6" |
| Position | Front |
| UPC | 843885023487 |
Warranty, shipping & returns
-
Warranty
TeraFlex covers its sway bars and links for life against defects in materials and workmanship. Its warranty list names no term for sway bar mounts or the universal tube disconnect plate, so contact us before ordering one of those and we will confirm that coverage.- TeraFlex extends its limited warranty only to the consumer who first bought the product, and only on the vehicle the part was first installed on. It does not pass to a later owner.
- Coverage starts on the purchase date and does not restart if a part is repaired or replaced.
- For a covered defect, TeraFlex will either repair or replace the product (or the faulty part) free of charge or refund the purchase price, at its discretion, and it pays the freight to send a repaired or replacement part back to you.
- Not covered: damage from transportation, storage, improper use, skipped instructions or preventive maintenance, modifications, unauthorized repair, normal wear and tear, product finish, improper installation or maintenance, racing or competition, or accidents, abuse and neglect. Improper installation, poor maintenance, racing or competition use, and neglect or abuse void the warranty.
- Paint and powder coat finishes carry 90 days of defect coverage only, not wear from use.
- Claims: contact us first. Keep your proof of purchase or original invoice; removing the part from the vehicle and the inbound shipping are the owner's responsibility.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Match every bar, arm, link, bushing, air line and hardware bag to the TeraFlex part list before you start, and contact us right away about anything missing or damaged. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
