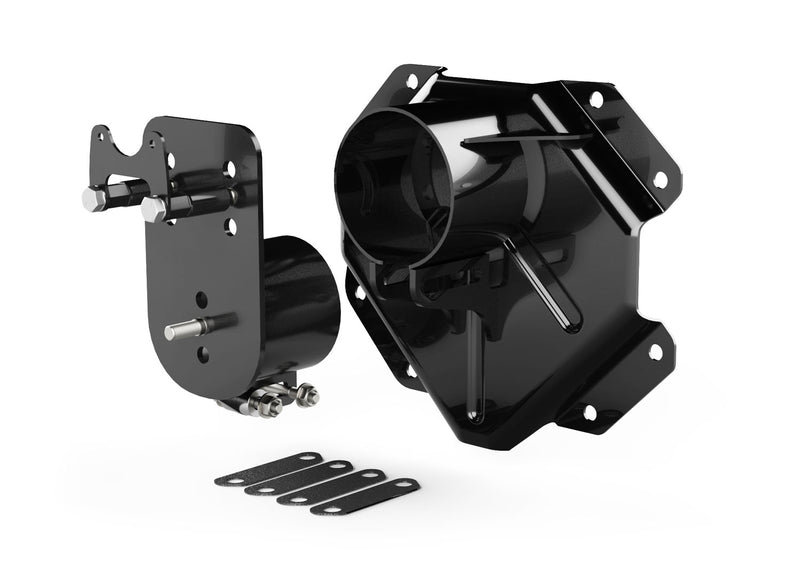

TeraFlex Alpha HD adjustable spare tire mount kit with plate spacers on a white background
TeraFlex alpha tire carrier product photo

TeraFlex Alpha HD Adjustable Spare Tire Mount Kit, 5x5.5" for 2007-2018 Jeep Wrangler JK

$301.99
FREE SHIPPINGNo sales tax Only 1 leftIn stock now  Estimated delivery
Verify fitment with your vehicle
GO
Clear
  • Guaranteed FitmentTeam-confirmed fit or money back
  • No Sales TaxZero sales tax on every order
  • 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Prestige Truck customer support

Questions or a custom quote?

Mon to Fri, 9am to 5pm EST

+1 (470) 823-2453 Email Us

Features

  • 5x5.5" bolt pattern: For a spare wheel drilled 5x5.5".
  • Fits big spares: 35" alone; 37" with the Alpha HD hinged carrier.
  • Two-way adjustment: Set the height and the fore/aft position.
  • Welded, gusseted steel: CNC laser cut plate, welded for strength.
  • Tested finish: UV-resistant powder coat; TeraFlex salt spray tested.
  • Hand-tool install: No drilling; uses factory mounting locations.

Description & Fitment

TeraFlex's Alpha HD Adjustable Spare Tire Mount in the 5x5.5" bolt pattern secures a full-size spare on a 2007-2018 Jeep Wrangler JK or JK Unlimited. It handles a tire up to 35" by itself, or up to 37" once installed with the Alpha HD Hinged Spare Tire Carrier (sold separately). The gusseted, laser cut steel mount can be moved up or down and fore or aft to set the tire where you want it.

Fitment & Compatibility

Jeep
Years Model Bed Notes
2007-2018 Wrangler JK; Requires Alpha HD Hinged Spare Tire Carrier; 5x5.5" bolt pattern

Check your Jeep: 2007-2018 JK or JK Unlimited with a 5x5.5" spare wheel; Alpha HD Hinged Spare Tire Carrier recommended (sold separately).

Not for: 5x5" or 8x6.5" spare wheels.

About TeraFlex

TERAFLEX.

TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.

The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.

Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.

Frequently Asked Questions

Which wheels use 5x5.5"?

Check your spare wheel's bolt pattern before ordering. TeraFlex makes this mount in 5x5" (4838130), 5x5.5" (this kit) and 8x6.5" (4838188).

Does it need the Alpha HD carrier?

TeraFlex designed it to install with the Alpha HD Hinged Spare Tire Carrier (4838100, sold separately), though it says the mount can be used alone.

What wheel backspacing does it need?

5" or less on an aftermarket wheel, or the TeraFlex spacer kit 1055005 for stock wheels.

How quickly does it ship?

Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.

Can you confirm it's the right part before I order?

Yes. Send us your VIN or year, model and trim, plus your bumper, spare tire size and any carrier you already run, and we'll check it against TeraFlex's fitment information before it ships.

Do I need to read the instructions first?

Yes. TeraFlex publishes an instruction sheet for each kit; read it through before you start and check that every listed part is in the box.

Installation

Install time 1 hour
TypeBolt-on
What's involvedRemove the spare tire, third brake light and factory tire mount, bolt on the new mount base and press in the wheel studs for your tire size. Set the plate position against the hinge, then cut the third brake light to fit its bracket and remount the spare.
Tools
  • Lug wrench
  • 13 mm socket
  • 16 mm socket
  • Ratchet
  • Blue thread locking compound
  • Rest on TeraFlex's tool list

Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.

  1. Remove the spare tire and any factory spare tire bumpers, then take out the four T20 Torx screws, unplug the third brake light and remove the light assembly.
  2. Remove the factory tire mount (eight 13mm bolts). For a stand-alone install, put thread locker on the original bolts, fit the new mount base and torque the eight bolts to 20 N-m (15 ft-lbs).
  3. If fitting with the cast hinge kit (#82214770), place gaskets on both sides of the hinge, apply thread locker to the original bolts and torque all eight to 20 N-m (15 ft-lbs).
  4. Press the included wheel studs into the hole set for your tire size: three studs for 5-lug, four for 8-lug.
  5. Hang the spare on the mount plate with one lug nut, slide it into the base, push the tire firmly against the hinge and mark where the mount meets the base; take it off, refit the plate 1/8"-3/16" (3-4 mm) past the mark, fit the pinch bolts and spacers (at least one bolt through the slot) and torque to 38 ft-lbs (51 N-m).
  6. Cut the factory third brake light along the black line and fix it to the bracket with two original T20 screws; mount the spare with the two custom lug nuts plus the original lug(s) at 65 ft-lbs (87 N-m), route the light wiring through the wheel, plug it in and torque the light bolts to 37 ft-lbs (50 N-m).

Stuck on a step? Ask our install experts

Specifications

BrandTeraFlex
Part Number4838235
Product TypeAdjustable spare tire mount
Bolt Pattern5x5.5"
Max Tire35" alone; 37" with Alpha HD Hinged Carrier
ConstructionCNC laser cut, welded, gusseted steel
Wheel Requirement5" backspacing or less, or spacer kit 1055005
UPC843885033004
