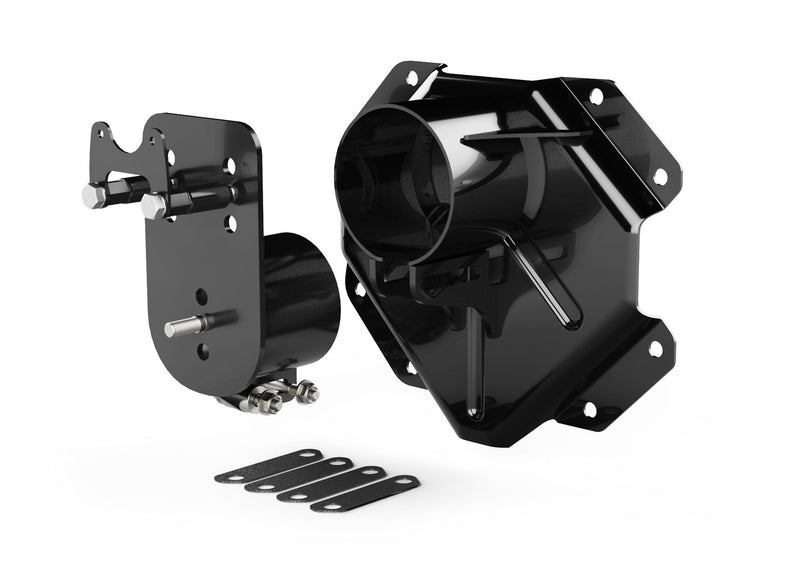

TeraFlex Alpha HD adjustable spare tire mount kit with plate spacers on a white background
TeraFlex alpha tire carrier product photo

TeraFlex Alpha HD Adjustable Spare Tire Mount Kit, 8x6.5" for 2007-2018 Jeep Wrangler JK

$359.98
FREE SHIPPINGNo sales tax Only 1 leftIn stock now  Estimated delivery
Verify fitment with your vehicle
GO
Clear
  • Guaranteed FitmentTeam-confirmed fit or money back
  • No Sales TaxZero sales tax on every order
  • 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Prestige Truck customer support

Questions or a custom quote?

Mon to Fri, 9am to 5pm EST

+1 (470) 823-2453 Email Us

Features

  • 8x6.5" bolt pattern: Built for an 8-lug spare wheel with this pattern.
  • Up to 37" on Alpha: Or up to 35" when used without the carrier.
  • Adjustable position: Vertical plus fore and aft adjustment.
  • Laser cut steel: Welded and heavily gusseted for strength.
  • OEM look: Factory form-fitting shape and powder coat finish.
  • Factory mount points: Bolts on with hand tools, no drilling.

Description & Fitment

For a 2007-2018 Jeep Wrangler JK or JK Unlimited whose spare runs an 8x6.5" bolt pattern, this TeraFlex Alpha HD Adjustable Spare Tire Mount bolts the tire to the tailgate and, when paired with the Alpha HD Hinged Spare Tire Carrier (sold separately), carries up to a 37" tire. Used by itself TeraFlex rates it to 35". Formed from CNC laser cut, welded steel with heavy gussets, it adjusts for height and fore/aft position.

Fitment & Compatibility

Jeep
Years Model Bed Notes
2007-2018 Wrangler JK; Requires Alpha HD Hinged Spare Tire Carrier; 8x6.5" bolt pattern

Check your Jeep: 2007-2018 JK or JK Unlimited with an 8x6.5" spare wheel; Alpha HD Hinged Spare Tire Carrier recommended (sold separately).

Not for: 5-lug spare wheels (see 4838130 / 4838235).

About TeraFlex

TERAFLEX.

TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.

The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.

Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.

Frequently Asked Questions

Is this the right mount for an 8-lug spare?

Yes, if the spare wheel uses an 8x6.5" bolt pattern. For 5-lug wheels TeraFlex offers 5x5" (4838130) and 5x5.5" (4838235) versions.

Is the hinged carrier included?

No. The Alpha HD Hinged Spare Tire Carrier (4838100) is sold separately; TeraFlex designed the mount to install with it.

Are there wheel backspacing limits?

TeraFlex requires 5" backspacing or less on an aftermarket wheel, or its spacer kit 1055005 for stock wheels.

How quickly does it ship?

Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.

Can you confirm it's the right part before I order?

Yes. Send us your VIN or year, model and trim, plus your bumper, spare tire size and any carrier you already run, and we'll check it against TeraFlex's fitment information before it ships.

Do I need to read the instructions first?

Yes. TeraFlex publishes an instruction sheet for each kit; read it through before you start and check that every listed part is in the box.

Installation

Install time 1 hour
TypeBolt-on
What's involvedRemove the spare tire, third brake light and factory tire mount, bolt on the new mount base and press in the wheel studs for your tire size. Set the plate position against the hinge, then cut the third brake light to fit its bracket and remount the spare.
Tools
  • Lug wrench
  • 13 mm socket
  • 16 mm socket
  • Ratchet
  • Blue thread locking compound
  • Rest on TeraFlex's tool list

Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.

  1. Remove the spare tire and any factory spare tire bumpers, then take out the four T20 Torx screws, unplug the third brake light and remove the light assembly.
  2. Remove the factory tire mount (eight 13mm bolts). For a stand-alone install, put thread locker on the original bolts, fit the new mount base and torque the eight bolts to 20 N-m (15 ft-lbs).
  3. If fitting with the cast hinge kit (#82214770), place gaskets on both sides of the hinge, apply thread locker to the original bolts and torque all eight to 20 N-m (15 ft-lbs).
  4. Press the included wheel studs into the hole set for your tire size: three studs for 5-lug, four for 8-lug.
  5. Hang the spare on the mount plate with one lug nut, slide it into the base, push the tire firmly against the hinge and mark where the mount meets the base; take it off, refit the plate 1/8"-3/16" (3-4 mm) past the mark, fit the pinch bolts and spacers (at least one bolt through the slot) and torque to 38 ft-lbs (51 N-m).
  6. Cut the factory third brake light along the black line and fix it to the bracket with two original T20 screws; mount the spare with the two custom lug nuts plus the original lug(s) at 65 ft-lbs (87 N-m), route the light wiring through the wheel, plug it in and torque the light bolts to 37 ft-lbs (50 N-m).

Stuck on a step? Ask our install experts

Specifications

BrandTeraFlex
Part Number4838188
Product TypeAdjustable spare tire mount
Bolt Pattern8x6.5"
Max Tire35" alone; 37" with Alpha HD Hinged Carrier
ConstructionCNC laser cut, welded, gusseted steel
Wheel Requirement5" backspacing or less, or spacer kit 1055005
UPC843885038498

Warranty, shipping & returns

  • Warranty

    TeraFlex's warranty list covers its Alpha carrier and Alpha components, the Alpha HD adjustable spare tire mounts included for life against defects in materials and workmanship.
    • TeraFlex extends its limited warranty only to the consumer who first bought the product, and only on the vehicle the part was first installed on. It does not pass to a later owner.
    • Coverage starts on the purchase date and does not restart if a part is repaired or replaced.
    • For a covered defect, TeraFlex will either repair or replace the product (or the faulty part) free of charge or refund the purchase price, at its discretion, and it pays the freight to send a repaired or replacement part back to you.
    • Not covered: damage from transportation, storage, improper use, skipped instructions or preventive maintenance, modifications, unauthorized repair, normal wear and tear, product finish, improper installation or maintenance, racing or competition, or accidents, abuse and neglect. Improper installation, poor maintenance, racing or competition use, and neglect or abuse void the warranty.
    • Paint and powder coat finishes carry 90 days of defect coverage only, not wear from use.
    • Claims: contact us first. Keep your proof of purchase or original invoice; removing the part from the vehicle and the inbound shipping are the owner's responsibility.

  • Free shipping

    Ships free to the lower 48 states, with no minimum order.
    • Order by 5 PM ET on a business day and it starts processing the same day.
    • Most orders arrive within 1-5 business days.
    • We email your tracking number as soon as it ships.

  • Inspect on delivery

    Check the brackets, castings and powder-coated surfaces for shipping damage and match every part and hardware bag to the parts list in the TeraFlex instructions before you start. Contact us right away about anything missing or damaged. Check it as soon as it arrives.
    • Look for crushed ends, punctures or tears in the carton.
    • If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
    • Open the box and check the parts against the parts list before you install.
    • Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.

  • 30-day returns

    Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.
    • Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
    • Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
    • Changed your mind: you pay return shipping. No restocking fee.
    • Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
