TeraFlex ARB Air Compressor Under Seat Mount Kit (4-Door) for 2007-2018 Jeep Wrangler JK Unlimited
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Under the passenger seat: Mounts the ARB Twin compressor inside the cab.
- Sheltered from the elements: Inside the cab, protected from the weather.
- Room for the solenoids: Manifold and locker solenoids mount alongside.
- Vent hose kit included: Routes compressor fumes outside the Jeep.
- Fits smaller ARB units: Also has provisions for smaller ARB compressors.
- About one hour: TeraFlex's labor estimate for the job.
Description & Fitment

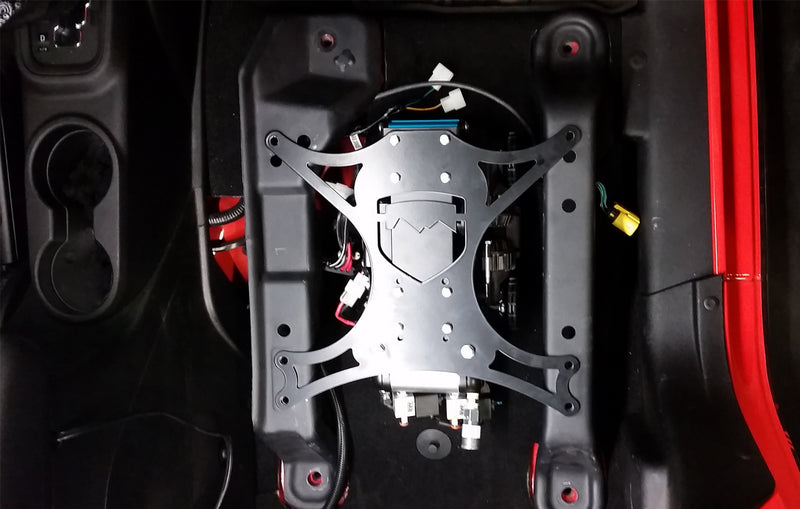

This TeraFlex kit tucks an ARB On-Board High Performance 12-Volt Twin Air Compressor under the front passenger seat of a 2007-2018 Jeep Wrangler JK Unlimited 4-door, out of the weather. On 2007 models it fits under the driver seat only, and on later years it can go under the driver seat with some modification. The manifold and locker solenoids mount next to the compressor for simple hose routing, and a vent exhaust hose kit routes fumes outside the vehicle. The compressor is not included; TeraFlex lists about an hour of labor.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2018 | Wrangler | JK; 4-door only; 2007 models: driver seat only |
Check your Jeep: 2007-2018 Wrangler JK Unlimited 4-door with an ARB Twin (or smaller ARB) on-board compressor.
Not for: 2-door JKs; JL Wranglers. Under-hood option for small ARB units on 2012-2018 JKs: 1184220.
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Does it fit a 2-door JK?
No. TeraFlex lists this kit for the 4-door JK Wrangler Unlimited.
Can it go under the driver seat?
Yes, with some modification, per TeraFlex. On 2007 models it fits under the driver seat only. TeraFlex's sheet notes that driver-side mounting may require lengthening the ARB wiring harness.
Which compressors fit?
It is designed for the ARB On-Board High Performance 12-Volt Twin compressor and has mounting provisions for smaller ARB compressors. The compressor is sold separately.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it's the right part before I order?
Yes. Send us your VIN or year, model and doors, plus the ARB compressor model you run, and we'll check it against TeraFlex's fitment information before it ships.
Do I need to read the instructions first?
Yes. TeraFlex asks you to read its instruction sheet fully before you start, check the parts list against the box, and judge whether you have the experience to do the work yourself.
Installation
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Park on level ground with the parking brake set (taking off the passenger doors gives better access), remove the seat belt bolt at the side of the seat (T45 Torx) and unclip any wiring between the vehicle and the seat.
- Remove the four bolts holding the seat frame to the floor (18mm) and lift out the seat, then remove the six nuts holding the seat to the riser (13mm) and the wire retainer bracket (T-30 Torx; discard it).
- Remove the mesh mufflers from the solenoids and fit the barbed fittings; mount the manifold and then the compressor to the bracket (compressor bolts 92 in-lbs / 10 Nm, manifold bolts 18 ft-lbs / 25 Nm), run the hose from the compressor to the manifold and install the solenoids.
- Drill a 3/8" hole through the grommet under the seat and pass the locker hose through (for two lockers, use the Y connector and cut the hose as needed).
- Set the bracket on the seat studs with the compressor facing the floor, fit the seat riser brackets over it (nuts 21 ft-lbs / 28 Nm) and run the wiring harness (right-side mounting uses a firewall hole near the right inner fender with no harness change; left side needs the ARB harness lengthened).
- Reinstall the seat without pinching any wires (bolts 55 ft-lbs / 75 Nm), connect the wiring harness, exhaust and air lines to the compressor, reconnect the seat pressure sensor and factory harness fastener, and refit the seat belt (30 ft-lbs / 40 Nm).
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 1184120 |
| Product Type | Air compressor mount kit |
| Compressor | ARB On-Board High Performance 12-Volt Twin (not included); provisions for smaller ARB units |
| Location | Under front passenger seat (2007: driver seat only) |

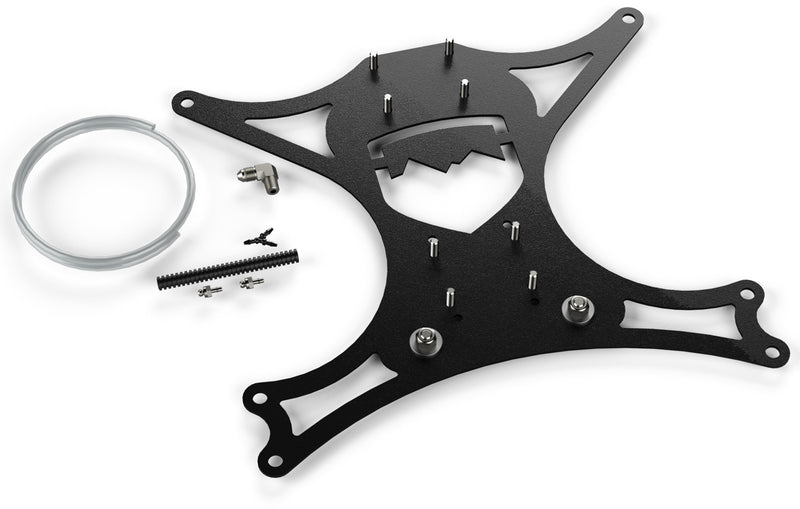

| Includes | Mount bracket, vent exhaust hose kit |
| Doors | 4-door (JK Unlimited) |
| UPC | 843885034155 |
