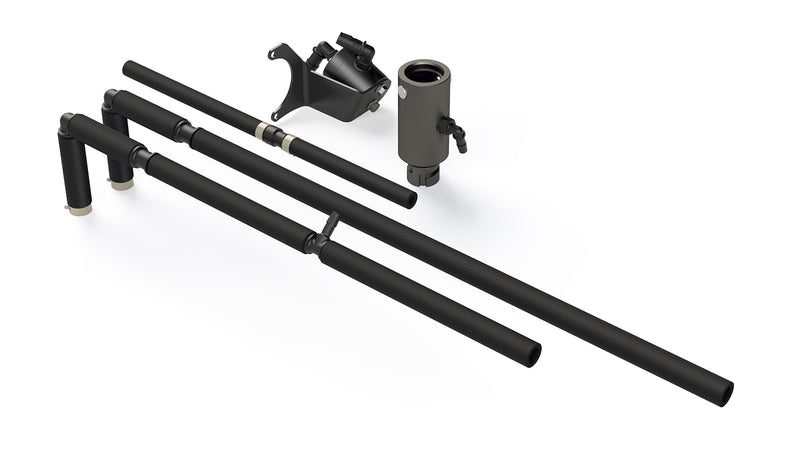

TeraFlex Crankcase Vent System Kit for 2012-2018 Jeep Wrangler JK 3.6L
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Stops oil ingestion: Keeps oil out of the intake on extreme inclines and declines.
- Second PCV valve: Added at the front of the engine via oil fill cap adapter and T-fitting.
- Air only, any angle: Only air enters the vent system regardless of engine orientation.
- Protects the engine: Helps prevent oil smoke and hydrolock damage, per TeraFlex.
- EPA basis noted: TeraFlex says it meets EPA anti-tampering reasonable-basis criteria.
- 3.6L JK only: Not for 3.8L JKs; JL/JT 3.6L use 4839200.
Description & Fitment
On steep climbs and descents, oil pools at one end of the engine, and the factory PCV system can let engine vacuum pull it into the intake, causing oil smoke and, at worst, hydrolock or internal damage. TeraFlex's Crankcase Vent System Kit for the 3.6L 2012-2018 Jeep Wrangler JK and JK Unlimited adds a second PCV valve at the front of the engine through an oil fill cap adapter and T-fitting, so only air enters the vent system whatever the engine's angle. It does not fit 3.8L JKs.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2012-2018 | Wrangler | JK; 3.6L only; Not for 3.8L |
Check your Jeep: Wrangler JK or JK Unlimited 2012-2018 with the 3.6L V6.
Not for: 3.8L JK (2007-2011); JL/JT (4839200); CARB EO states.
Not for: 3.8L V6 JK; JL/JT 3.6L (see 4839200)
About TeraFlex
TeraFlex describes itself as a Jeep company at heart, started and staffed by people who drive them. It designs, engineers and builds suspension systems, shocks, axles and performance parts, with the Wrangler and Gladiator at the center of the range.
The company traces its roots to the 1950s and MEPCO (Military Equipment Parts Company), an early supplier of Jeep parts. TeraFlex Manufacturing followed in 1996 to build heavy-duty suspension for the TJ Wrangler, and today's catalog runs from full lift systems and the Falcon shock line to axles, steering and armor.
Authorized TeraFlex dealer. Prestige Truck is an authorized TeraFlex dealer, so what we sell is new and genuine TeraFlex. In TeraFlex's words, its limited warranty extends "only to the consumer who originally purchased the product," so keep your receipt with your build records.
Frequently Asked Questions
Is it legal in California?
TeraFlex says it can be sold in U.S. states that do not require a CARB Executive Order for add-on parts; it is not for states that do.
Will it fit my 2007-2011 JK?
No. Those JKs have the 3.8L V6, which TeraFlex lists as not compatible.
Does it fit a JL or Gladiator?
No. The JL/JT 3.6L version is a separate kit, 4839200.
What warranty does TeraFlex give?
TeraFlex's warranty list doesn't name a term for every accessory, so contact us before ordering and we'll confirm the coverage for this part. Paint and powder coat finishes are covered for 90 days against defects.
How quickly does it ship?
Shipping is free to the lower 48 states, and most orders arrive within 1-5 business days. We email your tracking number as soon as it ships.
Can you confirm it fits before I order?
Yes. Contact us with your VIN or year, model and trim, and we'll check it against TeraFlex's fitment information before it ships.
Installation
- Factory service manual
- General mechanics tools
Here's the short version. Follow TeraFlex's install sheet (below) for your Jeep's exact steps and torque values.
- Wrap the fitting threads with Teflon tape and fit the 5/16" barb 90-degree fitting to the oil fill cap adapter, the 1/2" barb 90-degree fitting to the ball check valve, and the O-ring onto the adapter, angling the fittings as shown.
- Mount the ball check valve on its bracket (100 in-lbs) and assemble the two hoses, fitting the PCV valve with its arrow pointing away from the short 5/16" hose and securing the hoses with clamps (p5).
- Remove the engine cover and the intake elbow (loosen the hose clamps, remove the 10mm bolts) and remove the plug under the intake elbow.
- Cut the factory hose 5 3/4" from the right side and remove that section, mount the ball check valve on the throttle body (5 ft-lbs), and remove the oil filler neck (8mm bolts; lift the tab with a screwdriver and twist).
- Install the oil fill cap adapter in place of the filler neck, then route and connect both new vacuum hoses under the throttle body and inside the factory hose (a little oil helps the hoses slide on, p8).
- Zip tie the hoses in place, tuck them under the throttle body, and reinstall the intake elbow and engine cover.
Stuck on a step?
Specifications
| Brand | TeraFlex |
|---|---|
| Part Number | 4839100 |
| Product Type | Crankcase vent system kit |
| Engine | 3.6L V6 (2012-2018 JK) |
| Emissions | Not for states that require a CARB EO |
| UPC | 843885057031 |
Warranty, shipping & returns
-
Warranty
TeraFlex's warranty list names no term for crankcase vent kits, so contact us before ordering and we will confirm the coverage.- TeraFlex extends its limited warranty only to the consumer who first bought the product, and only on the vehicle the part was first installed on. It does not pass to a later owner.
- Coverage starts on the purchase date and does not restart if a part is repaired or replaced.
- For a covered defect, TeraFlex will either repair or replace the product (or the faulty part) free of charge or refund the purchase price, at its discretion, and it pays the freight to send a repaired or replacement part back to you.
- Not covered: damage from transportation, storage, improper use, skipped instructions or preventive maintenance, modifications, unauthorized repair, normal wear and tear, product finish, improper installation or maintenance, racing or competition, or accidents, abuse and neglect. Improper installation, poor maintenance, racing or competition use, and neglect or abuse void the warranty.
- Paint and powder coat finishes carry 90 days of defect coverage only, not wear from use.
- Claims: contact us first. Keep your proof of purchase or original invoice; removing the part from the vehicle and the inbound shipping are the owner's responsibility.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Open the box as soon as it arrives. Match every part and hardware bag to the listing, check finishes for shipping damage, and contact us right away about anything missing or damaged. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
